Orsi 3-Pt Hitch Mulcher | Working Width 60" To 78" inches | Horsepower 100-110 HP | For Tractors

Product Description

Orsi 3-Pt Hitch Mulcher | Working Width 60" To 78" inches | Horsepower 100-110 HP | For Tractors

DESCRIPTION

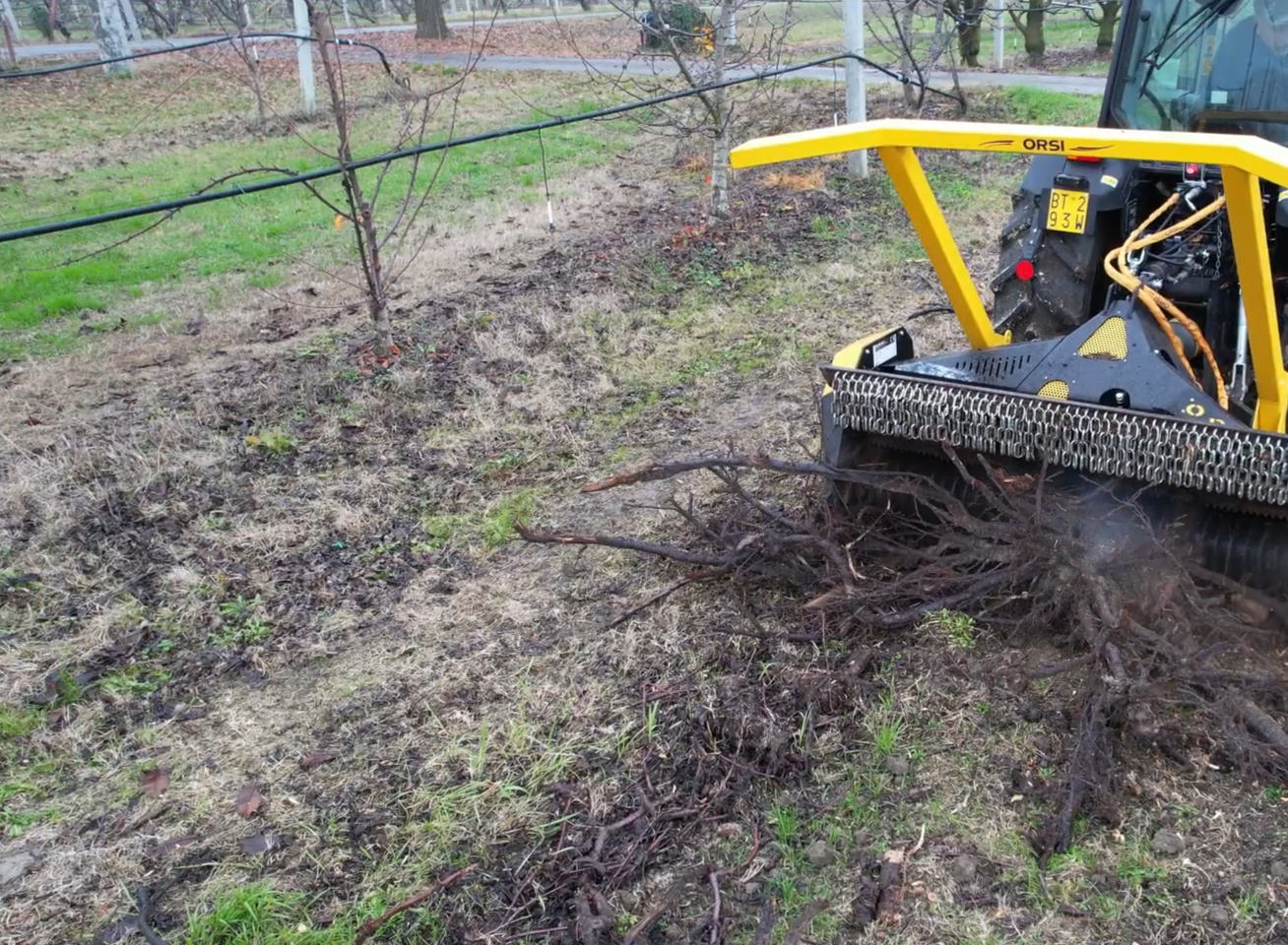

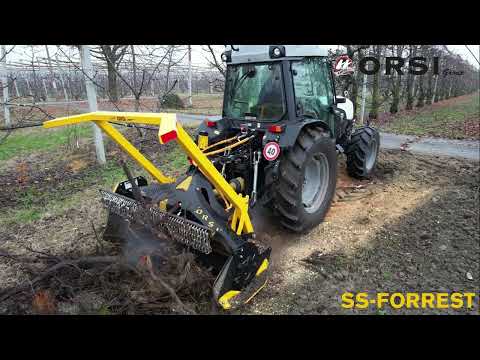

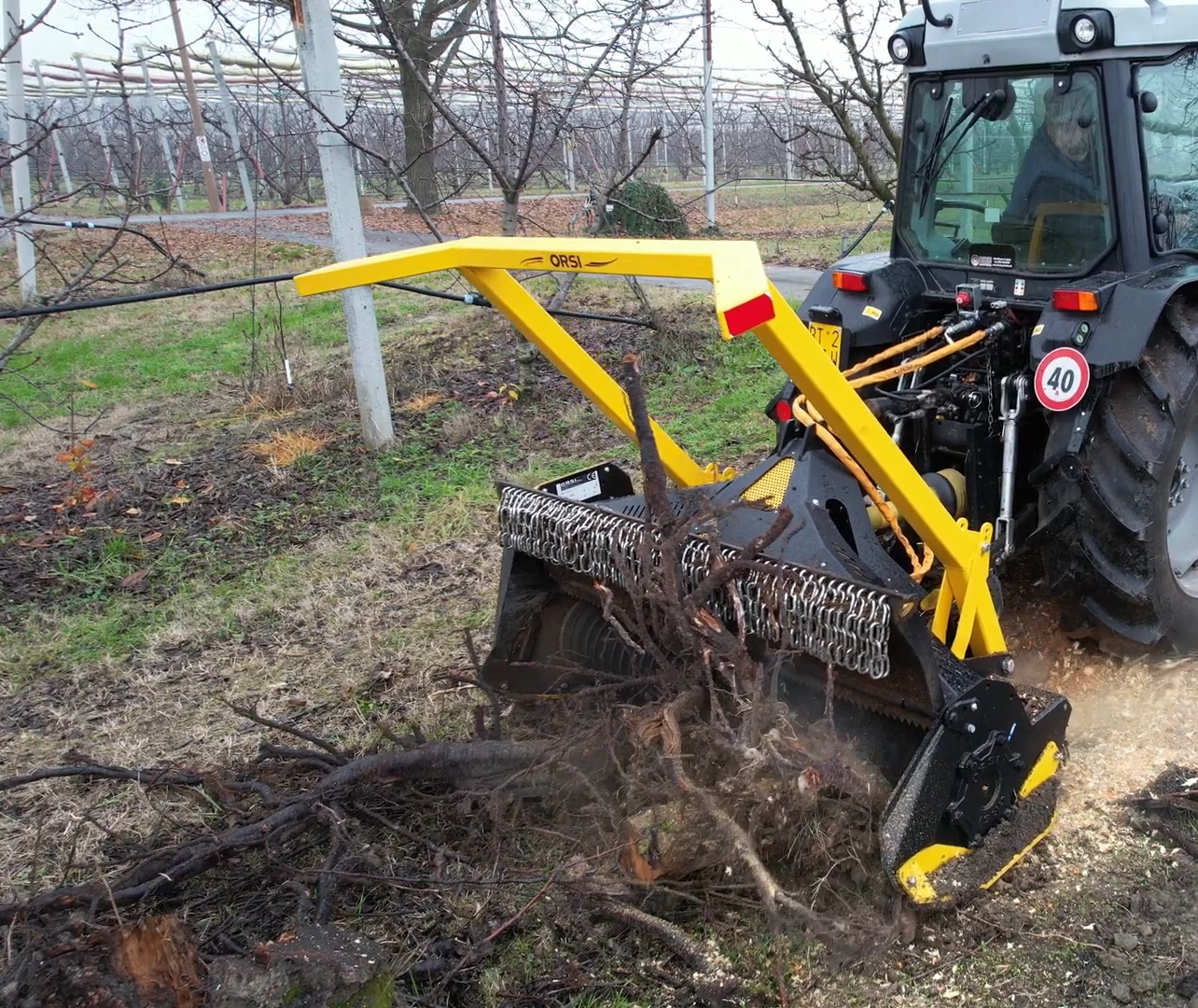

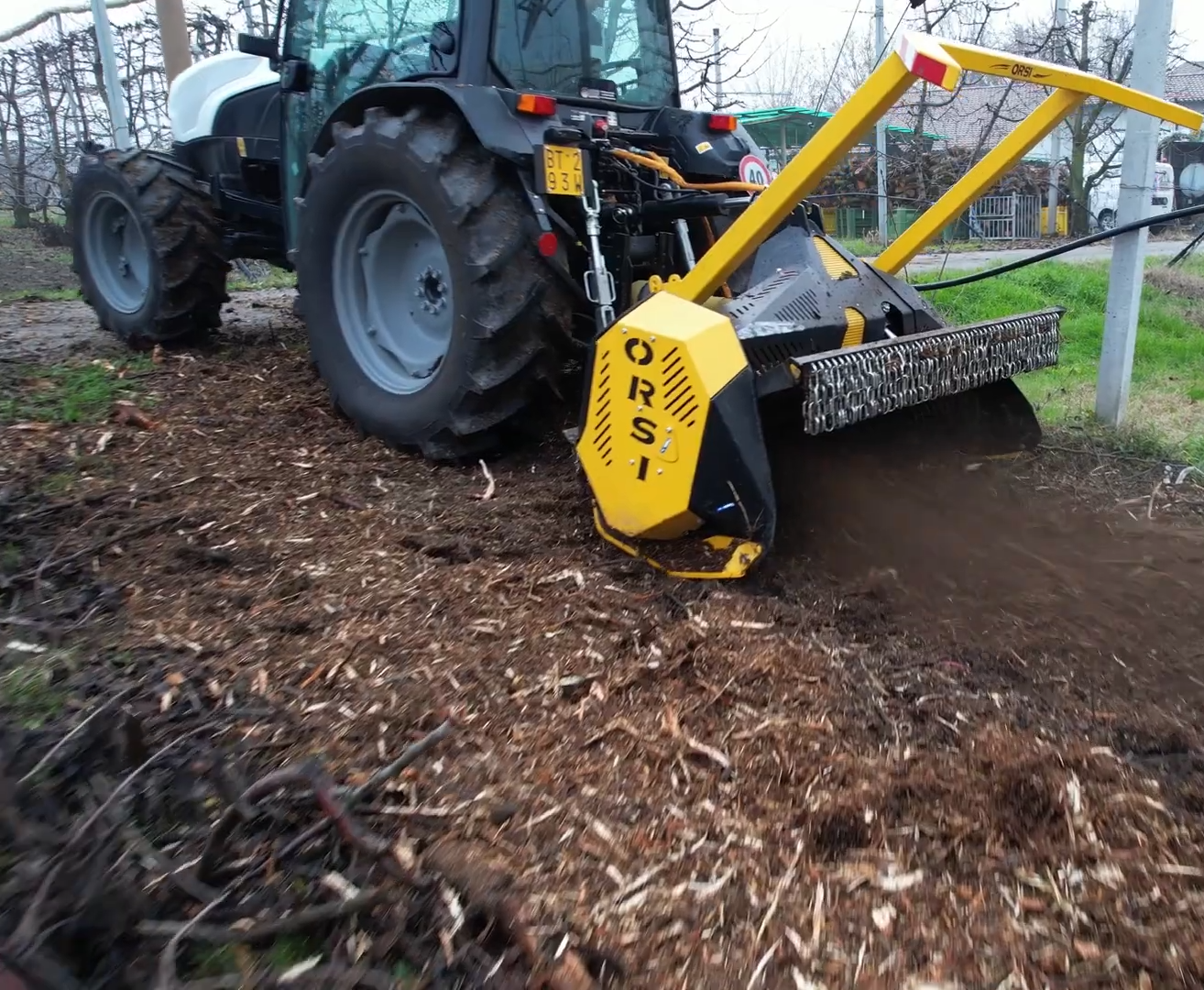

The ORSI MULCHER TRACTOR 3PT HITCH attachments are forestry mulchers designed for tractors used in the construction industry. These attachments are constructed using 100% Swedish Hardox steel and feature robust T17 teeth or two-sided carbide teeth for enhanced performance. They are capable of mulching trees and shrubs up to 9" in diameter. The innovative Flanges Tool Limiter (FTL) technology reduces power demand and ensures maximum performance by limiting the depth of the cutting tools. The attachments come equipped with adjustable support slides, four rows of counter-knives for fine and homogeneous shredding, and a hydraulically adjustable hood. The double row of screwed chains and mechanically adjustable arch provide additional safety and efficiency by limiting the escape of shredded material and aiding in the feeding of material into the rotor. The hydraulic rear tailgate, adjustable skids, and reflectors enhance the usability and safety of the attachments.

Key Features

• Maximum Horsepower Compatibility:
  • SSF150 Series: Designed for tractors with up to 100 HP.
  • SSF175 and SSF200 Series: Handles tractors up to 110 HP for more demanding tasks.
• High Cutting Capacity: Mulches trees and shrubs up to 9 inches in diameter.
• Durable Construction: Built entirely with Swedish Hardox steel, ensuring resistance to wear and maximum longevity.
• Advanced Rotor Technology: Incorporates Flanges Tool Limiter (FTL) for reduced power demand and consistent cutting efficiency.
• Efficient Shredding: Features four rows of counter-knives inside the frame for fine and homogeneous material shredding.
• Adjustability Features: Hydraulic rear tailgate for improved material control. Adjustable skids to cater to various operating heights. Mechanically adjustable arch for feeding materials into the rotor effectively.
• Enhanced Safety: Double row of screwed chains prevents debris from escaping. Reflectors for better visibility during operation. Oscillating bearings with a double column of balls for rotor stability.
• Transmission System: Equipped with an automatic belt tensioner to maintain optimal performance.
• PTO Speed: Standard 540 rpm, with a rotor speed of 2531 rpm for efficient mulching.

Detailed Specifications

ORSI Mulcher Tractor 3PT Hitch Attachments

Key Differences Between Models

• Attachment Working Width:
  • SSF150 Models: Feature a working width of 60 inches, ideal for smaller applications.
  • SSF175 Models: Provide a wider working width of 69 inches.
  • SSF200 Models: Offer the largest working width of 78 inches, suited for large-scale mulching tasks.
• Horsepower Compatibility:
  • SSF150 Models: Designed for tractors with a maximum of 100 HP.
  • SSF175 and SSF200 Models: Accommodate tractors with a maximum of 110 HP, suitable for more demanding conditions.
• Teeth Type:
  • All models come with T17 teeth in their standard versions and Two-Sided Carbide Teeth in their "CB" versions, providing flexibility based on cutting requirements.
• Application Range:
  • The SSF200 Models are best suited for heavier-duty tasks due to their extended width and higher horsepower capacity, while the SSF150 Models are designed for medium-duty tasks with smaller tractors.
