Product Description
PH Outdoors G8 8' No Till Drill 3pt / Pull Type | Model G8 | Working Width 8' | 65 HP | For Tractor
G8 - 8'NO-TILL DRILL-WT 2668 LBS
DESCRIPTION

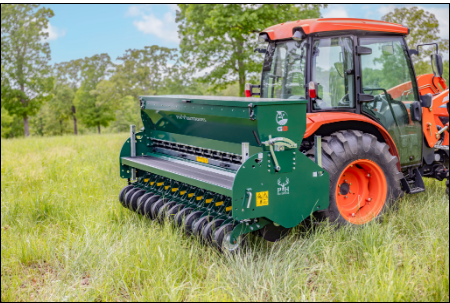

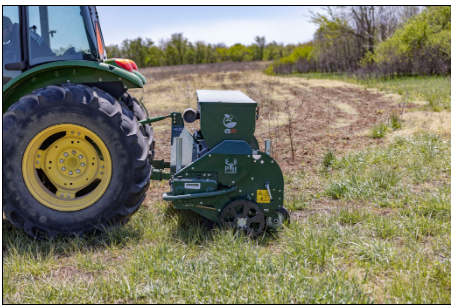

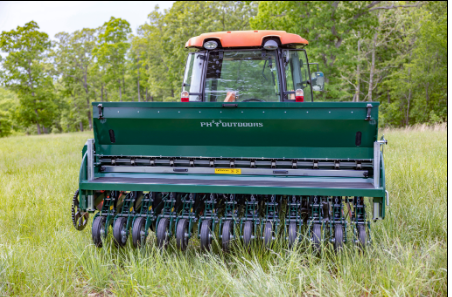

G8 No-Till Drill the G8 is our second largest no till drill, allowing a habitat manager just that much more productivity if needed. With 13 seeding elements and weighing 2,668 lbs, the G8 can still be handled by a wide range of tractors.
The PH Outdoors G8 No Till Drill, formerly known as the RTP Genesis No Till Drill, is designed for habitat managers seeking enhanced productivity in seed planting. With a robust weight of 2,668 lbs and a working width of 96 inches, this drill combines efficiency and ease of use, making it suitable for a wide range of tractor sizes (minimum 65 HP).

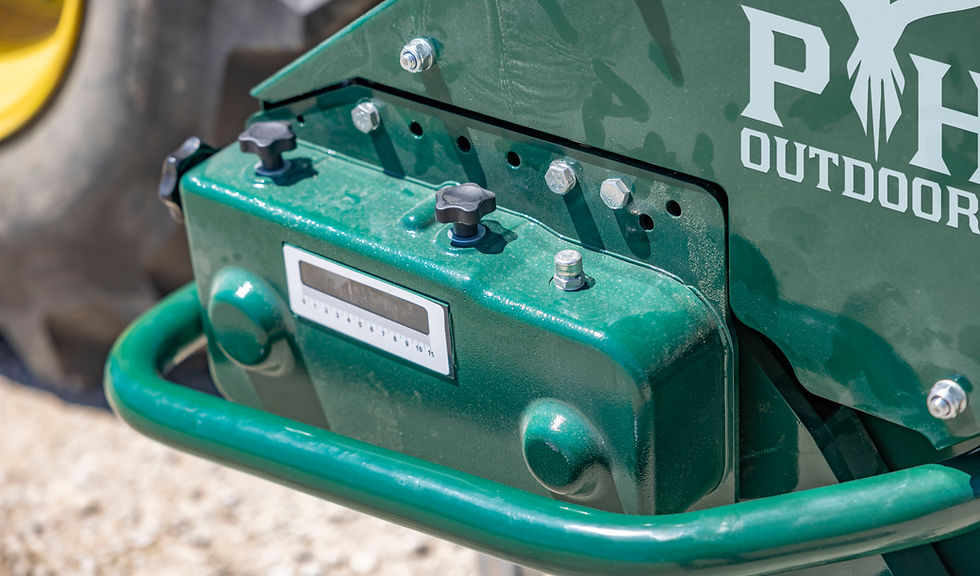

The G8 features 13 planting rows spaced 7.5 inches apart, enabling quick and precise seeding over large areas, with a planting capacity of up to 7 acres per hour. Its 12-bushel capacity seed box ensures fewer interruptions during planting, while the infinitely variable gearbox allows for easy adjustments to seeding rates without the hassle of gears or chains.

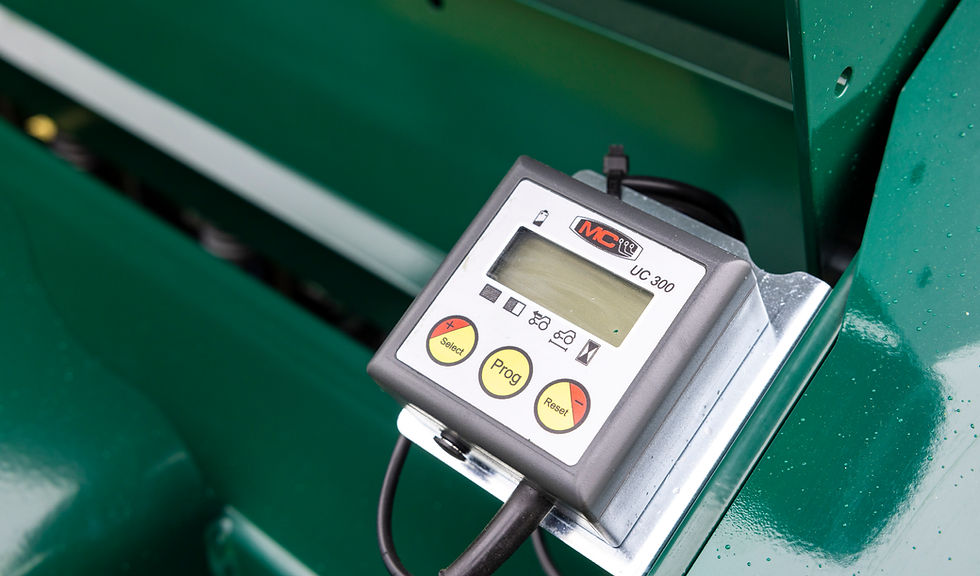

This drill also includes a digital acreage counter to monitor both individual plots and total acreage planted, alongside depth adjustment pins for quick field modifications. Whether you're maintaining wildlife habitats or enhancing agricultural land, the G8 No Till Drill is a reliable and efficient choice.
Key Features
- Weight Bar Capacity: Allows for additional suitcase weights to be added for improved performance in challenging soil conditions.

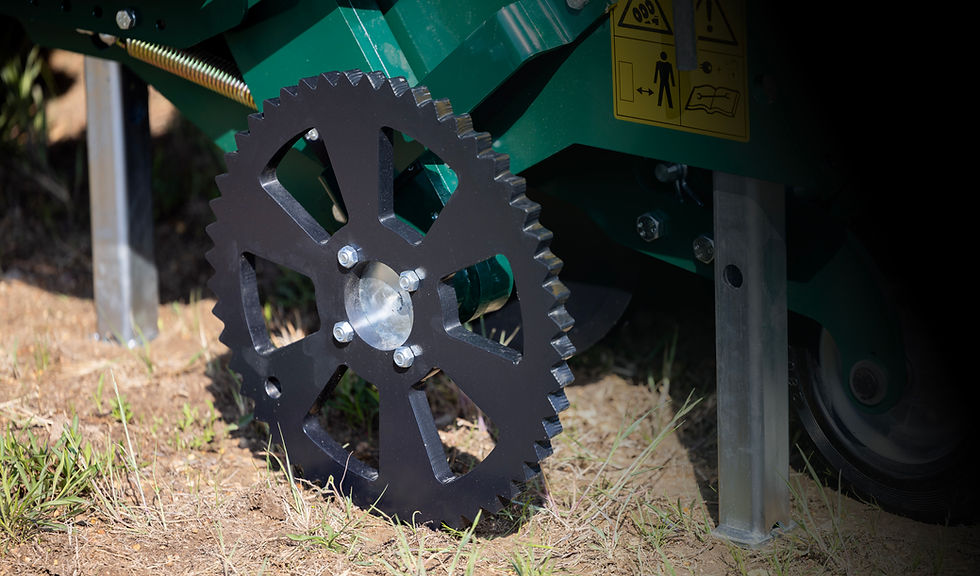

- Steel Drive Wheel: Ensures consistent traction, preventing slippage in various ground conditions.

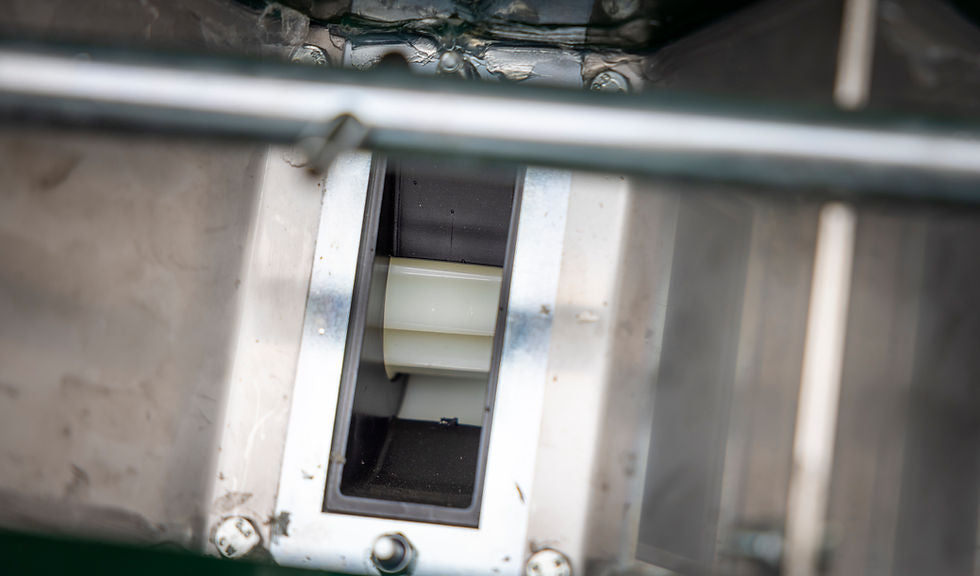

- White Seed Metering Element: Provides better visibility for easy cleaning after use.
- Individual Bolt-on Element Strips: Designed for straightforward maintenance and replacement.

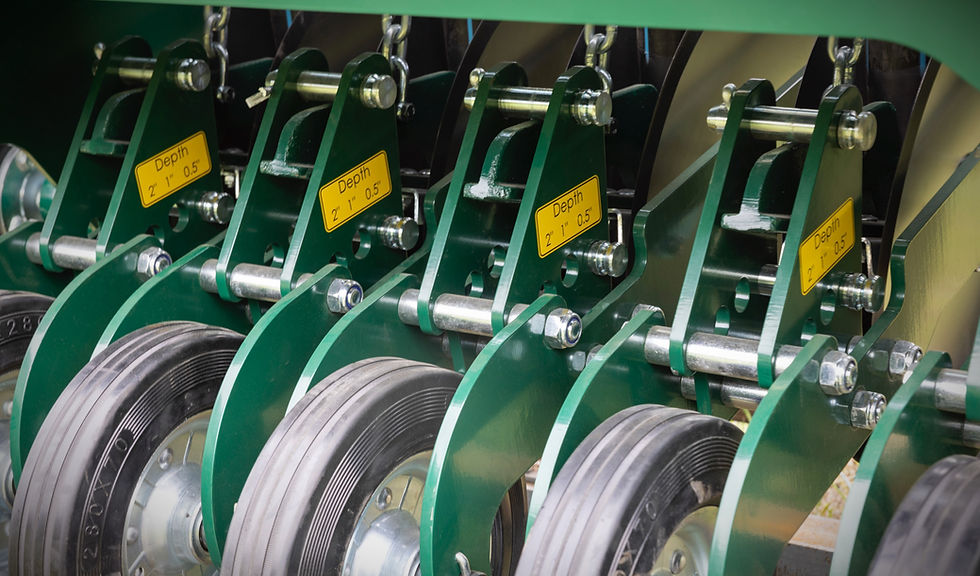

- Depth Adjustment Pins: Facilitates quick depth changes in the field, requiring no tools for adjustments.
- Included Accessories: Seed cover plates and hopper driver plates are included for added convenience.
G-Series Accessories

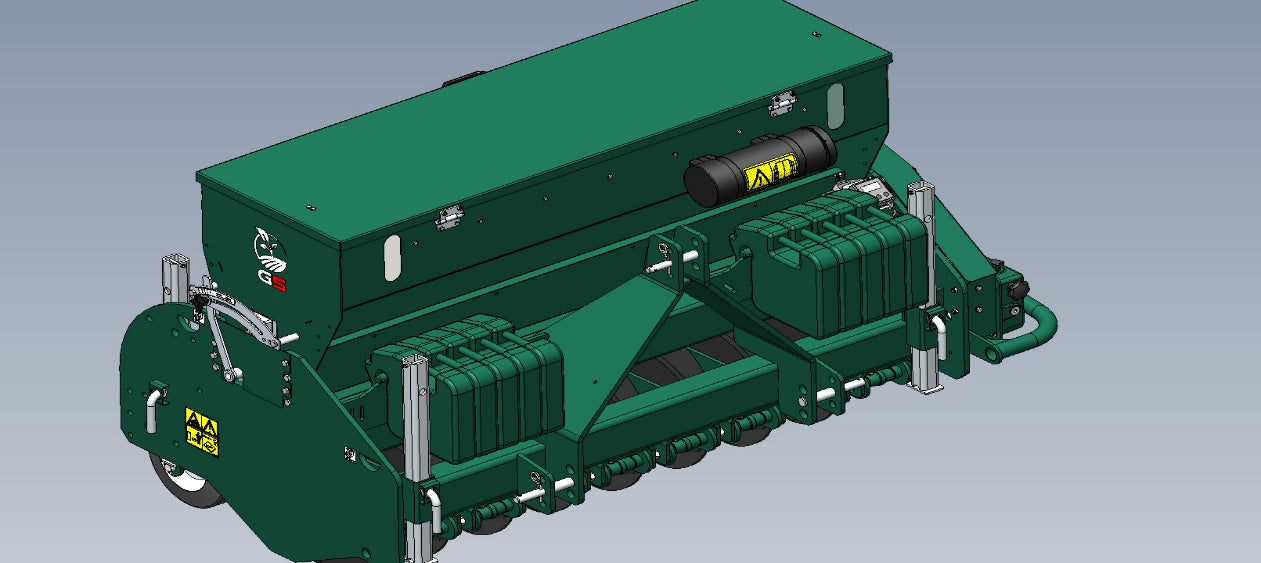

Weights
Our weights can be added to the G5, G8 and G10 if you have ground conditions that require more depth to get the proper planting depth.

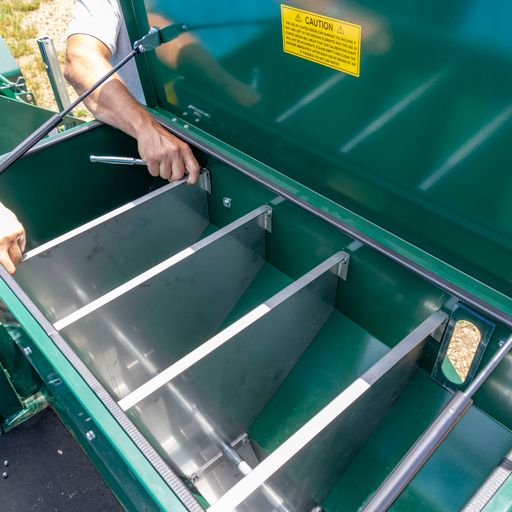

Hopper Dividers
Hoppers dividers are an exclusive accessory for the G-Series. They can be used to plant different row spacings, plant different seeds in different rows, or used to make sure seed stays above each seeding element if planting hill sides.

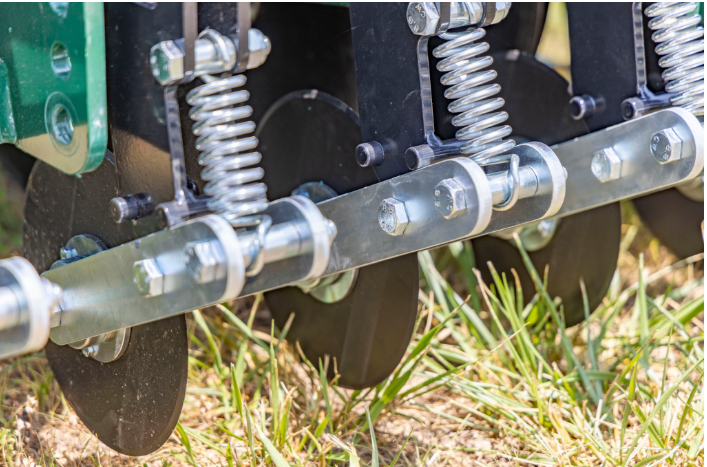

Front Cutters
Front Cutters can be added to your G-Series No Till Drill if you encounter tough ground conditions that make it hard to achieve your required depth.
Wheel Kit
Wheels kits are available for every size G-Series. These can be used if your tractor does not have the lift capacity, or in the case of the G3, can be used with a UTV.

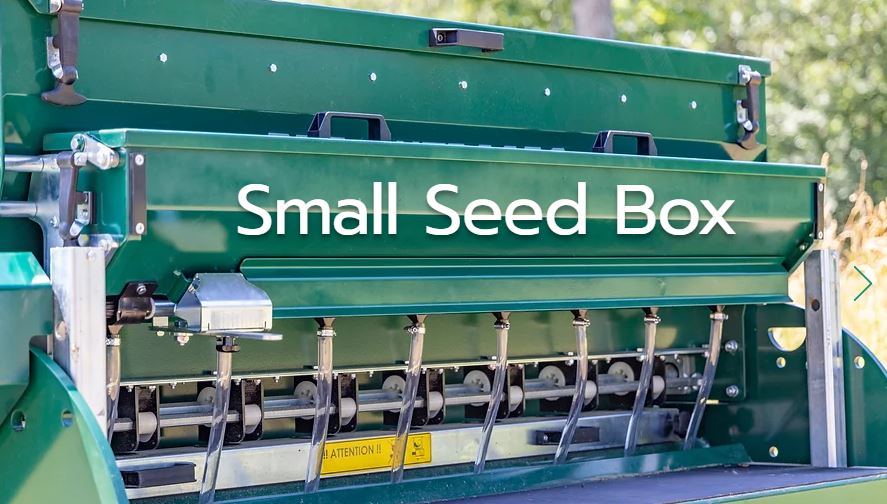

Small Seed Box
Although the main seed box on the G-Series can handle all seed sizes, the small seed box is an option if you want to seed at very low rates, and drop the seed right in front of the packing wheel, making it easier to plant shallower.
Seed Row Cover Plate
The Seed Row Cover Plate can be used to block off planting rows to achieve spacings, such as 15", 22.5", and 30".
Hydraulic Kit (G3 Only)
The Hydraulic Kit can be added to a G3 with Wheel kit if the machine is being used with a UTV.
Shallow Seed Bushing Kit
The Shallow Seed Bushing Kit is available to better control the seed depth of small seeds in some ground conditions.
Detailed Specifications
| Feature | Specification |
|---|---|
| Model | G8 No-Till Drill |
| Working Width | 8' |
| Weight | 2,668 lbs |
| Planting Rows | 13 rows with 7.5" spacing |
| Seed Box Capacity | 12 bushels |
| Calibration Multiplier | 50 |
| Weight Bar Capacity | 1,540 lbs |
| Recommended HP | 65 HP tractor |
| Seeding Rate | Up to 7 acres per hour |
Manuals & Documents
G-Series Calibration Manual
G8 Parts Manual
Operators Manual
