Product Description

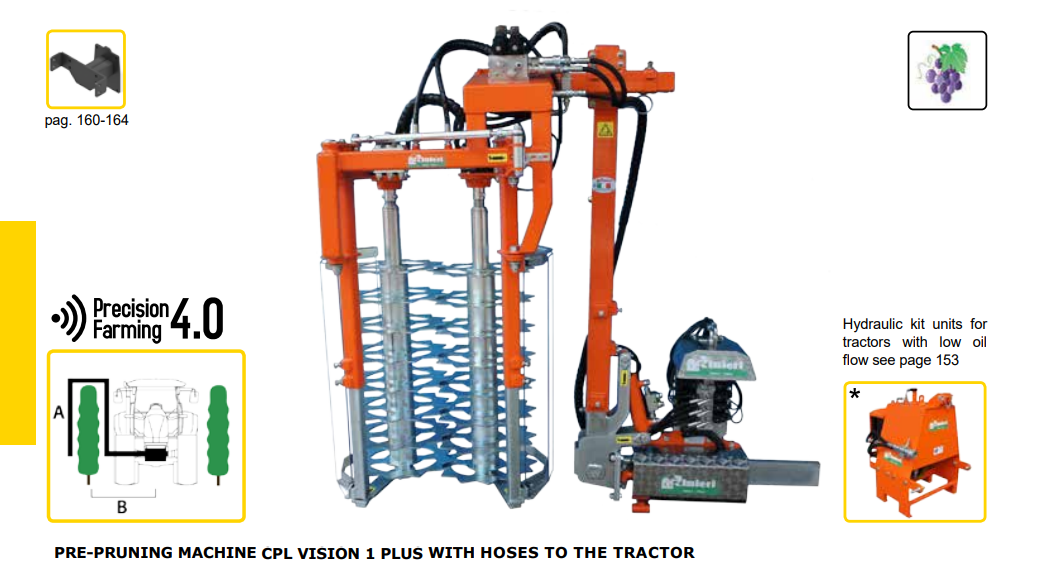

Rinieri Pre Pruning Machine CPL Vision 1 Plus With Hoses | 11"-35" Working Width for Tractor
DESCRIPTION

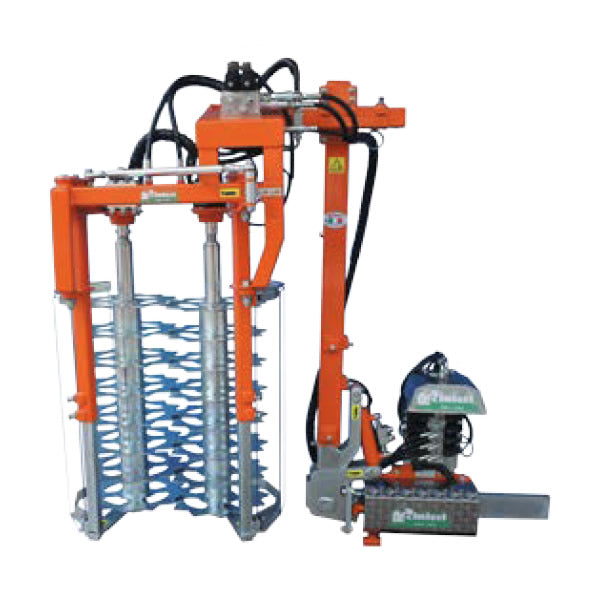

The PRE-PRUNING MACHINE CPL VISION-1 PLUS is designed for efficient and safe pre-pruning in modern vineyards. It features CPL heads that are available in two configurations: 100mm disc spacing for cordon vineyards and 70mm disc spacing for compact Guyot vineyards. The machine is engineered to remove shoots without damaging the supporting wires, providing a safe and efficient solution for vineyard management.
The machine is equipped with electro-hydraulic controls that allow the operator to bypass poles without damaging them. It features a pressure-controlled electrovalve system that ensures reduced pressure, making it easy to navigate tight vineyard spaces. The CPL heads can be mounted on the TOWER-1 PLUS and VISION-1 PLUS frames, offering versatility and ease of use.
Key Features
- Hydraulic Lifting: 23.6" (60 cm) hydraulic lifting for better control and height adjustments.
- Vertical Frame Tilting: +/- 15° hydraulic tilting for flexible operation on uneven terrains.
- Side Shift: 11.8" (30 cm) hydraulic and 7.8" (20 cm) manual side shift for precise positioning.
- Electro-Hydraulic Opening: Push button controls for quick and secure locking and unlocking.
- Quick Connection PLUS: For fast and easy setup.
- Safety Features: Maximum pressure valves for motor and opening control, along with a hydraulic stand for storage.
Detailed Specification
V1 Plus Frame Features
| Feature | Specification |
|---|---|
| Hydraulic Lifting | 23.6" |
| Hydraulic Tilting | +/-15° vertical frame |
| Hydraulic Side Shift | 11.8" with additional manual side shift (7.8") |
| Electro-Hydraulic Opening | Push-button controlled with locking system for safe operation |
Safety Features
| Feature | Specification |
|---|---|
| Maximum Pressure Valve | For motors |
| Maximum Pressure Valve | For opening |
| Hydraulic Stand | For secure storage |
On the Tractor
| Feature | Specification |
|---|---|
| Hydraulic Distributors | N.3 double-acting hydraulic distributors |
| Single-Acting Hydraulic Distributor | N.1 |
| Pressure-Free Return | N.1 |
| Oil Demand | 25-35 L/min |

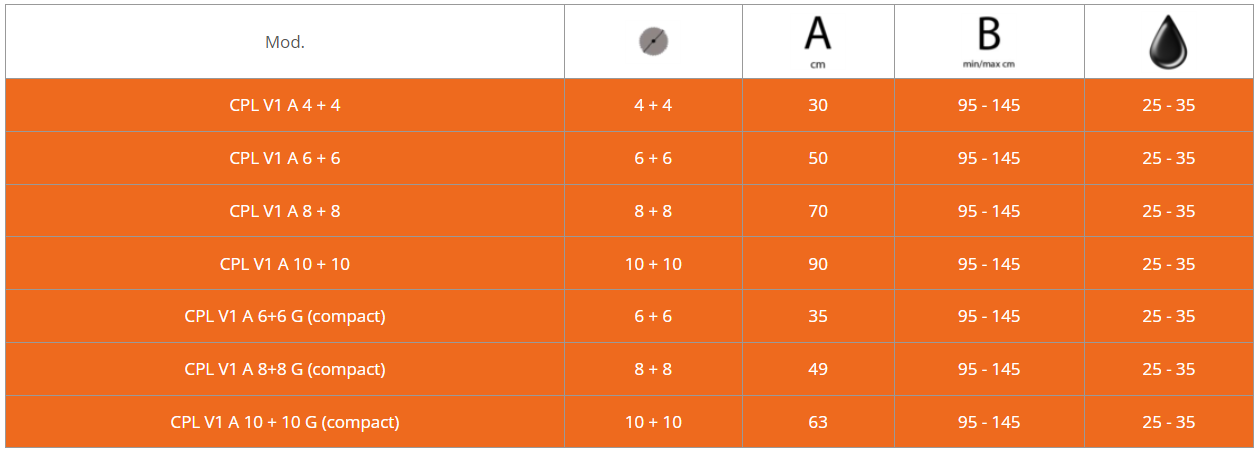

In Package:
- CPL V1 A 4 + 4 Model: 4 + 4 discs, 11.8" (30 cm) width, with an oil demand of 25-35 liters/min.
- CPL V1 A 6 + 6 Model: 6 + 6 discs, 19.6" (50 cm) width, with an oil demand of 25-35 liters/min.
- CPL V1 A 8 + 8 Model: 8 + 8 discs, 27.5" (70 cm) width, with an oil demand of 25-35 liters/min.
- CPL V1 A 10 + 10 Model: 10 + 10 discs, 35.4" (90 cm) width, with an oil demand of 25-35 liters/min.
- CPL V1 A 6 + 6 G (compact) Model: 6 + 6 discs, 13.7" (35 cm) width, compact model for Guyot vineyards.
- CPL V1 A 8 + 8 G (compact) Model: 8 + 8 discs, 19.2" (49 cm) width, compact model for Guyot vineyards.
- CPL V1 A 10 + 10 G (compact) Model: 10 + 10 discs, 24.8" (63 cm) width, compact model for Guyot vineyards.

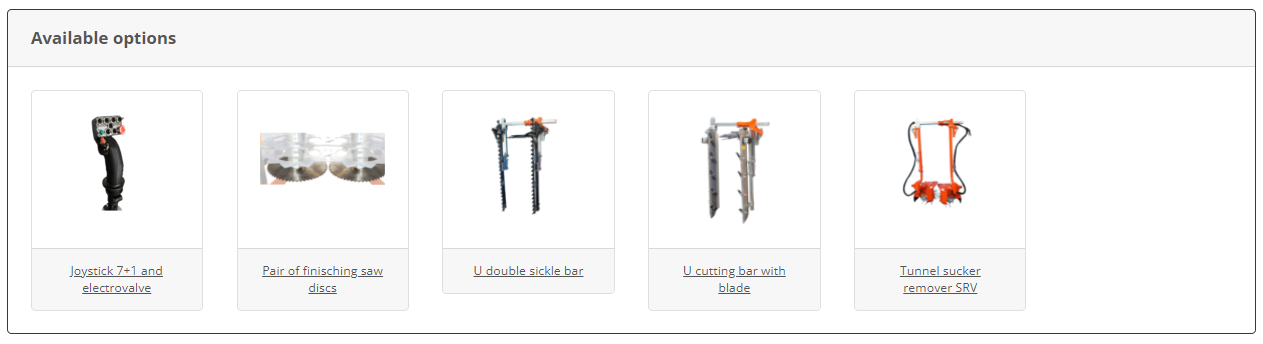

Available Options:
- Joystick 7+1 with electrovalve
- Pair of finishing saw discs

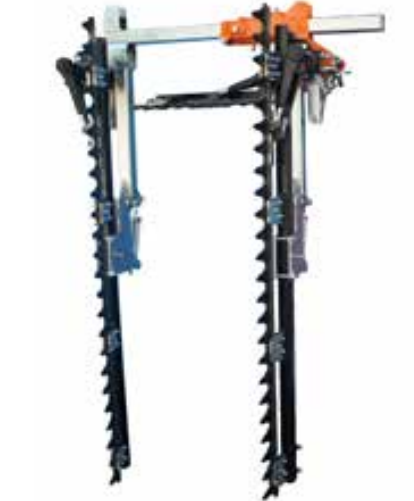

- U double sickle bar
- U cutting bar with blade

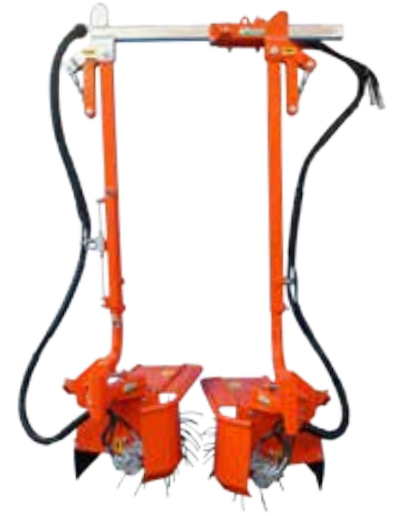

- Tunnel sucker remover SRVHydraulic Lifting: 23.6" (60 cm)
- Vertical Frame Tilting: +/- 15° hydraulic
- Side Shift: 11.8" (30 cm) hydraulic, 7.8" (20 cm) manual
- Oil Demand: 25-35 liters/min
- Electrical Requirements: 12V socket
Manual & Documents
The Product Manual
Machine Configuration Guide
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

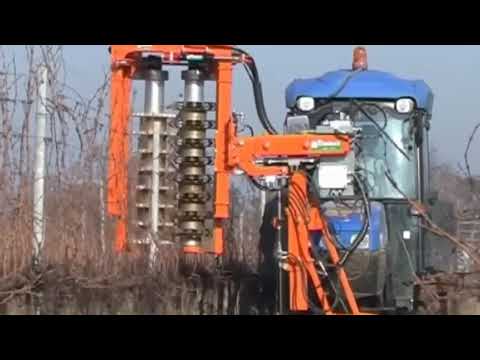

Videos
