Best Quality Rough Cut Mower AcrEase Model MR55KE
Best Quality Rough Cut Mower AcrEase Model MR55KE
Couldn't load pickup availability
DESCRIPTION

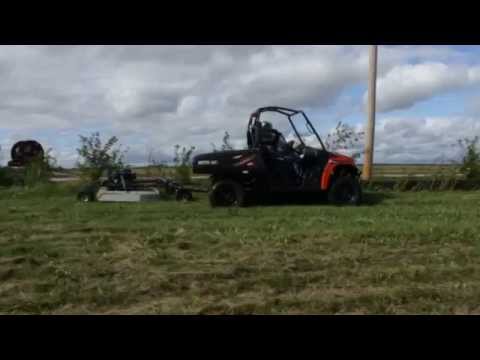

Top of the line 57″ rough cut model with a commercial grade twin cylinder electric start engine and electric clutch blade engagement. Works great behind an ATV, UTV or small tractor for larger acreage jobs.
Features (specs, highlights, etc)
- 57″ Cutting Width
- 25 HP Kohler Commercial Grade Twin Cylinder Engine
- Commercial Grade Deck Assembly
- 4 Tire Design
- Quick Two Crank Height Adjust System
- Height Adjustment Range From 2″ to 8″
- Electric Clutch Blade Engagement
- Conservative 2″ Diameter Sapling Rating
- Pull Directly Behind or Fully Offset to the Side of the Tow Vehicle.
SPECIFICATIONS
| MODEL | MR55KE |
| Class Mower | Rough Cut (Rear Discharge) |
| Engine Make | OHV Kohler Commercial |
| Engine Model | Confident Twin |
| Engine HP | 25 |
| Lubrication Method | Pressure With Filter (Low Oil Pressure Shut-Off Included) |
| Air Filter Type | Cyclonic Air Filtration System |
| Electric Start (Battery not included) | Yes |
| Hour/Tach Meter | Optional |
| Number of Mower Blades | 2-30″ |
| Blade Tip Speed (ft/mm) | 19000 |
| Cutting Width | 57″ |
| Cutting Height | 2.0 to 8.0 By Two Cranks |
| Hitch | Direct Behind or Full Offset to Either Side |
| Blade Engagement Clutch | Electric Clutch |
| Deck Metal Thickness | 10 GA (.135″) |
| Deck Top Plate Thickness | Two 1/4″ Thick Plates |
| (Blade Spindle Attachment Area) | |
| Weight | 580 lbs |
| Pneumatic Fixed Rear Tires | 15/600×6, 4 Ply Tubeless (Flat Proof Option Available) |
| Pneumatic Front Tires on Casters | 5.30/4.50×6, 4 Ply Tubeless (Flat Proof Option Available) |
| Fuel Tank Size | 3 Gal. |
| Blade Spindles | |
| Shaft Size | 30 mm (1-3/16″) |
| Bearing # | 6206-2RST |
| Drive Method | 1 B Section “V” Belt (Kevlar) |
| Warranty | 1 Year Commercial |
| Warranty – Engine | 2 Year Commercial / 3 Year Residential |
| (*FOB Mendota, IL) | |||
| *Prices do not include shipping costs and may vary in different locations. | |||
| *Reserves the right to change specifications or discontinue products without notice. |
FEATURES
25HP Kohler Confidant commercial grade twin cylinder engine
The blade spindles used on the AcrEase mowers are built out of heavy-duty welded steel hubs, 30mm (1-3/16") steel shafts, machined steel blade holders and large sealed ball bearings.
The cutting height can quickly and easily be adjusted from 2"-8" with the two crank height adjustment system.
The main deck is built out of 10 GA (.135") thick steel with a 1/4" thick steel top plate for reinforcement. An additional 1/4" thick steel plate is welded in the blade spindle mounting location. The three layers of steel in the blade spindle mounting area add up to just over 5/8" thick.
Unique twin blade design provides more of a mulch action that reduces the size of the clippings and reduces bunching.
The blades are engaged with an electric clutch which is activated by simply pulling a switch. Electric clutches can extend the life of the belt and reduce overall belt maintenance.
The tow bar features a farm clevis type connection. This system provides more degrees of motion than most types of hitching systems. This is necessary to prevent binding in rough uneven terrain.
Large 3-1/4 gallon fuel tank that provides 3 to 3-1/2 hours of run time
ACCESSORIES
Floatation Kit:
An extra front and back tire can be added to the center section of the mower deck.
- Great for mowing around ponds and on rough uneven ground where scalping would normally occur.
- Clamping style receiver allows for adjustments from side to side with both the front and rear tires.
- Pinned receivers make for quick kit removal when not needed.
- Works on all existing and new rough cut mowers.
Wetlands Kit:
The Wetlands Kit consists of an extra set of tires and mounting brackets.
- Great for wetlands or marshy areas that stay wet all year around.
- Works well in combination with small personal amphibious vehicles and ATVs/UTVs with tracks.
- Kit more than doubles the tire surface area in contact with the ground.
- Easy to install. Works on all existing and new rough cut mowers.
- The rough cut mower will not float with the wetlands kit installed. Water greater than 2-3″ in depth should be avoided.
- With the Wetlands Kit installed the minimum cutting height is 3.5″-4″.
- Works on all existing and new rough cut mowers.
Electric Lift Kit:
The Electric Lift Kit consists of all of the mounting hardware, brackets, electric actuator, and wiring with a remote control panel.
- Great for constantly changing terrain and grass/brush heights.
- Allows for quick cutting height changes on the go from the seat of the tow vehicle.
- Raise up and over rocks and logs with ease.
- Heavy duty 1500 lb linear screw actuator made by Linak.
- Works on all existing and new rough cut mowers.
