Product Description
Seppi Offsetting Mulcher | Model SMWA AVS 175 | 69" Working Width | Engine Horsepower 50-130 HP | For Tractor
Included Options
If you would like to upgrade your SMWA avs then there are some options:
- PTO drive shaft with doublewide angle
- Rotor with Y DUO knives
- Front attachment
- External transmission
- Attachment with safety breakaway FLEX-SAFE™
- Lateral support rollers 160 mm [6”] Ø
DESCRIPTION

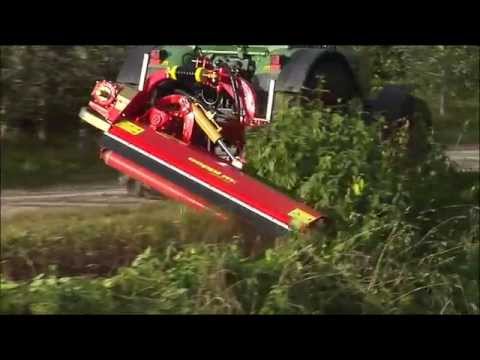

TheSEPPI SMWA avs is an offsetting mulcher ideal for areas hard to reach such as ditches, slopes and river banks but also does a great mulching job on steep road sides, orchards and vineyards. Great versatility is achieved by ample side shift in addition to hydraulic angling.
The SEPPI SMWA avs can work from 90° up angling to 50° down angling, independent from the side shift, centrally behind the tractor, or offset to the side, and reach up to 274 cm [198“] to the right of the tractor center line, depending on the working width of the mulcher. Maximum side shift is 136 cm [54“]. High resistent thanks casing made of high-tensile steel S420 and reinforced bearings. Two possibilities to place the gearbox: Gearbox inside of machine keeps the mower close to the tractor (appropriate e.g. for orchard rows). External gearbox (optional) allows large outrigging. The optional safety breakaway system FLEX-SAFE™ prevents breakage of the linkage. Articulated attachment frame allows dynamic flexation.
Available working width: 155, 175, 200 cm [61", 69", 79"].
Detailed Specifications
| Machine Pairing | 50-130 HP |
|---|---|
| Width | 69 inches |
| Cut Size | 2 inches |
| GPM | Not applicable |
| PSI | Not applicable |
Standard Version
| Features | Details |
|---|---|
| Mulching Capability | Grass and bushes up to 2 inches (5 cm) Ø |
| Rotor Type | Helical rotor with SMW flails |
| Working Speed | 1-5 km/h |
| Linkage | ISO 3-point rear linkage, Cat. 2 |
| Floating Positions | Vertical floating (up/down) & head tilt floating |
| Hydraulic Positioning | +90° to -50° |
| Side Shift | Hydraulic, to the right |
| Chassis Material | High-tensile steel S420 |
| Counter Cutters | 2 rows, tempered |
| Transmission | Belt-driven |
| Gearbox | 540 rpm, with through shaft |
| Front Protection | Metal flaps |
| Adjustable Rear Hood | M-FLAP with rubber protection |
| Support Roller | Height adjustable, reinforced bearing |
| Colors | Red (RAL3020), Charcoal (RAL7021) |
