DESCRIPTION
Attracts and collects all types of floating waste

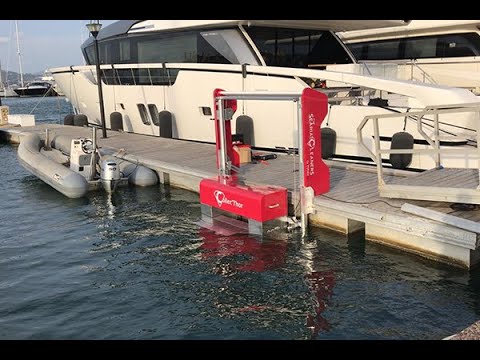

Collec’Thorattracts and collectsall solid and liquid waste floatingon the water’s surface. Silent and effective, Collec’Thor is installed at the water’s edge and/or on floating docks in areas where marine waste routes have been identified.
It operates continuously and silently, attracting waste over a large area. It can hold up to 100 kg or 220lb of waste. Highly ergonomic, with no waste bag, easy waist-level emptying and cleaning, and a handle system for easy maintenance.
Take the manual work out of cleaning!
SPECS
Electric operation (750 W)
Durable industrial pump
for a long lifespan
TARGET WASTE
Solid & liquid waste
Plastic bottles
Cigarette filters &butts
Packaging
Microplastics
Hydrocarbons
Oil
SCOPE
Harbors
Marinas
Docks
Rivers
Lakes
Ponds
Intercoastal Waterways
Hotels & Resorts
Environmental Orgs
Municipalities
Pontoons
Any coastal wall or dock!
SPECIFICATION
Pump flow:
32,000 liters/hour
Pump power:
750 Watts
Material:
Frame and container made from 5754 aluminum
Collection capacity:
320 liters
Conditions required for installation & use
Attached to floating docks
Maximum permitted chop height: 0.30 m
Maximum permitted wave height: 0.30 m
Minimum low tide depth: 1.50 m
Floating dock freeboard: between 320 and 820 mm
Maximum current speed: 1.5 knots
VIDEOS
Operations:
Before every use-
BEST PRACTICES:
Make sure to check sacrificial anodes. They must be replaced imperatively once consumed.
Make sure the winch cable is well fitted into every pulley.
Make sure the winch cable is not frayed
Make sure the rear door closes correctly • Make sure the beams (x2) are free of any obstacles (e.g.: marine life or trash)
Removing Trash: 1. When taking the trash out, make sure to pull out both tabs from the Collec’Thor, refering to the drawing.
2. Make sure to gently wait for the tank to empty of water : a - turn off the pump : noise change will indicate when to turn it off b - proceed to using the winch to lift the Collec’Thor
3. Warning: Do not let the pump run for too long when the tank is empty of water
Maintenance:
Thoroughly clean the Collec’Thor with a pressure washer every 2 to 3 weeks. Inside surfaces as well as outside surfaces. Beware to include the external surface of the pump as shown on the picture below. Make sure the bolts are properly tightened on both sides of the lifting structure. Check the pulleys.
Every 2 to 3 weeks: Unscrew the PVC fitting under the pump, referring to the drawing below. Lubricate the pump with WD40 type of lubricant or marine specialised lubricant. Clean the outside and the inside of the pump using clear water.
Once a year: Perform an oil change. Refer to the pump instructions manual delivered with the Collec’Thor.
In the event of prolonged stop - over a week: Strictly maintain the Collec’Thor out of the water. Clean the pump referring to the procedure below Lubricate the pump with WD40 type of lubricant or marine specialised lubricant.
