Product Description

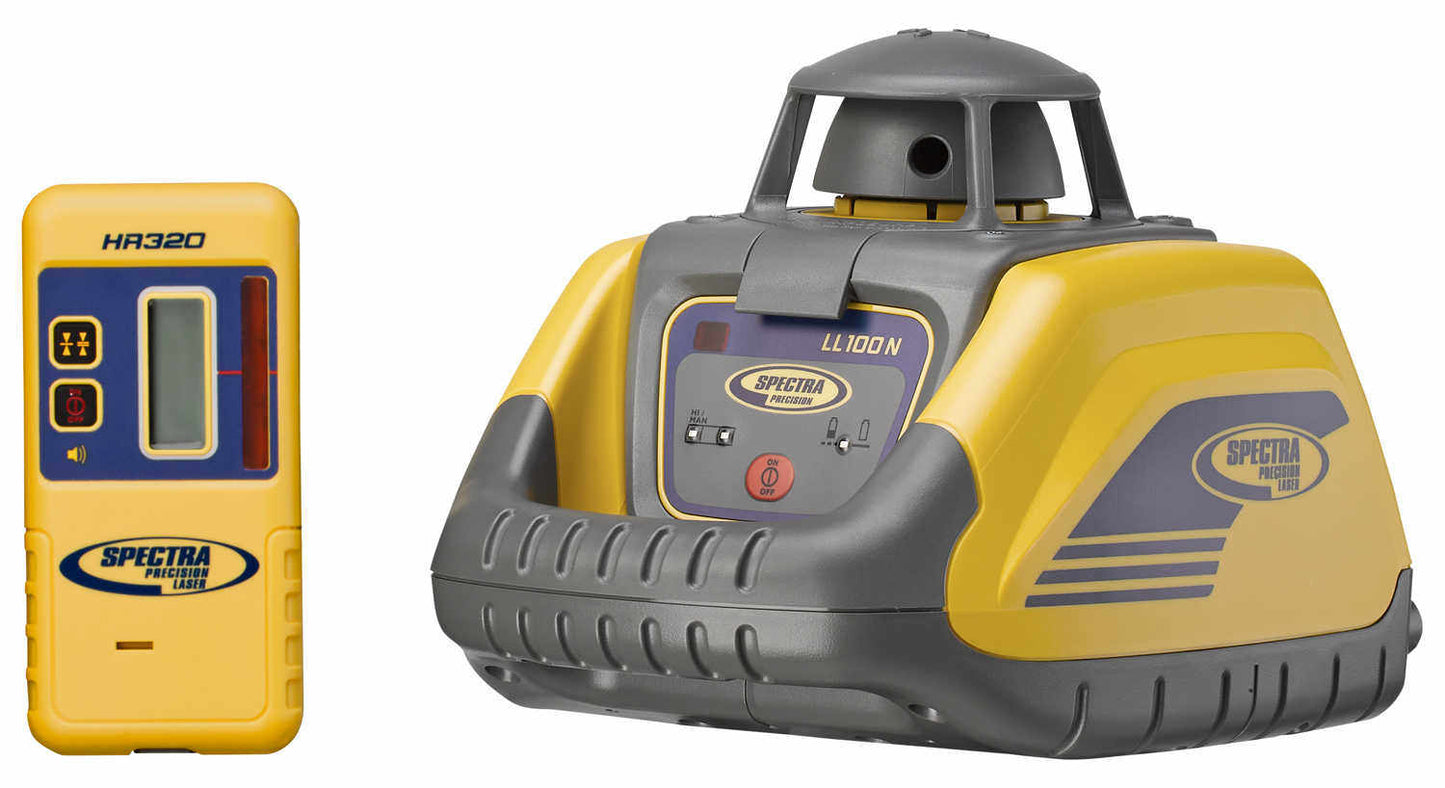

Spectra Geospatial LL100N Laser Level with HR320 Laser Receiver
DESCRIPTION
The LL100N Laser Level is a complete one-man leveling crew in a case. It comes available as a system with tripod/rod or it's also available in a small case without the tripod and rod. Either way, you win with the LL100N.
Setting a new standard for reliability and affordability, the fully automatic, self-leveling LL100N can handle a variety of general construction applications. By sending a 360° plane of laser light over an entire work area, the LL100N allows one person to take self-leveled elevation measurements using the included HR320 laser receiver. The HR320 provides two on-grade sensitivities and features grade displays on the front and back. In order to guard against erroneous readings, the LL100N’s Height of Instrument Alert stops laser rotation if the elevation changes. Easy, one-button operation requires minimal training, and an energy-efficient design ensures long battery life. The water-resistant laser level withstands drops up to 3 feet (1 meter) onto concrete and tripod tip-overs up to 5 feet (1.5 meters).
Key Features
- Automatic self-leveling increases productivity with fast setups and minimal training
- One person elevation control with 1,150 ft (350 m) diameter range increases productivity
- Durable construction can withstand tough jobsite conditions
- Height of Instrument alert stops laser rotation if elevation changes occur to avoid erroneous readings
- HR320 offers 2 accuracies to fit job site conditions
- Exclusive 2-year limited warranty with instant “over the counter” exchange policy eliminates downtime
- Automatic self-leveling
- Accuracy 1/8 inch @ 100 ft (3mm @ 30 m)
- Working range of 1,150 ft (350 m) diameter
- Simple one-button operation for quick start up
- Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
- Single axis manual slope mode (with RC601 Remote Control)
- Kit available and fits in one case with tripod and grade rod
- Extremely durable and portable
- 2 Year warranty
Detailed Sepcifications
HR320 Receiver Specifications
| Feature | Details |
|---|---|
| On-Grade Sensitivities | Fine: 1/16 in (2 mm); Standard: 1/4 in (6 mm) |
| LCD Channels | 5 |
| Battery Life | 70 hours |
| Automatic Shutoff | 30 minutes |
| Dust & Waterproof | IP67 Rated |
| Weight | 12 oz (0.34 kg) |
LL100N Laser Specifications
| Feature | Details |
|---|---|
| Laser Source | 650 nm visible, Class 2 |
| Laser Accuracy | ±1/8˝ at 100´ (±3 mm at 30 m) |
| Rotation Speed | 600 rpm |
| Operating Range | 1,150´ (350 m) with HR320 Receiver |
| Self-Leveling Range | ±5° |
| Power Supply | 2 D alkaline batteries (included) |
| Battery Life | 80 hours |
| Operating Temperature | 23°F to 113°F (-5°C to 45°C) |
| Water Resistance | IP54 Sealed |
| Dimensions | 8.5˝L x 6.7˝W x 6.0˝H |
| Weight | 3.3 lbs |
In Package
- Spectra Geospatial LL100N Laser Level
- HR320 Laser Receiver
- Carrying Case
- 2 D Batteries
- Instruction Manual
Manuals & Documents
User Manual
Catalog
