Product Description

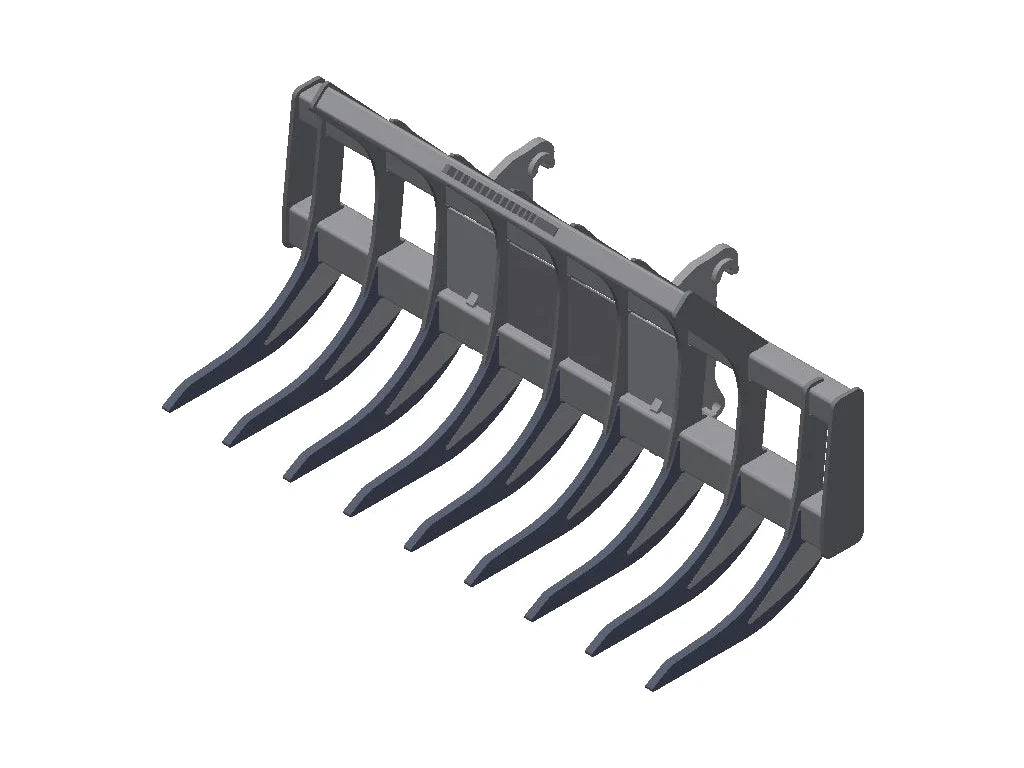

TAG Rake | Heavy Duty Tine | 24" Width | Rake Weight 300 lbs | Grapple-Ready Design | 4–6 Ton | For Compact Excavators
DESCRIPTION
The TAG Heavy Duty Rake Series is built for mini excavators in the 8,000–12,000 lb (4–6 ton) range, offering rugged performance for land clearing, root removal, and debris separation. Featuring a robust five-tine layout, this rake delivers aggressive material handling with 12" tine length and a reinforced build rated at 300 lbs.
Available in multiple mounting configurations—including TAG Quick Coupler, Wedge Lock, OEM Pin-On, and Kubota USA-style couplers—this rake integrates seamlessly with your compact machine. It can also be paired with a TAG hydraulic thumb for grapple functionality, and custom built to match thumb length for optimal control and versatility on site.
Key Features
- Machine Compatibility: Designed for compact excavators (8,000–12,000 lbs / 4–6 tons).
- Mounting Options: TAG Quick Couplers (1.25" & 1.75" T-pins), Deere/Hitachi Wedge Lock, Kubota USA-style couplers, Bobcat Exchange couplers, OEM Pin-On (customized to machine spec).
- Rake Size: 24" overall width with five rugged tines.
- Tine Length: 12" deep tines for root ripping and debris handling.
- Weight: Approx. 300 lbs depending on configuration.
- Thumb Compatibility: Can be matched with TAG thumbs for grapple use.
- Custom Builds: Available to match thumb geometry or alternate rake widths upon request.
-
Application Use: Land clearing, root removal, brush separation, grading.
Detailed Specifications
Model | Machine Class | Weight Class (lbs) | Width | Tine Length | Tines | Approx. Weight (lbs) | Mount Style |
---|---|---|---|---|---|---|---|
QC HD | CL25 | 8,000–12,000 | 24" | 12" | 5 | 300 | TAG Quick Coupler (T-pin) |
Wedge HD | CL25 | 8,000–12,000 | 24" | 12" | 5 | 300 | John Deere/Hitachi Wedge Lock |
OEM Pin HD | CL25 | 8,000–12,000 | 24" | 12" | 5 | 300 | OEM Pin-On |
Kubota USA HD | CL25 | 8,000–16,000 | 24" | 12" | 5 | 300 | Kubota USA Style Coupler |
Host Machines Compatibility
BRAND | MODELS (8000-12000 lbs) |
BOBCAT | E42, E45, E50, E55, 337, 341, 435 |
CASE | CX50B, CX50, CX47 |
CAT | 304CCR, 305CCR, 304.5, 304CR, 305CR |
DAEWOO | SOLAR50, SOLAR55 |
DEERE | 50G, 50D, 50C, *60G |
DOOSAN | SOLAR55-V, SOLAR55-W |
GEHL | 503Z, 603, 502, 602, 652 |
HITACHI | ZX50U-2, ZX60USB-5 |
HYUNDAI | R55-7, R552-7 |
IHI | 45V4, 55V4, 60V4, 45NX, 55NX |
JCB | 8040, 8045, 8050, 8052, 48Z-1, 51R-1, 55Z-1 |
KOBELCO | 50SR-3, SK045, SK050 |
KOMATSU |
PC40Mr-2, PC50Mr-2, PC58UU-3 PC45 |
KUBOTA | KX161, (KX161-3, U45), *(U48,U55,KX057) |
NAGANO | NS-45 |
MUSTANG | 5002, 6002, 6003, 6502 |
NEW HOLLAND | E50, EC45, EH45 |
TEREX |
HR16/TC35, HR3.7/TC37, HR18 TC48, HR5.0/TC50, HR20/TC60 |
THOMAS |
T45 |
VOLVO |
EC45Pro, EC55BPro |
WACKER | 50Z3, 6003, 6503 |
YANMAR |
Vio40-3, Vio-50-3 Vio45-6A, Vio55-6A |
