Product Description
Titan Attachments Arena Spin Harrow | 3 Point Hitch | 75" Width | 35 Hardened Teeth | 273–380 lbs | Horsepower 30 HP | For Tractors
DESCRIPTION

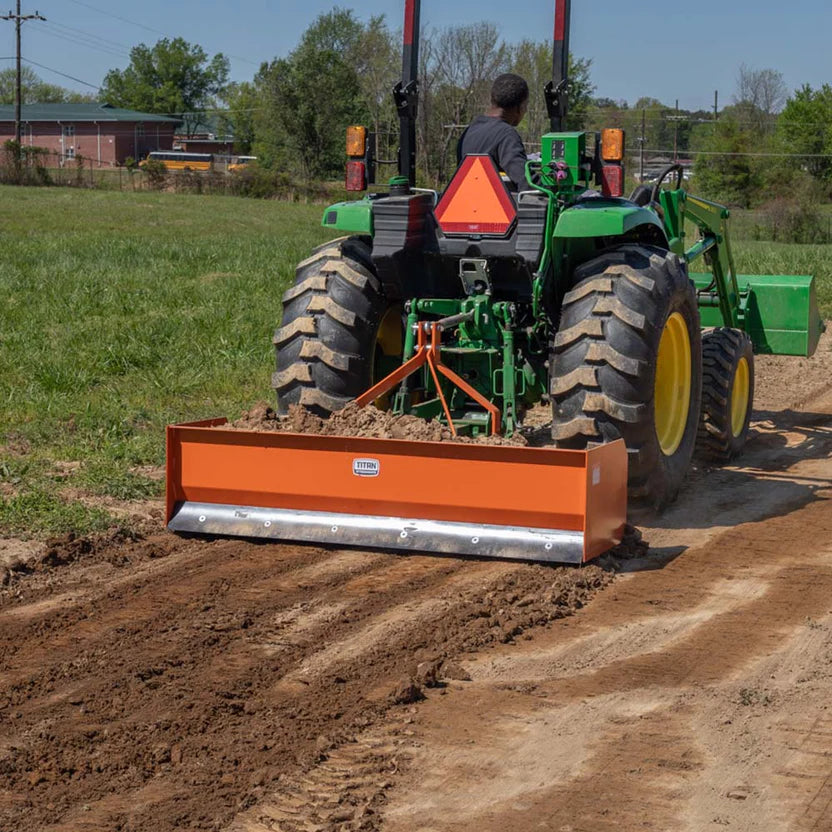

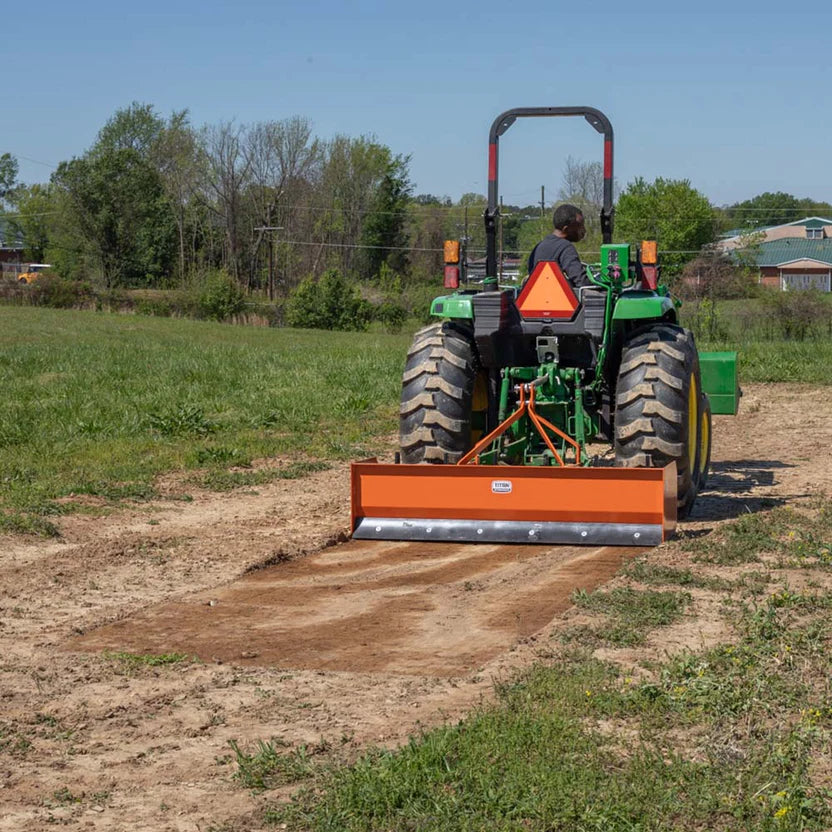

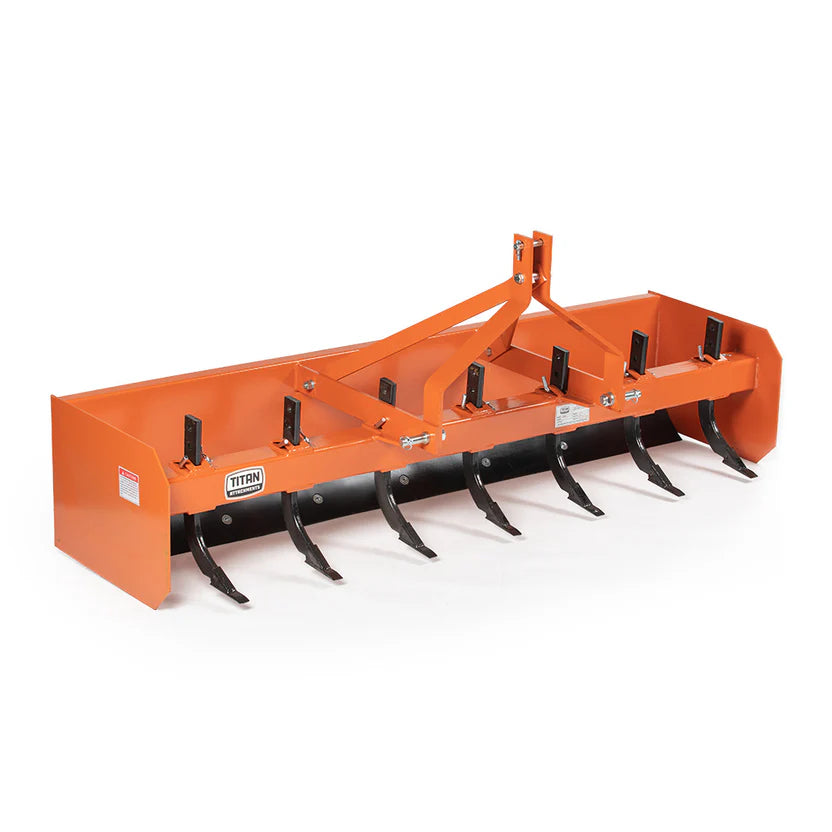

The Box Blade Scraper is a rugged, multi-functional implement designed to dig, level, and backfill with precision and power. Whether you're prepping a garden, grading a driveway, or reshaping terrain on a farm or jobsite, this tool delivers professional results with minimal effort. Built from high-strength steel and reinforced with 4" x 4" square tubing, it features adjustable scarifier teeth for breaking up compacted soil and curved, reversible cutting edges for grading and smoothing. The roll-formed moldboard and rear blade edge allow for efficient pushing and backfilling, mimicking the action of a mini bulldozer. Compatible with Category 0 and Category 1 tractors, it connects via a pin-style 3 Point hitch and includes a top link pin for secure attachment.
Key Features
- Multi-Function Design: Digs, levels, and backfills with ease.

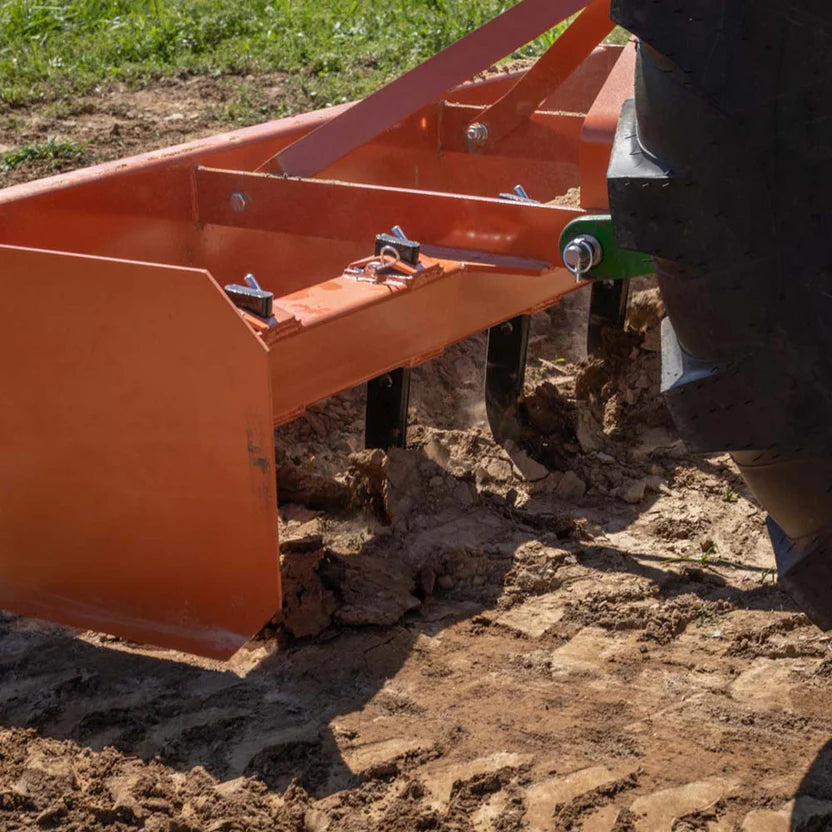

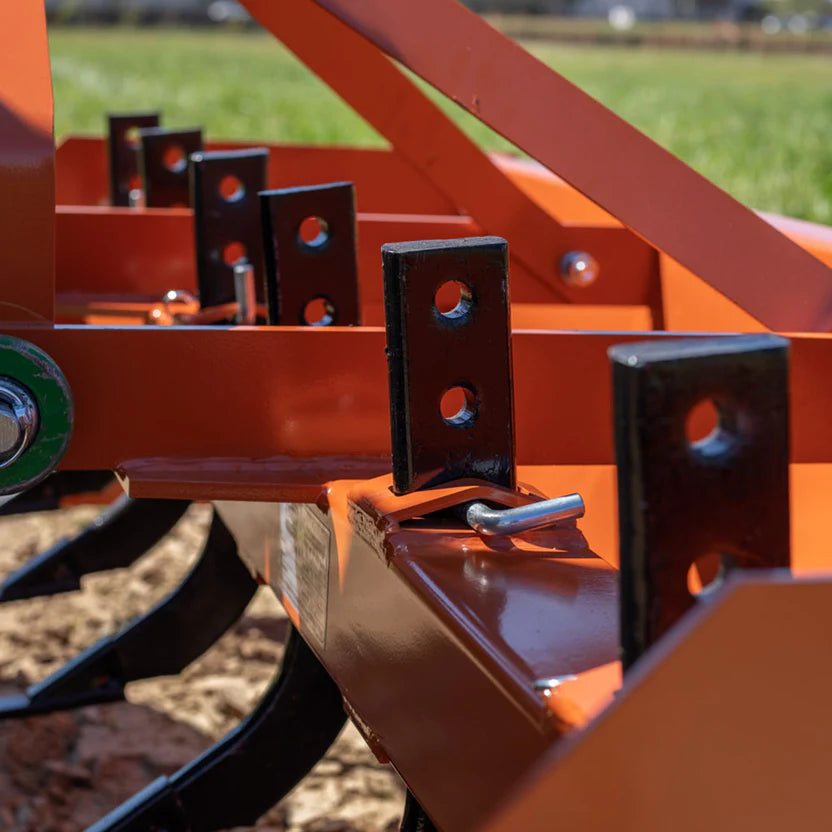

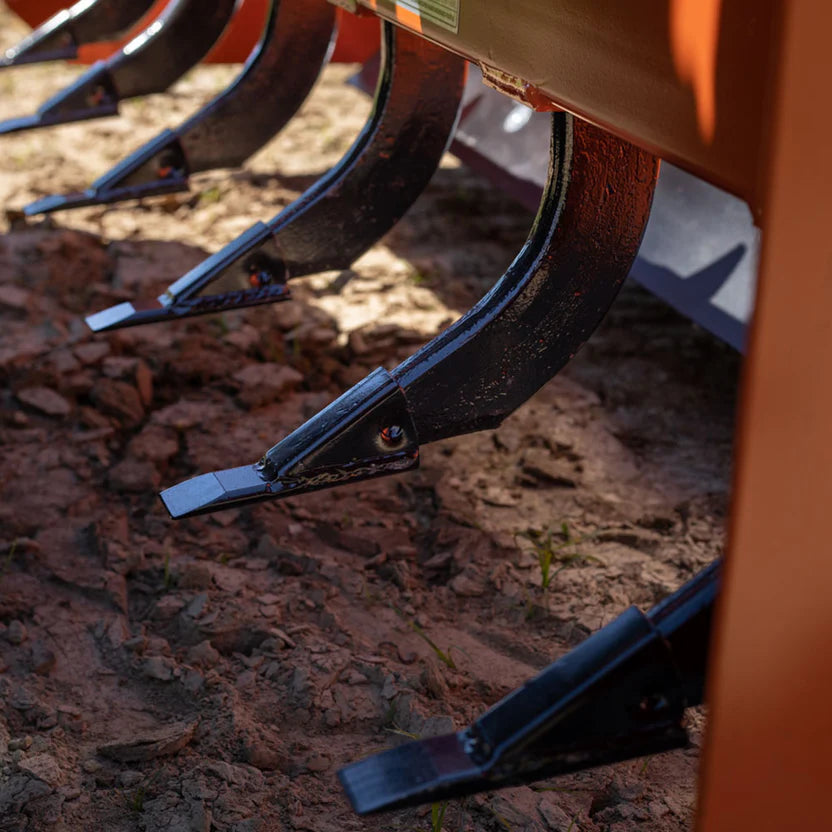

- Scarifier Teeth: Adjustable and replaceable for tough ground penetration.

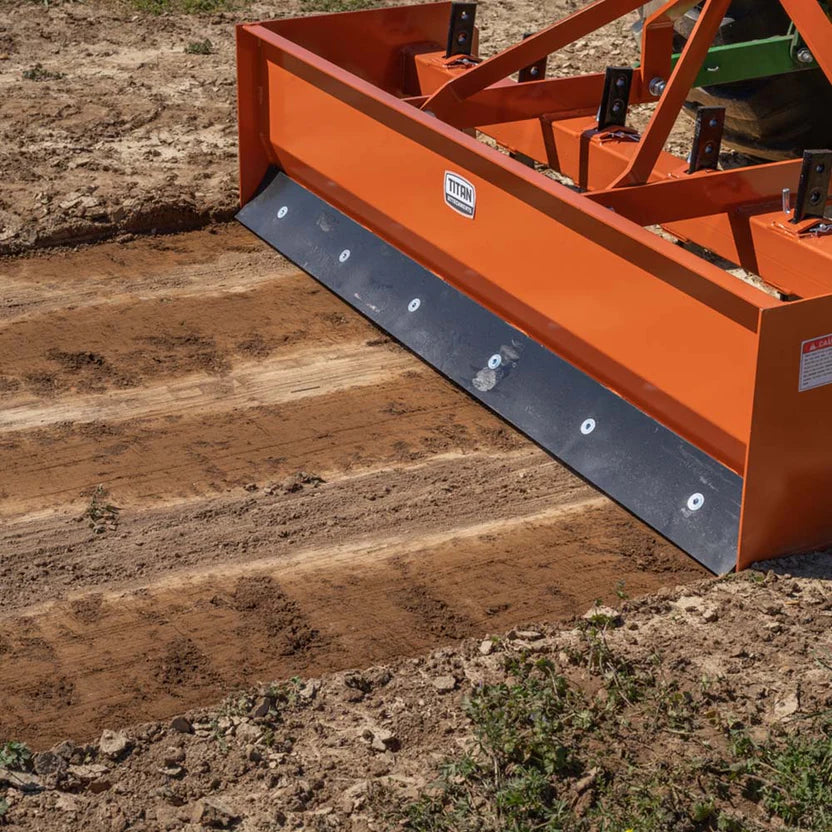

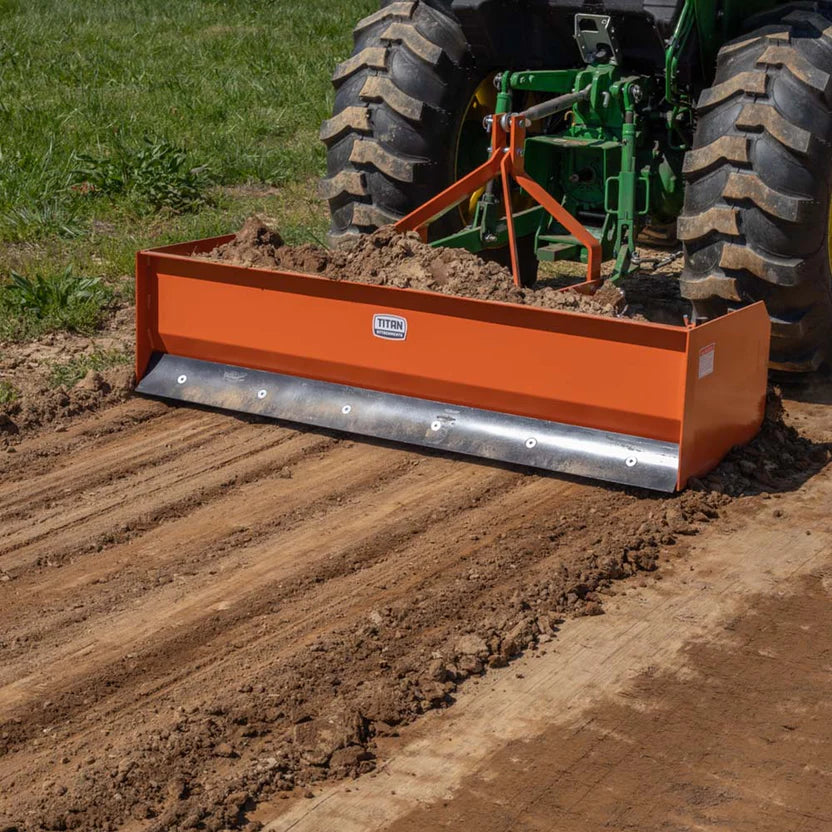

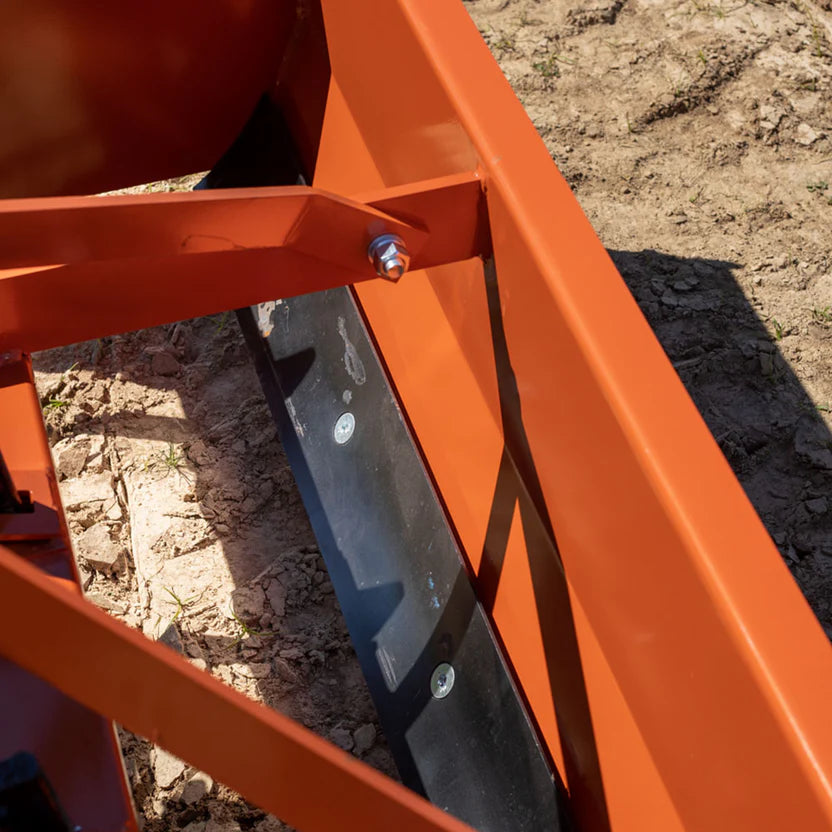

- Dual-Edge Cutting Blades: Curved, reversible, and replaceable for grading and smoothing.
- Heavy-Duty Frame: Reinforced with 4" x 4" square tubing for structural integrity.
- Powder-Coated Finish: Durable orange coating resists rust and wear.

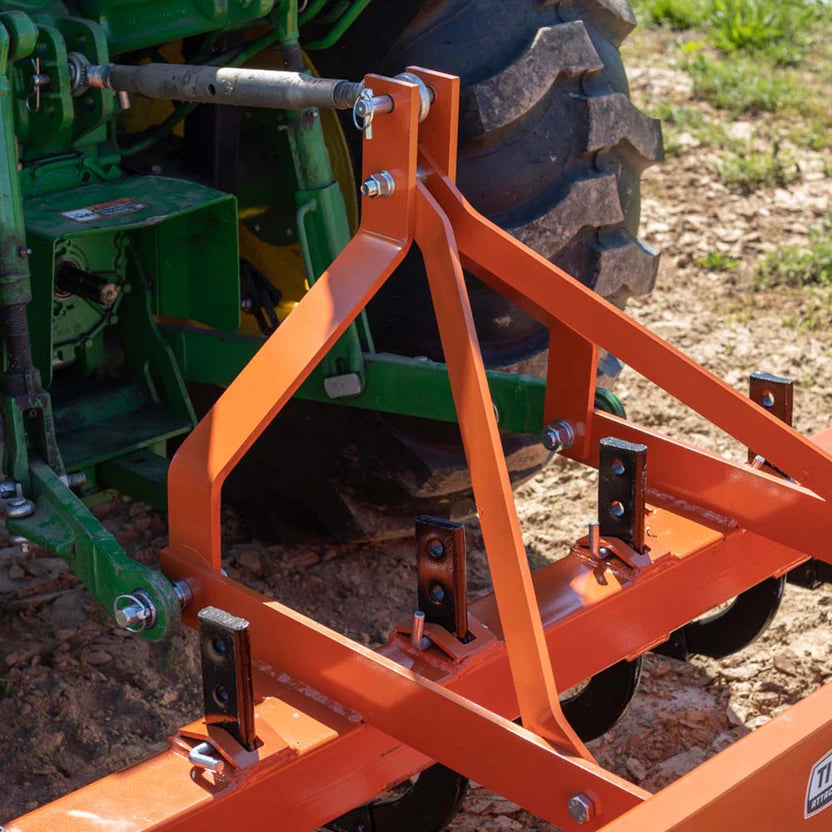

- Tractor Compatibility: Fits Category 0 & 1 tractors with pin-style 3 Point hitch.
- Top Link Pin Included: For secure and easy installation.
- Delivery Note: Phone number required for freight scheduling.
Detailed Specifications

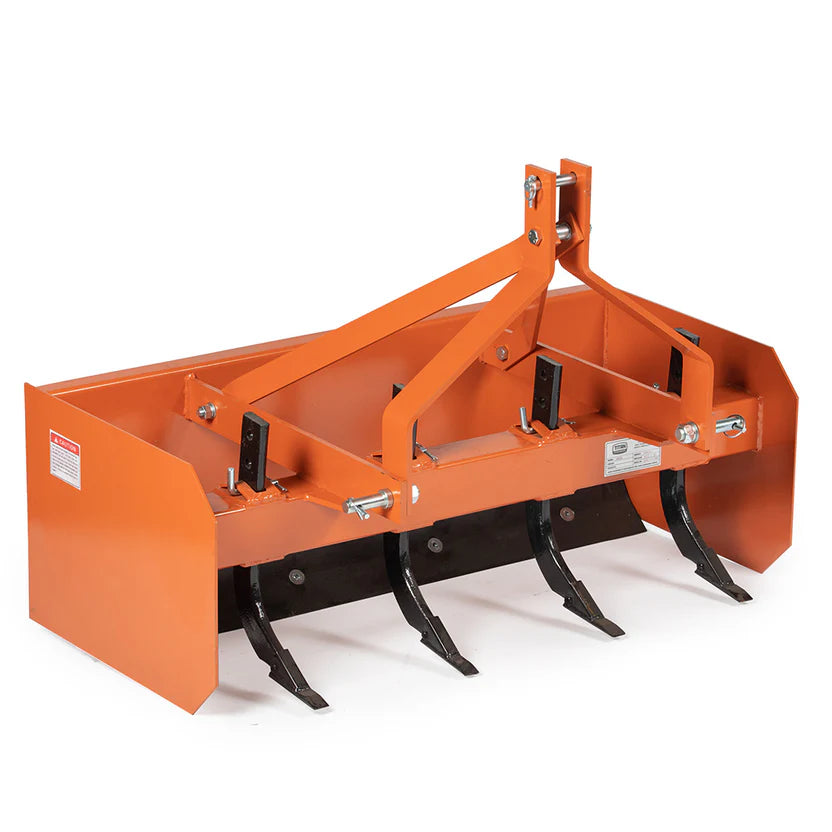

Box Blade Scraper – 4 FT & 5 FT Models
| Specification | 4 FT Model | 5 FT Model |
|---|---|---|
| Overall Width | 48.75 in | 60.75 in |
| Overall Height | 34.5 in | 34.5 in |
| Overall Depth | 29.5 in | 29.5 in |
| Scarifier Quantity | 4 | 5 |
| Scarifier Size (in) | 18.25 x 1.38 | 18.25 x 1.38 |
| Moldboard Length | 48 in | 60 in |
| Product Weight | 296 lb | 335 lb |
| Tractor Category | Cat 0 & Cat 1 | Cat 0 & Cat 1 |
| Recommended HP Range | 18–30 HP | 20–35 HP |

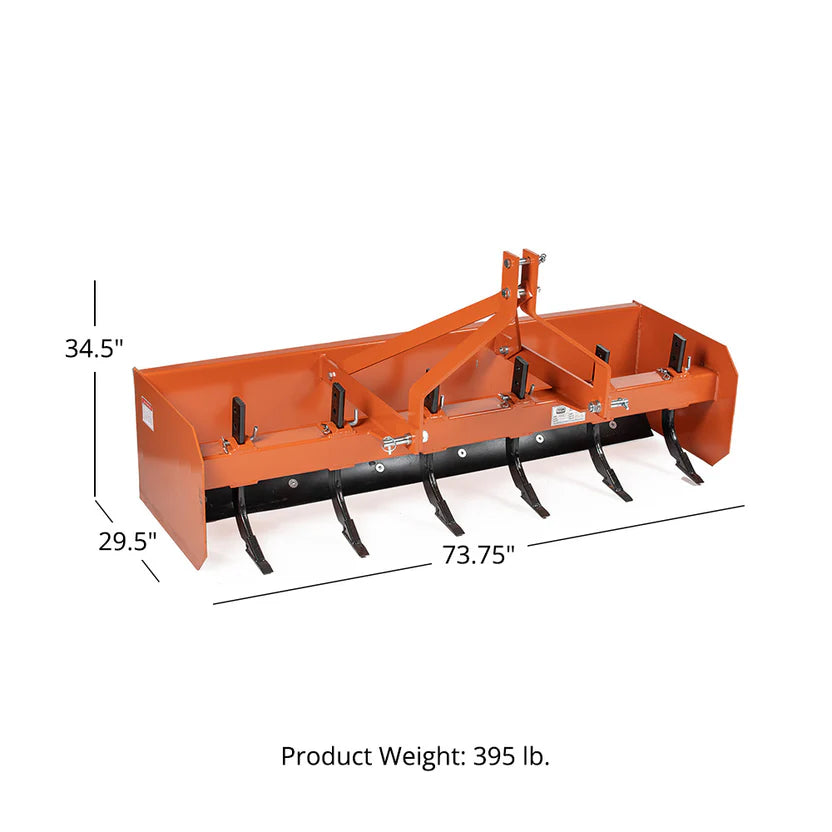

Box Blade Scraper – 6 FT & 7 FT Models
| Specification | 6 FT Model | 7 FT Model |
|---|---|---|
| Overall Width | 73.75 in | 84.75 in |
| Overall Height | 34.5 in | 34.5 in |
| Overall Depth | 29.5 in | 29.5 in |
| Scarifier Quantity | 6 | 7 |
| Scarifier Size (in) | 18.25 x 1.38 | 18.25 x 1.38 |
| Moldboard Length | 71.5 in | 84 in |
| Product Weight | 395 lb | 443 lb |
| Tractor Category | Cat 0 & Cat 1 | Cat 0 & Cat 1 |
| Recommended HP Range | 25–40 HP | 30–45 HP |
