Top Dog Attachments Dual Side Flow Bucket – Heavy Material | Width 82” | Capacity: 17.5-21 cu. ft | For Skid Steers
Top Dog Attachments Dual Side Flow Bucket – Heavy Material | Width 82” | Capacity: 17.5-21 cu. ft | For Skid Steers
Regular price
$11,520.00
Regular price
Sale price
$11,520.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

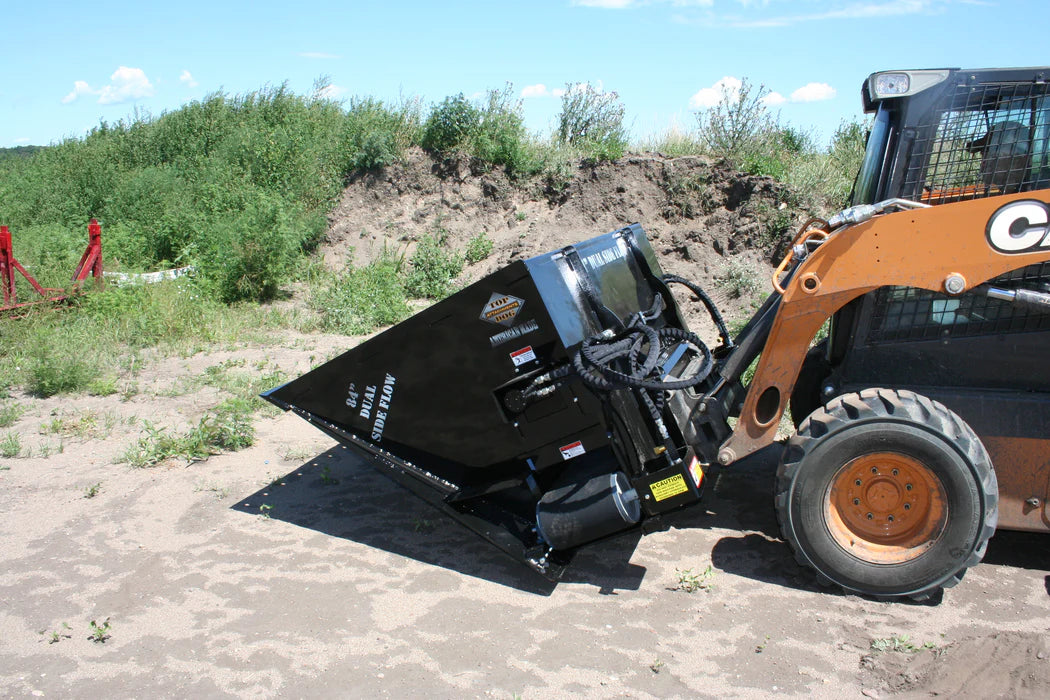

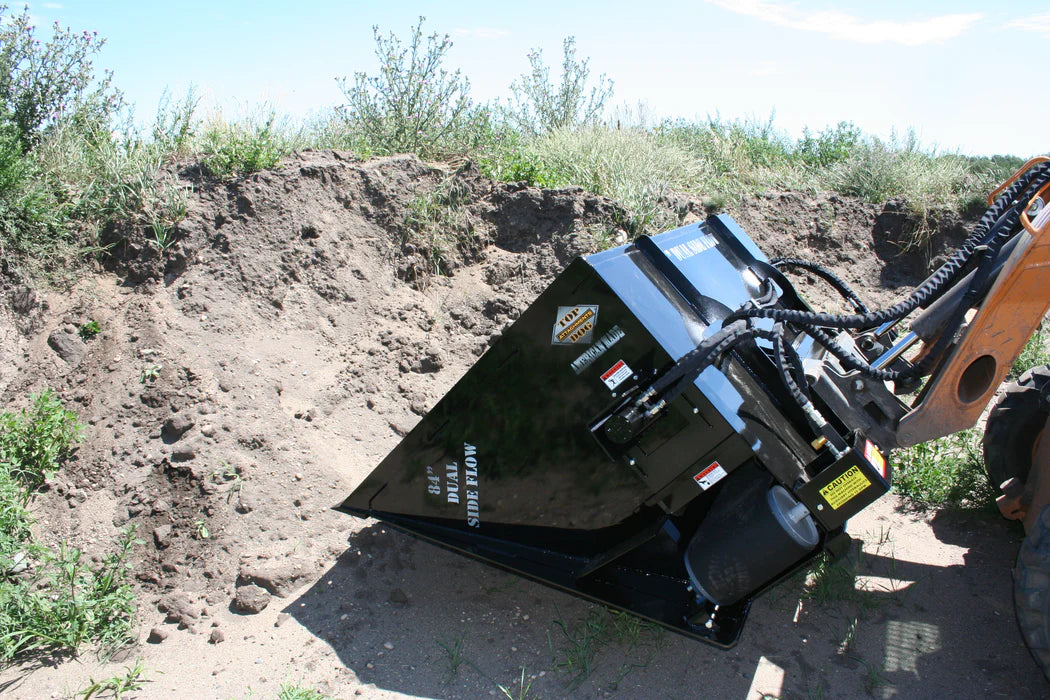

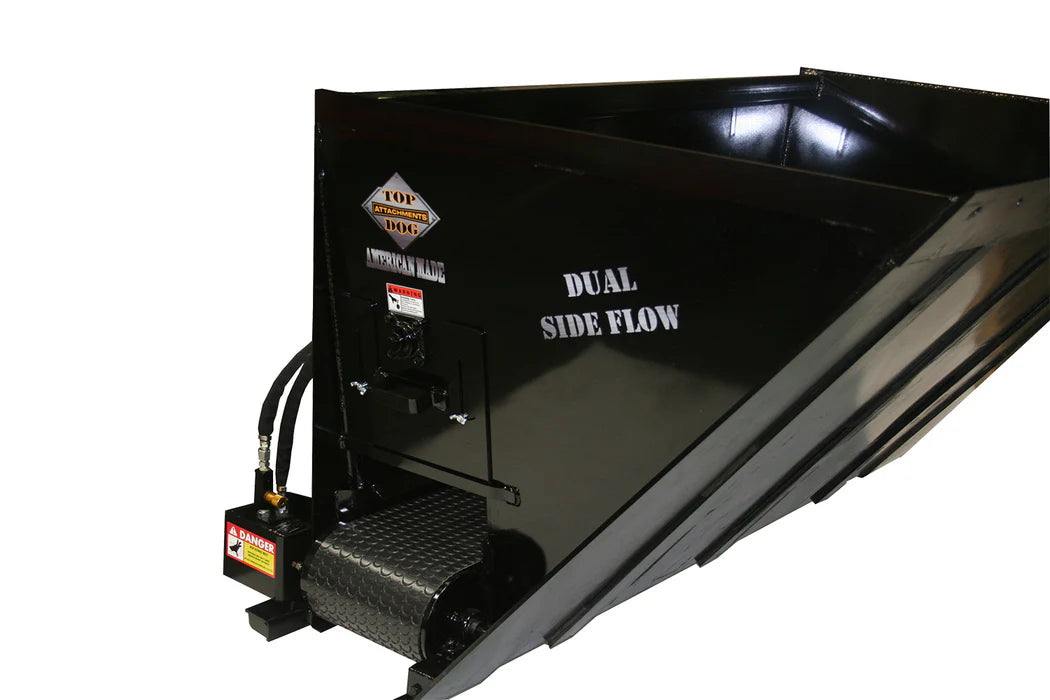

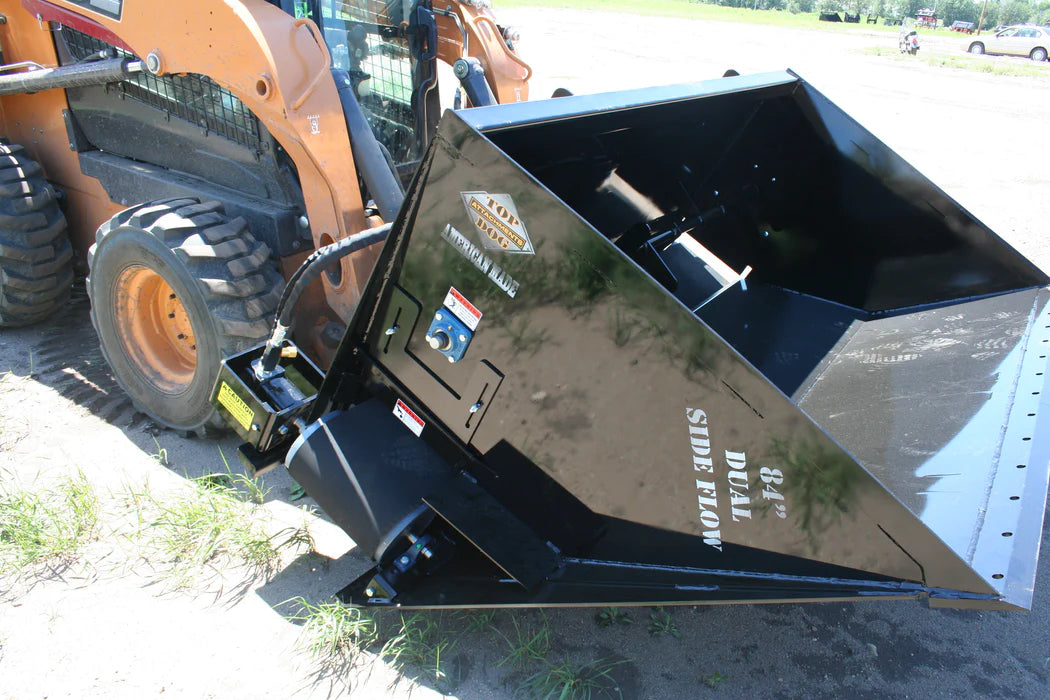

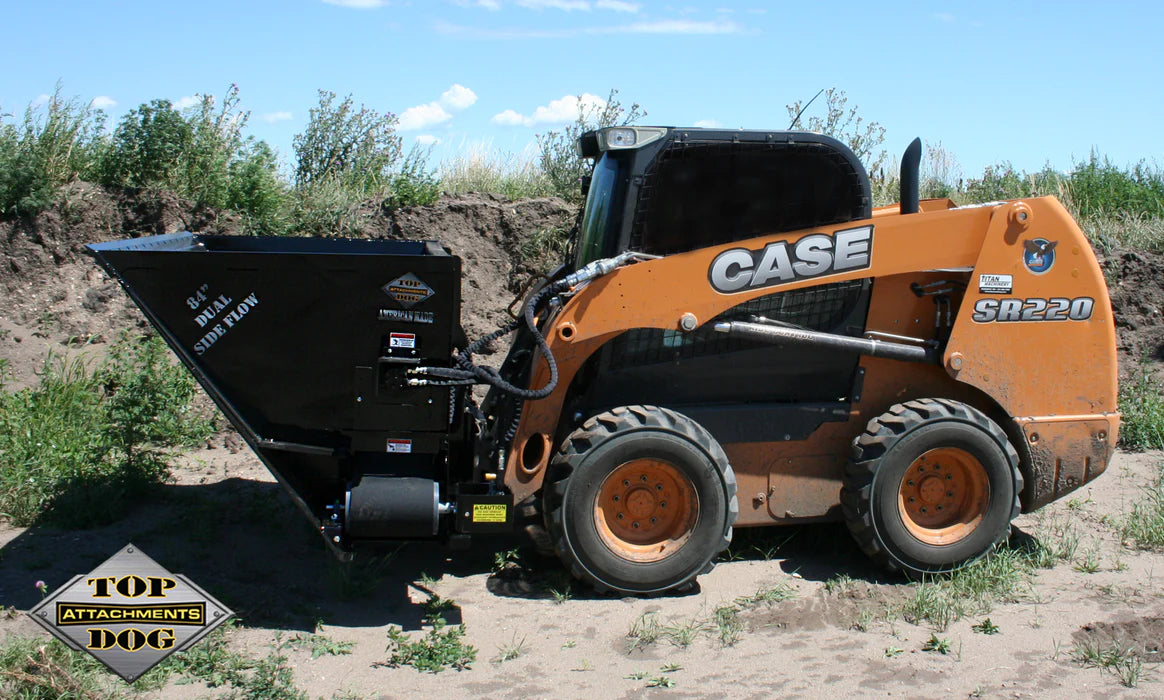

Top Dog Attachments Dual Side Flow Bucket – Heavy Material | Width 82” | Capacity: 17.5-21 cu. ft | For Skid Steers
DESCRIPTION
The Dual Side Flow Bucket – Heavy Material is designed for efficiently handling denser materials like sand, asphalt, and gravel. With a dual side discharge system, adjustable belt speeds, and a beater bar to prevent bridging, this bucket is an ideal attachment for industrial and agricultural use.
Key Features
- Dual-Side Discharge: Material can be scooped and discharged through two side openings for quick spreading.
- Convertible Functionality: Rotates and lowers to act as a standard bucket, then raises to become a spreader/feeder.
- Three Orbit Motors: Includes a Beater Bar Motor to prevent material bridging and clogging, along with Dual Belt Motors that operate the flexible track, allowing material to be discharged from the right or left side opening.
- Adjustable Belt Speed: Dual control valves provide precision control over speed and direction.
- Heavy-Duty Build: 3/16” bucket thickness, reinforced wear bars, and durable cutting edge ensure long-lasting performance.
- Custom Belt Options: Available in 2-Ply Asphalt Belt or Chevron V Style Belt for optimized material handling.
- Made in the USA: Designed and manufactured for industrial-grade durability.
Detailed Specifications
| Feature | Specification |
|---|---|
| Part # | 9000144 |
| Overall Width | 82” |
| Overall Height | 30” |
| Overall Depth | 42” |
| Struck Capacity | 17.5 cu. ft |
| Heaped Capacity | 21 cu. ft |
| Belt Motors | 4.9 cu. in – Dual Motors |
| Beater Bar Motor | 18.6 cu. in |
| Flow GPM | 15-20 GPM |
| Belt Speed | Adjustable (Dual Control Valves) |
| Belt Thickness | 5/16” thick |
| Belt Style Options | 2-Ply Asphalt or Chevron V Style |
| Hydraulic Couplers | Flat Face |
| Hydraulic Hoses | 1/2” PSI Min/Max: 2,500 |
| Bearings | 1” Pillow Block (2) |
| Cutting Edge | 5/8” x 6 |
| Mounting Plate | 5/16” thick |
| Tensioners | Manually Adjustable (4 locations) |
| Bucket Thickness | 3/16” thick |
| Wear Bars | 3/8” thick |
| Weight | 1,000 lbs |
| Lead Time | 4 to 6 weeks |
