Product Description
Turbo Turf Hydro Seeding System | Model HS-400-XPW-P | Capacity 400 Gallon | 60 HP | Skid/Trailer Type
Lead Times:
- HE & Harve Series - 24 - 26 Week
- The T models 400 and up - 10 - 12 Week
- Small 50-150 to Jet agitated models - 2 - 4 Week
- 300 is - 4-6 Week
DESCRIPTION

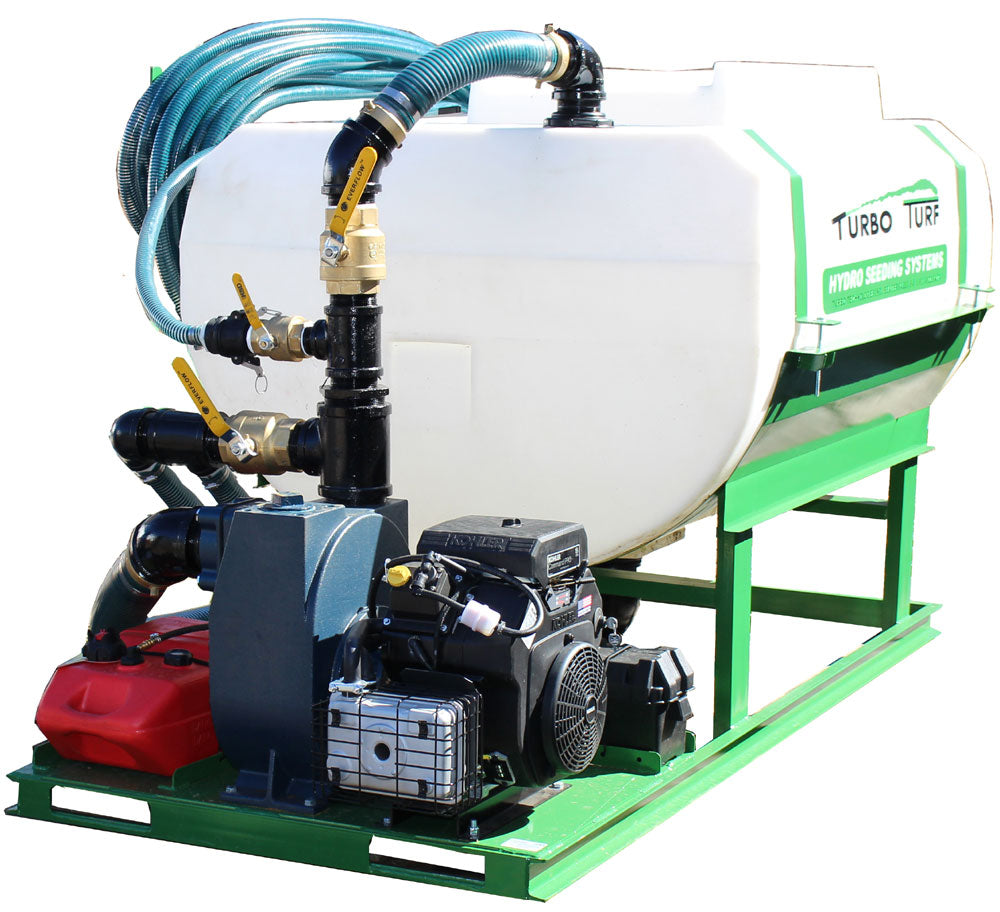

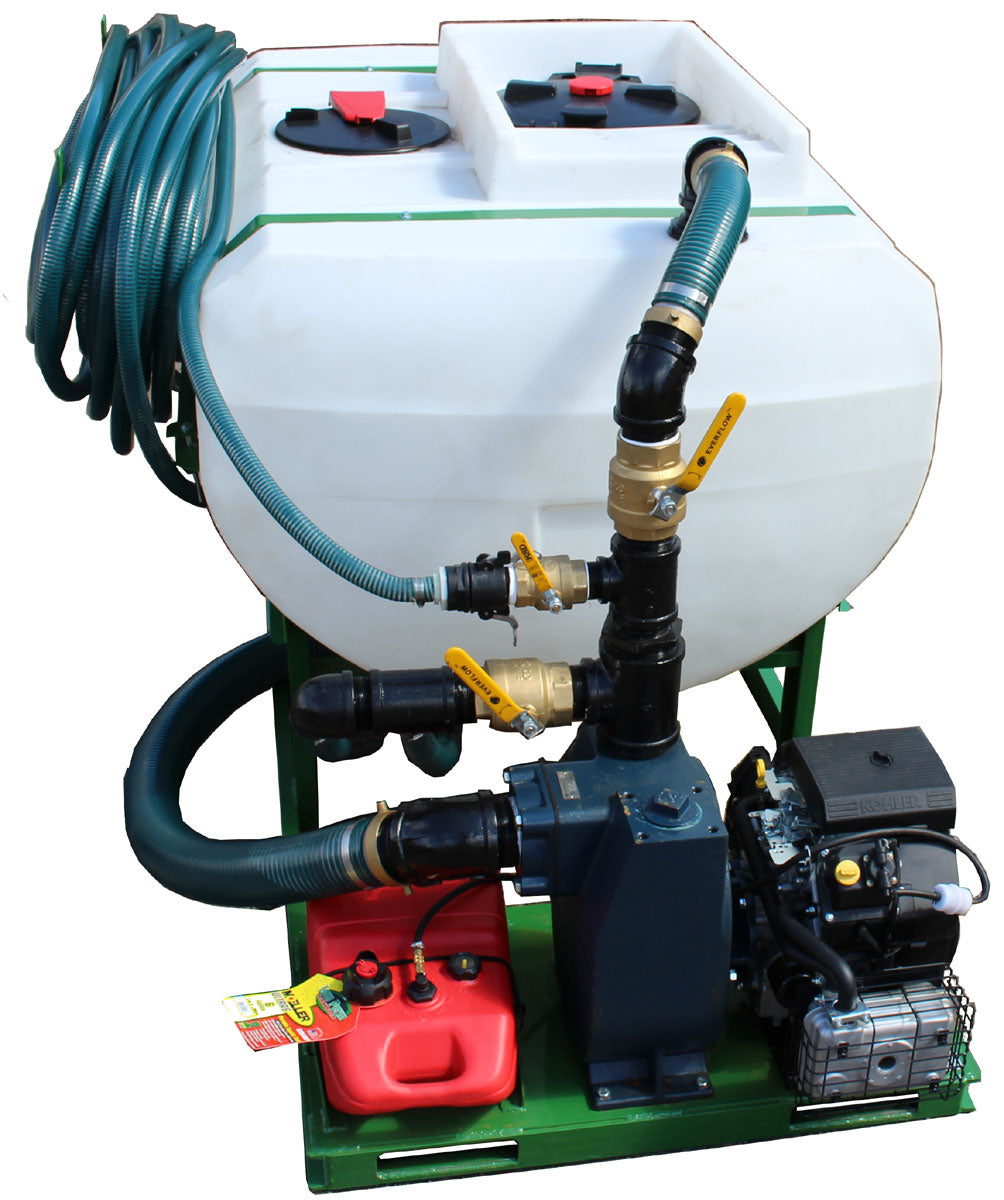

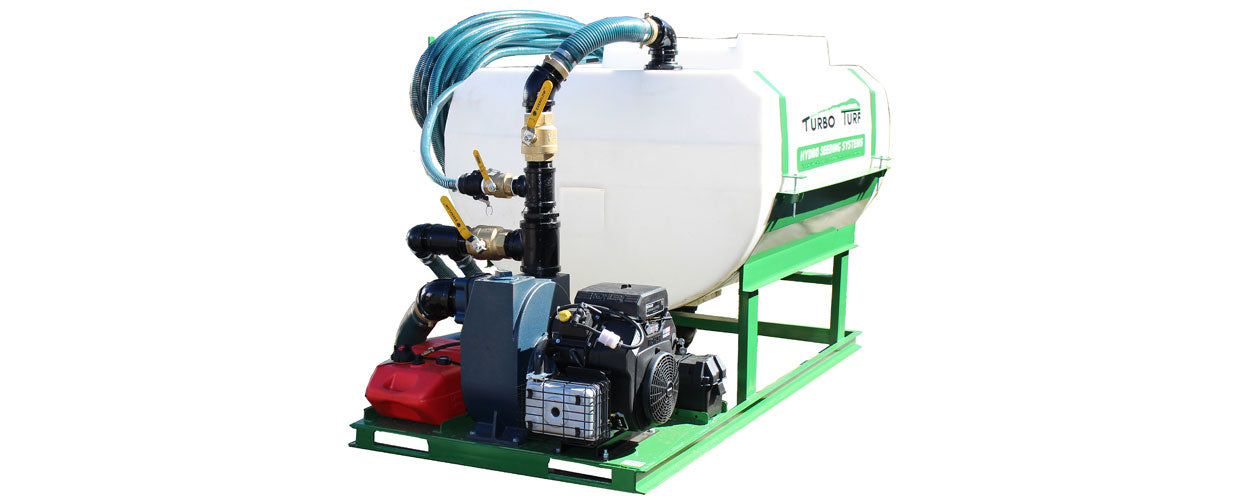

Discover the HS-400-XPW Hydroseeder from Turbo Turf, a robust 400-gallon capacity unit designed for efficient residential and commercial seeding applications. Equipped with a powerful 16 HP Vanguard Briggs & Stratton engine and a 4″ X 4″, 662 G.P.M. high volume centrifugal pump, this hydroseeder ensures rapid material application at approximately 50 G.P.M. It features a standard Jet “Bale Buster” for effortless mulch incorporation.
PUMP

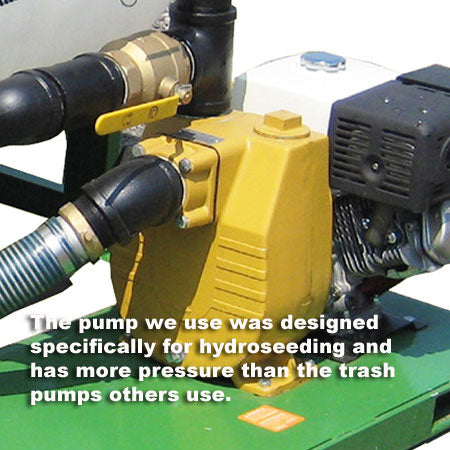

This unit uses a TP4VE 4″ centrifugal pump with 662 gallons a minute of flow and 50 P.S.I. of pressure. This pump was designed specifically for hydro seeding. There are no grease fittings and the only maintenance required is to winterize if at the end of the season if it is stored where temperatures go below freezing. The pump impeller mounts on the end of the engine shaft so there is no power loss. Typically it can operate for 5 to 10 years with no maintenance. The only thing to be careful of is to not run it dry.
ENGINE
This unit comes with a 16 H.P. Vanguard Briggs & Stratton electric start engine. This has proved to be a very reliable engine with a long life. The engine has a two year warranty and service for the engine is available.
HOSE

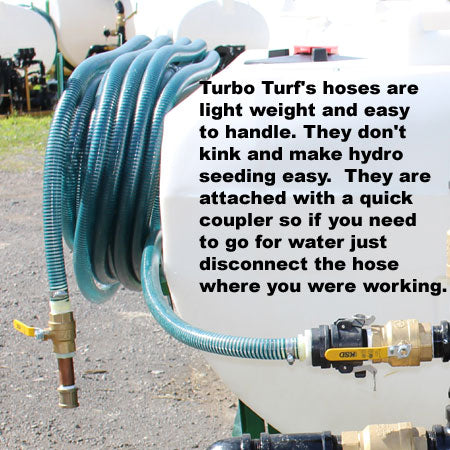

This unit comes standard with 100 ft of 1 1/4″ I. D. hose. The hose we use is both strong and light weight. It is made from a poly material with a spiral reinforcement. Additional hose is available in 50 feet or 100 feet sections. The unit will handle up to 250 feet of hose.
BALE TRAY

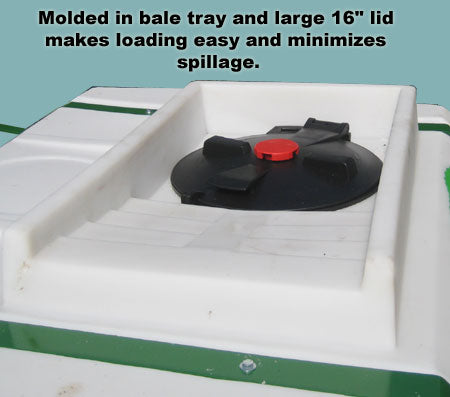

This unit comes equipped with a bale tray that is molded into the tank. The opening is 16″ with a hinged fill lid. The bale tray makes it easy to add mulch and other materials with a minimum of spillage. Minimizing wasted material can add up to big savings over time. There is also a second 12″ hinged lid which allows two people to load or makes a good spot for a hose so it is out of your way while filling.
TRAILER

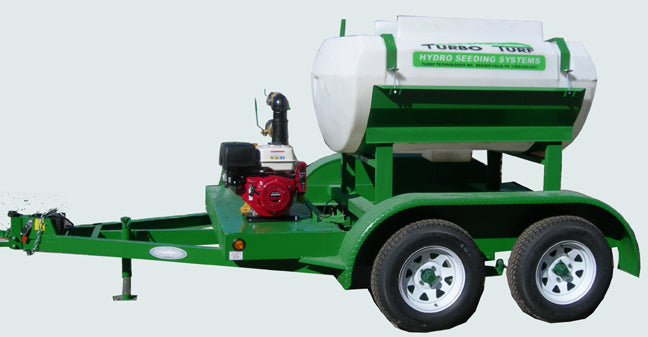

The HS-400-XPW-P is permanently attached to a DOT approved double axle trailer with brakes on both axles, DOT lighting, a breakaway, safety chains and an on-board test box for the breakaway battery. The trailer has a GVW of 7000 pounds and is 14’2″ long an 84″ wide. It is available with either a 2 5/16″ ball hitch or a pintle hitch.
Key Features
- Capacity: 400 Gallons, suitable for seeding up to 5,300 square feet per load.
- Engine: 16 HP Vanguard Briggs & Stratton, electric start, ensures reliable performance.
- Pump: 4″ X 4″, 662 G.P.M., 50 P.S.I. pump designed for hydroseeding.
- Nozzles: Includes 3 nozzles (wide hydro seeding nozzle, medium nozzle, straight nozzle) for versatile application.
- Versatile Use: Can be mounted on a truck or operated as a pull-type unit from a trailer.
- Efficient Operation: Mixing time of 1-20 minutes depending on material; spray distance up to 55 feet with the straight nozzle.
- Construction: Long-life poly tank that prevents rust, with a bale tray for easy loading and continuous agitation.

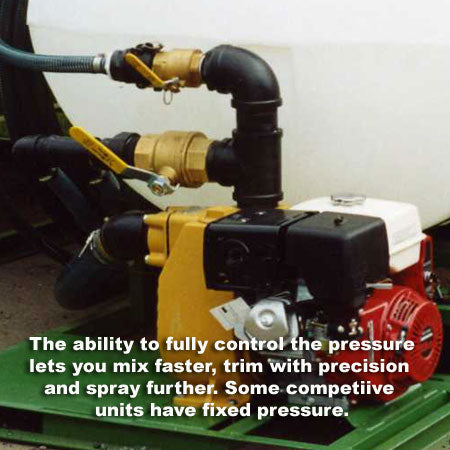

- Control: Ability to control flow at the gun without unit adjustments, enhancing operational flexibility
Detailed Specifications
| Specification | Details |
|---|---|
| Tank Capacity | 400 Gallons |
| Coverage per Load | 5,300 sq. ft. |
| Empty Weight | 800 pounds |
| Loaded Weight | 3,970 pounds |
| Overall Dimensions | 62″W x 94″L x 59″H |
| Skid Frame Size | 45″W x 94″L |
| Standard Hose | 100 feet of 1 1/4″ I.D. poly hose |
In Package
- 100′ of 1 1/4″ discharge hose
- Gun with 3 nozzles (wide, medium, straight)
- Bale Buster for efficient mulch handling
Material Cost Breakdown
50-Gallon Hydroseeder
- Mulch: 0.5 bales at $11.95 per bale = $5.98
- Seed: 5 pounds at $2.05 per pound = $10.25
- Fertilizer: 1.33 pounds at $2.19 per pound = $2.91
- Tackifier: 0.67 oz at $1.00 per oz = $0.67
- Total Material Cost for the Load: $19.81
- Coverage: Approximately 667 sq. ft.
- Cost per Sq. Ft.: 2.97 cents per sq. ft.
- 10,000 Sq. Ft. Residential Job:
- At 10 cents per sq. ft.: Charge = $1,000.00; Material Cost = $297.00; Profit = $703.00.
- At 15 cents per sq. ft.: Charge = $1,500.00; Material Cost = $297.00; Profit = $1,203.00.
100-Gallon Hydroseeder
- Mulch: 1 bale at $11.95 per bale = $11.95
- Seed: 10 pounds at $2.05 per pound = $20.50
- Fertilizer: 2.67 pounds at $2.19 per pound = $5.85
- Tackifier: 1.33 oz at $1.00 per oz = $1.33
- Total Material Cost for the Load: $39.63
- Coverage: Approximately 1,333 sq. ft.
- Cost per Sq. Ft.: 2.97 cents per sq. ft.
- 10,000 Sq. Ft. Residential Job:
- At 10 cents per sq. ft.: Charge = $1,000.00; Material Cost = $297.00; Profit = $703.00.
- At 15 cents per sq. ft.: Charge = $1,500.00; Material Cost = $297.00; Profit = $1,203.00.
150-Gallon Hydroseeder
- Mulch: 1.5 bales at $11.95 per bale = $17.93
- Seed: 15 pounds at $2.05 per pound = $30.75
- Fertilizer: 4 pounds at $2.19 per pound = $8.76
- Tackifier: 2 oz at $1.00 per oz = $2.00
- Total Material Cost for the Load: $59.44
- Coverage: Approximately 2,000 sq. ft.
- Cost per Sq. Ft.: 2.97 cents per sq. ft.
- 10,000 Sq. Ft. Residential Job:
- At 10 cents per sq. ft.: Charge = $1,000.00; Material Cost = $297.00; Profit = $703.00.
- At 15 cents per sq. ft.: Charge = $1,500.00; Material Cost = $297.00; Profit = $1,203.00.
500-Gallon Hydroseeder
- Mulch: 5 bales at $11.95 per bale = $59.75
- Seed: 50 pounds at $2.05 per pound = $102.50
- Fertilizer: 13 pounds at $2.19 per pound = $28.47
- Tackifier: 6.67 oz at $1.00 per oz = $6.67
- Total Material Cost for the Load: $197.39
- Coverage: Assuming linear scaling, a 500-gallon unit covers approximately 6,667 sq. ft.
- Cost per Sq. Ft.: 2.96 cents per sq. ft.
- 10,000 Sq. Ft. Residential Job:
- At 10 cents per sq. ft.: Charge = $1,000.00; Material Cost = $296.70; Profit = $703.30.
- At 15 cents per sq. ft.: Charge = $1,500.00; Material Cost = $296.70; Profit = $1,203.30.
750-Gallon Hydroseeder
- Mulch: 7.5 bales at $11.95 per bale = $89.63
- Seed: 75 pounds at $2.05 per pound = $153.75
- Fertilizer: 20 pounds at $2.19 per pound = $43.80
- Tackifier: 10 oz at $1.00 per oz = $10.00
- Total Material Cost for the Load: $297.18
- Coverage: Approximately 10,000 sq. ft.
- Cost per Sq. Ft.: 2.97 cents per sq. ft.
- 10,000 Sq. Ft. Residential Job:
- At 10 cents per sq. ft.: Charge = $1,000.00; Material Cost = $297.18; Profit = $702.82.
- At 15 cents per sq. ft.: Charge = $1,500.00; Material Cost = $297.18; Profit = $1,202.82.
1000-Gallon Hydroseeder
- Mulch: 10 bales at $11.95 per bale = $119.50
- Seed: 100 pounds at $2.05 per pound = $205.00
- Fertilizer: 26.67 pounds at $2.19 per pound = $58.43
- Tackifier: 13.33 oz at $1.00 per oz = $13.33
- Total Material Cost for the Load: $396.26
- Coverage: Approximately 13,333 sq. ft.
- Cost per Sq. Ft.: 2.97 cents per sq. ft.
- 10,000 Sq. Ft. Residential Job:
- At 10 cents per sq. ft.: Charge = $1,000.00; Material Cost = $297.00 (rounded); Profit = $703.00.
- At 15 cents per sq. ft.: Charge = $1,500.00; Material Cost = $297.00; Profit = $1,203.00.
General Supply Information for a One Acre Job
Paper Mulch Covering:
- 1000 lbs per acre: 25 40# paper bales, $21.95 per bale, totaling $548.75
- 1200 lbs per acre: 30 40# paper bales, $21.95 per bale, totaling $658.50
- 1500 lbs per acre (steeper slope): 38 40# paper bales, $21.95 per bale, totaling $834.10
Fertilizer:
- 2-4 bags per acre
- For residential use: 4 bags
- For non-residential use: 2 bags
- Cost per bag: $59.95
Trafficker:
- For flat to slight slope: Turbo Tack, covers one acre, $49.95
Tracker:
- For slopes: Witches Brew, covers one acre, $69.96
Wood Blend Mulch or 100% Wood:
- Typical coverage: 2000 lbs per acre
- For steep slopes: Up to 3500 lbs per acre
Seed Costs:
- Reach out to us or check your local seed supplier
How Quickly Can I Do a 10,000sf Hydroseeding Job?
50-Gallon Hydroseeder:
- Coverage per Load: Approximately 667 sq. ft.
- Number of Loads Needed: About 15 loads (10,000 / 667).
- Estimated Time per Load: Assuming approximately 20 minutes per load (including refilling and application).
- Total Time: 15 loads x 20 minutes = 300 minutes or 5 hours.
100-Gallon Hydroseeder:
- Coverage per Load: Approximately 1,333 sq. ft.
- Number of Loads Needed: About 8 loads (10,000 / 1,333).
- Estimated Time per Load: Assuming approximately 25 minutes per load.
- Total Time: 8 loads x 25 minutes = 200 minutes or about 3 hours and 20 minutes.
150-Gallon Hydroseeder:
- Coverage per Load: Approximately 2,000 sq. ft.
- Number of Loads Needed: 5 loads (10,000 / 2,000).
- Estimated Time per Load: Assuming approximately 30 minutes per load.
- Total Time: 5 loads x 30 minutes = 150 minutes or 2.5 hours.
300-Gallon Hydroseeder:
- Coverage per Load: Approximately 4,000 sq. ft.
- Number of Loads Needed: 2.5 loads (10,000 / 4,000).
- Estimated Time per Load: Assuming approximately 40 minutes per load.
- Total Time: 2.5 loads x 40 minutes = 100 minutes or about 1 hour and 40 minutes.
500-Gallon Hydroseeder:
- Coverage per Load: Approximately 6,667 sq. ft.
- Number of Loads Needed: 1.5 loads (10,000 / 6,667).
- Estimated Time per Load: Assuming approximately 45 minutes per load.
- Total Time: 1.5 loads x 45 minutes = 68 minutes or about 1 hour and 8 minutes.
750-Gallon Hydroseeder:
- Coverage per Load: Approximately 10,000 sq. ft.
- Number of Loads Needed: 1 load.
- Estimated Time per Load: Assuming approximately 50 minutes per load.
- Total Time: 50 minutes.
1000-Gallon Hydroseeder:
- Coverage per Load: Approximately 13,333 sq. ft.
- Number of Loads Needed: 1 load.
- Estimated Time per Load: Assuming approximately 50 minutes per load.
- Total Time: 50 minutes.
