Product Description
Wallenstein Log Loaders and Trailers | Models LXT-95 & LXT-115 | Bed Length 96" & 132" inches | Engine Horsepower 6.5 To 10 HP | For Tractor
DESCRIPTION
High-Capacity, Versatile Log Loaders for Agricultural Use

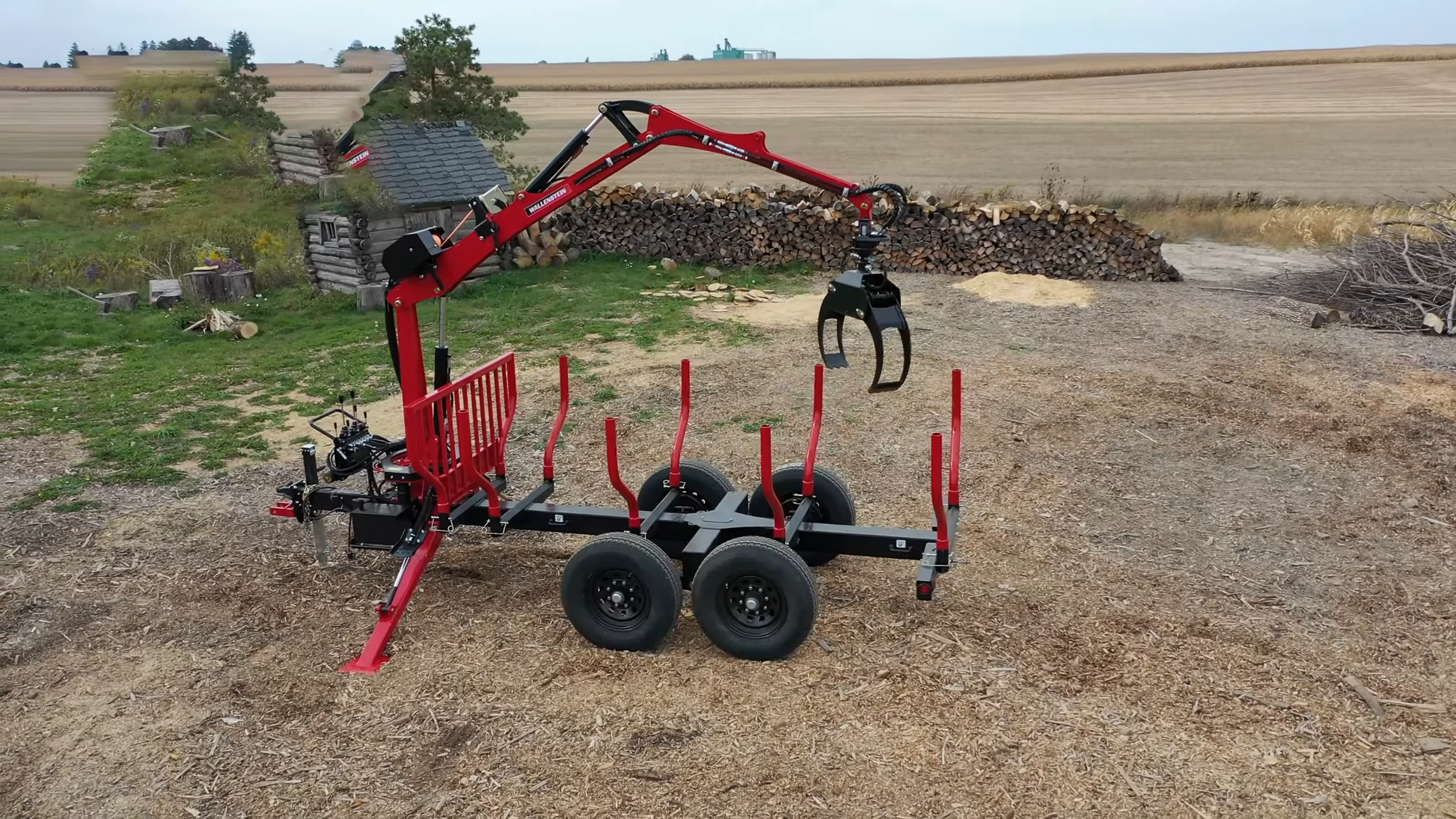

The Wallenstein LXT115 and LXT95 log trailers and loaders are engineered for durability, power, and versatility in agricultural and forestry settings. With load capacities of 11,500 lbs and 5,000 lbs respectively, these self-contained, highway or off-road towable trailers are suitable for handling large volumes of logs. Equipped with 360° grapple rotation, 270° boom rotation, and a powerful Vanguard engine, each model delivers robust performance for heavy-duty tasks.
Efficient and Safe Forestry Equipment with Excellent Reach and Stabilization
Featuring adjustable stabilizers, high ground clearance, and a significant horizontal reach, these trailers are designed to maximize productivity and safety in rugged terrain. With options for both highway and off-road towing, they are easily adaptable for different transport needs. These trailers also come with electric or surge brakes for added control, ensuring efficient and safe operation for agricultural professionals.
Key Features
| Image | Features | Description |
|
270° Boom Swing Range |
Gives you full access to both sides of the trailer while providing an operator safety zone | |
|
360° Hydraulic Rotation
|
Pick up logs in any position and orient them exactly where you want. |
|
|
5 Stick Control With Swivel
|
Enables operation of the boom from either side of the trailer. |
|
|
Hydraulic Stabilizers |
Easy to use hydraulic stabilizers help to prevent tipping. |
|
|
Self Centering Bunk Posts |
If bumped, the log posts naturally return to their proper position. |
|
|
Surge Brakes |
The hydraulic brakes automatically engage if the trailer begins to surge forward, such as traveling downhill or slowing. |
|
|
Walking Beam Axle |
Smoothly travel over uneven ground. |
Detailed Specifications
| Specification | LXT115 | LXT95 |
|---|---|---|
| Engine | Vanguard® 10 hp (305 cc) | Vanguard® 6.5 hp (203 cc) |
| Grapple Opening | 3" - 40" (8 cm - 102 cm) | 3" - 30" (8 cm - 76 cm) |
| Grapple Rotation | 360° | 360° |
| Boom Rotation | 270° | 270° |
| Trailer Bed Length | 132" (335 cm) | 96" (244 cm) |
| Horizontal Reach | 11' 6" (351 cm) | 9' 6" (290 cm) |
| Vertical Reach (Ground to Closed Grapple) | 15' 5" (470 cm) | 12' 11" (394 cm) |
| Stabilizer Width (Spread) | 8' 11" (272 cm) | 7' 5" (226 cm) |
| Main Boom Cylinder Diameter | 3" (8 cm) | 2.5" (6 cm) |
| Dipper Cylinder Diameter | 2.5" (6 cm) | 2.5" (6 cm) |
| Stabilizer Cylinder Diameter | 2" (5 cm) | 2" (5 cm) |
| Ground Clearance | 17" (43 cm) | 14" (36 cm) |
| Tires | ST235-80R16 LRE | 27 x 10.5 - 15 |
| Hitch | 2-5/16" Ball | 2" Ball |
| Brakes | Electric | Surge |
| Tongue Weight (Trailer Empty with Log Loader) | 480 lbs (218 kg) | 200 lbs - 465 lbs (91 kg - 211 kg) |
| Tongue Weight (Trailer Empty with Log Loader & Power Pack) | 555 lbs (252 kg) | 250 lbs - 515 lbs (114 kg - 234 kg) |
| Trailer Weight (Empty) | 2470 lbs (1120 kg) | 1650 lbs (748 kg) |
| Dimensions (LxWxH) | 198" x 68" x 60" (503 cm x 173 cm x 152 cm) | 161" x 64" x 58" (409 cm x 163 cm x 147 cm) |
| Minimum Tow Vehicle Requirement | 3/4 Ton | N/A |
| Sliding Axle | N/A | Hydraulic |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

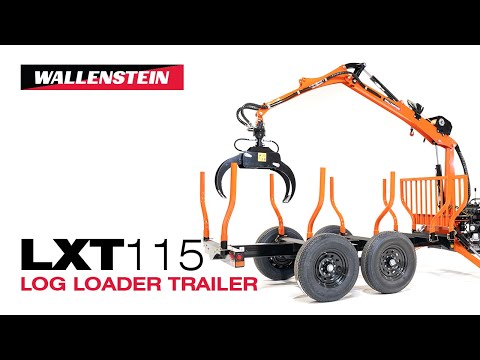

Videos
