Product Description
Wallenstein Manure Spreader Ground & PTO Drive | MX Series | Engine Horsepower 12-50 HP | For Tractors & Lawn Mowers
DESCRIPTION

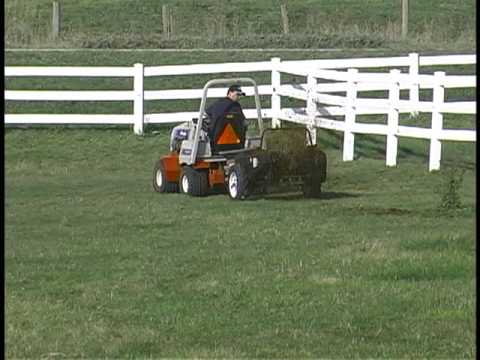

The Wallenstein MX Series Manure Spreaders provide versatility and efficiency for agricultural needs, offering both ground drive and PTO-powered models. Ground drive models, including the MX25G, MX50G, and MX80G, are ideal for use with ATVs, UTVs, and lawn tractors, enabling farmers without PTO capability to efficiently distribute manure. Equipped with traction implement tires, these spreaders ensure consistent torque and a fine, even spread.PTO-powered models, MX50P and MX80P, connect to tractors for power-efficient manure spreading, with larger capacities and durable construction to handle high workloads. The corrosion-resistant carbon steel box, rustproof poly floor, and consistent apron drive system ensure durability, making these spreaders ideal for long-term agricultural use. Each model is carefully crafted for consistent performance across various terrains and applications.
Key Features
- Dual Options: Available in both ground drive and PTO-powered models.
- Compact and Versatile: Usable with ATVs, UTVs, and small to medium tractors.
- Corrosion Resistant: Built with powder-coated carbon steel for durability.
- Traction Tires: Equipped with implement tires for consistent spreading.
- Large Capacity: Heaped capacity options from 25 to 80 bushels.
- Easy Attachment: Compatible with a range of tractor HP for different models.
- Efficient Spread: Chain and sprocket apron drive system ensures uniform spread.
- Low Maintenance: Rustproof poly floor for longevity and easy upkeep.
- Lightweight Design: Easy to transport with tongue weights from 50 to 56 lbs.
- Environmentally Safe: Designed for efficient manure handling to improve soil quality.
| Image | Feature | Description |
| Easy Access Chain Tensioner | Check and adjust chain tension with ease. |
|
| Heavy Duty Bearings | Standard for smooth operation and longer life. |
|
| Hydraulic Hose Keeper | Store hose ends safely and cleanly when not in use. |
|
| One Piece Welded Bed Frame | The trailer tongue, axle assembly and beaters rely on the rigidity of the frame which prevents the box from premature wearing and cracking. |
|
| Three Speed Control | Slow, medium or fast settings allow you to choose the application rate to match your acreage. |
|
| Tongue-and-Groove Poly Floor Boards | Easy to clean poly floor boards will not rust or rot. |
Detailed Specifications
| Specification | MX25G | MX50G | MX50P | MX80G | MX80P |
|---|---|---|---|---|---|
| Capacity (Heaped) | 25 Bushel (31.25 cu. ft.) | 50 Bushel (62.5 cu. ft.) | 50 Bushel (62.5 cu. ft.) | 80 Bushel (100 cu. ft.) | 80 Bushel (100 cu. ft.) |
| Engine HP Range | 12 - 25 | 15 - 30 | 20 - 35 | 20 - 45 | 30 - 50 |
| Loading Height | 29" (74 cm) | 36" (74 cm) | 36" (74 cm) | 37" (94 cm) | 37" (94 cm) |
| Paddles | 8 | 10 | 10 | 10 | 10 |
| Drive System | Ground | Ground | PTO | Ground | PTO |
| Tires | 6 x 12 | 7.6 x 15 | 7.6 x 15 | 7.6 x 15 | 7.6 x 15 |
| Tongue Weight | 34 lbs (15 kg) | 50 lbs (23 kg) | 50 lbs (23 kg) | 56 lbs (25 kg) | 56 lbs (25 kg) |
| Total Weight | 510 lbs (231 kg) | 795 lbs (361 kg) | 795 lbs (361 kg) | 920 lbs (417 kg) | 920 lbs (417 kg) |
| Box Dimensions (LxWxH) | 72" x 26" x 15" (183 cm x 66 cm x 38 cm) | 89" x 32" x 17" (226 cm x 81 cm x 43 cm) | 89" x 32" x 17" (226 cm x 81 cm x 43 cm) | 102" x 38" x 20" (259 cm x 97 cm x 51 cm) | 102" x 38" x 20" (259 cm x 97 cm x 51 cm) |
| Dimensions (LxWxH) | 117" x 48" x 29" (297 cm x 122 cm x 74 cm) | 156" x 57" x 36" (396 cm x 145 cm x 91 cm) | 156" x 57" x 36" (396 cm x 145 cm x 91 cm) | 168" x 63" x 37" (427 cm x 160 cm x 94 cm) | 168" x 63" x 37" (427 cm x 160 cm x 94 cm) |
