Wingsland Z15 Gimbal Spotlight
DESCRIPTION

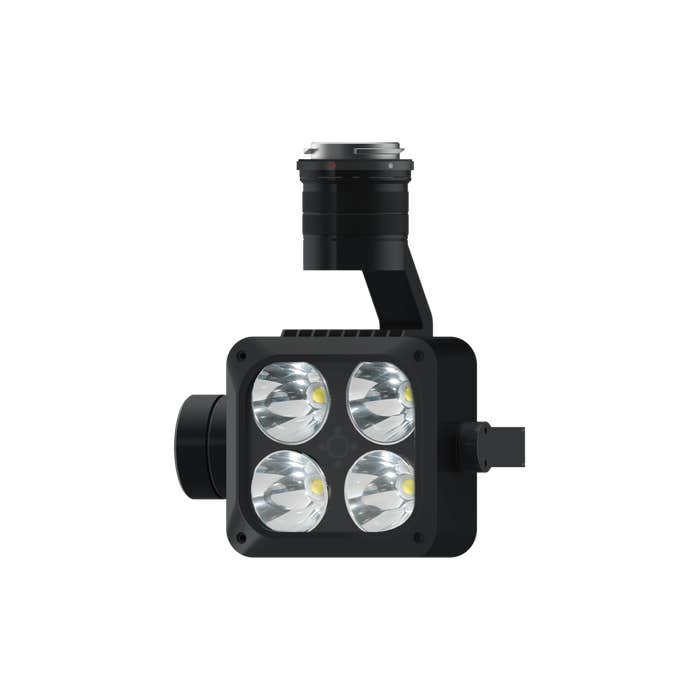

The Wingsland Z15 is a bright, 3-axis stabilized gimbal spotlight with high-power beads. Powered by DJI SkyPort, it has an operating range of up to 150 m and can be easily integrated onto the DJI Matrice 300 RTK and the DJI Matrice 200 Series V1 and V2 drones, lighting the space at night or in lowlight conditions for users in firefighting, emergency response, law enforcement, and beyond.
Modes
Switch between Always on, Flashing, and SOS modes for different environments and applications.
Air Cooling System
The built-in air-cooling system prevents the spotlight from overheating by constantly dissipating heat.
Intelligent Protection
The Wingsland Z15 is protected against overheating. The system will automatically adjust when the internal temperature exceeds 90℃.
Supports Dual Downward Gimbals

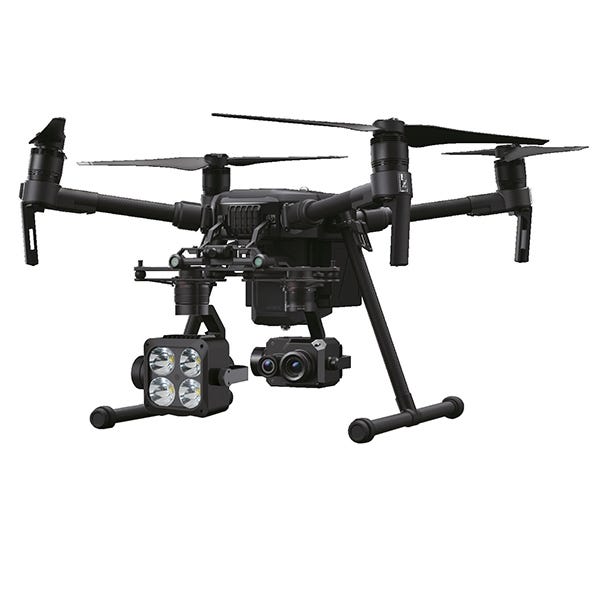

The Wingsland Z15 can be used with DJI Zenmuse payloads on DJI aircraft that include a dual-downward gimbal, helping to illuminate operations.
SPECIFICATION
-
Product Name: WINGSLAND Z15 Gimbal Spotlight
-
Port Type: DJI SkyPort
-
Dimensions: 100 x 110 x 150 mm
-
Weight: 500 g
-
Rated Power: 48 W
LED Light Beads
-
Voltage: 6 V
-
Power: 40 W
-
Luminous Flux: 10200 lm
-
FOV: 15°
-
Operating Range: 150 m
-
Area Coverage: 1863 m² @ 120 m; 323 m² @ 50 m
-
Illuminance: 4 lux @120m; 11 lux @ 60 m; 47 lux@30 m
Gimbal
-
Angular Vibration Range: ±0.02°
-
Mount: Detachable
-
Controllable Range: Pitch: -90° to +90°, Yaw: ±170°
-
Max Control Speed: Pitch: 60°/s, Yaw: 60°/s
>Temperature Parameters
-
Operating Temperature: -10 ℃ to 50 ℃
- Storage Temperature: -20 ℃ to 60 ℃
IN THE BOX
- 1x Z15 Gimbal Spotlight
