XAG P40 Spraying Drone (5.28gal / 20L)Agriculture Drone
DESCRIPTION
The XAG P40 Agriculture Drone sets a new benchmark for smart, efficient, and precise agricultural operations. Designed to perform spraying, spreading, and mapping tasks, the P40’s compact and durable construction makes it an essential tool for modern farming.
Equipped with the SuperX 4 Intelligent Control System, the P40 features RTK-enabled centimeter-level navigation, multi-directional radar for obstacle avoidance, and AI fault prediction for enhanced safety. The drone's modular design allows quick and seamless system swaps, while its foldable structure ensures easy transportation.
With a 20L smart liquid tank and a maximum spraying efficiency of 15 hectares per hour, the P40 enhances productivity while reducing waste. Its spreading system features a 25L container with dual centrifugal discs, capable of distributing up to 2.4 tons of fertilizer or 1.6 tons of rice seeds per hour.
Key Features
- Precision Spraying: Adjustable atomization (60-400 μm) and a 6-meter spray width ensure even coverage.
- Efficient Spreading: Dual centrifugal discs and screw feeder technology prevent seed damage and ensure uniform distribution.
- Advanced Mapping Capabilities: HD field maps and AI prescription maps generated in minutes.
- Robust Design: IP67-rated waterproofing and modular aluminum alloy structure for easy maintenance and durability.
- Smart Power System: Rapid 11-minute battery recharge with the GC4000+ Auto SuperCharge Station.
A Bigger Upgrade, An All-round Flagship
This new upgraded all-in-one machine delivers spraying, spreading, and mapping, altogether offering smart, efficient, and flexible autonomous solutions to make it the spearhead of agricultural drone.
CM-level RTK
Guarantee accurate flight operations
Multi-functional Design
Spraying / broadcast / mapping
Autonomous Operation
AI flight control, highly efficient with ease
Multi-directional Radars
Accurate perception & obstacle avoidance
Intelligent Interaction
Quick starting & easy-to-use
IP67 Protection
Waterproof & dust-resistant, sturdy & durable
Smooth Mega-flow Spraying,
The Finest Atomisation
Dual nozzles and mega-flow peristaltic pumps increase the max. flow rate to 10L/min.
New brushless motors and centrifugal discs improve the efficiency of atomization to make
spraying more even and controllable.
Mega-flow Peristaltic Pumps
Variable flow rate up to 10L/min
All-new Dual Nozzle Design
6m effective spray width
6m effective spray width
Intelligent Centrifugal Atomisation
60-400μm adjustable droplet size
60-400μm adjustable droplet size
20L Smart Liquid Tank
Real-time volume sensing
Real-time volume sensing
Highly Effective Spraying
Lifted up to 15 hectare per hour
Lifted up to 15 hectare per hour
Exceptional Uniformity,
A Huge Leap in Spreading
A Huge Leap in Spreading
The industry-first dual centrifugal discs and screw feeder design substantially increase the spread width,making broadcast more even and effective without any seed damage. The capacity of the container is extended to 25L, which elevates the spreading efficiency to 2.4 tons of fertilisers or 1.6 tons of rice seeds each hour.
Dual Centrifugal Discs
Dual Centrifugal Discs
Dual Centrifugal Discs
Variable Screw Feeder
Even and controllable distribution, no seed damage
Even and controllable distribution, no seed damage
25L Capacity Container
Real-time volume sensing
Real-time volume sensing
Mapping with a Few Clicks ,
HD Field Images Instantly at Hand
HD Field Images Instantly at Hand
For the first time, this system enables agricultural drones to have rapid mapping capability. It can shoot, map, and analyse farmland images autonomously, generating high-definition field maps and AI prescription maps, in which field boundaries and crop growth status are accurately identified. Its mapping efficiency is more than
80 times that of traditional manual labour.
80 times that of traditional manual labour.
Mapping with Ease
Quick start & simple-to-use
Quick start & simple-to-use
HD Field Map Stitching
6.67 hectares available in 10 minutes ③
6.67 hectares available in 10 minutes ③
Accurate Perception
Identify field boundary & crop growth
Identify field boundary & crop growth
Highly Adaptable
Rapid swap for seamless operationsHighly Adaptable
Rapid swap for seamless operations
Rapid swap for seamless operationsHighly Adaptable
Rapid swap for seamless operations
High-resolution Optical Image
12 million pixels to reveal the smallest details
12 million pixels to reveal the smallest details
Special Material Protection
Waterproof & dust-resistant, stronger anti-erosion
A Smart Core Powered by AI
Waterproof & dust-resistant, stronger anti-erosion
A Smart Core Powered by AI
1GHz Independent Processor
Edge computing, respond at lightning speed
CM-level Positioning
Dual-Antenna RTK + cloud base stations
Dual-Antenna RTK + cloud base stations
Support 5G Transmission
Quick access to more information
Quick access to more information
- 1GHz Independent Processor
- Edge computing, respond at lightning speed
- CM-level Positioning
- Dual-Antenna RTK + cloud base stations
- Support 5G Transmission
- Quick access to more information
- Fully Support AI Prescription
- Enable precision operation
- Enhanced Flight Safety
- 3 x IMU + AI fault prediction with multiple redundancy design
- Automatic Route Planning
- Program the best flight based on battery life and remaining spray volume
- Multi-Directional Radar Matrix
- Sophisticated Perception and Obstacle Avoidance
Equipped with front dynamic radar and terrain-adaptive module to achieve omni-directional flight, while sensing the surrounding environment to predict any incoming obstacles. Flight operation is safer than ever.

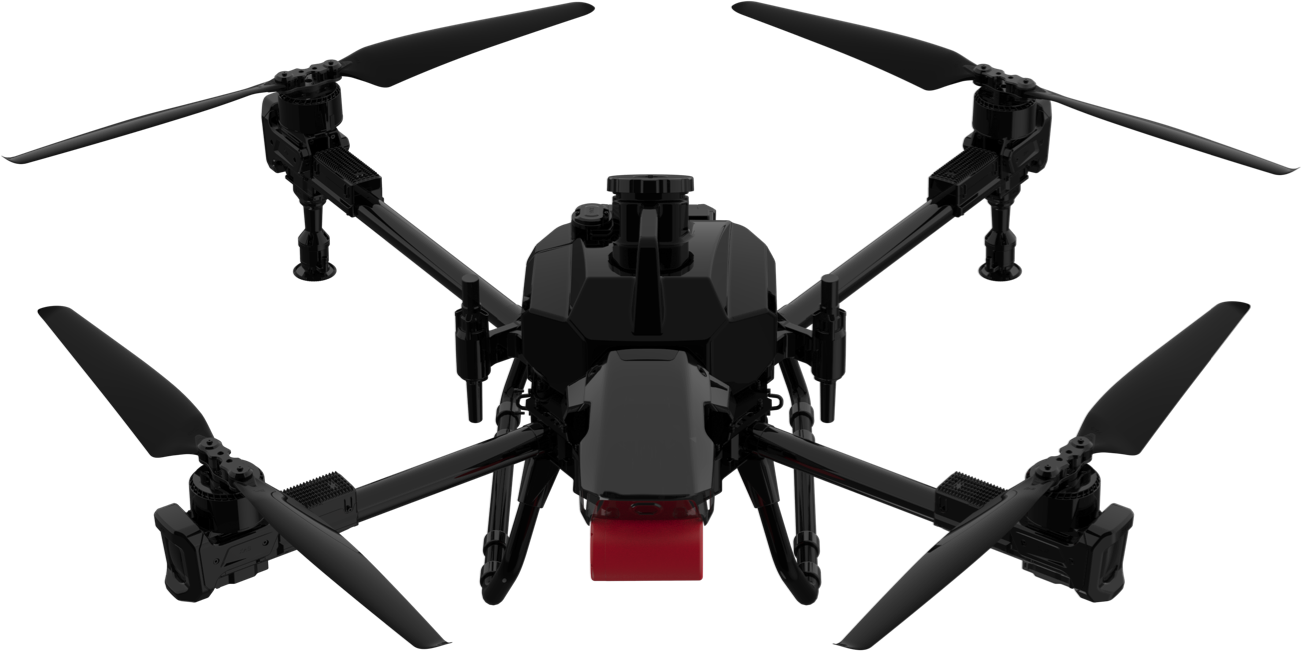

- Front Dynamic Radar
- MIMO imaging radar oscillates frequently,
- accurately detecting obstacles within 40m

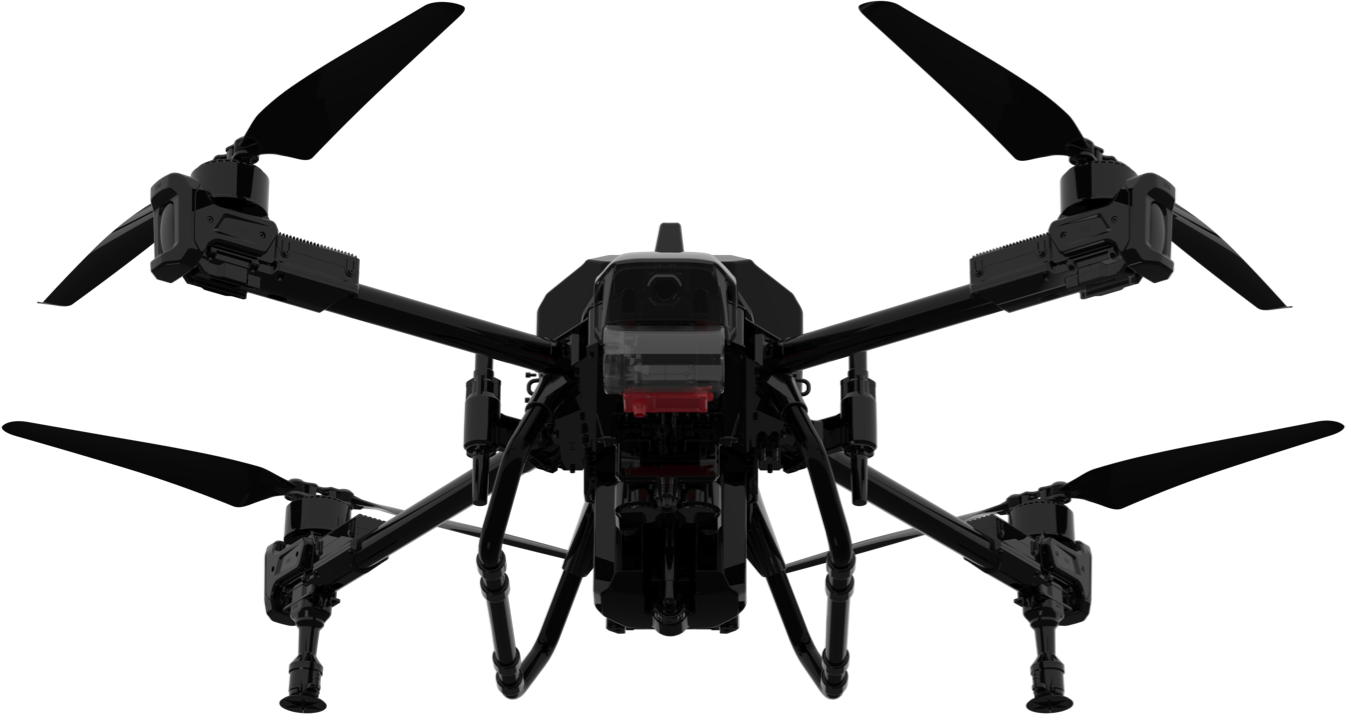

- Terrain Module
- Terrain-following radar bolsters
- precision detection of downward obstacles
- PSL pilot perspective image
- Field Condition Clearly Displayed, More Protection on Flight Safety
- Longer Structure with Compact Fuselage,
Easy Transportation without Safety Concern
The shrinking body size has made it more compact and easier to transport.
Adopt aluminium alloy material to ensure structural intensity and enhance seismic resistance.
Adopt aluminium alloy material to ensure structural intensity and enhance seismic resistance.
- Modular Design
20% fewer components make maintenance easier

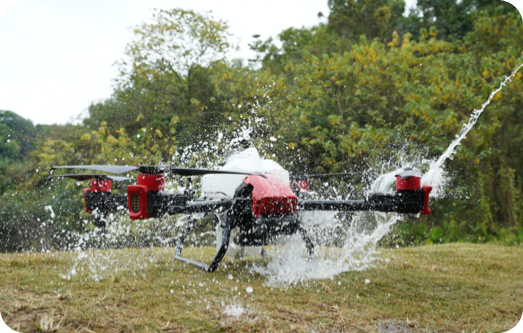

- IP67 Rating Protection
Rinse directly by water,
adapt to various harsh conditions
- Improved Antenna Placement
Convenient assembly, stabler RTK positioning performance
- High-Performance Motors, Powerful Momentum
High-performance motors and 40-inch superior propellers largely contribute to the reduction of arm vibration and power loss, which provides a stable and sufficient power supply.
- High-Performance Motors
More powerful, greater tension
- FOC Control ESCs
Precise control, quick response & energy-saving, better heat dissipation
- Optimised Propellers
- Enhance flight stability
- Battery Power Stronger, Smarter, and Safer
- The all-new B13960S Smart Battery possesses bigger electric power and super charge capability.
- Two batteries with one GC4000+ SuperCharge Station can realise non-stop operations in fields.
- B13960S Intelligent SuperCharge Battery 960 Wh large capacity
- 11min fully charged in water cooling tank④
- XBMS Intelligent Battery Management System
Self-balancing of battery cell
- New heat-resistant material with
a built-in temperature sensor
- CM12500P Intelligent SuperCharger
- Economical and highly efficient
- 2500W rated power, 15min SuperCharge
- GC4000+ Auto SuperCharge Station
- Variable frequency generator with ultra-low fuel consumption of 0.6L/KWh.
- Max. 25 batteries can be fully charged with a 15L full tank of petrol.
- Small and lightweight, 31.5kg in net weight.
- XBMS intelligent battery management system, safe and reliable.
- LCD monitor allows quick access to operating status and maintenance reminders.
- Quick Start with , Three Operation Modes
- Standard mode
- Customised mode
- Remote control mode
- Data Cloud Storage ,One Click to
Have Your Operation Reports
- Kick off a New Era of Autonomous Farming
- Obtain Digital Field Map
- Generate AI Prescription Map
Conduct Autonomous Operation
Detailed Specifications
Aerial Platform
| Feature | Details |
|---|---|
| Dimensions (Unfolded) | 2110 × 2127 × 555 mm |
| Dimensions (Folded) | 1280 × 1280 × 550 mm |
| Transport Size | 1250 × 890 × 630 mm |
| Weight | 29.2 kg (including battery and empty tank) |
| Motor Wheelbase | 1560 mm |
| Material | Aluminum alloy |
| Protection Rating | IP67 |
Flight Parameters
| Feature | Details |
|---|---|
| Max Takeoff Weight | 49 kg |
| Flight Speed | 8 m/s |
| Hovering Time | 15 min (no-load), 7 min (full-load) |
| RTK Positioning Accuracy | Horizontal ±10 cm; Vertical ±10 cm |
| Maximum Flight Altitude | 4000 m |
RevoSpray™ Spraying System
| Feature | Details |
|---|---|
| Tank Capacity | 20L |
| Droplet Size | 60-400 μm |
| Flow Rate | Max 10L/min |
| Spray Width | 6 meters |
RevoCast™ Spreading System
| Feature | Details |
|---|---|
| Capacity | 25L |
| Spread Width | 4-10 meters |
| Granule Size | 1-10 mm (dry and solid) |
Power System
| Feature | Details |
|---|---|
| Battery Type | 13S Lithium Polymer |
| Capacity | 20Ah (962Wh) |
| Super Charging | Fully charged in 11 minutes |
In Package
Standard Kit
- 1x XAG P40 Base Kit
- 2x Advanced Flight Batteries
- 1x GC4000+ Super Charging Station (Generator + Charger Combo)
- 1x HydroCool Liquid Charging Cooler
- 1x Super-Precision RTK Remote Controller
- 1x RTK Base Station & Ground Rover
- 1x XAG Local Network Terminal (LNT)
- 1x XAG RevoSpray™ Package
- 2x 20L Spray Tanks
Productivity Kit
- Includes all components of the Standard Kit
- 4x Advanced Flight Batteries
- 1x Virtual Training
Productivity Max Kit
- Includes all components of the Productivity Kit
- 2x GC4000+ Super Chargers
- 2x HydroCool Liquid Charging Coolers
- 1x P40 Spare Parts Kit
- 1x Drone Protection Plan (covers up to $30k for 24 months)
- 1x 2-Day PRO Flight Training (In-Person in Florida)
