XAG R150 Autonomous Tractor (Sprayer) Ground Vehicle | For Agriculture
DESCRIPTION

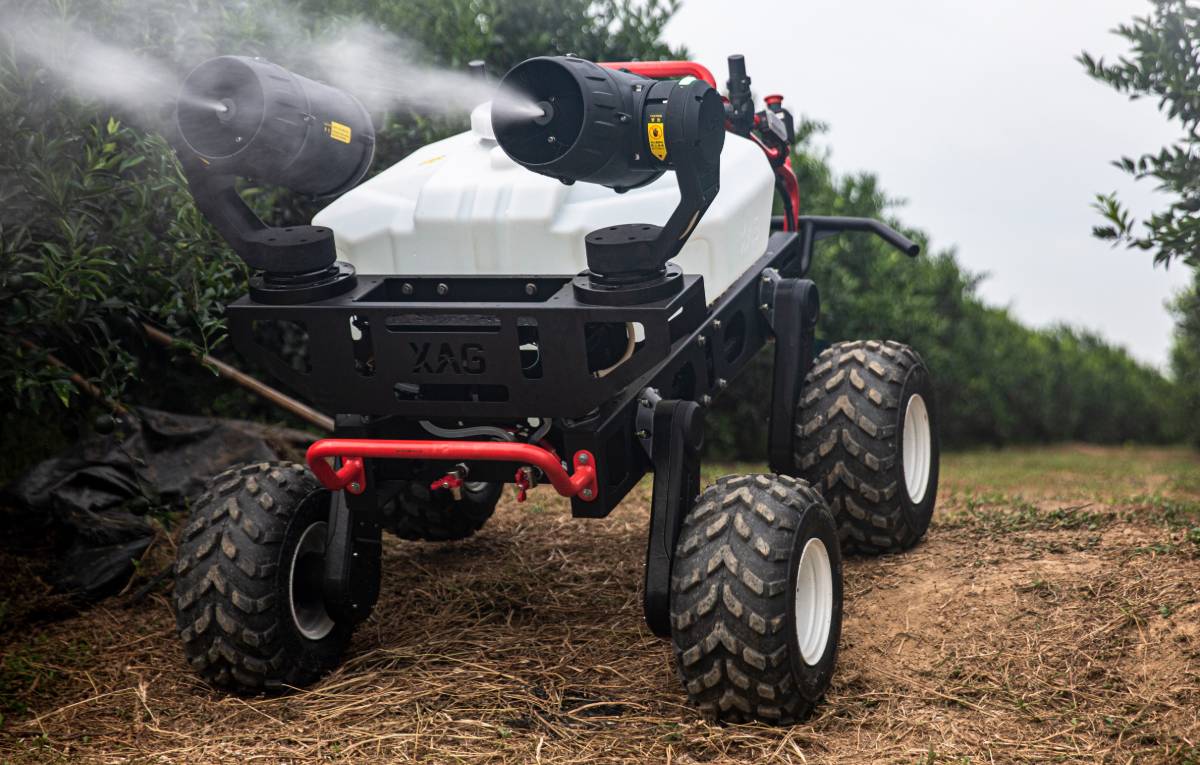

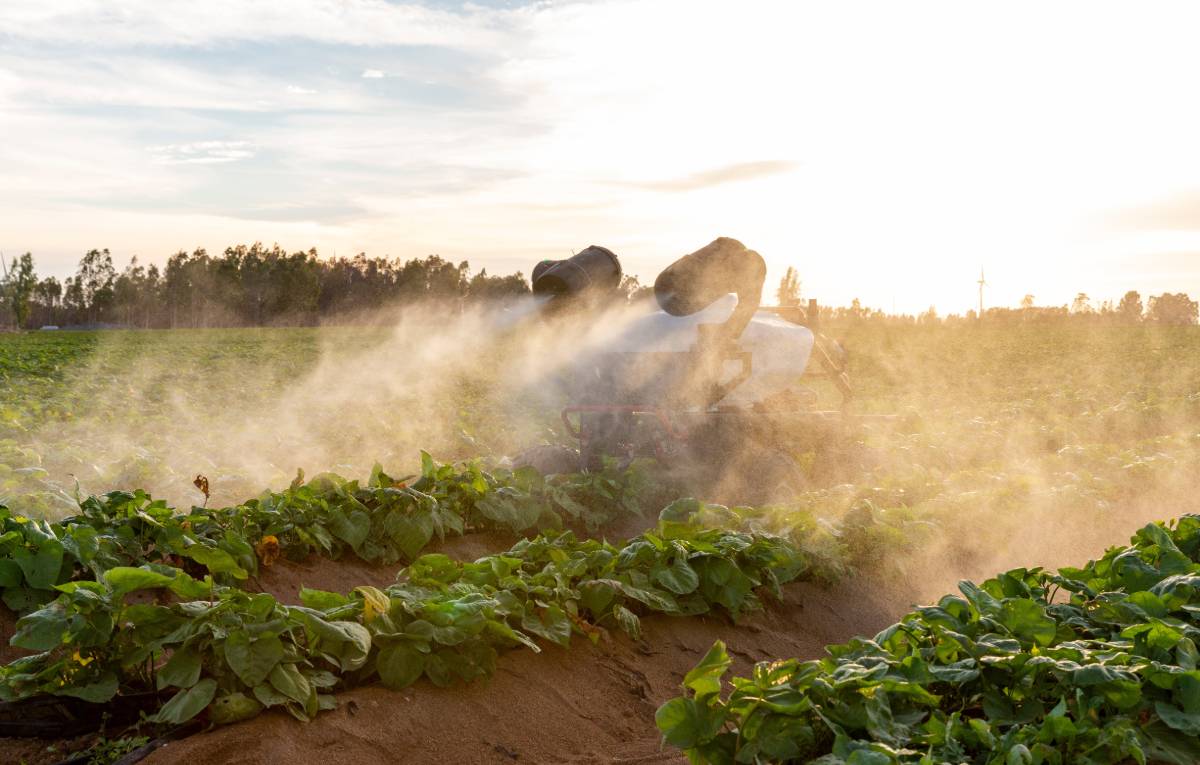

The XAG R150 Autonomous Tractor (Sprayer) is revolutionizing farming with its versatile and precise design. This fully autonomous ground vehicle can perform crop spraying with its 39-gallon (150L) liquid tank or haul up to 440 lbs of materials, tools, or produce across the farm. Equipped with RTK GPS and AI mobility controls, the R150 ensures precise operations with centimeter-level navigation accuracy.
The R150 is built to withstand tough agricultural conditions with its IP67-rated waterproof and dust-resistant frame. It features a modular design for easy maintenance and customizable configurations, including potential future add-ons like seed spreaders and mowers. With powerful brushless motors and a four-wheel-drive system, it navigates challenging terrain effortlessly, making it an indispensable tool for modern farms
Key Features
- Multi-Functional Design: Autonomous spraying and material transport for versatile farm operations.

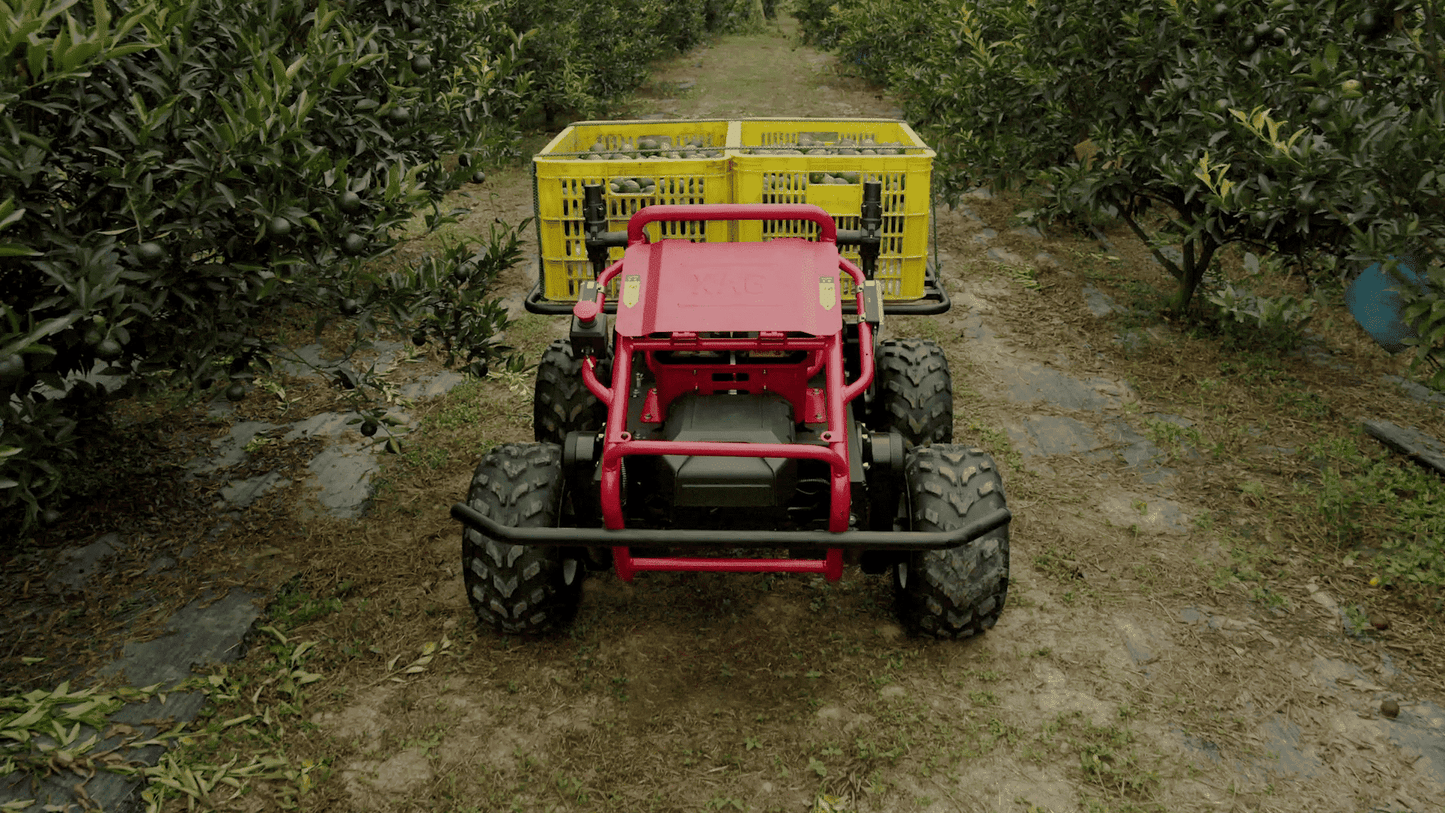

- High Load Capacity: Carries up to 440 lbs (200 kg) or 39 gallons (150L) of liquid for efficient spraying.
- Precise Navigation: RTK GPS ensures centimeter-level accuracy for autonomous driving and operations.
- Durable Build: High-strength steel frame with IP67 waterproof and dust-resistant design.
- Powerful Performance: Four-wheel drive and high-torque brushless motors handle off-road terrain with ease.
Future add-ons in the works include a mower attachment and seed spreader! This autonomous tractor is revolutionizing farming by saving you time and money! Get in touch with us about this spray tractor price and details.

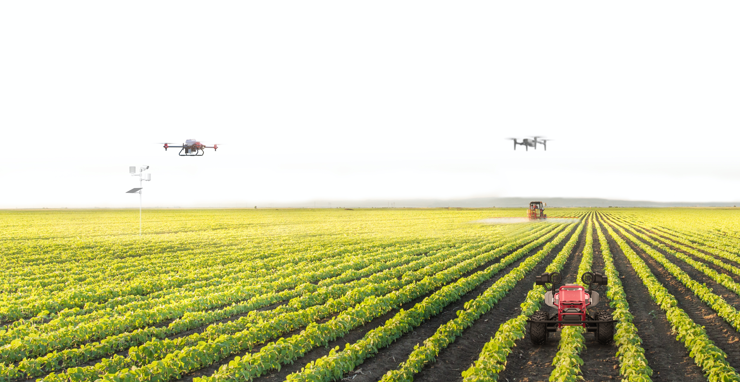

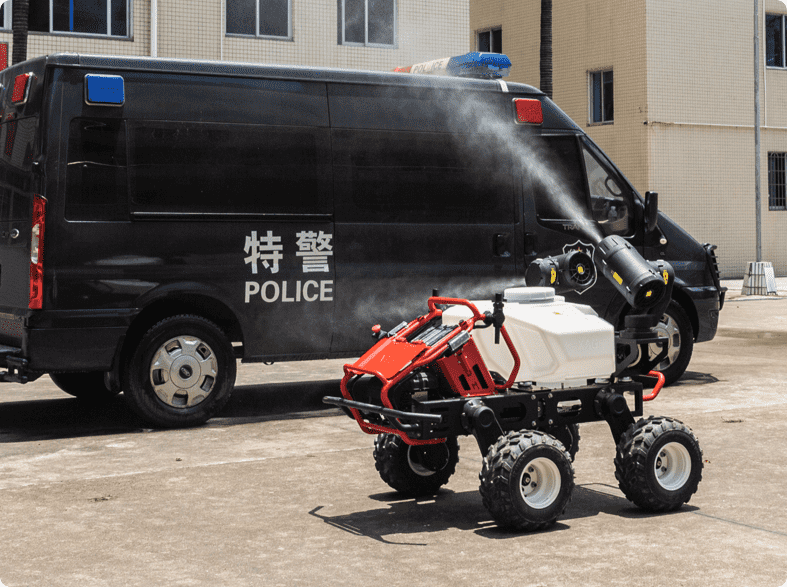

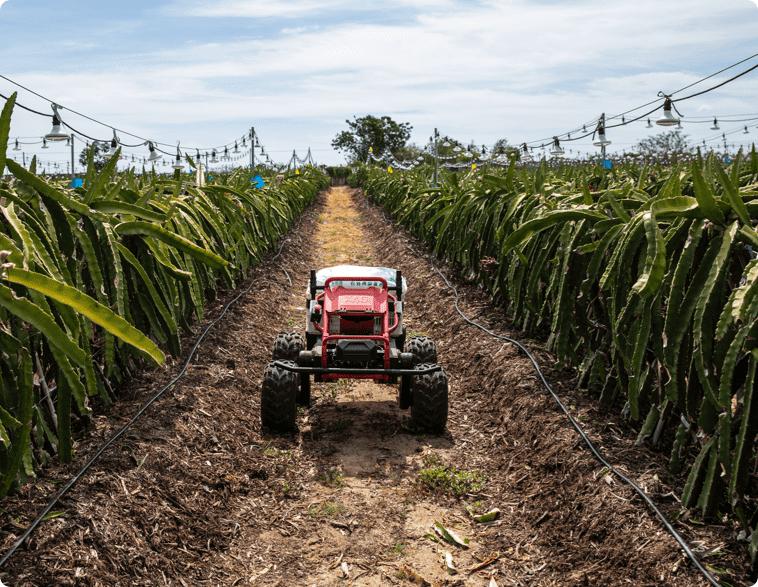

One System for Multiple Jobs
Multiple Protections from Harsh Condition

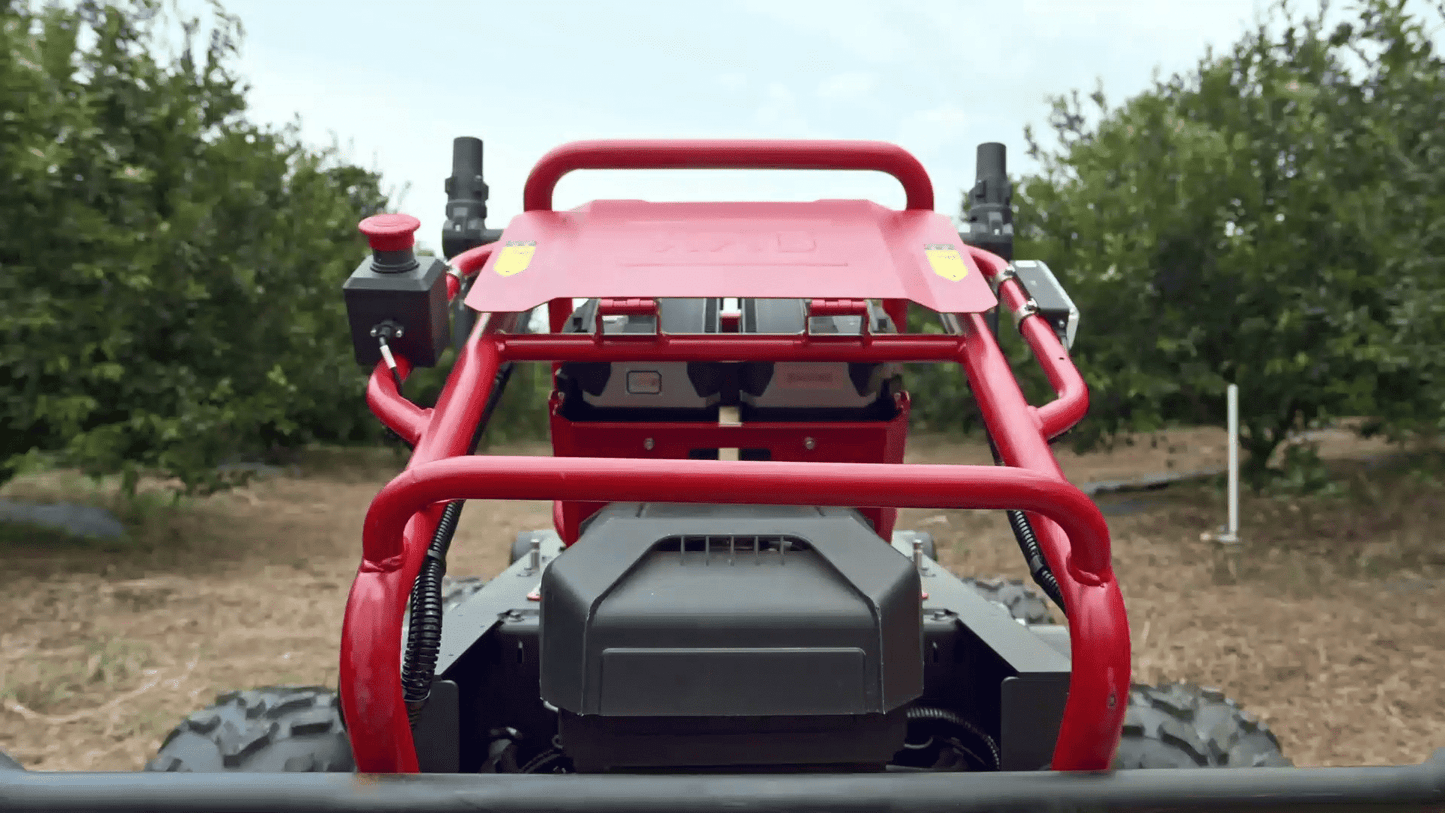

High-strength integration steel frame
Roll cage to improve body strength and durability

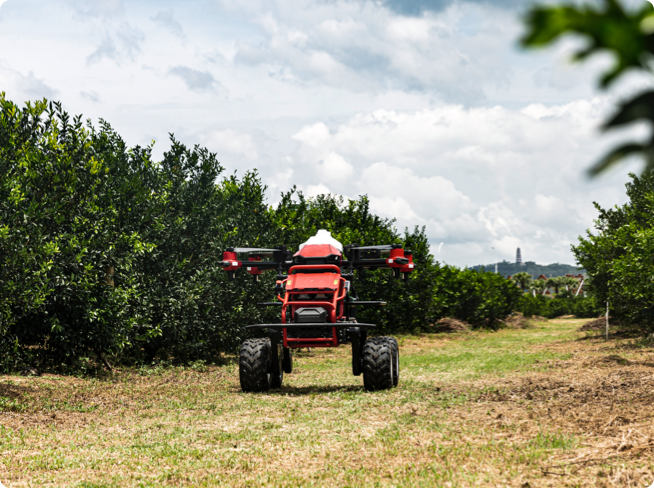

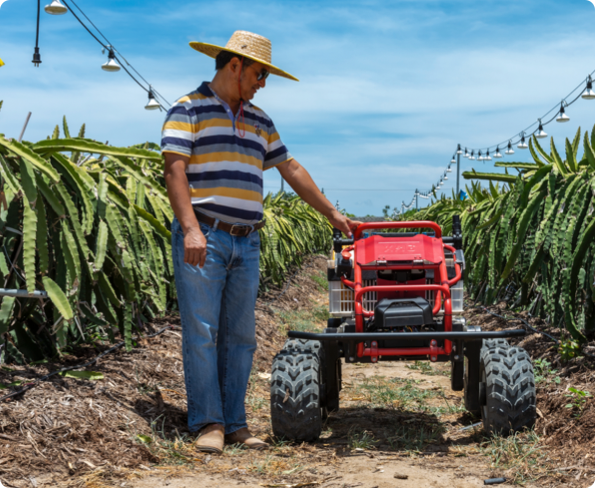

Customise for agricultural scenarios
Adjustable ground clearance of chassis allows
movement between dense orchards

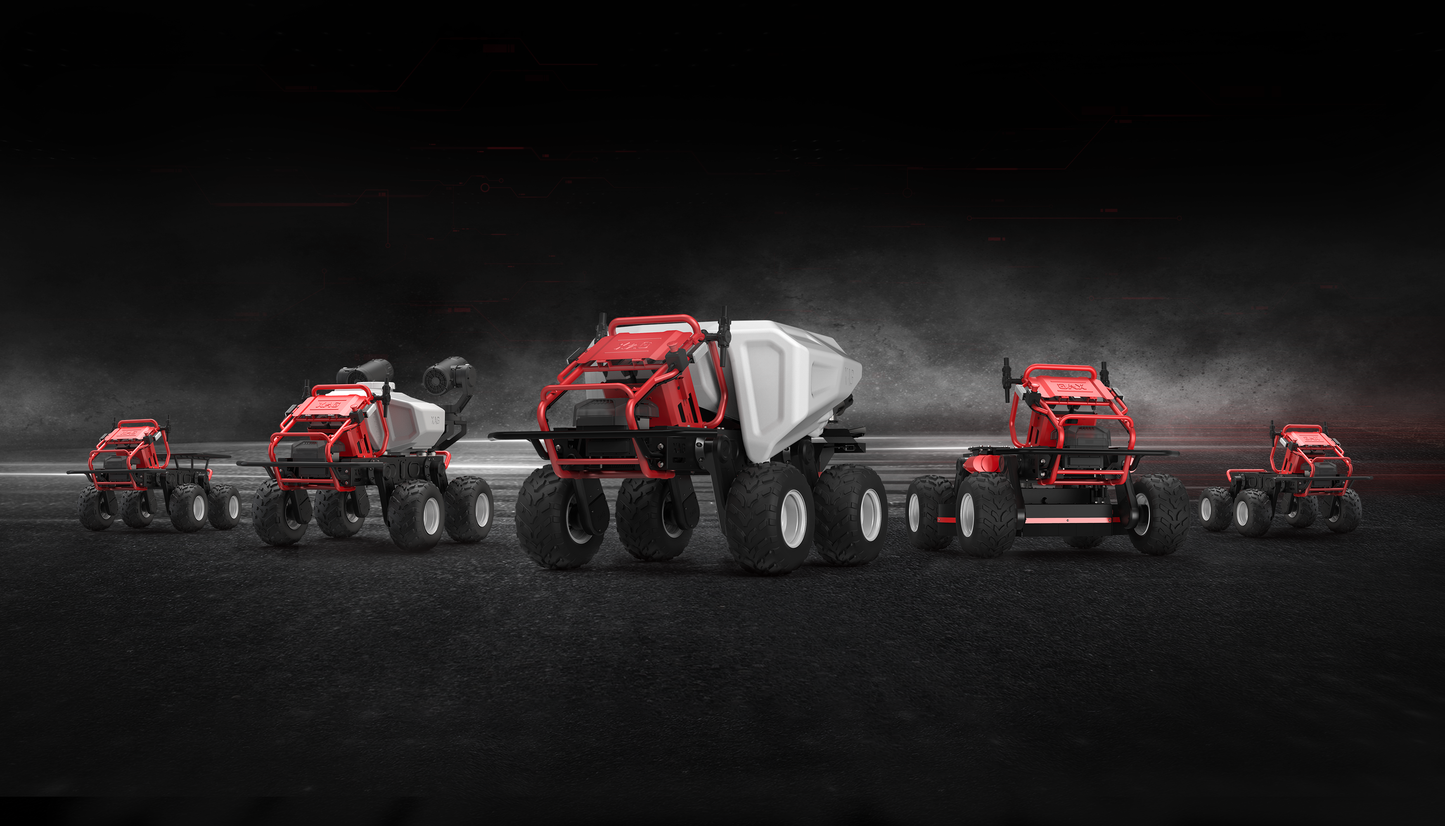

Highly modular design
Easily switch between different wheal
sets to adapt various terrain
IP67 waterproof and dust-resistance
Convenient to clean and maintenance

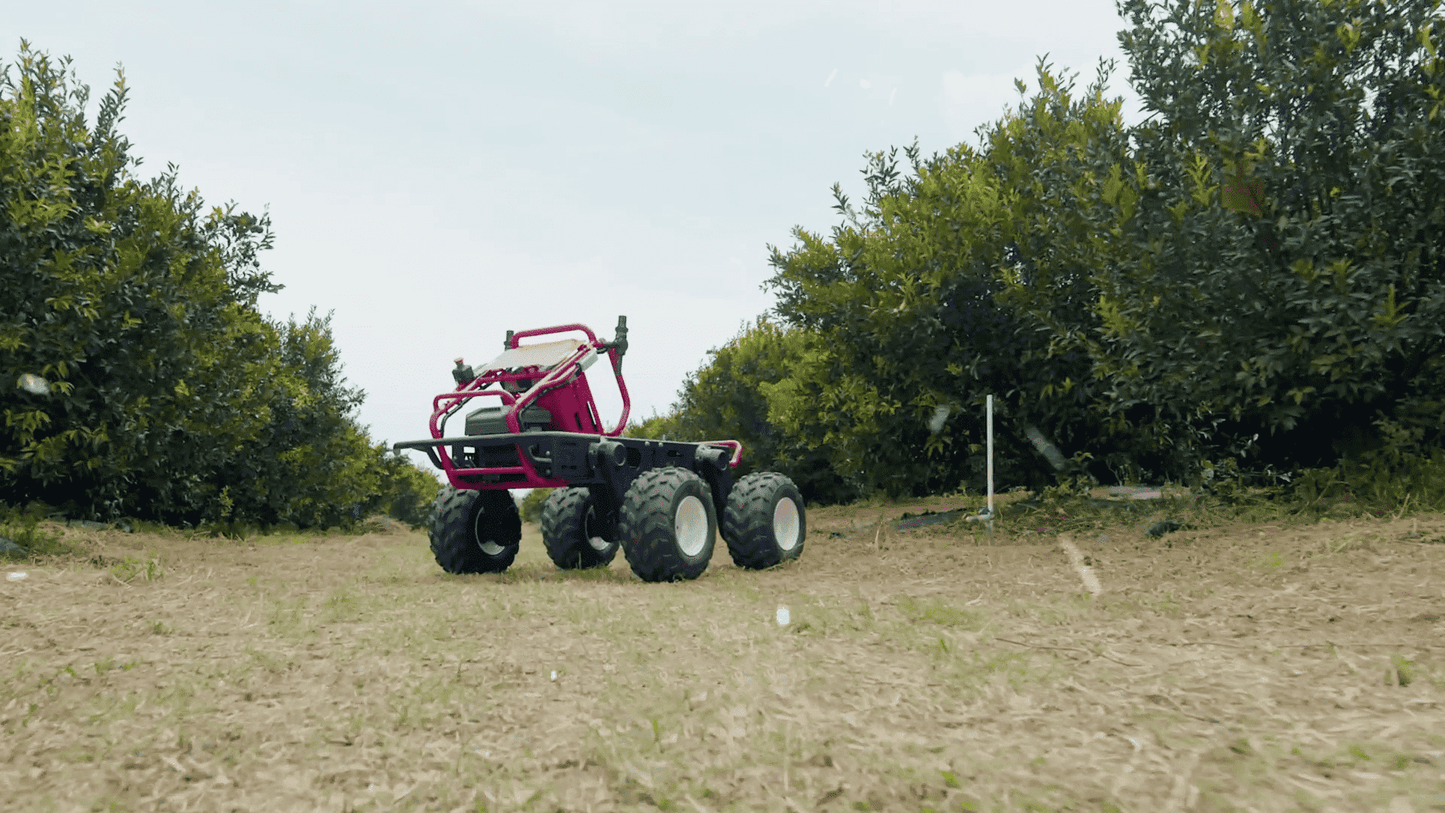

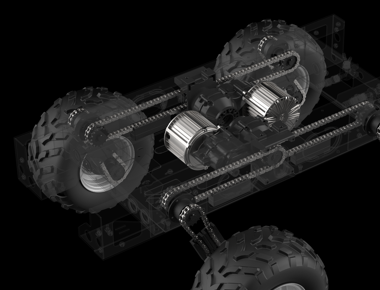

High-performance Motors Unleash
Strong Momentum, Traverse with Ease
Standard operational speed: 1.2 m/s

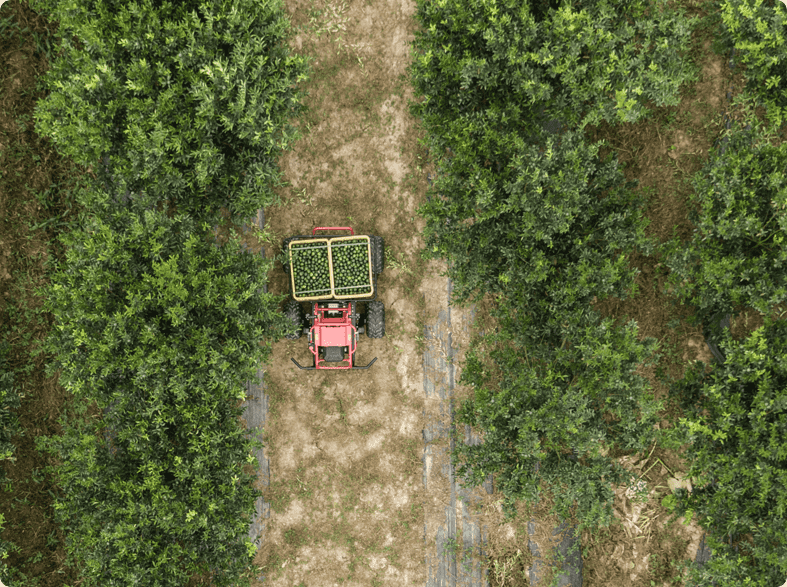

Load Capacity: 150 kg
Min. turning diameter: 0.7 meters

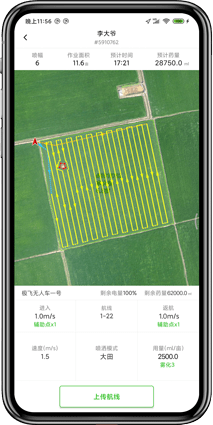

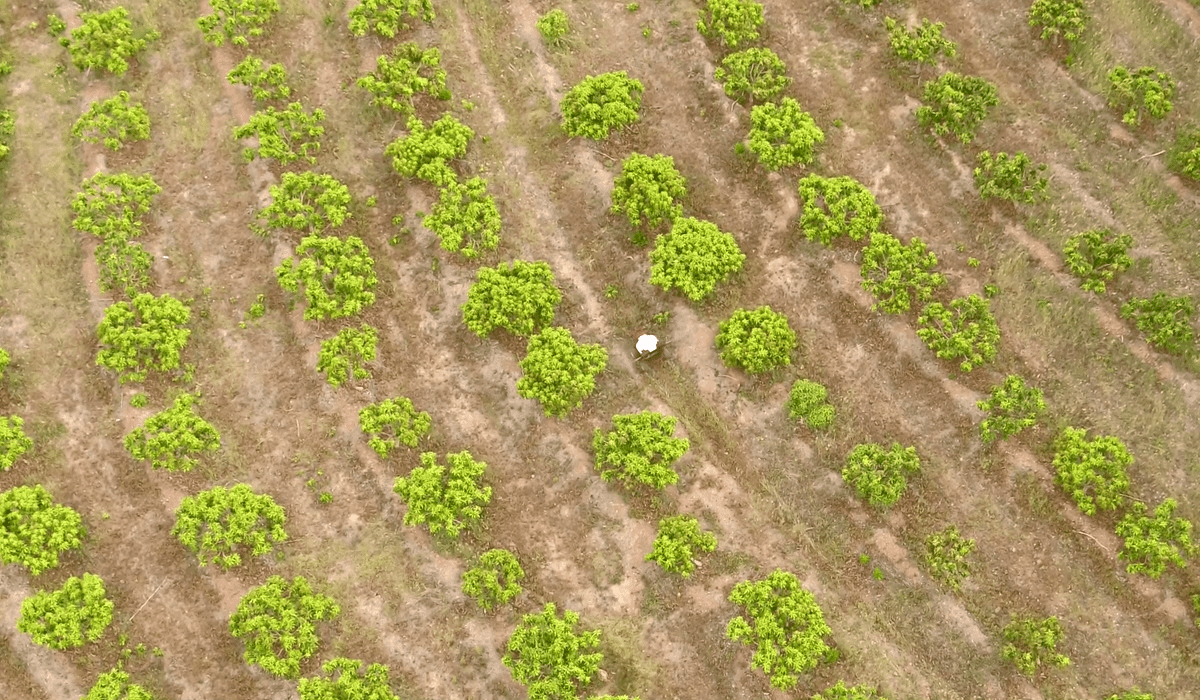

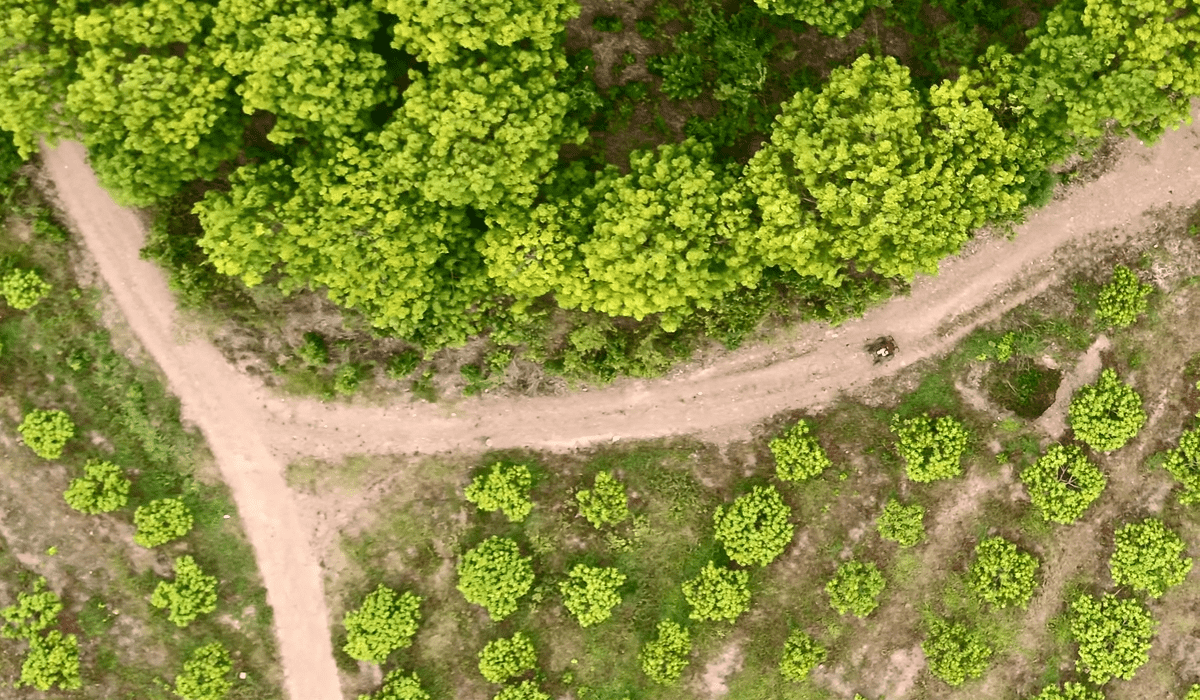

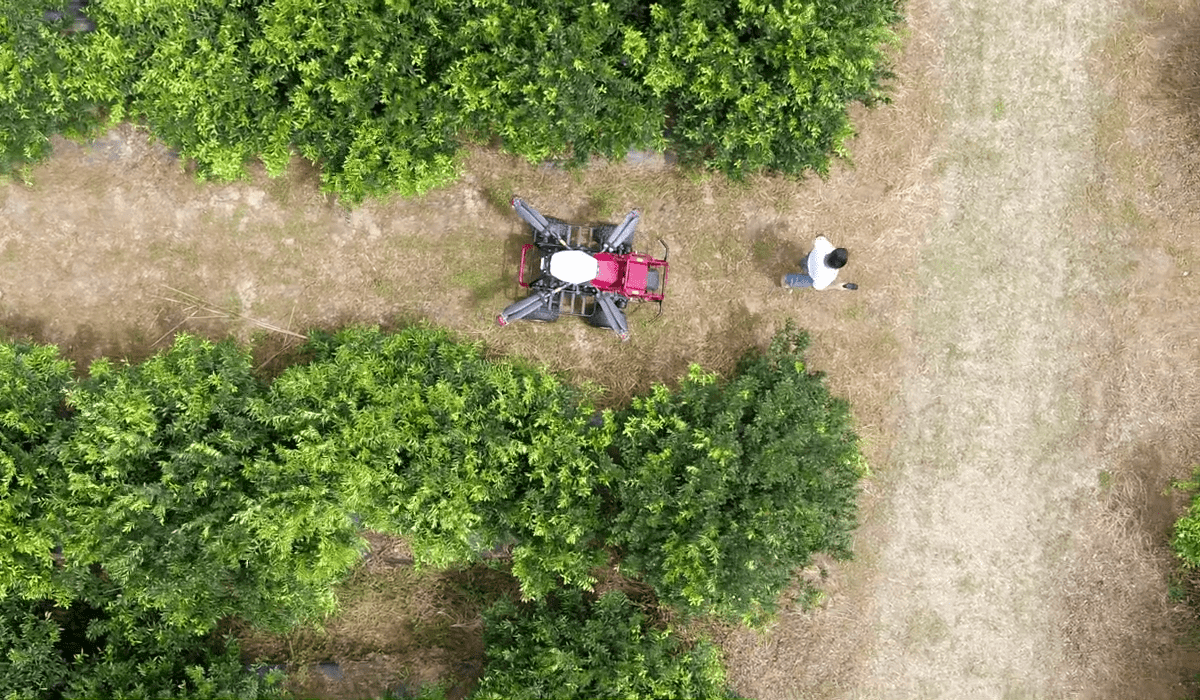

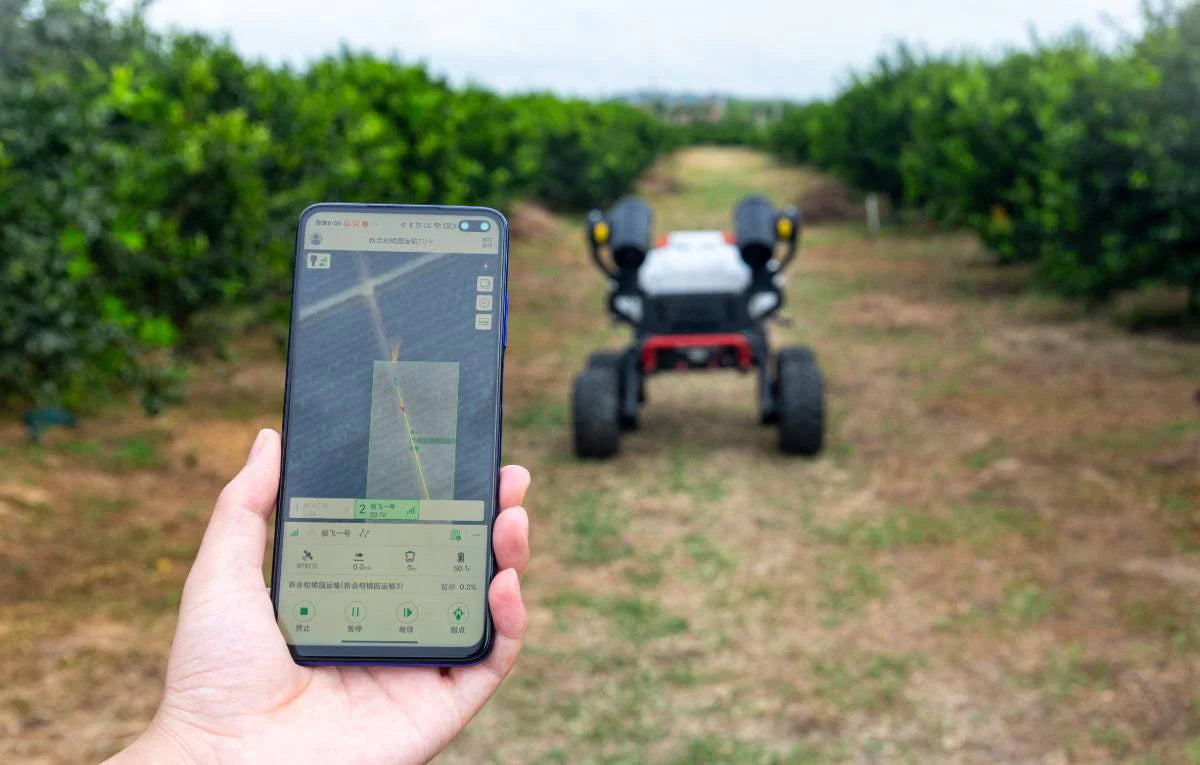

Autonomous driving at centimetre-level precision
Optical positioning aided
Keep navigating without signal
Intelligent road condition prediction
Real-time transmission
High-speed 4G + wireless networking

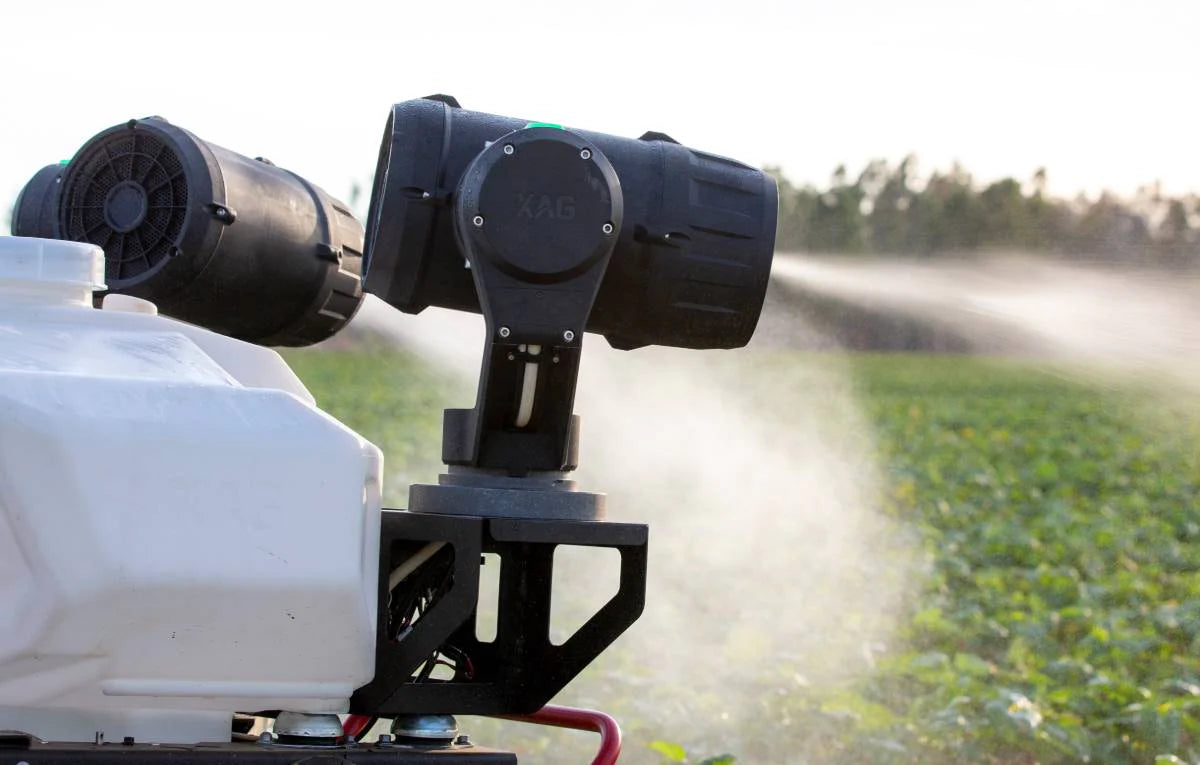

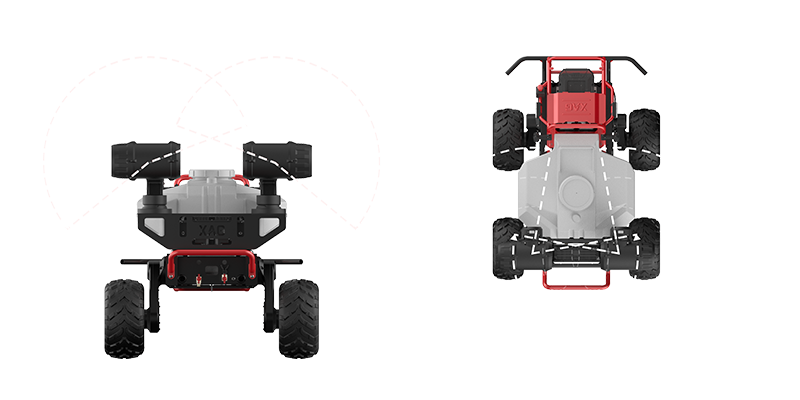

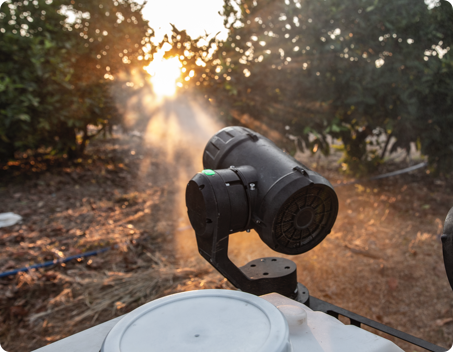

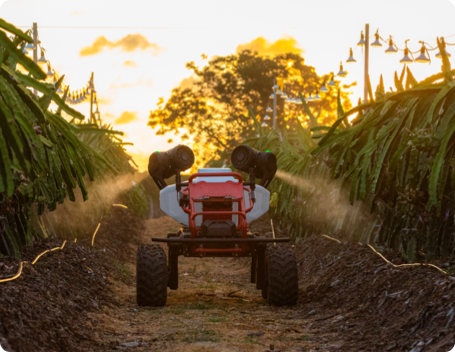

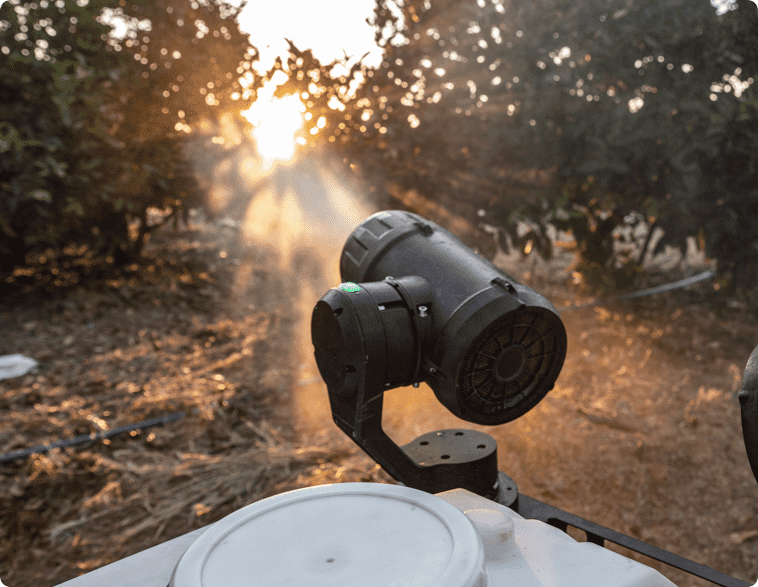

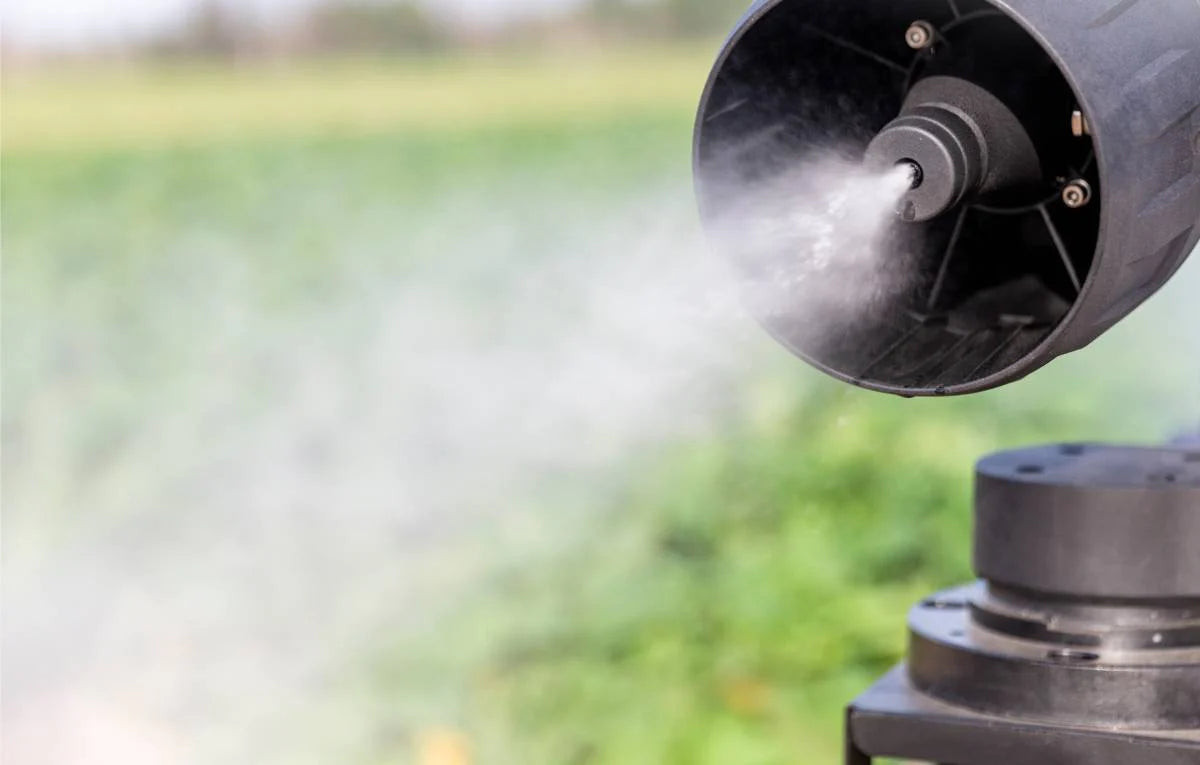

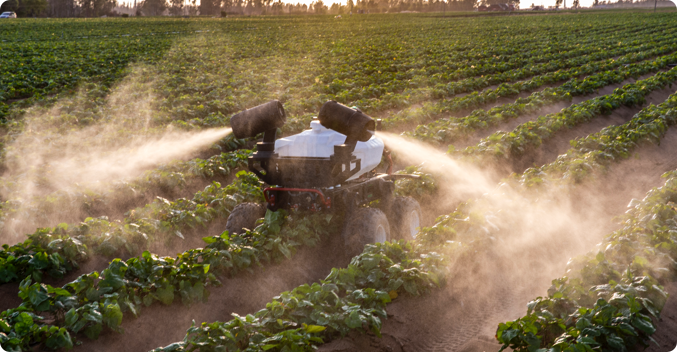

automatically maintains the spray angle of JetSprayer™, which
facilitates spot spraying as well as 360° coverage
Detailed Specifications
Basic Parameters
Feature | Details |
---|---|
Control System | SuperX3 Pro |
Dimensions | 1695 × 1205 × 1205 mm |
Net Weight | 188 kg |
Load Capacity | 200 kg |
Max Speed | 1.2 m/s |
Max Climbing Angle | 15° |
Min Turning Diameter | 1 m |
Tires | 16" TL rubber tires |
XAG RevoSpray Ground 2
Feature | Details |
---|---|
Tank Capacity | 150 L (39 gallons) |
Atomized Droplet Size | 60-200 μm |
Flow Rate | 4.8 L/min (dual pump) |
Max Spray Width | 12 meters |
Powertrain
Feature | Details |
---|---|
Motor Type | Permanent Magnet Synchronous Motor (PMSM) |
Rated Voltage | 48 V |
Rated Power | 1500 W |
Rated Speed | 1450 RPM |
Rated Torque | 7 N·m |
Cooling Method | Natural Cooling |

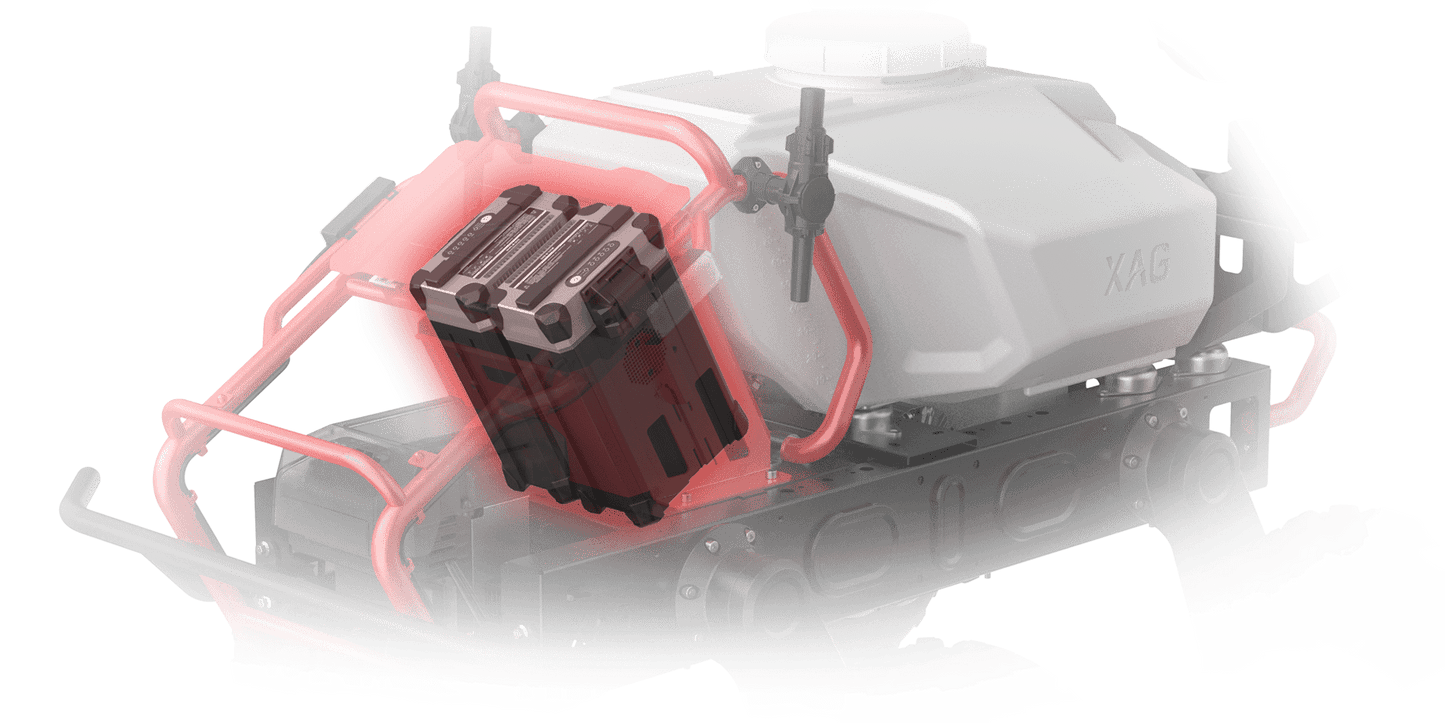

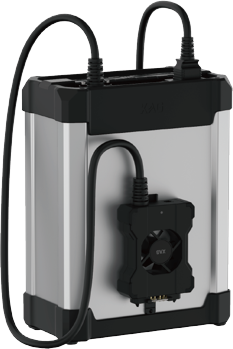

Power System / Battery
Feature | Details |
---|---|
Battery Type | Lithium Polymer Battery |
Battery Quantity | 2 |
Rated Capacity | 20,000 mAh (962 Wh) |
Rated Output Voltage | 48.1 V |
Rated Output Current | 120 A |
Communication & Control System
Feature | Details |
---|---|

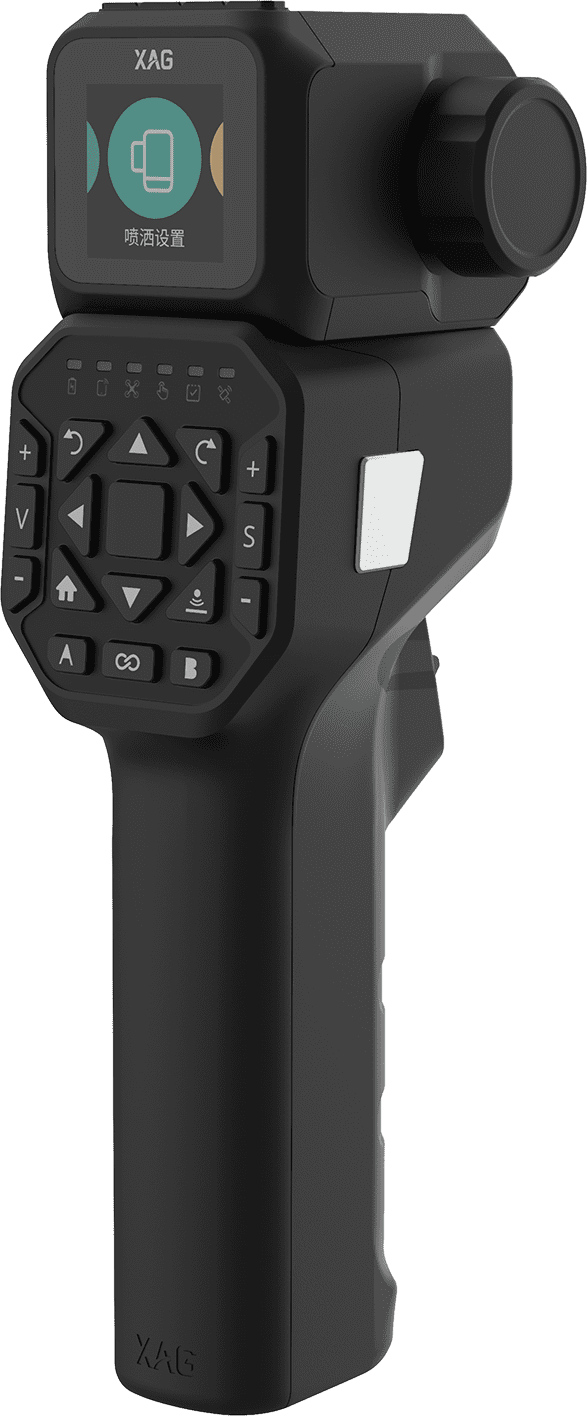

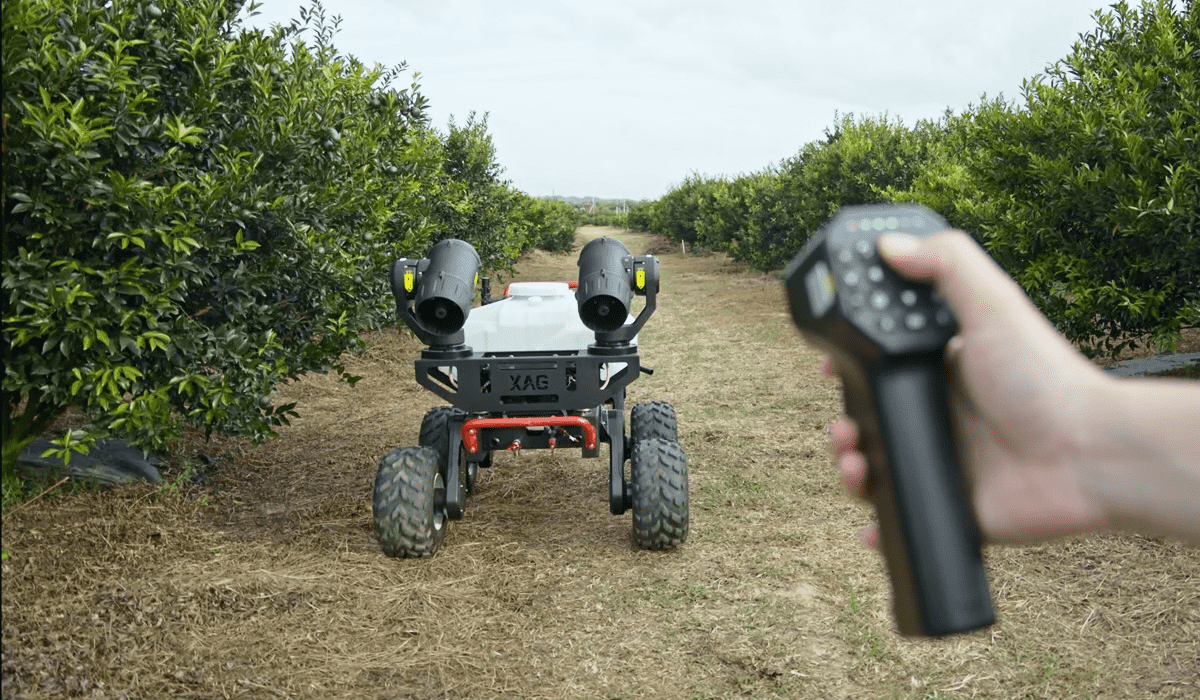

Remote Control Model | XAG Agricultural Remote Controller 3 |
Frequency | SRRC: 2.4000-2.4835 GHz |
RTK Frequency Band | GPS: L1C/A, L2C; GLONASS: G1, G2; BDS: B1I, B2I; Galileo: E1, E5b |
In Package
- 1x XAG R150 Autonomous Tractor (Sprayer)
- 1x XAG JetSprayer™ System (RevoSpray Ground 2)
- 2x Lithium Polymer Batteries (B13960S)
- 1x XAG RTK Remote Controller
- 1x XAG RTK Base Station
