Product Description

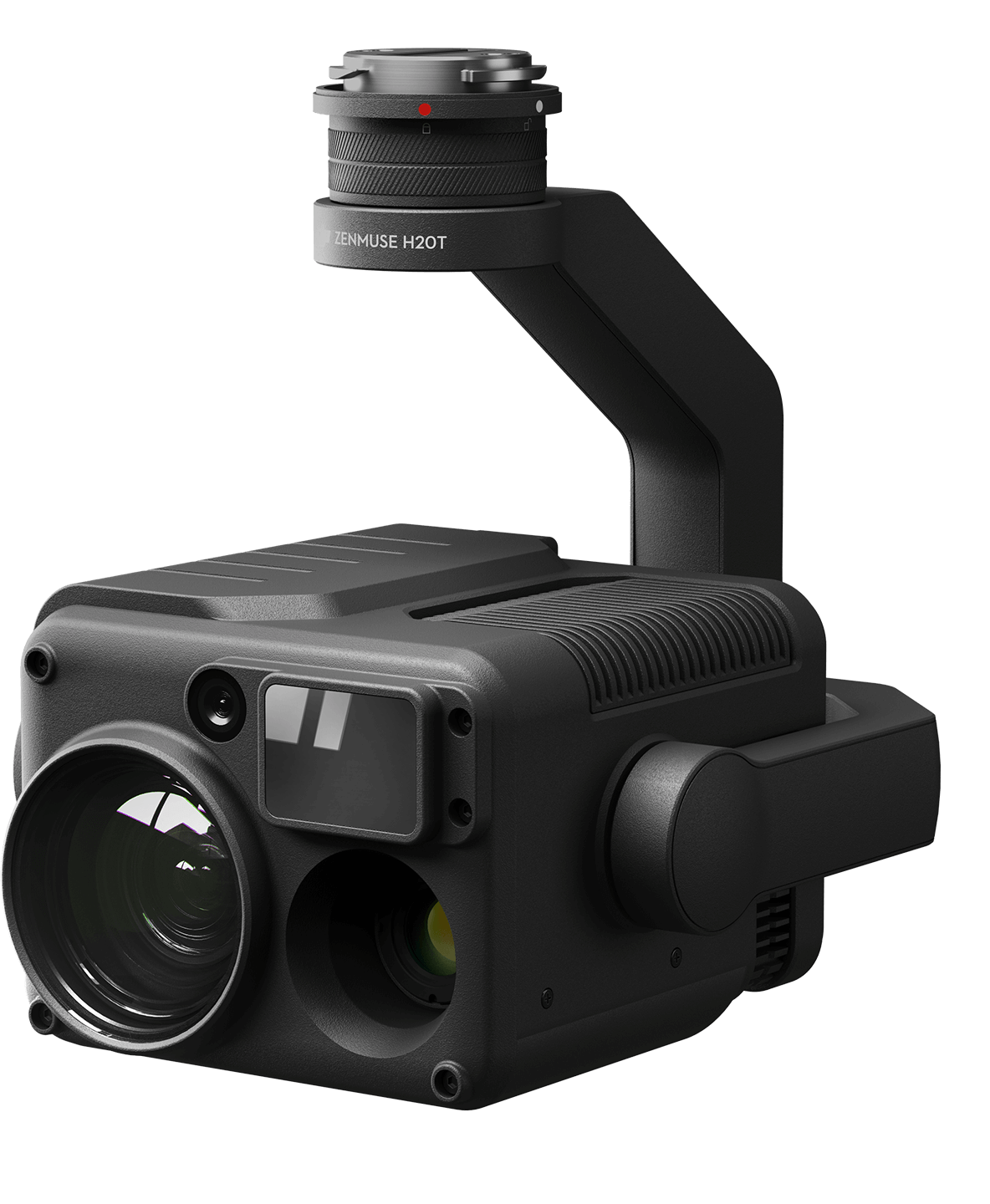

DJI Zenmuse H20T Thermal and Optical Hybrid Camera | Professional Use
DESCRIPTION
The DJI Zenmuse H20T is a high-performance hybrid payload designed for demanding applications like public safety, industrial inspection, and search and rescue. Combining a powerful zoom camera, thermal imaging capabilities, and laser rangefinding, the H20T delivers unparalleled versatility in a compact, rugged form.
The 23× hybrid optical zoom provides detailed visuals of distant subjects, while the radiometric thermal camera detects subtle temperature differences for critical diagnostics. The wide-angle camera ensures complete situational awareness, and the laser rangefinder provides precise distance measurements up to 1200 meters. Built for reliability, the H20T supports a wide range of missions in diverse environmental conditions.
Key Features
- Zoom Camera: 20 MP sensor with 23× hybrid optical zoom for detailed imagery and 4K/30fps video recording.
- Thermal Imaging: Radiometric thermal camera with a resolution of 640×512 and high sensitivity for accurate temperature readings.
- Wide Camera: A 12 MP wide-angle lens for capturing expansive views.
- Laser Rangefinder: Accurate distance data with a range of 3 m to 1200 m and ±0.2 m precision.
- Multi-Sensor Integration: Seamless synchronization of thermal, zoom, and wide-angle views for enhanced operational efficiency.
Detailed Specification
| Feature | Details |
|---|---|
| Zoom Camera | 23× hybrid optical zoom, 20 MP, 1/1.7” CMOS sensor, 4K/30fps video |
| Thermal Camera | 640×512 resolution, DFOV: 40.6°, sensitivity: ≤50mk@f1.0 (NEDT) |
| Wide Camera | 12 MP, 1/2.3” CMOS sensor, DFOV: 82.9°, 24mm equivalent focal length |
| Laser Rangefinder | 3 m – 1200 m range, ± (0.2 m + D×0.15%) accuracy |
| Thermal Frame Rate | 30fps |
| Ingress Protection | IP44 (dust and water-resistant) |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Applications | Public safety, industrial inspections, firefighting, and search and rescue |
In Package
- Zenmuse H20T Camera: Hybrid payload with thermal and optical capabilities.
- SP Shield Plus Coverage: Extended service and support for maximum reliability.
- Mounting Accessories: Tools for seamless integration with compatible drones.
