Product Description

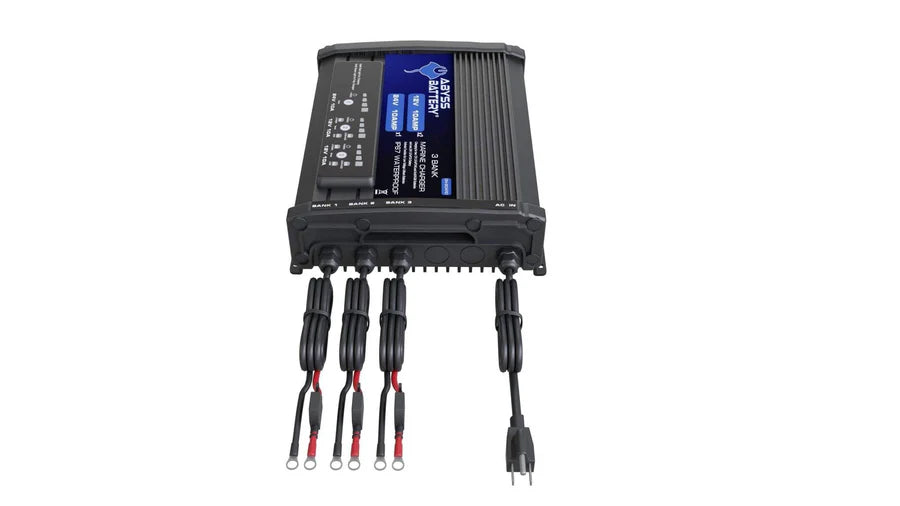

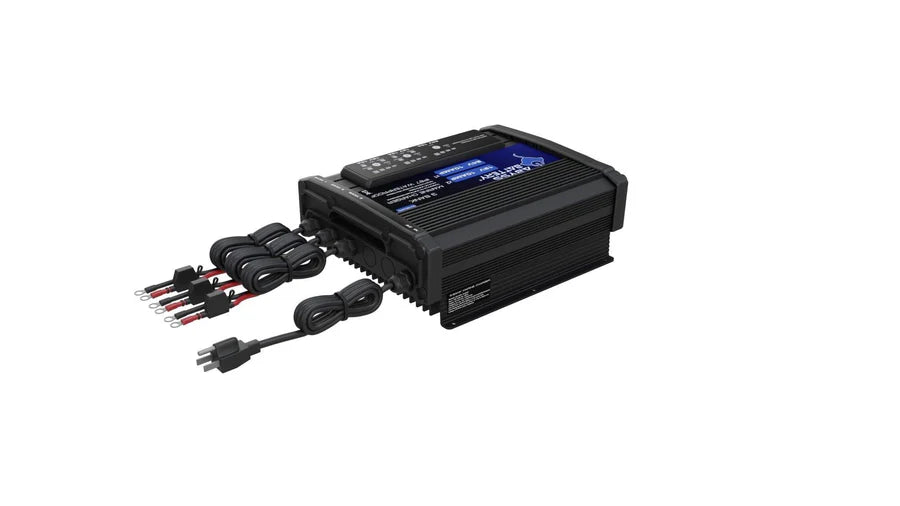

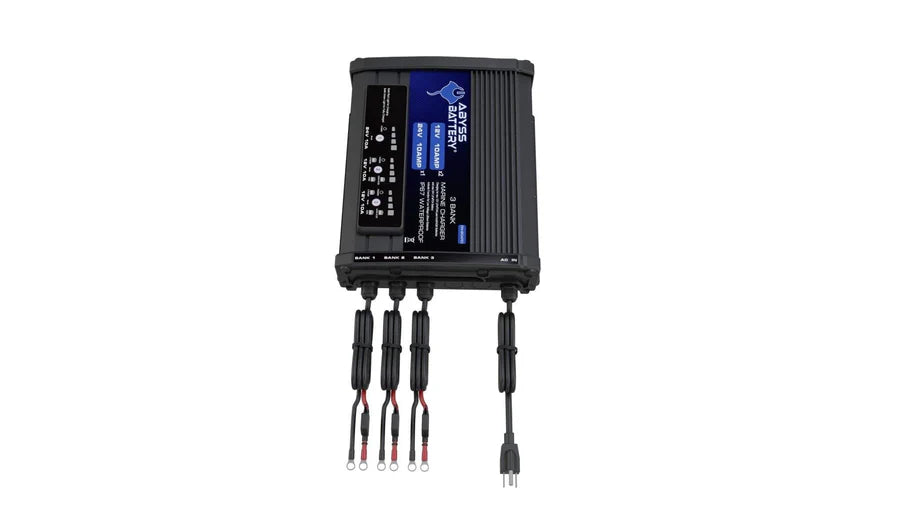

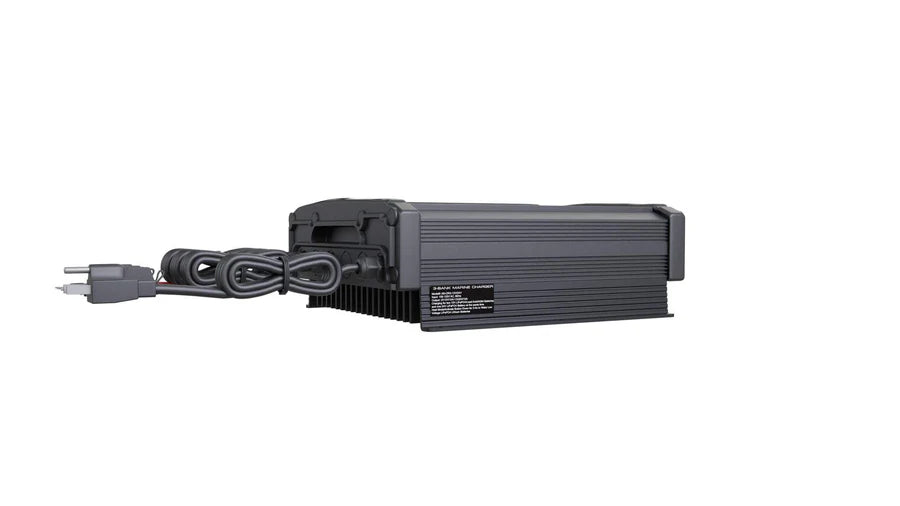

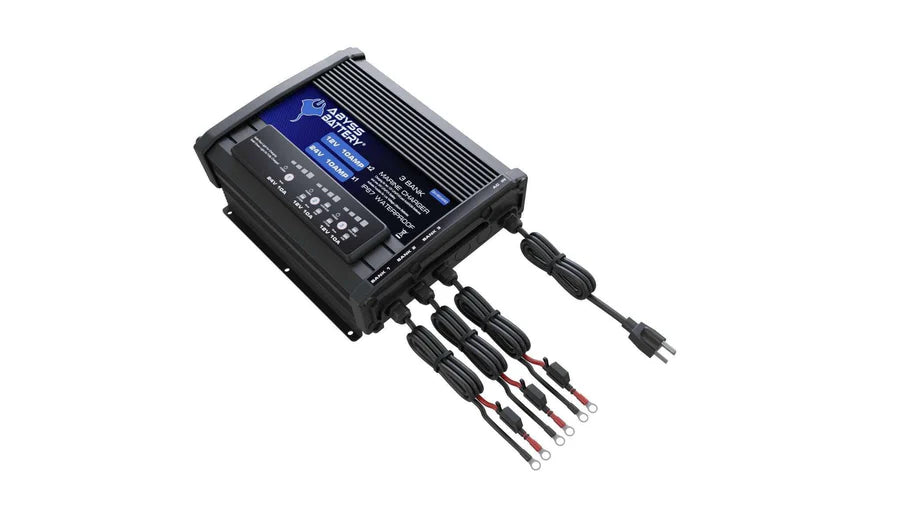

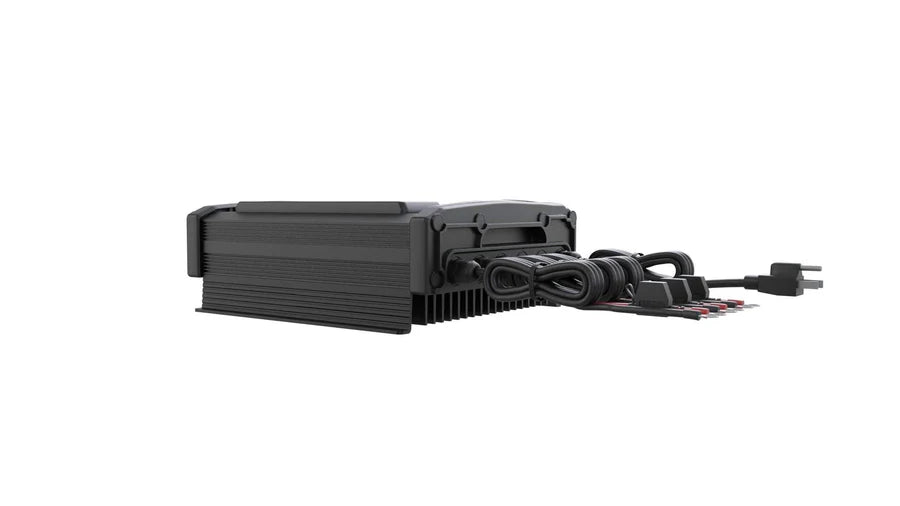

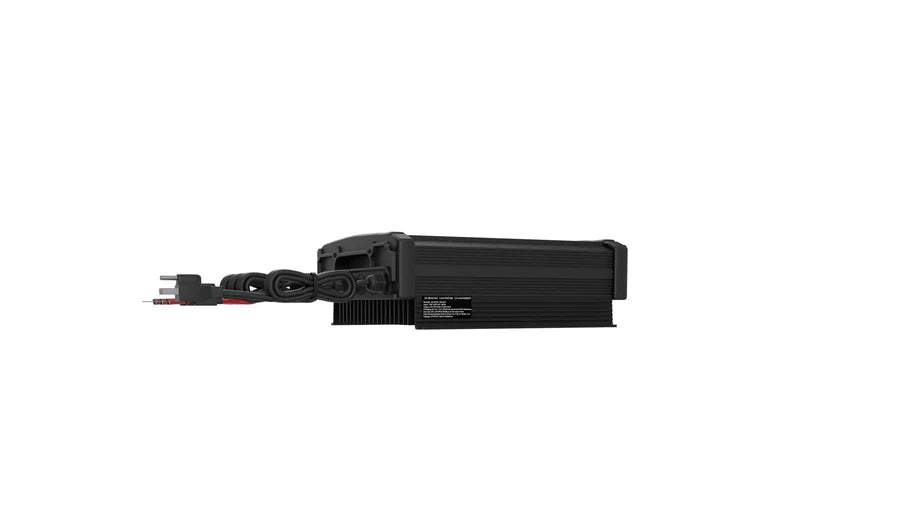

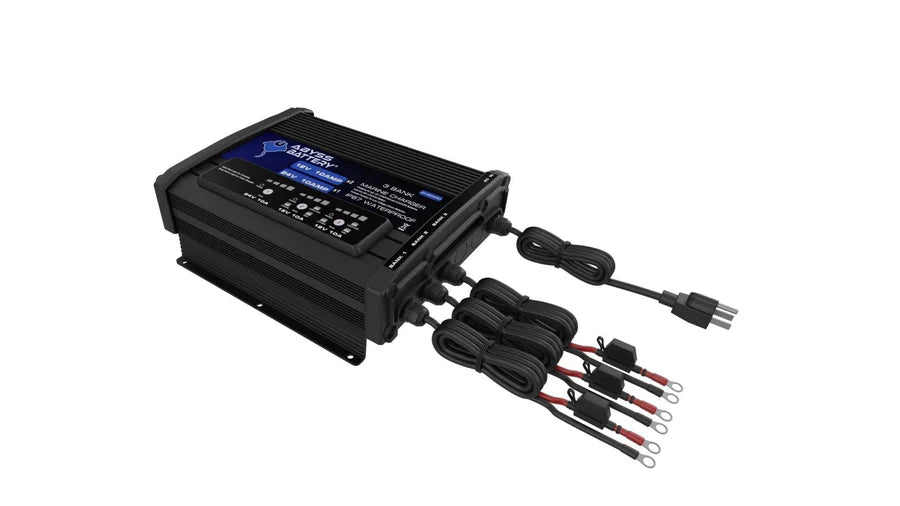

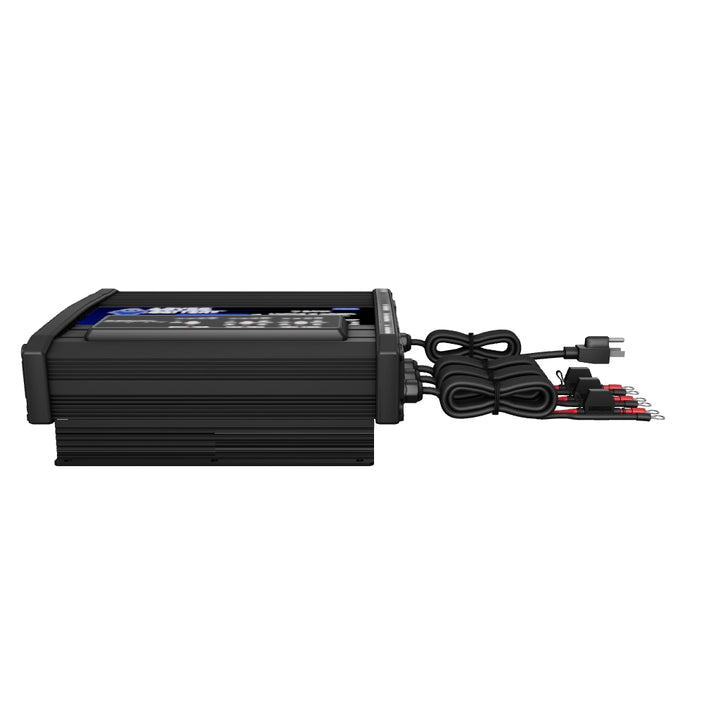

ABYSS® | 3 Bank On-Board Marine Battery Charger | Model AB-CRG-12V24V-3B | Voltage 12V/24V | 30A Total Output | IP67 Waterproof | For Boat & Marine Applications
DESCRIPTION
Power your marine adventures with confidence. The ABYSS® 3 Bank 12V/24V On-Board Marine Battery Charger is engineered for serious boaters who demand precision, reliability, and versatility on the water. Whether you're navigating freshwater lakes or tackling saltwater currents, this advanced charging system ensures your batteries stay fully charged and ready to perform.
With dedicated charging modes for 12V LiFePO4, AGM, and lead-acid batteries, and the ability to simultaneously charge two 12V batteries and one 24V lithium battery, the AB-CRG-12V24V-3B gives you total flexibility and peace of mind. Its smart LED display, ignition protection, and rugged IP67 waterproof construction make it the ideal marine charging companion for harsh environments.
This isn't just a battery charger it's a complete power management solution, built for today’s technology-driven marine systems.
Key Features
- Multi-Bank Marine Battery Charger Charges two 12V and one 24V battery banks simultaneously with dedicated 10A output per bank.
- Versatile Compatibility Supports LiFePO4, AGM, and flooded lead-acid batteries; switch between battery types with a single mode button.
- Smart LED Indicators Instant visibility into power, battery type, and charging status no guesswork.
- IP67 Waterproof Housing Fully sealed with epoxy resin and marine-grade aluminum, designed for extreme marine conditions.
- Lithium Wake-Up Function Revives deeply discharged lithium batteries with a built-in low-voltage recovery mode.
- Advanced Safety Circuitry Features short-circuit, reverse polarity, overcharge, and over-temperature protection.
- All-Climate Operation Performs reliably in temperatures from -10°C to 40°C, with an optimal range at 25°C.

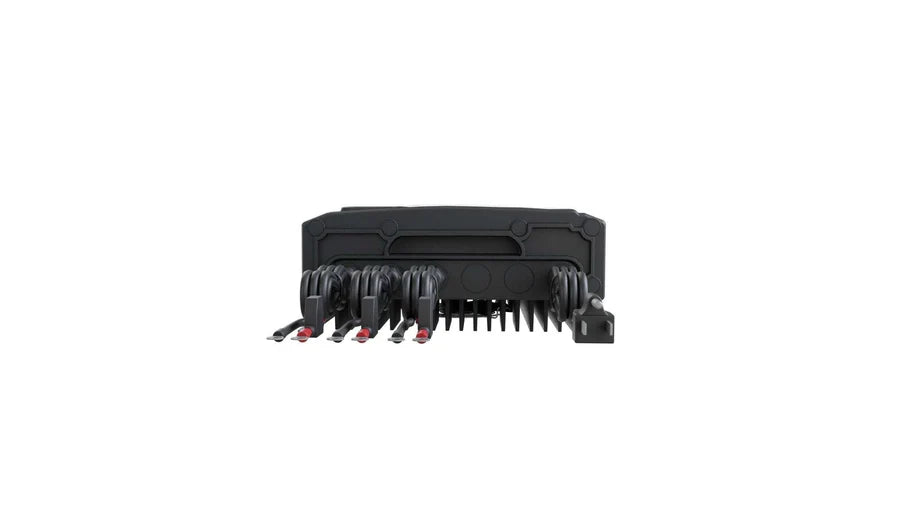

- Built-in Cooling Fan Bottom-mounted waterproof fan and aluminum plate for effective heat dissipation during operation.
- Ideal for Marine Applications Purpose-built for use in boats, yachts, trolling motor setups, and other marine power systems.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | ABYSS® |
| Model Name | 3 Bank 12V/24V On-Board Marine Battery Charger |
| Model Number | AB-CRG-12V24V-3B |
| Compatible Battery Types | 12V LiFePO4, 12V AGM, 12V Wet / 24V LiFePO4 |
| Charging Banks | 3 (2x 12V, 1x 24V) |
| Output Per Bank | 10A |
| Total Output | 2x12V/10A + 24V/10A |
| Voltage | 12V / 24V |
| Cooling System | Aluminum base + Waterproof cooling fan |
| Waterproof Rating | IP67 fully sealed with epoxy resin |
| LED Indicators | Power, Battery Type, Charging Status |
| Lithium Wake-Up Function | Yes (Hold MODE button 3–5 seconds to activate) |
| Full Cut-Off Voltage | 14.1–14.4V (Lead Acid), 14.4–14.7V (AGM/LiFePO4), 28.8–29.4V (24V) |
| Circuit Protection | Short-circuit, reverse connection, overcharge, over-temp |
| Working Temperature Range | -10°C to 40°C |
| Nominal Temperature | 25°C |
| Relative Humidity Range | 5%–95% |
| Product Dimensions (L×W×H) | 11.9" x 9.6" x 3.8" (304 x 245 x 99 mm) |
| Weight | 16.5 lbs (7.5 kg) |
| Lead Length | 6 ft. (72 in. / 183 cm) |
| Certifications | ABYC Compliant, Ignition Protected |
Multi-Bank 12V/24V/36V Marine & RV Chargers
3-Bank 12V/24V & 3-Bank 12V/36V Marine Chargers
| Specification | 3-Bank 12V/24V Marine Charger | 3-Bank 12V/36V Marine Charger |
|---|---|---|
| Model | AB-CRG-12V24V-3B | AB-CRG-12V36V-3B |
| Voltage | 12V/24V | 12V/36V |
| Output | 2x12V/10A + 24V/10A | 2x12V/10A + 36V/10A |
| Product Size | 11.9" x 9.6" x 3.8" | 14.2" x 9.6" x 3.8" |
| Weight | 16.5 lbs (7.5 kg) | 19 lbs (8.6 kg) |
| Lead Length | 6' (72 in.) | 6' (72 in.) |
| Charging Battery Type | 2 banks: 12V LiFePO4, AGM, Wet 3rd bank: 24V LiFePO4 |
2 banks: 12V LiFePO4, AGM, Wet 3rd bank: 36V LiFePO4 |
4-Bank 12V & 4-Bank 12V/36V Marine Chargers
| Specification | 4-Bank 12V Marine Charger | 4-Bank 12V/36V Marine Charger |
|---|---|---|
| Model | AB-CRG-12V-4B | AB-CRG-12V/36V-4B |
| Voltage | 12V | 12V/36V |
| Output | 4x12V/10A | 3x12V/10A + 36V/10A |
| Product Size | 11.9" x 9.6" x 3.8" | 16.6" x 9.6" x 3.8" |
| Weight | 17 lbs (7.7 kg) | 26.8 lbs (12.1 kg) |
| Lead Length | 6' (72 in.) | 6' (72 in.) |
| Charging Battery Type | Each bank: 12V LiFePO4, AGM, Wet | 3 banks: 12V LiFePO4, AGM, Wet 4th bank: 36V LiFePO4 |
36V Alternator & 12V 50A DC Converter
| Specification | 36V Alternator Charger | 30V–90V to 12V 50A Converter |
|---|---|---|
| Model | AB-36V-DC | AB-DC-SD |
| Voltage | 36V | 30V–90V |
| Output | 43.8V/10A | 12V/50A DC |
| Product Size | 6" x 5" x 2" | 6" x 5" x 2" |
| Weight | 3.1 lbs (1.4 kg) | 3.1 lbs (1.4 kg) |
| Lead Length | 7 in. | N/A |
| Charging Battery Type | 36V LiFePO4 | 12V LiFePO4 |
36V 10A & 36V 20A High-Precision Chargers
| Specification | 36V 10A High-Precision Charger | 36V 20A High-Precision Charger |
|---|---|---|
| Model | AB-CRG-36V10A | AB-CRG-36V20A |
| Voltage | 36V | 36V |
| Output | 36V/10A DC | 36V/20A |
| Product Size | 7.5" x 5" x 2.75" | 10.5" x 6" x 3" |
| Weight | 3.5 lbs (1.6 kg) | 7.1 lbs (3.2 kg) |
| Lead Length | 4' (48 in.) | 4' (48 in.) |
| Charging Battery Type | 36V LiFePO4 | 36V LiFePO4 |
24V 10A & 24V 20A High-Precision Chargers
| Specification | 24V 10A High-Precision Charger | 24V 20A High-Precision Charger |
|---|---|---|
| Model | AB-CRG-24V10A | AB-CRG-24V20A |
| Voltage | 24V | 24V |
| Output | 24V/10A | 24V/20A |
| Product Size | 7.5" x 5" x 2.5" | 7.75" x 5" x 3" |
| Weight | 3.3 lbs (1.5 kg) | 3.3 lbs (1.5 kg) |
| Lead Length | 3' (36 in.) | 3' (36 in.) |
| Charging Battery Type | 24V LiFePO4 | 24V LiFePO4 |
24V Alternator Charger
| Specification | 24V Alternator Charger |
|---|---|
| Model | AB-24V-DC |
| Voltage | 24V |
| Output | 24V |
| Product Size | 4.75" x 3.25" x 1.25" |
| Weight | 0.95 lbs (0.43 kg) |
| Lead Length | 7 in. (17.8 cm) |
| Charging Battery Type | 24V LiFePO4 |
