ABYSS® | On-Board High-Precision Marine Lithium Battery Charger | Model AB-CRG-36V10A | Voltage 36V | 10A Smart Charging | IP67 Waterproof
ABYSS® | On-Board High-Precision Marine Lithium Battery Charger | Model AB-CRG-36V10A | Voltage 36V | 10A Smart Charging | IP67 Waterproof
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

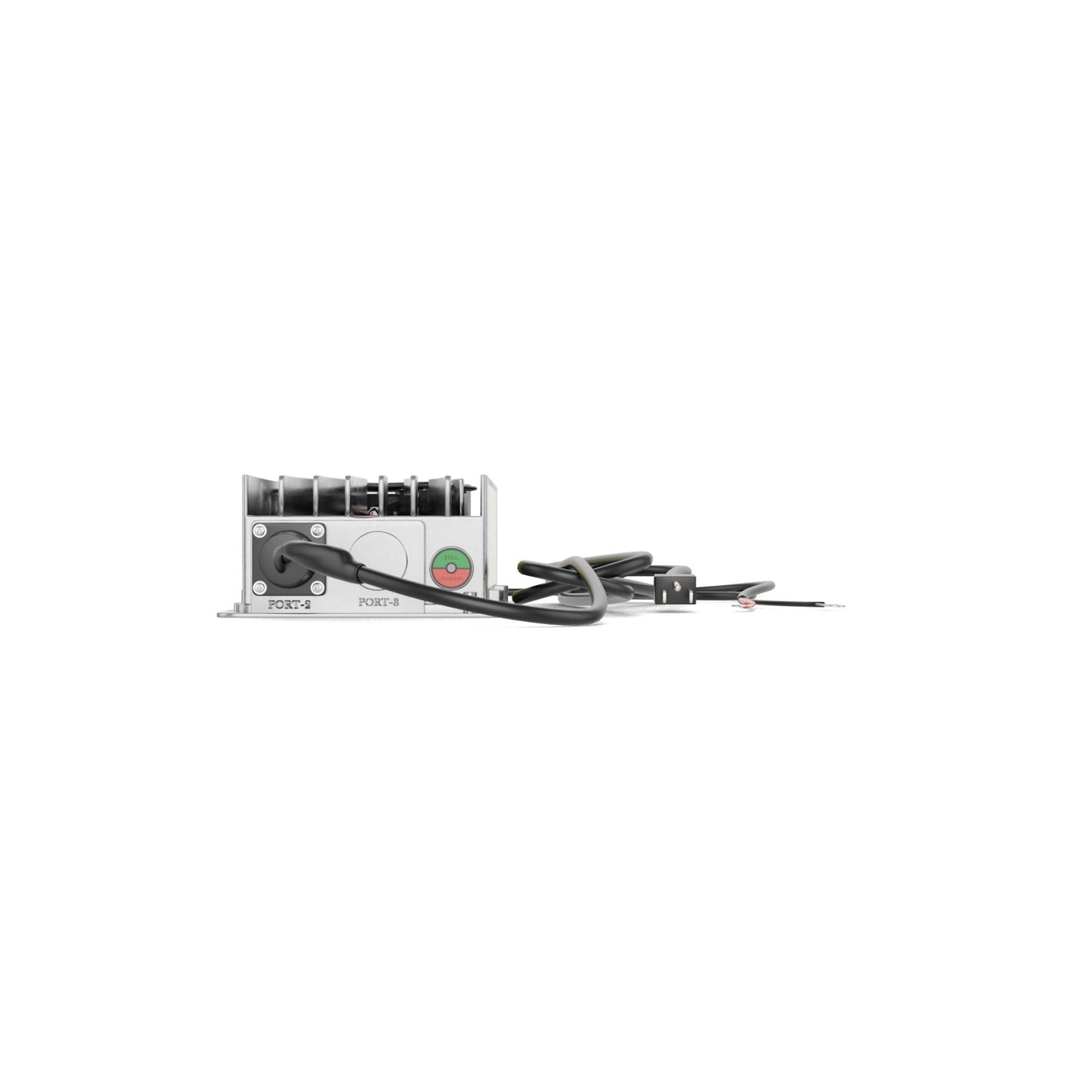

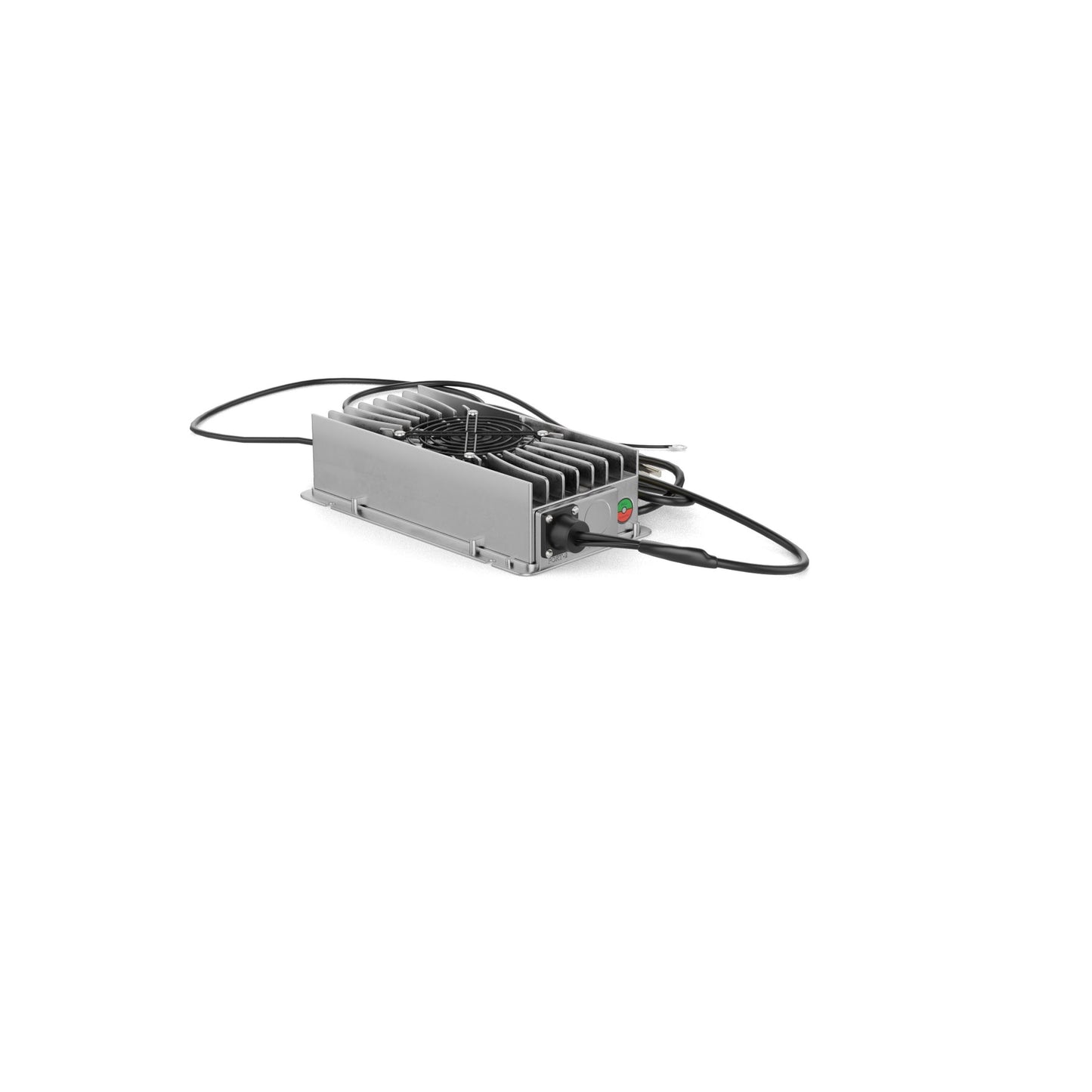

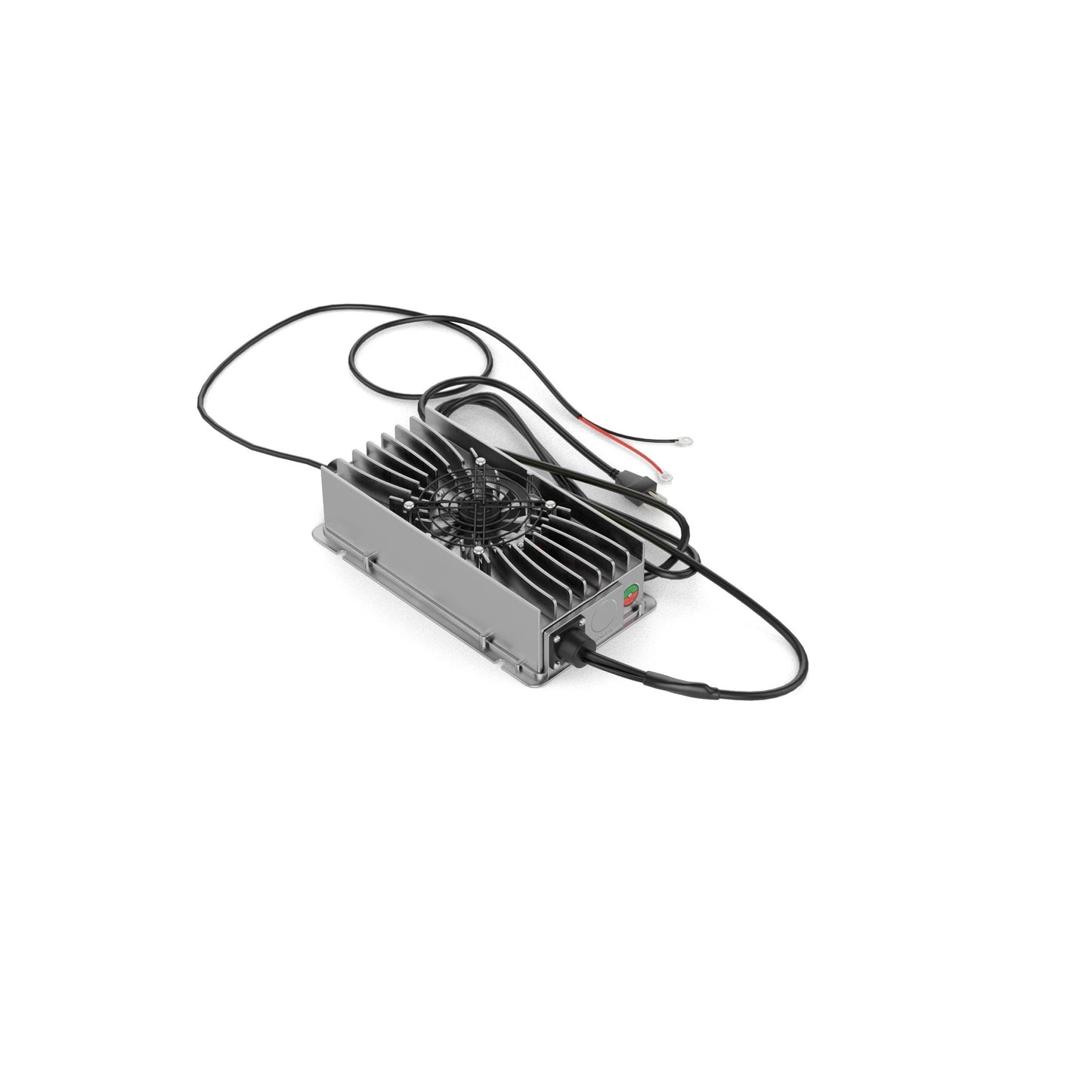

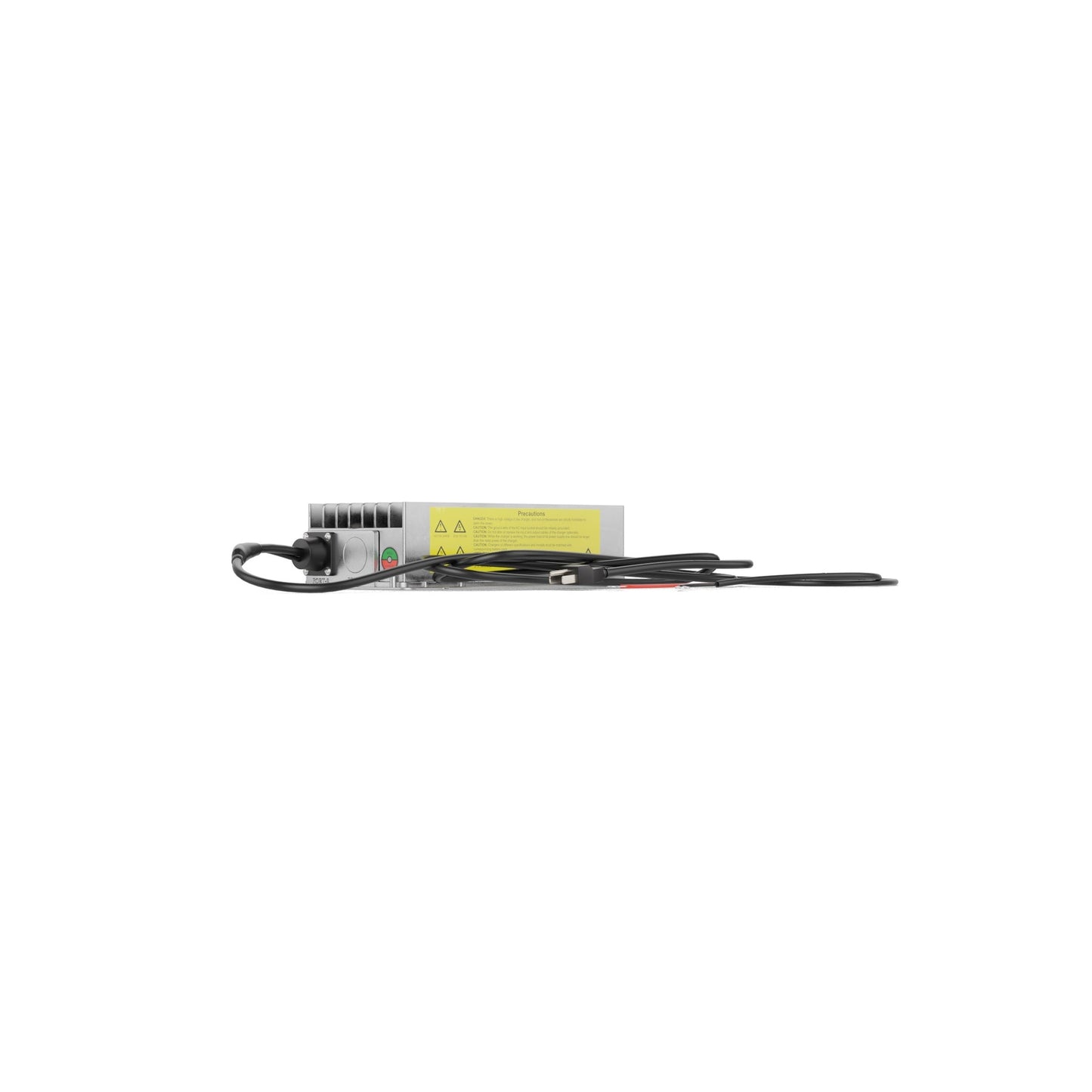

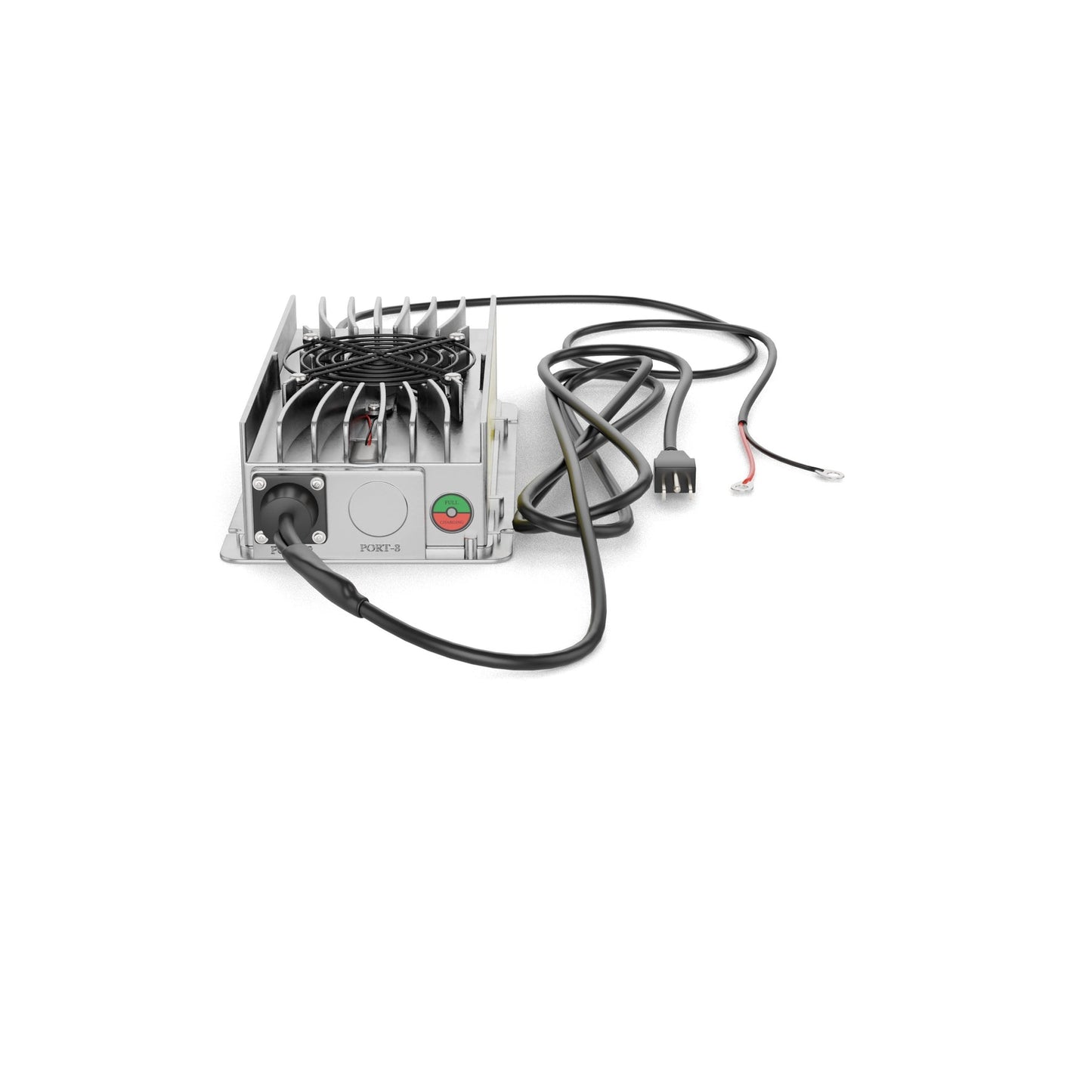

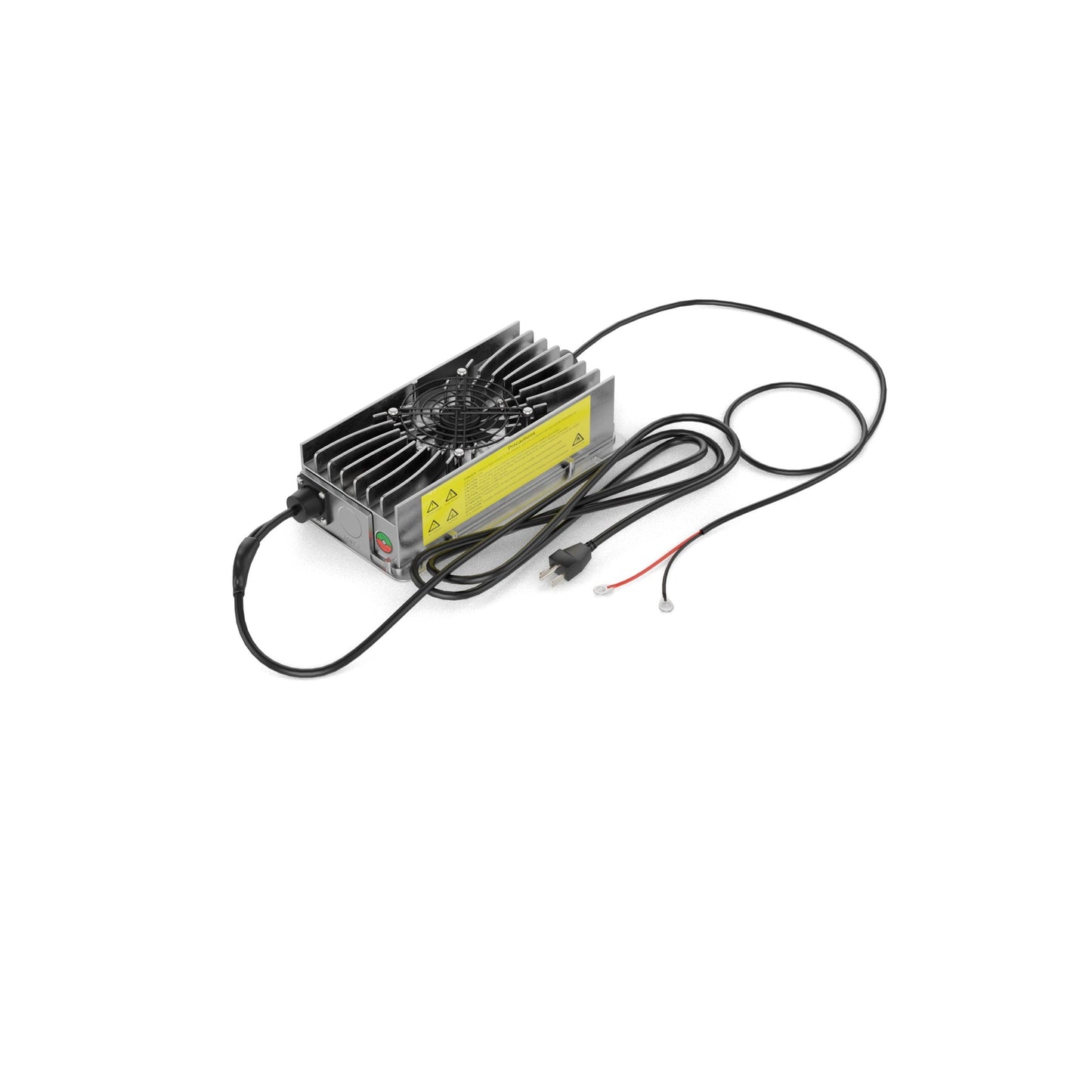

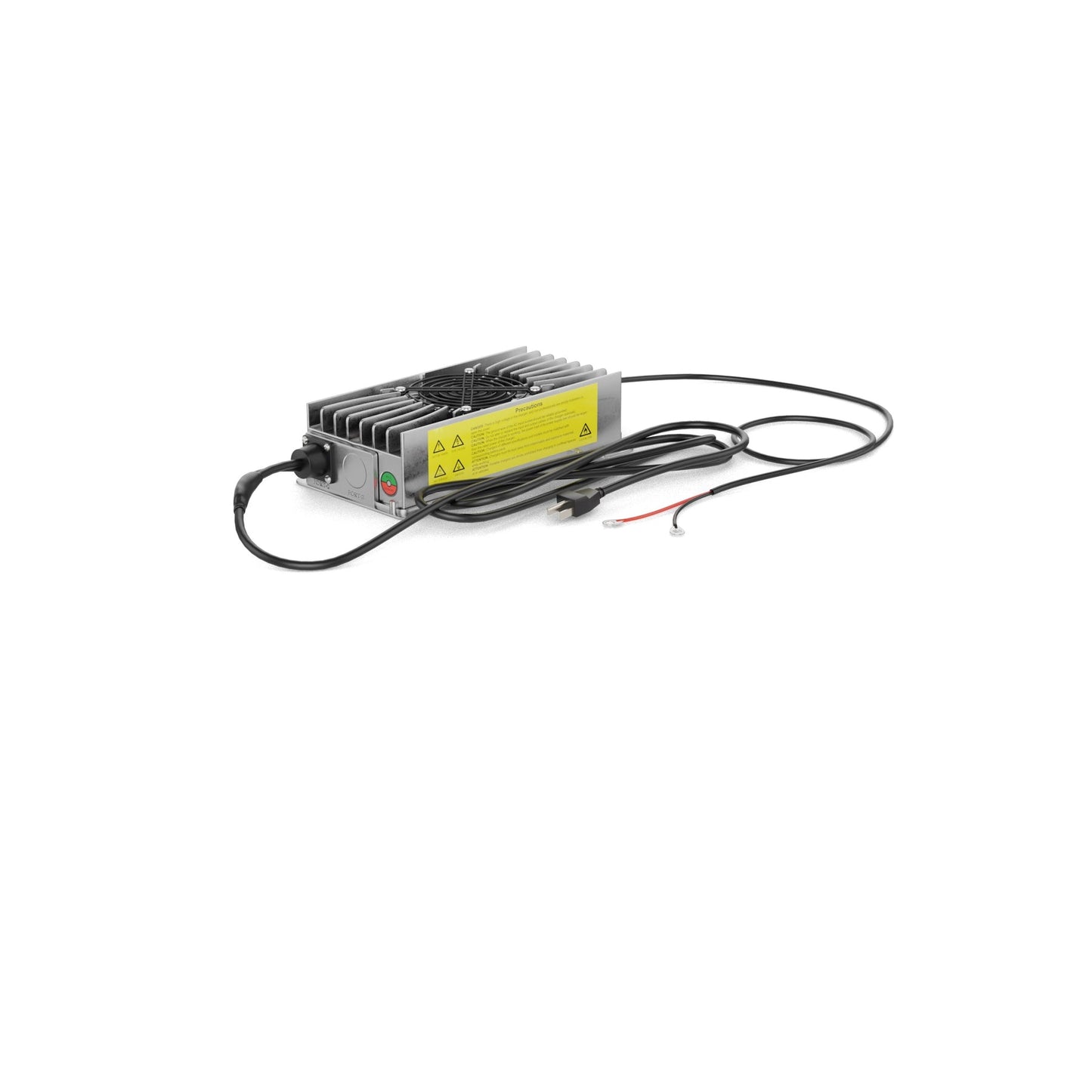

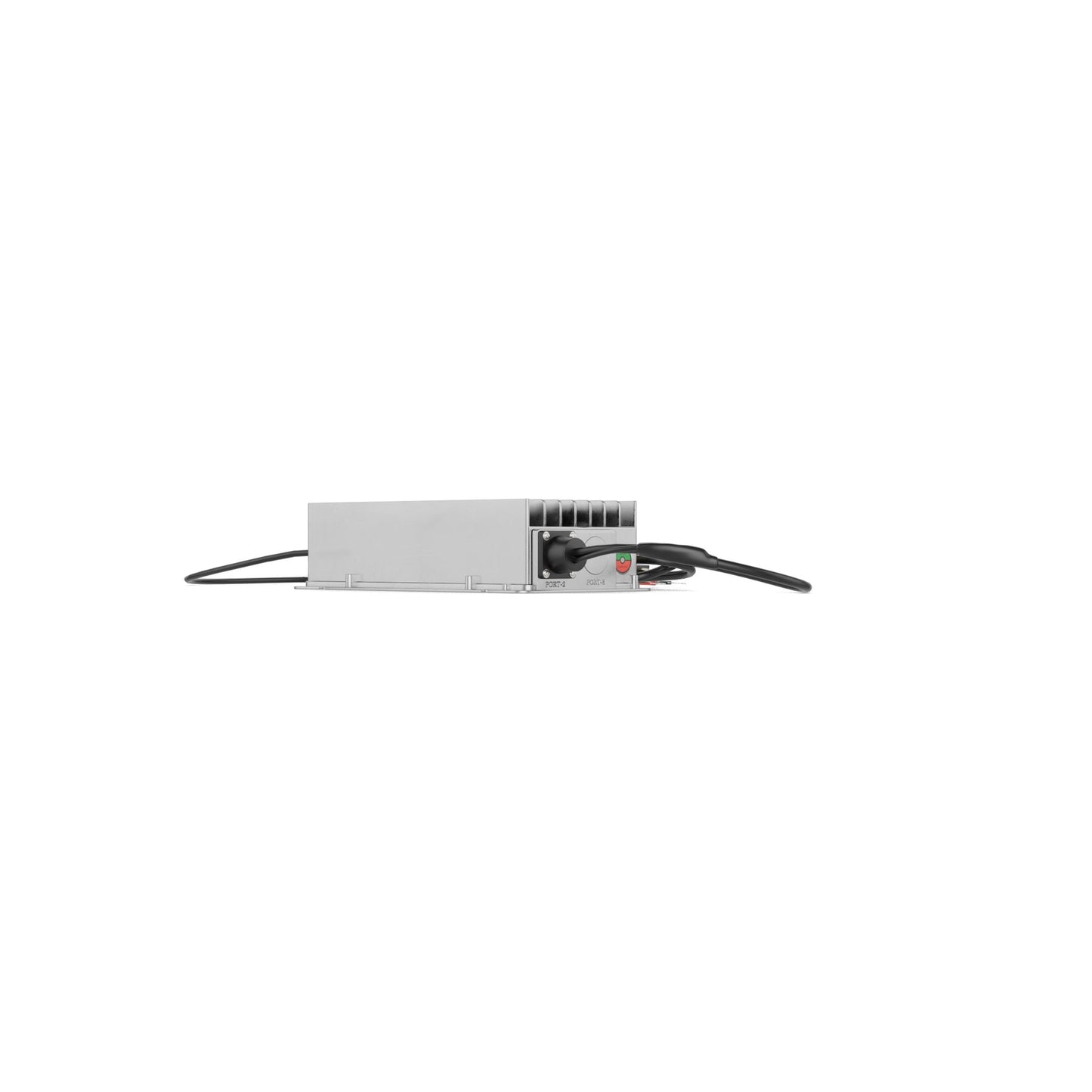

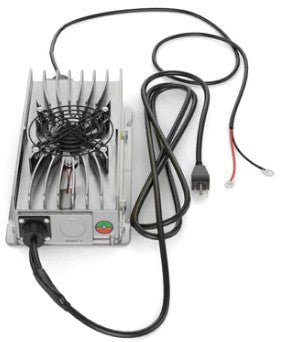

ABYSS® | On-Board High-Precision Marine Lithium Battery Charger | Model AB-CRG-36V10A | Voltage 36V | 10A Smart Charging | IP67 Waterproof
DESCRIPTION
Unlock the full potential of your lithium marine power system with the ABYSS® 36V 10A High-Precision On-Board Marine Lithium Battery Charger built for serious anglers, boaters, and marine professionals who demand reliable performance and efficient energy management.
Engineered specifically for ABYSS® 36V 60Ah and 72Ah LiFePO₄ trolling motor batteries, and fully compatible with other 36V lithium brands, this charger delivers intelligent, fast, and safe charging so you spend less time docked and more time doing what you love.
Protected by advanced marine-grade technology and enclosed in a IP67 waterproof housing, it’s ready to take on tough environments, all while keeping your battery performing at its best. With built-in overcharge, reverse polarity, temperature, and short-circuit protections, it's as smart as it is tough.
Whether you’re tournament fishing, chasing offshore adventures, or simply cruising, this 36V onboard lithium charger ensures your trolling motor batteries are always ready to perform.
Key Features
- Precision 36V Lithium Charging Fast, efficient 10A output tailored for LiFePO₄ batteries
- Marine-Grade Durability Built to withstand harsh marine conditions with corrosion- and UV-resistant casing
- IP67 Waterproof Design Fully sealed to keep out water, oil, grease, and debris ideal for saltwater environments
- Advanced Safety Protection Guards against short circuits, overcharge, reverse polarity, overheating, and more
- ABYC Compliant & Ignition Protected Meets strict marine safety standards for professional-grade installations
- Auto Shutdown Timing Function Increases efficiency and battery longevity by managing charge cycles precisely
- Temperature Controlled Smart monitoring prevents overheating in extreme marine environments
- Compatible with 36V Lithium Systems Optimized for ABYSS® batteries and works seamlessly with most 36V LiFePO₄ brands
- Dual Cable System (AC & DC) Includes ruggedized 4-ft cables with industry-standard fusing and insulation
- LED Charge Status Indicator Quick visual updates let you know your battery’s charging status instantly
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | ABYSS® |
| Model | AB-CRG-36V10A |
| Charging Type | On-Board High-Precision Lithium Charger |
| Battery Compatibility | 36V LiFePO₄ (ABYSS® 60Ah, 72Ah & others) |
| Voltage Input Range | 120V–240V AC |
| Input Frequency | 50Hz–60Hz |
| Output Voltage | 43.8V DC |
| Output Current | 10A |
| Operating Temp Range | -4°F to 104°F (-20°C to 50°C) |
| Storage Temp Range | -22°F to 140°F (-30°C to 60°C) |
| Humidity Tolerance | 0–95% (Non-Condensing) |
| Ingress Protection | IP67 Waterproof & Dustproof |
| Safety Features | Overcharge, Short-Circuit, Overheat, Reverse Polarity, Spark-Proof |
| LED Indicators | Yes Charging Progress & Faults |
| Shutdown Function | Full-Auto Timed Cutoff for Battery Protection |
| CAN Communication | Optional |
| Auxiliary Power Output | 12V 5A (Optional) |
| Dimensions (L x W x H) | 7.5” x 5” x 2.5” (190mm x 127mm x 63mm) |
| Weight | 3.3 lbs (1.5 kg) |
| DC Cable Length | 4 ft (122 cm), 16 AWG, 7.5A Blade Fuse |
| AC Cable Length | 4 ft (122 cm), 18 AWG |
| Cable Protection | Oil, Gas, Water, UV, and Abrasion Resistant |
| Wire Color Codes | Red = Negative, Yellow/Green = Ground, Purple = Neutral |
| Certifications | ABYC Compliant, Ignition Protected |
Multi-Bank 12V/24V/36V Marine & RV Chargers
| Specification | AB‑CRG‑12V24V‑3B | AB‑CRG‑12V36V‑3B |
|---|---|---|
| Input Voltage | 12 V alternator | 12 V alternator |
| Output Configuration | 2×12 V + 1×24 V | 2×12 V + 1×36 V |
| Max Current | 10 A per bank | 10 A per bank |
| Battery Chemistries | LiFePO₄, AGM, Wet‑Cell | LiFePO₄, AGM, Wet‑Cell |
| Mode Selector | Mode Buttons | Mode Buttons |
| Dimensions (L×W×H) | 11.9 × 9.6 × 3.8 in (304×245×99 mm) | 14.2 × 9.6 × 3.8 in (361×245×99 mm) |
| Weight | ~16.5 lbs (7.5 kg) | ~19 lbs (8.6 kg) |
| IP Rating | IP67 (epoxy sealed) | IP67 |
| Operating Temp | –10°C to 40°C | –10°C to 40°C |
| Specification | AB‑CRG‑12V‑4B | AB‑CRG‑12V/36V‑4B |
|---|---|---|
| Input Voltage | 12 V alternator | 12 V alternator |
| Output Configuration | 4×12 V outputs | 3×12 V + 1×36 V |
| Max Current | 10 A per bank | 10 A per bank |
| Battery Chemistries | LiFePO₄, AGM, Wet‑Cell | LiFePO₄, AGM, Wet‑Cell |
| Mode Selector | Mode Buttons | Mode Buttons |
| Dimensions (L×W×H) | 11.9 × 9.6 × 3.8 in (304×245×99 mm) | 16.6 × 9.6 × 3.8 in (423×245×99 mm) |
| Weight | ~17 lbs (7.7 kg) | ~26.8 lbs (12.1 kg) |
| IP Rating | IP67 | IP67 |
| Operating Temp | –10°C to 40°C | –10°C to 40°C |
| Specification | AB‑36V‑DC | AB‑DC‑SD |
|---|---|---|
| Input Voltage | 36 V DC input | 30–90 V DC input |
| Output Configuration | 1×12 V DC output | 1×12 V DC output |
| Max Current | 50 A | 50 A |
| Battery Chemistries | 12 V LiFePO₄ | 12 V LiFePO₄ / AGM |
| Mode Selector | Fixed Output | Fixed Output |
| Dimensions (L×W×H) | 6 × 5 × 2 in (150×130×48 mm) | 6 × 5 × 2 in (150×130×48 mm) |
| Weight | ~3.1 lbs (1.4 kg) | ~3.1 lbs (1.4 kg) |
| IP Rating | IP67 | IP67 |
| Operating Temp | –10°C to 40°C | –10°C to 40°C |
| Specification | AB‑CRG‑36V10A | AB‑CRG‑36V20A |
|---|---|---|
| Input Voltage | 36 V DC input | 36 V DC input |
| Output Configuration | 1×36 V output | 1×36 V output |
| Max Current | 10 A | 20 A |
| Battery Chemistries | 36 V LiFePO₄ | 36 V LiFePO₄ |
| Mode Selector | Single Bank Mode | Single Bank Mode |
| Dimensions (L×W×H) | 7.5 × 5 × 2.75 in (190×127×70 mm) | 10.5 × 6 × 3 in (267×152×76 mm) |
| Weight | ~3.5 lbs (1.6 kg) | ~7.1 lbs (3.2 kg) |
| IP Rating | IP67 | IP67 |
| Operating Temp | –10°C to 40°C | –10°C to 40°C |
| Specification | AB‑CRG‑24V10A | AB‑CRG‑24V20A |
|---|---|---|
| Input Voltage | 24 V DC input | 24 V DC input |
| Output Configuration | 1×24 V output | 1×24 V output |
| Max Current | 10 A | 20 A |
| Battery Chemistries | 24 V LiFePO₄ | 24 V LiFePO₄ |
| Mode Selector | Single Bank Mode | Single Bank Mode |
| Dimensions (L×W×H) | 7.5 × 5 × 2.5 in (190×127×63 mm) | 7.75 × 5 × 3 in (197×127×76 mm) |
| Weight | ~3.3 lbs (1.5 kg) | ~3.3 lbs (1.5 kg) |
| IP Rating | IP67 | IP67 |
| Operating Temp | –10°C to 40°C | –10°C to 40°C |
| Specification | AB‑24V‑DC |
|---|---|
| Input Voltage | 24 V alternator input |
| Output Configuration | Smart 24 V regulator charge |
| Max Current | Dynamic Smart Regulated |
| Battery Chemistries | LiFePO₄, AGM, Wet‑Cell |
| Mode Selector | Mode Button |
| Dimensions (L×W×H) | 4.75 × 3.25 × 1.25 in (121×82×32 mm) |
| Weight | ~0.95 lbs (0.43 kg) |
| IP Rating | IP67 |
| Operating Temp | –10°C to 40°C |
