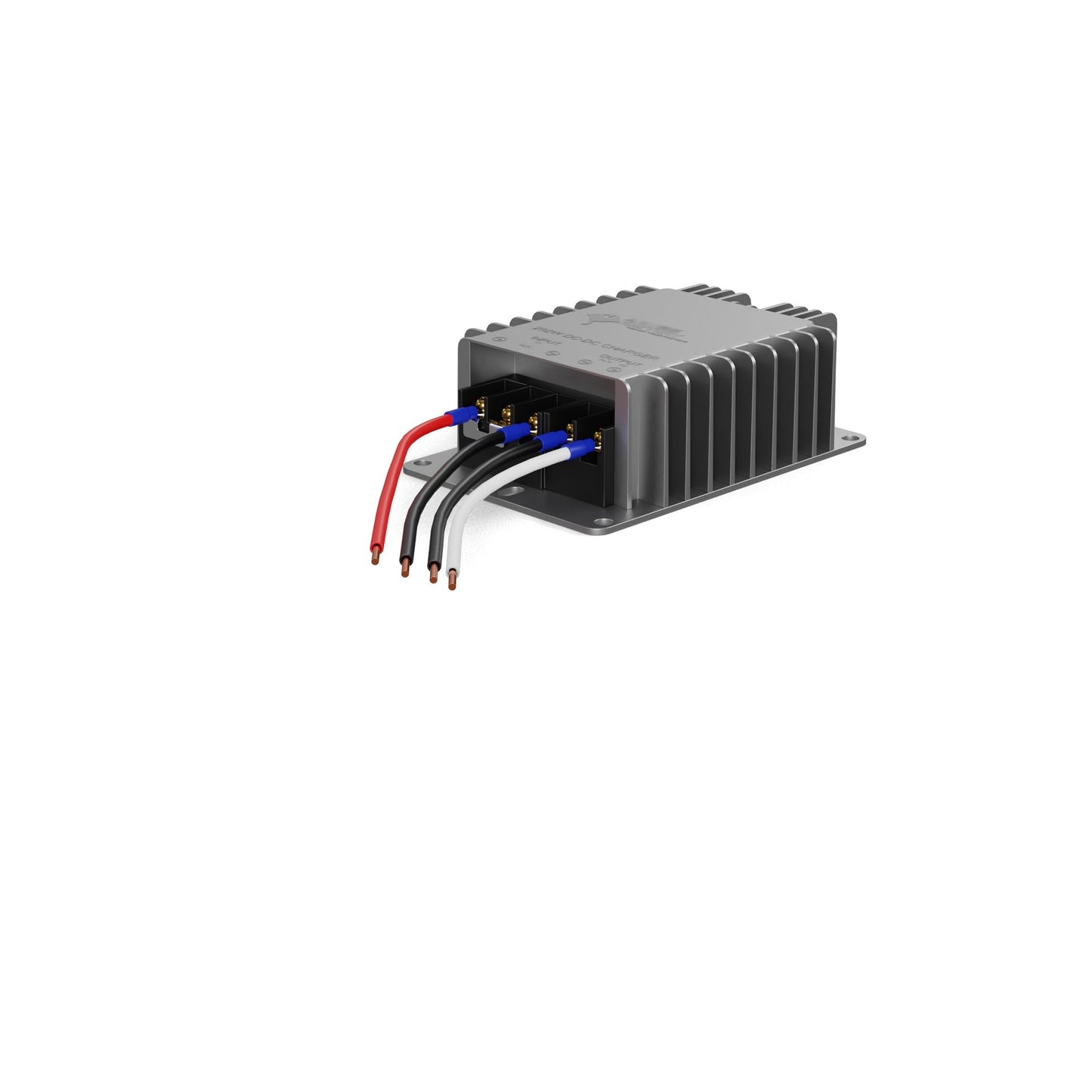

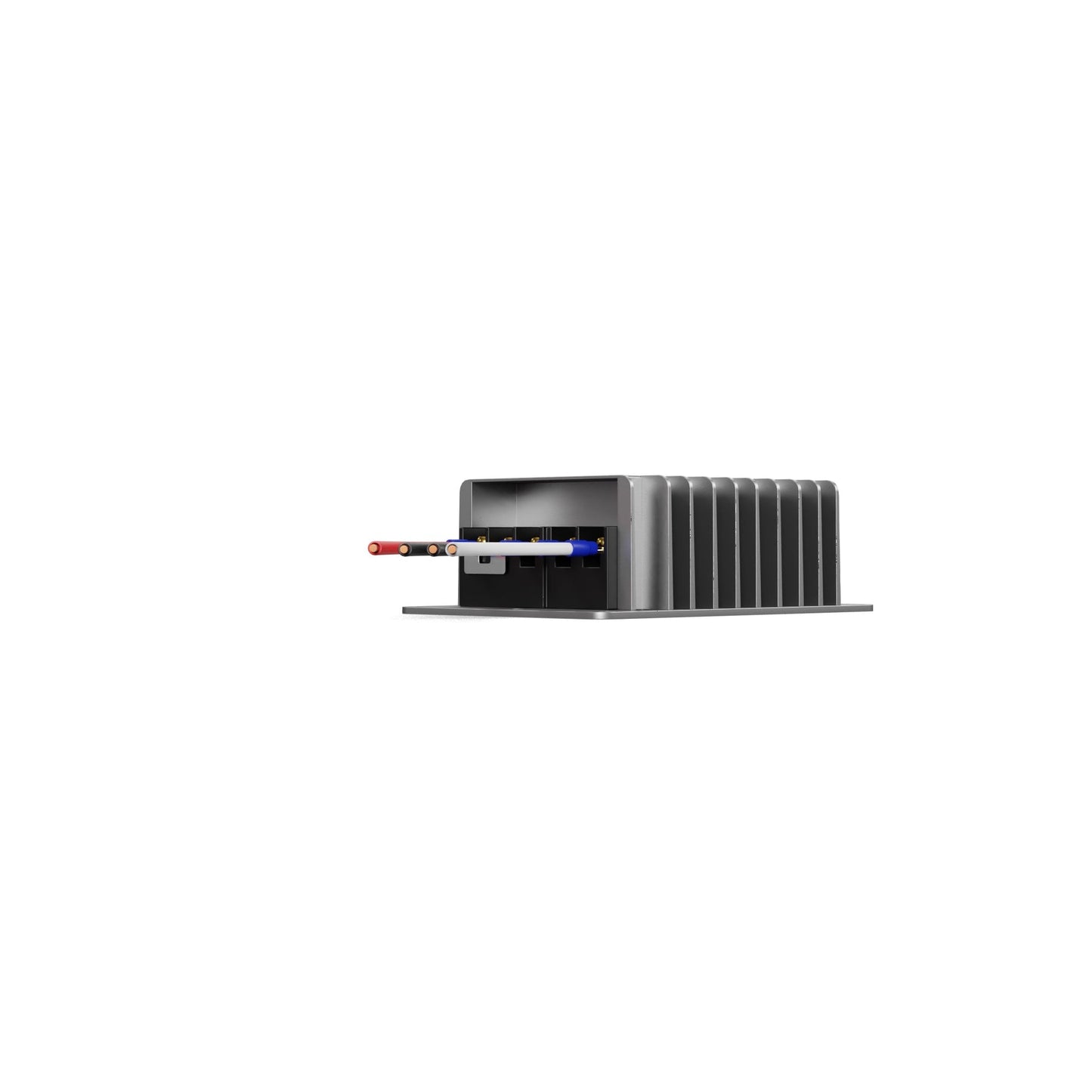

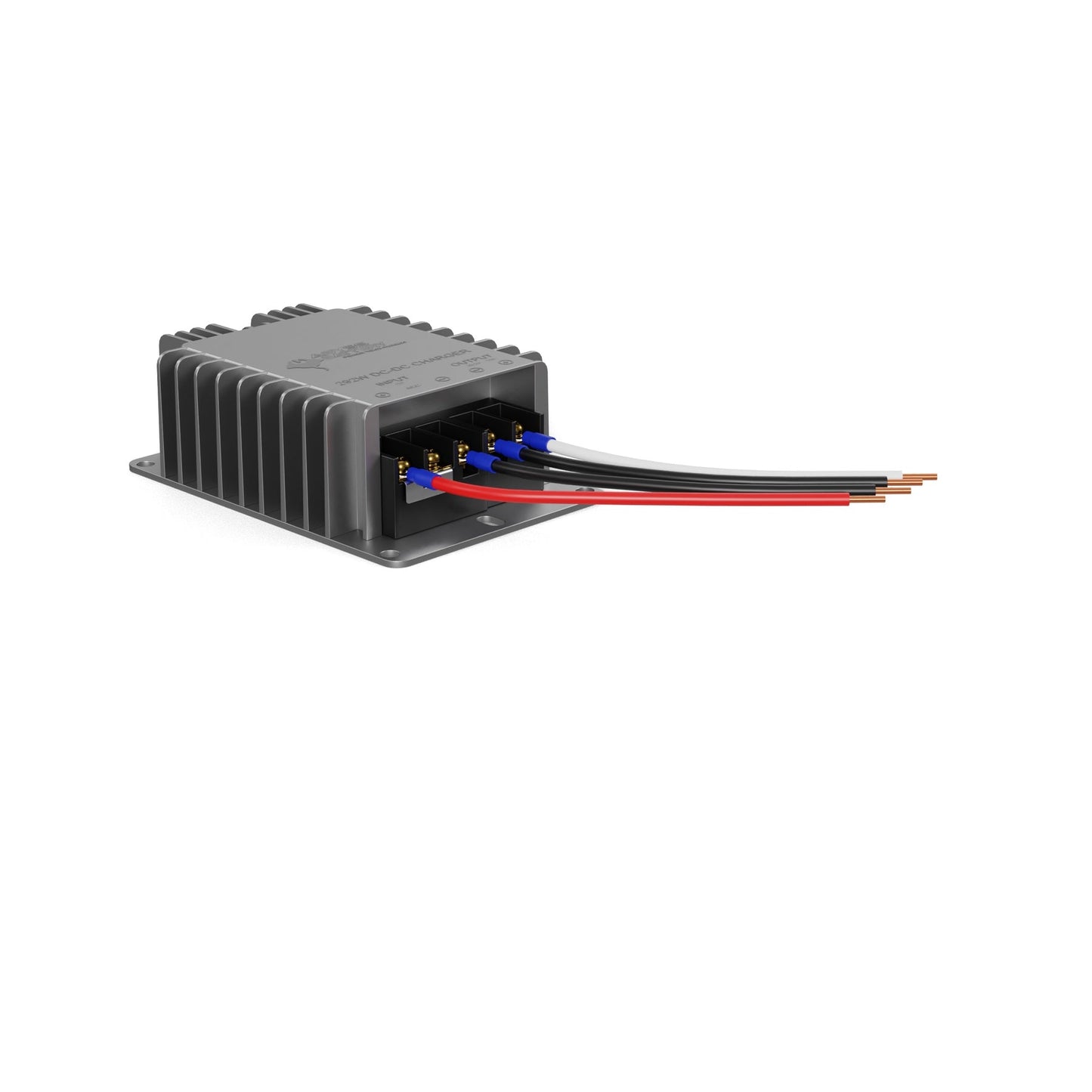

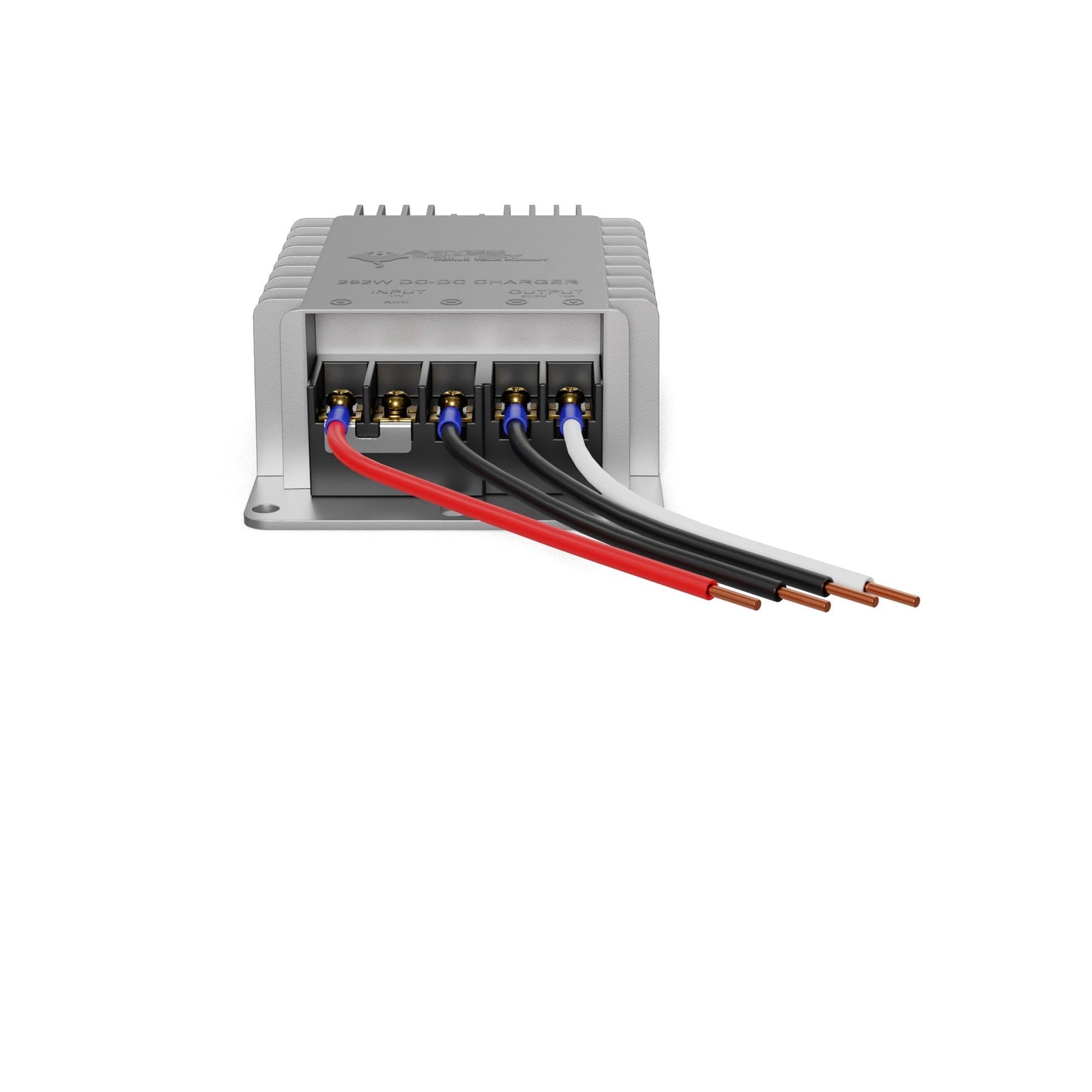

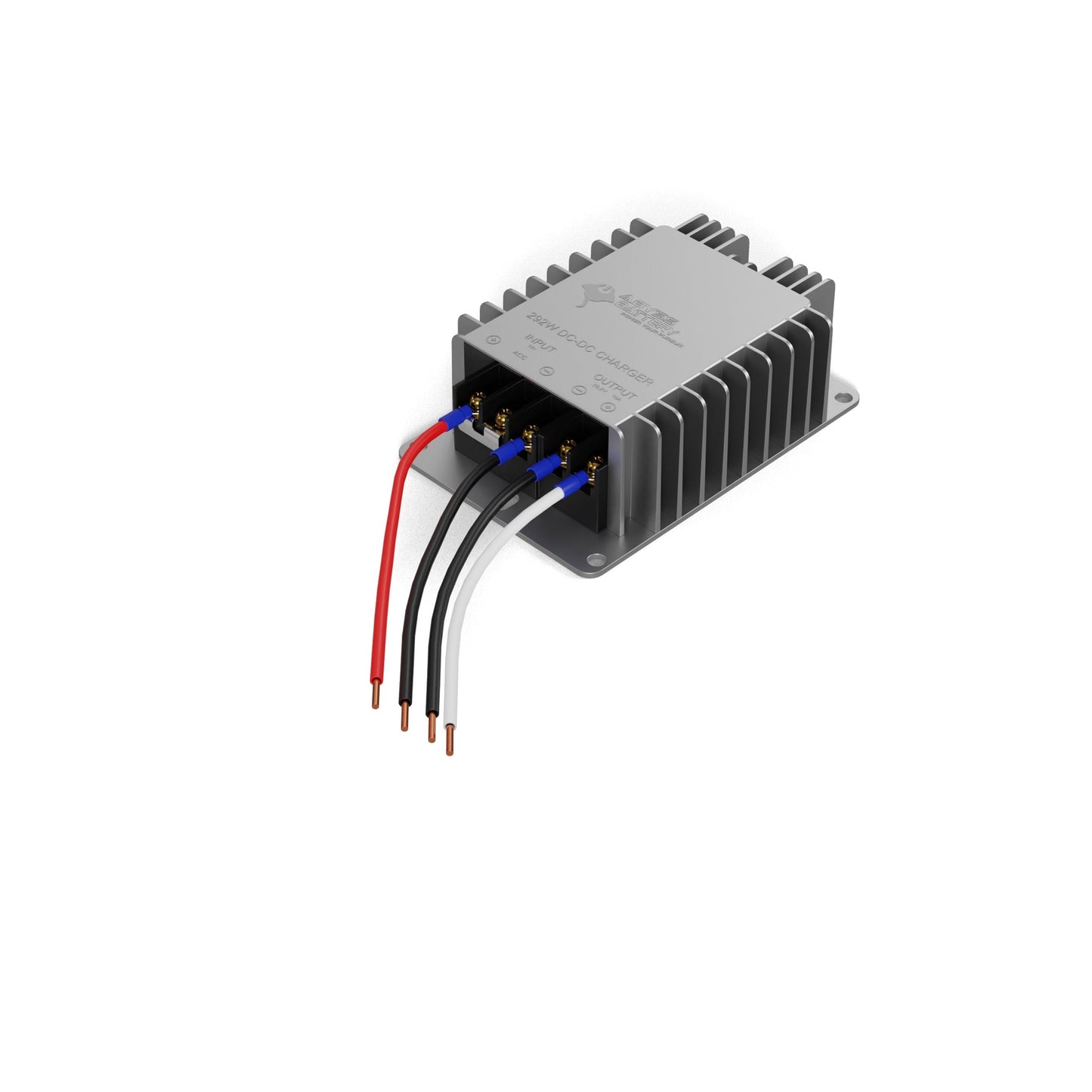

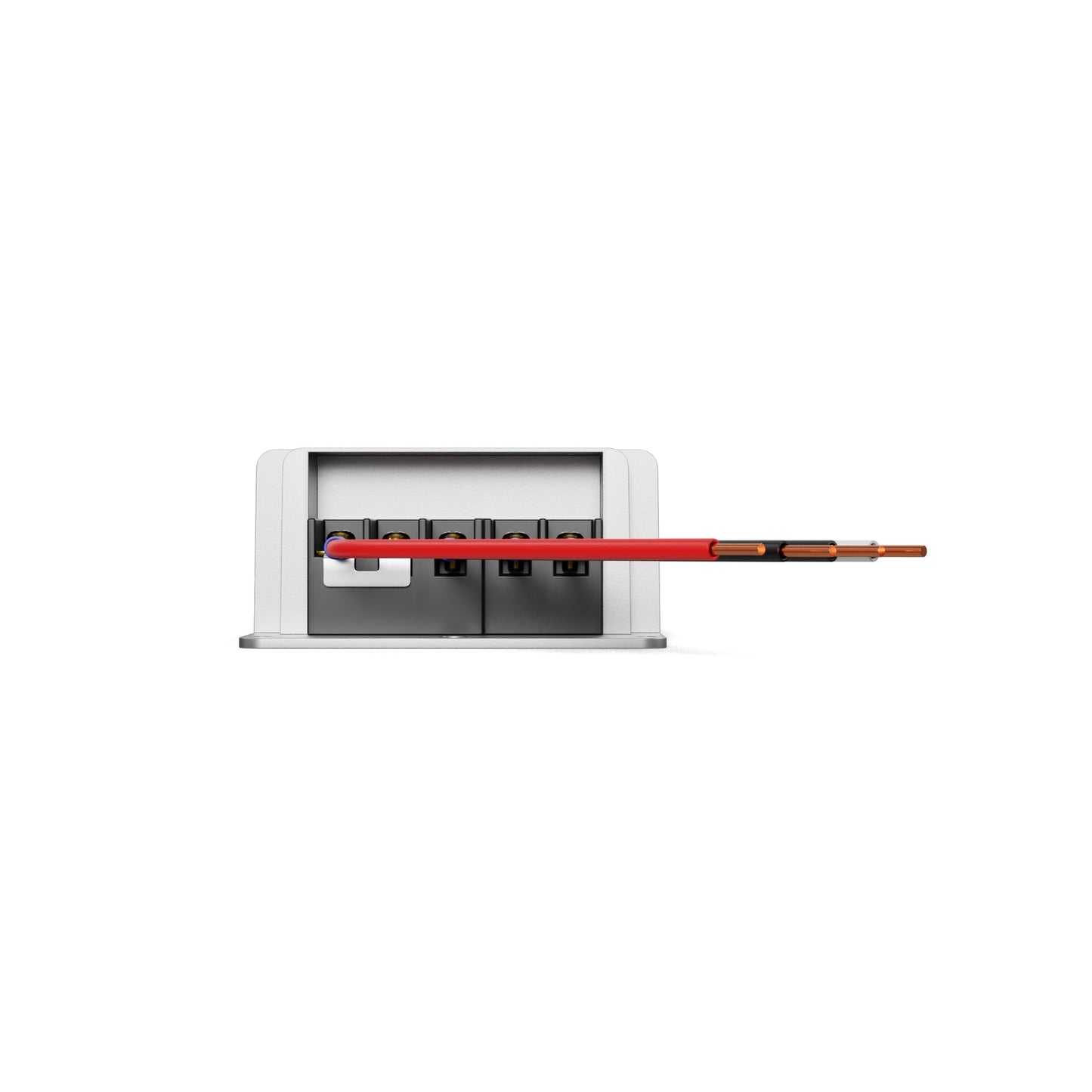

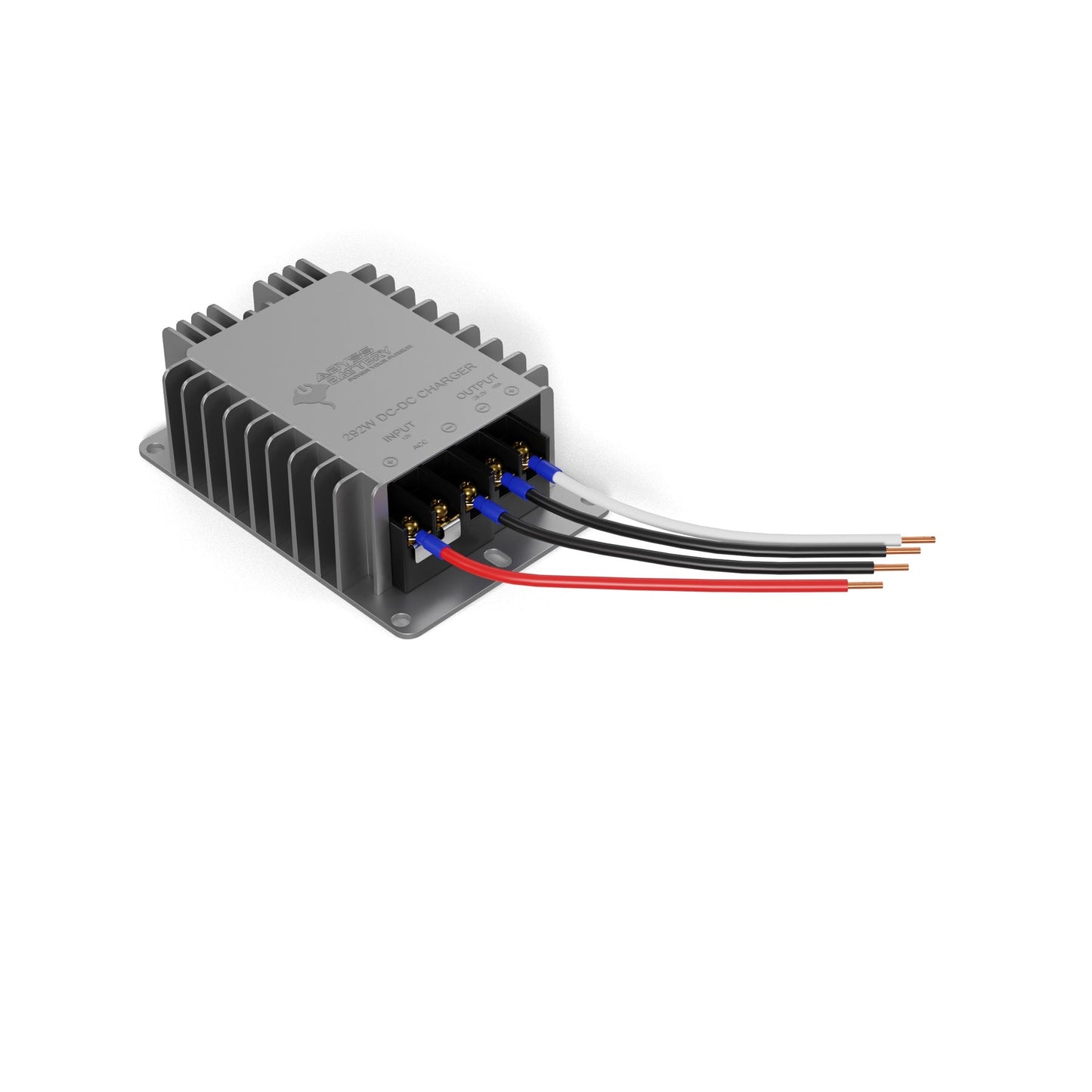

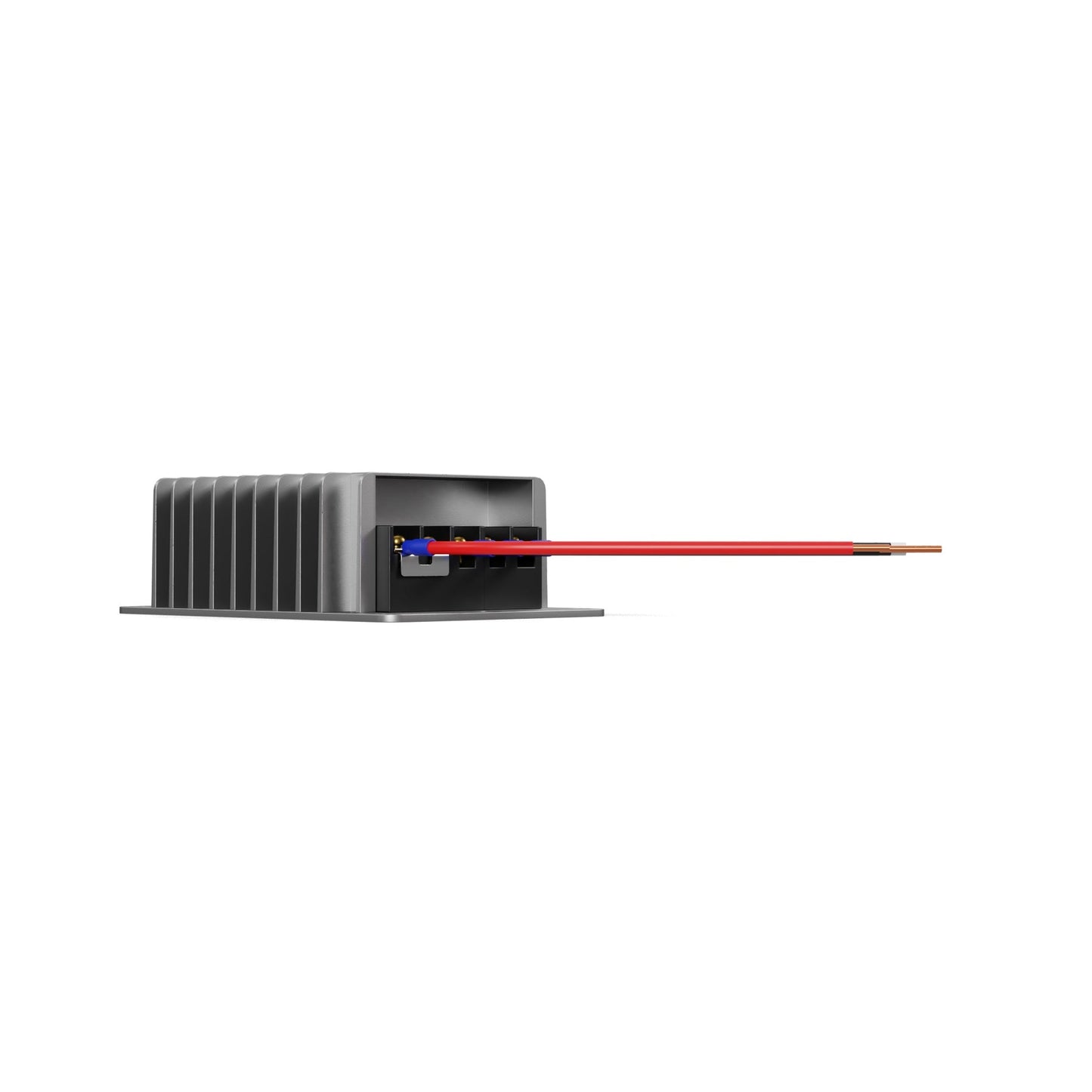

ABYSS® | 24V On-Board Alternator Charger | Model AB-24V-DC | Smart Marine Charging | IP67 Waterproof | DC-DC Battery Charging System | For Trolling Motors, Boats & Marine Applications

ABYSS® | 24V On-Board Alternator Charger | Model AB-24V-DC | Smart Marine Charging | IP67 Waterproof | DC-DC Battery Charging System | For Trolling Motors, Boats & Marine Applications

Regular price $249.99
Regular price Sale price $249.99
Sale Sold out
Customizable
Fast
24/7 Support
  • Charge your 24V trolling motor battery directly from your engine’s alternator while on the water.
  • Advanced DC-DC charging technology ensures batteries receive only the necessary current for optimal performance.
  • Maintains cranking battery voltage at safe levels, charging only when the starting battery reaches 13.3V.
  • Improves battery life and efficiency by redistributing excess alternator power to trolling motor or auxiliary batteries.
  • Designed for marine environments with smart, reliable, and on-demand charging capabilities.
View full details

Product Description

ABYSS® | 24V On-Board Alternator Charger | Model AB-24V-DC | Smart Marine Charging | IP67 Waterproof | DC-DC Battery Charging System | For Trolling Motors, Boats & Marine Applications

DESCRIPTION

Power your adventures without missing a beat. The Abyss® 24V On-Board Alternator Charger (AB-24V-DC) is the perfect marine-grade upgrade to effortlessly recharge your 24V trolling motor or auxiliary battery system using your engine’s alternator while underway.

Engineered for modern boaters who demand smart power management, this compact and rugged DC-DC charger diverts excess alternator power charging only when your starting battery reaches 13.3V and cutting off below 12.5V to protect your cranking battery. The result? Longer battery life, optimized performance, and total peace of mind on the water.

Its epoxy-sealed body and IP67 waterproof rating make it a reliable companion in wet and harsh marine environments. Plus, it's ABYC compliant, ignition protected, and thoughtfully designed with intelligent voltage regulation, keeping your lithium or AGM batteries safe, full, and always ready.

This is not just a charger it's smart, automatic power control that works while you explore.

Key Features

  • Marine-Grade 24V Alternator Charger Charge 24V trolling motor or auxiliary batteries directly from your boat’s engine alternator
  • Smart Charging Logic Transfers power only when your starter battery reaches 13.3V and stops at 12.5V to protect cranking voltage
  • DC-DC Charging Efficiency Keeps lithium and AGM batteries safely topped off while minimizing energy waste
  • IP67 Waterproof Rating Fully sealed with pure epoxy resin to protect against water, salt, and vibration
  • ABYC Compliant & Ignition Protected Meets strict marine safety standards for worry-free use on the water
  • Compact & Lightweight Ideal for boats, RVs, and custom installs where space is at a premium
  • Temperature-Controlled Charging Operates in environments from -10°C to 40°C for seasonal versatility
  • Easy Integration Designed to fit seamlessly into any 24V marine battery system

Detailed Specifications

Specification Details
Model AB-24V-DC
System Voltage 24V DC
Input Source Engine Alternator
Charging Output 24V (For LiFePO4 or AGM Batteries)
Battery Compatibility 24V LiFePO4, AGM, Lead-Acid
Charging Protection Overcharge, Short-Circuit, Overtemp, Reverse Connection
Voltage Regulation Start charging at 13.3V; stop at 12.5V (cranking battery)
Waterproof Rating IP67 (sealed with pure epoxy resin)
Ignition Protection Yes
Operating Temperature -10°C to 40°C (14°F to 104°F)
Nominal Temperature 25°C (77°F)
Relative Humidity Range 5% to 95%
Cooling System Passive cooling with aluminum stretched plate
Dimensions (L×W×H) 4.75" × 3.25" × 1.25" (121 × 82 × 32 mm)
Weight 0.95 lbs (0.43 kg)
Mounting On-board, secure-mount compatible



Multi-Bank 12V/24V/36V Marine & RV Chargers

Specification AB‑CRG‑12V24V‑3B AB‑CRG‑12V36V‑3B
Input Voltage 12 V alternator 12 V alternator
Output Configuration 2×12 V + 1×24 V 2×12 V + 1×36 V
Max Current 10 A per bank 10 A per bank
Battery Chemistries LiFePO₄, AGM, Wet‑Cell LiFePO₄, AGM, Wet‑Cell
Mode Selector Mode Buttons Mode Buttons
Dimensions (L×W×H) 11.9 × 9.6 × 3.8 in (304×245×99 mm) 14.2 × 9.6 × 3.8 in (361×245×99 mm)
Weight ~16.5 lbs (7.5 kg) ~19 lbs (8.6 kg)
IP Rating IP67 (epoxy sealed) IP67
Operating Temp –10°C to 40°C –10°C to 40°C



Specification AB‑CRG‑12V‑4B AB‑CRG‑12V/36V‑4B
Input Voltage 12 V alternator 12 V alternator
Output Configuration 4×12 V outputs 3×12 V + 1×36 V
Max Current 10 A per bank 10 A per bank
Battery Chemistries LiFePO₄, AGM, Wet‑Cell LiFePO₄, AGM, Wet‑Cell
Mode Selector Mode Buttons Mode Buttons
Dimensions (L×W×H) 11.9 × 9.6 × 3.8 in (304×245×99 mm) 16.6 × 9.6 × 3.8 in (423×245×99 mm)
Weight ~17 lbs (7.7 kg) ~26.8 lbs (12.1 kg)
IP Rating IP67 IP67
Operating Temp –10°C to 40°C –10°C to 40°C



Specification AB‑36V‑DC AB‑DC‑SD
Input Voltage 36 V DC input 30–90 V DC input
Output Configuration 1×12 V DC output 1×12 V DC output
Max Current 50 A 50 A
Battery Chemistries 12 V LiFePO₄ 12 V LiFePO₄ / AGM
Mode Selector Fixed Output Fixed Output
Dimensions (L×W×H) 6 × 5 × 2 in (150×130×48 mm) 6 × 5 × 2 in (150×130×48 mm)
Weight ~3.1 lbs (1.4 kg) ~3.1 lbs (1.4 kg)
IP Rating IP67 IP67
Operating Temp –10°C to 40°C –10°C to 40°C



Specification AB‑CRG‑36V10A AB‑CRG‑36V20A
Input Voltage 36 V DC input 36 V DC input
Output Configuration 1×36 V output 1×36 V output
Max Current 10 A 20 A
Battery Chemistries 36 V LiFePO₄ 36 V LiFePO₄
Mode Selector Single Bank Mode Single Bank Mode
Dimensions (L×W×H) 7.5 × 5 × 2.75 in (190×127×70 mm) 10.5 × 6 × 3 in (267×152×76 mm)
Weight ~3.5 lbs (1.6 kg) ~7.1 lbs (3.2 kg)
IP Rating IP67 IP67
Operating Temp –10°C to 40°C –10°C to 40°C



Specification AB‑CRG‑24V10A AB‑CRG‑24V20A
Input Voltage 24 V DC input 24 V DC input
Output Configuration 1×24 V output 1×24 V output
Max Current 10 A 20 A
Battery Chemistries 24 V LiFePO₄ 24 V LiFePO₄
Mode Selector Single Bank Mode Single Bank Mode
Dimensions (L×W×H) 7.5 × 5 × 2.5 in (190×127×63 mm) 7.75 × 5 × 3 in (197×127×76 mm)
Weight ~3.3 lbs (1.5 kg) ~3.3 lbs (1.5 kg)
IP Rating IP67 IP67
Operating Temp –10°C to 40°C –10°C to 40°C



Specification AB‑24V‑DC
Input Voltage 24 V alternator input
Output Configuration Smart 24 V regulator charge
Max Current Dynamic Smart Regulated
Battery Chemistries LiFePO₄, AGM, Wet‑Cell
Mode Selector Mode Button
Dimensions (L×W×H) 4.75 × 3.25 × 1.25 in (121×82×32 mm)
Weight ~0.95 lbs (0.43 kg)
IP Rating IP67
Operating Temp –10°C to 40°C
