ACR Electronics

ACR RCL-300A HID Searchlight - 12V/24V [1933]

ACR RCL-300A HID Searchlight - 12V/24V [1933]

Regular price $6,331.45 USD
Regular price $6,964.60 USD Sale price $6,331.45 USD
Sale Sold out
Shipping calculated at checkout.

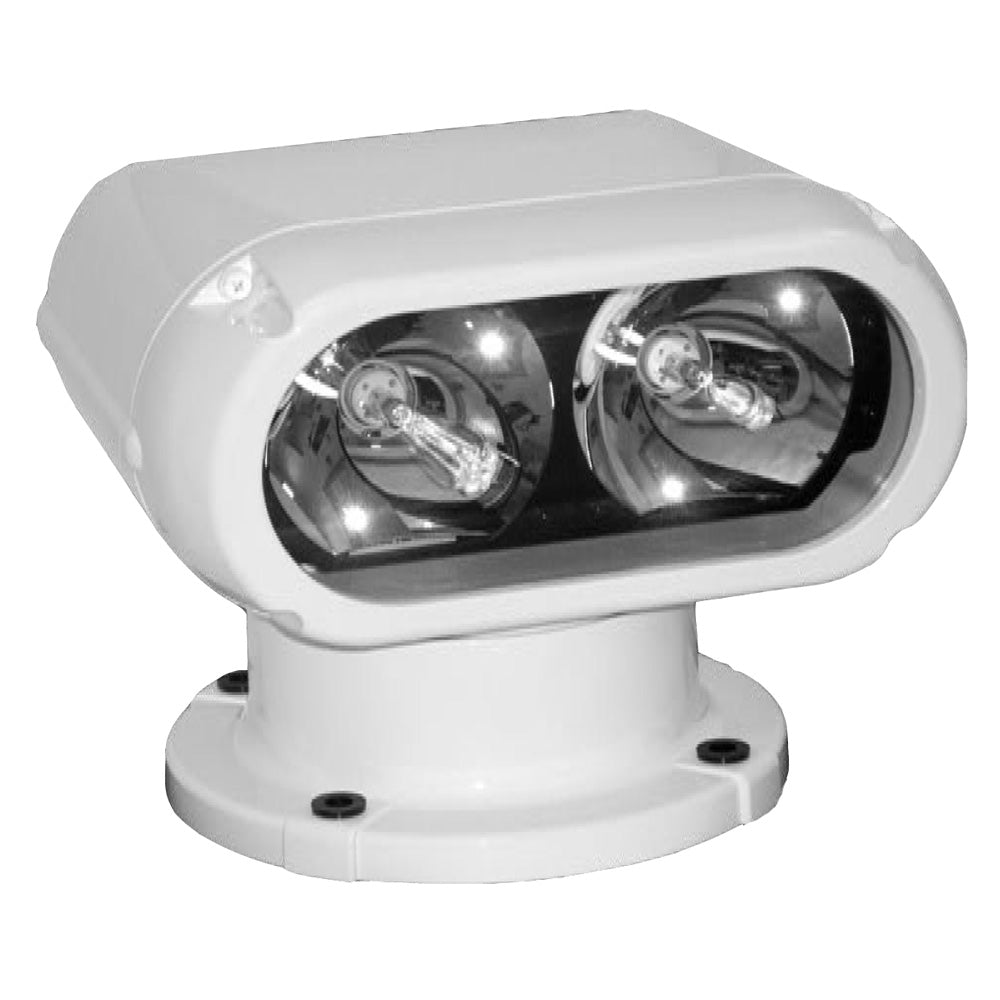

RCL-300 Remote Controlled Searchlight - 12V/24V


  • 12v - 24v 1 million* CD
  • Internal elevation mechanism provides pitch control of spotlight beam; protects elevation mechanism from weather
  • Includes fingertip remote control Point Pad™; up to three remote Point Pad™ units may be installed on system; surface/flush mount options included
  • Rugged triple-primed and sealed, marine grade aluminum housing
  • Exclusive XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
  • Auto return function that returns light to forward position when powered down
  • Salt water-resistant construction with nylon and phenolic washers, aluminized stainless steel screws with insulating lubricant
  • Wiring harness included
  • *Twin 35w, metal halide HID lamps provide over 500k CD each and 1 million effective CD when combined


  • Size: 12" x 13" x 9.3" (31 x 33 x 23.5 cm)
  • Weight: 36lbs (16.39 kg)
  • Material: Marine grade cast aluminum, tempered glass
  • Input Voltage: 12V-24VDC
  • Amp Draw Startup 25A @12V, Running 8A @ 12V
  • Color: White
  • Operation: Remote controlled Point Pad™
  • Beam Angle: 6°
  • Elevation Angle: 15° up, 30° down
  • Rotation: 360° continuous
  • Rotation Speed:Fast 30° per second Slow 10° per second
  • Elevation Speed: 3° per second
  • Lamp: Twin 35W metal halide lamps 1,000 hours operating life


  • Secondary Point Pad™ for remote control with install kit (P/N 9282.3)
  • Replacement 35W Halide lamps (P/N 6009)
  • Footprint Diameter: 9" (23cm)
  • Limited Warranty: 1 Year
  • Carton Dimensions:20.5" x 14.25" x 19.25"
  • Carton Weight: 40 lbs
