ACR RCL-600A Searchlight w/Joystick Panel - 24V [1941]

ACR RCL-600A Searchlight w/Joystick Panel - 24V [1941]

Regular price $10,919.95
Regular price $12,009.95 Sale price $10,919.95
Sale Sold out
Customizable
Fast
24/7 Support

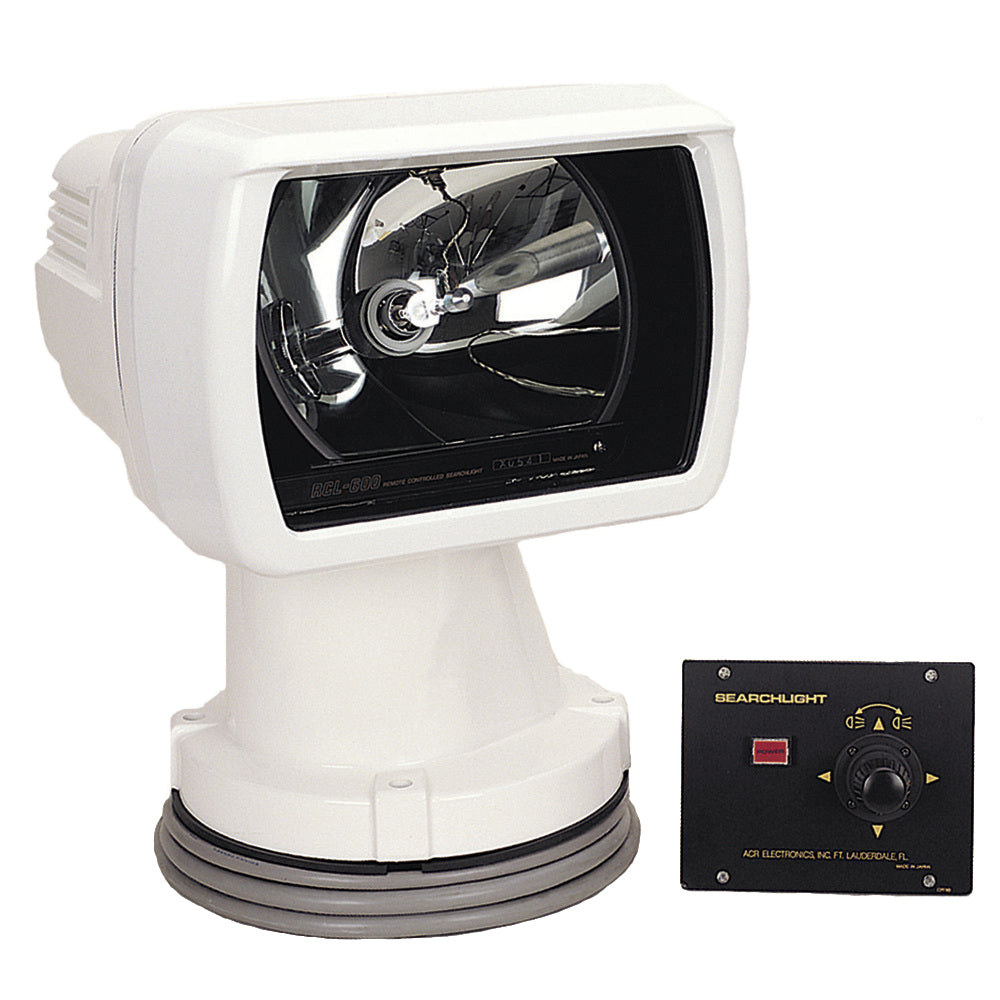

RCL-600A Remote Controlled Searchlight w/Joystick Panel

At 6 million candela, the top-of-the-line RCL-600A pierces the darkest night. Its high-intensity 150-watt Xenon bulb and parabolic reflector provides brawny power for commercial vessels, yet its aesthetic design meets all the requirements of large pleasure yachts. Switch easily from flood to spot, and aim precisely with the self-contained remote joystick.

Features:

  • Aesthetically designed to meet performance requirements of large pleasure yachts
  • Internal elevation mechanism provides pitch control of spotlight while protecting elevation mechanism from weather
  • Xenon lamp and parabolic reflector provide hyper-intense 6,000,000 candela spotlight beam
  • Housing rotates a full 360 degrees allowing all-around illumination capability
  • Auto return brings light back to a pre-set position
  • Focus adjustment gives spot or flood capability
  • Nylon shoulder washers insulate base plate when mounting, eliminating galvanic reaction of dissimilar metals
  • Includes control panel with self-contained joystick remote
  • Rugged weatherproof enclosure for years of reliable service

Specifications:

  • Size: 17" x 14" x 15"  (43.2 x 35.6 x 38.1 cm)
  • Weight: 65.0 lbs  (29.5 kg)
  • Material: Aluminum
  • Color: White
  • Operation: Remote joystick control
  • Beam Spread: Variable; can be narrowed or broadened
  • Elevation Angle: 18° up, 30° down
  • Rotation: 360° continuous
  • Rotation Speed: Fast 27° per second,slow 11° per second
  • Elevation Speed: 7.5° per second
  • Lamp: High intensity 150W Xenon
  • Accessories: Secondary remote joystick (P/N 1942)12V or 24V Replacement bulb (P/N6007)
  • Footprint Diameter: 11.5” (292.1 mm)
  • Limited Warranty: 1 Year

WarningWARNING: This product can expose you to chemicals including BISPHENOL A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
