Anderson Wraptor (Wrapper + Trailer) | Wrapper Width 115" inches | Trailer Width 100" inches | Horsepower 100+ HP | For Tractors
DESCRIPTION

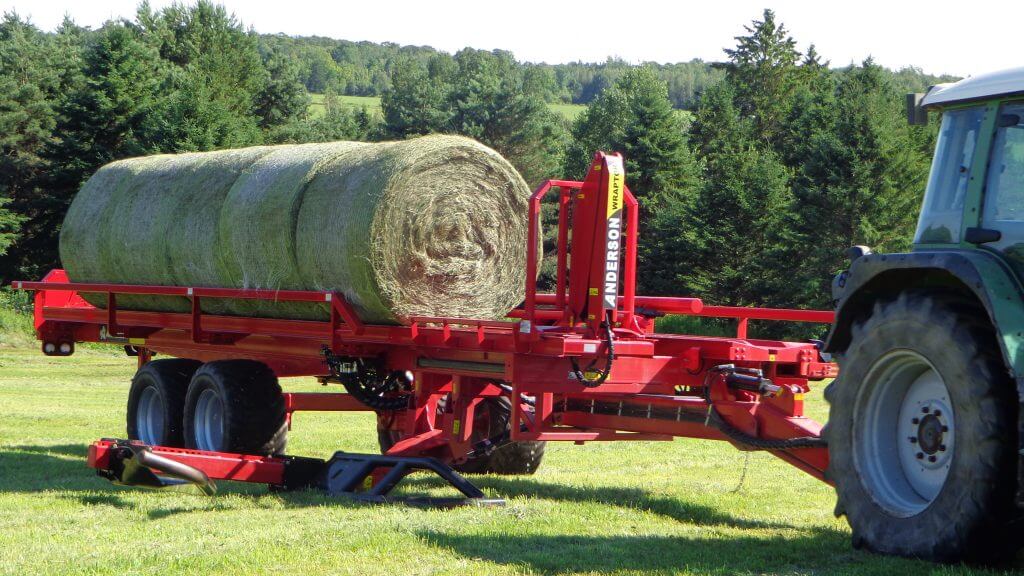

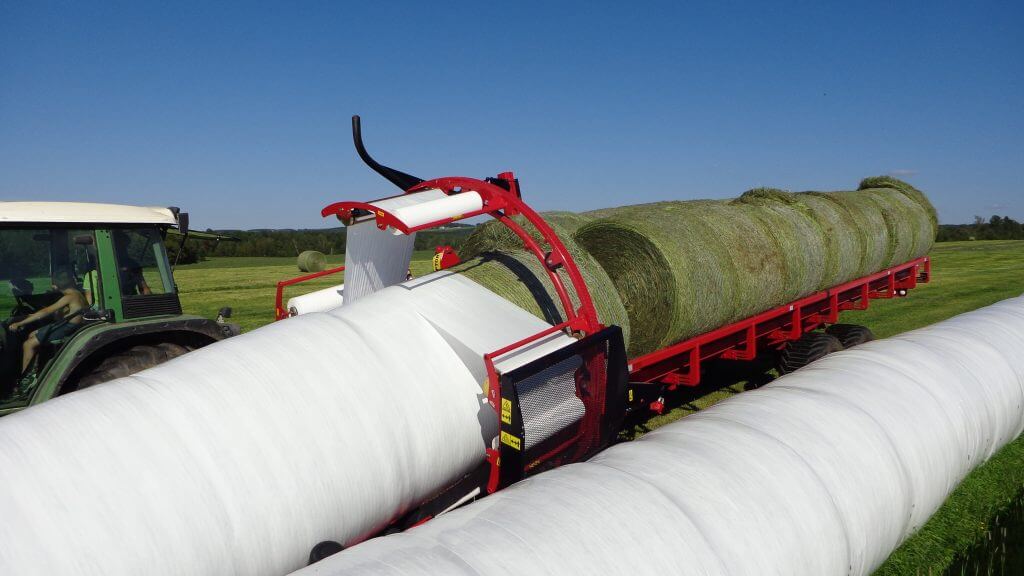

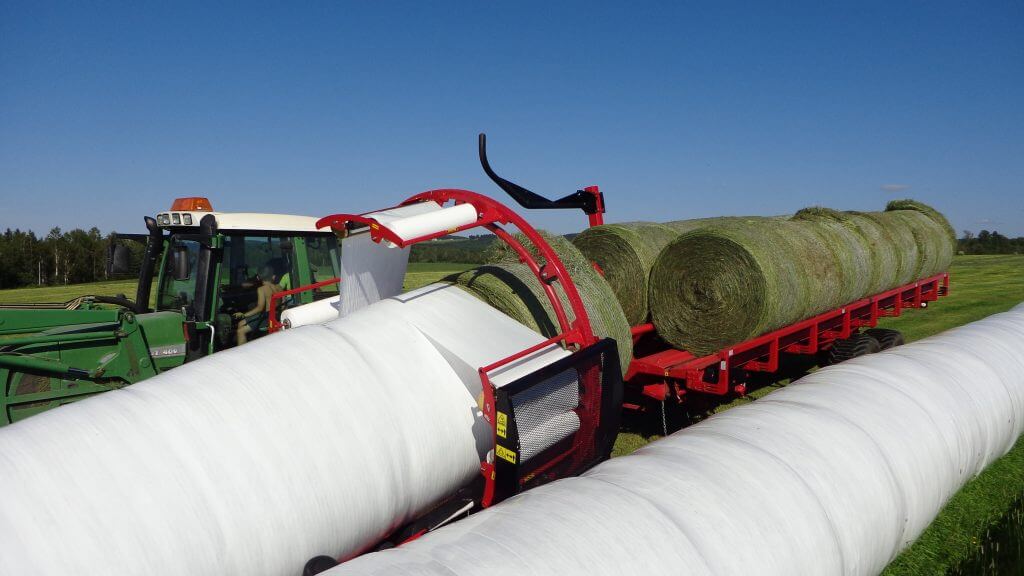

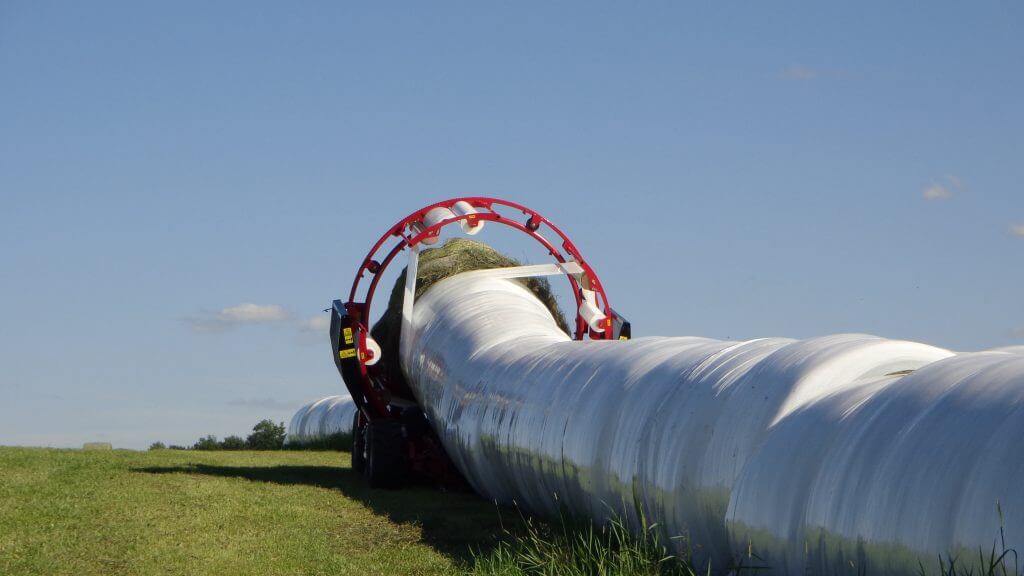

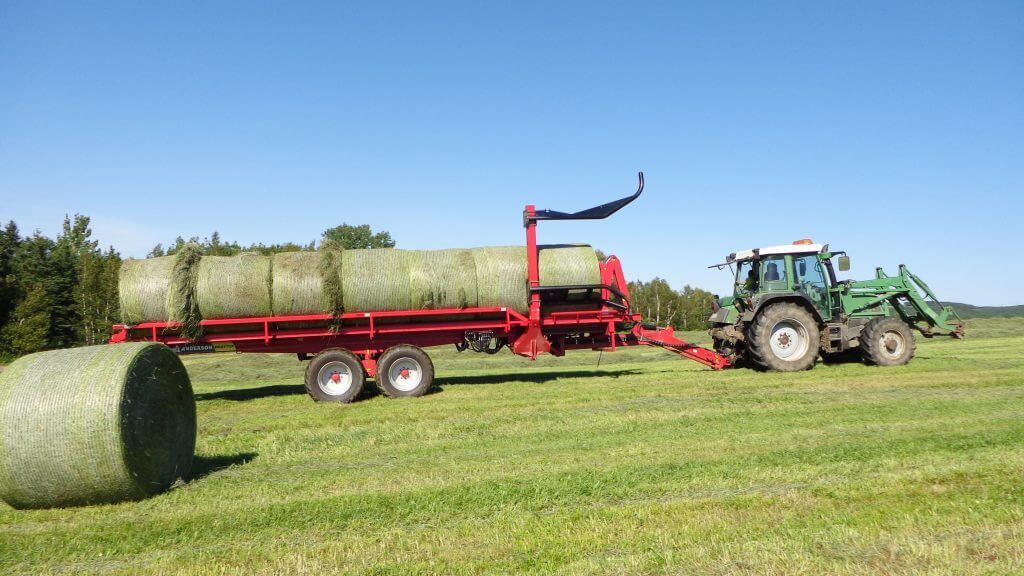

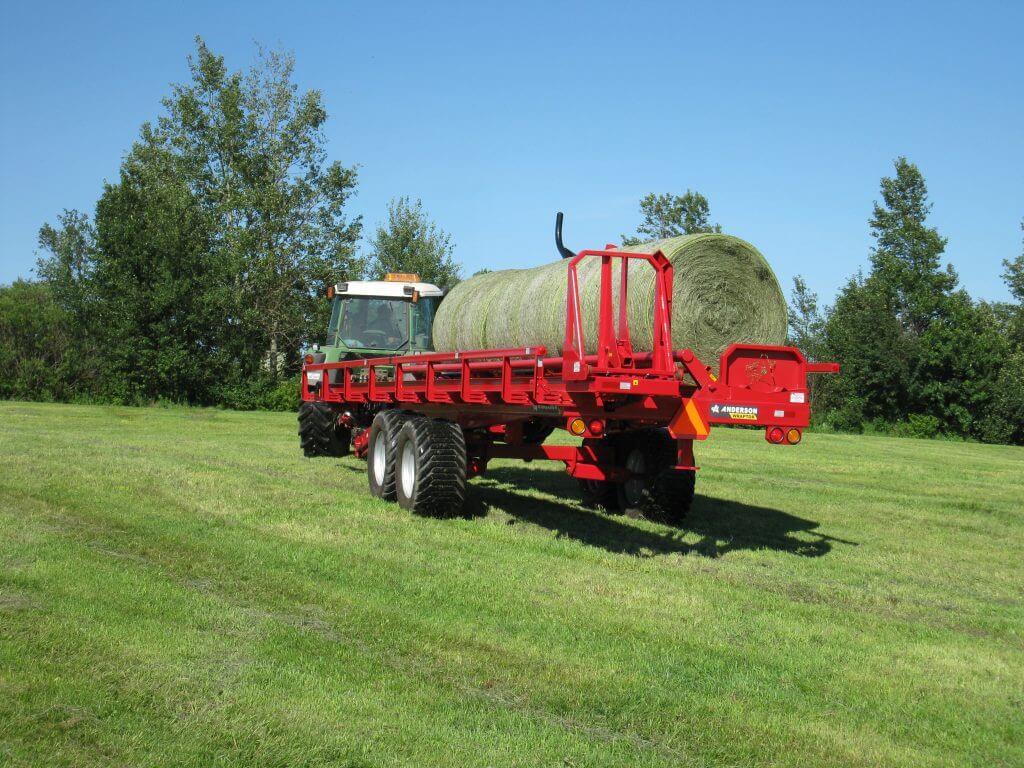

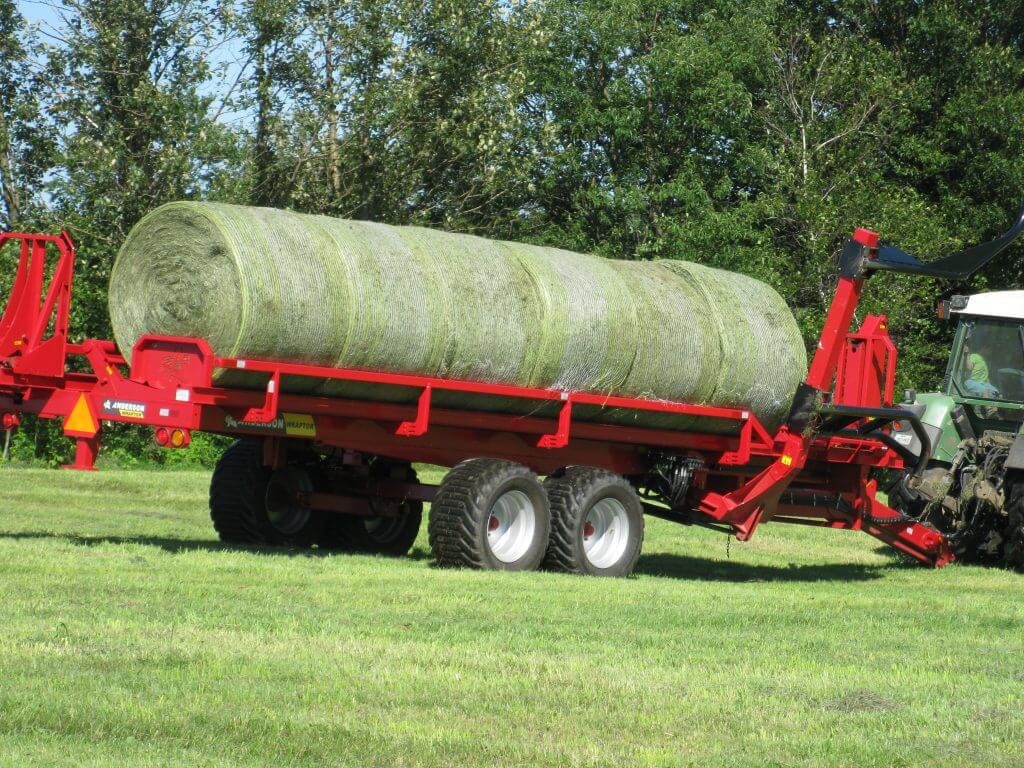

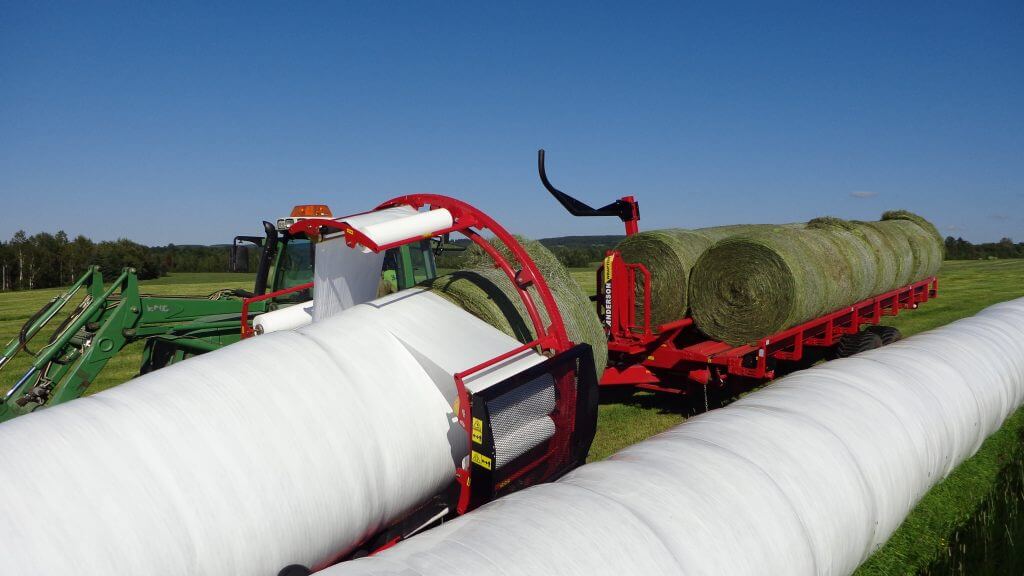

The high-performance WRAPTOR™ is an innovative and multifunctional combination of a self-loading trailer and an in-line wrapper. Perfectly suited for situations where labor is scarce or tasks need to be completed efficiently, this system allows transportation and wrapping with just one operator and one tractor. It is designed for collecting both wet and dry hay, delivering the fastest performance in its class. The WRAPTOR™ can transport up to 14 bales (4 ft × 4 ft) at a time and seamlessly attaches to the wrapper without additional equipment, enhancing efficiency and convenience. A remote control system enables full operation from the comfort of the tractor seat.
Key Features
- Efficient Single-Operator System: The WRAPTOR™ combines loading, transportation, and wrapping tasks into one seamless operation, reducing the need for additional labor or equipment. With a single operator, productivity is maximized.
- High Bale Transport Capacity: Designed to transport up to 14 bales (4 ft × 4 ft) simultaneously, the trailer streamlines the process of transporting hay, whether wet or dry, ensuring faster turnaround times.

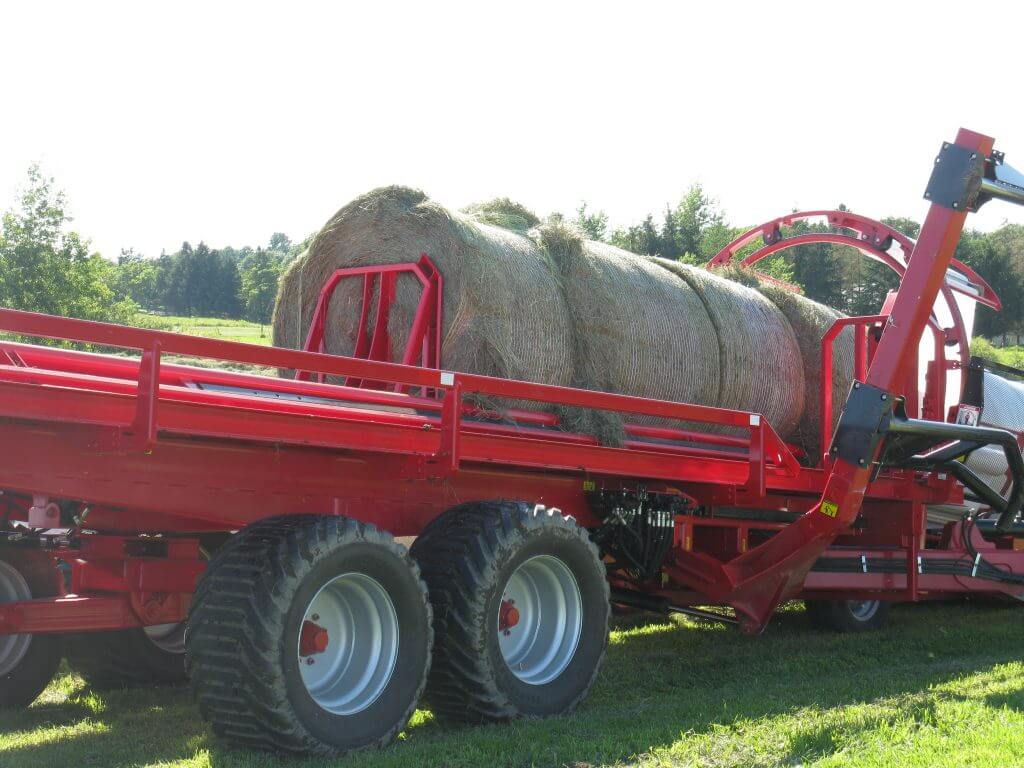

- Advanced Self-Loading Arm: The adjustable, tubular round-shaped arm is specially designed to protect bale netting, enhancing durability during collection and transportation.
- Stable Hydraulic Jack Leveling System: Ensures the first two bales remain secure and stable until lowered to the ground, improving operational safety and efficiency.
- Innovative Bale Guide Rollers: Keep bales centered on the roller bed during wrapping, especially on uneven terrain or slopes, ensuring proper alignment and minimizing disruptions.
- Quick and Seamless Hook-Up: The tilting tow bar allows for easy attachment of the trailer to the wrapper, simplifying setup and enhancing the overall workflow.
- Enhanced Film Stretchers: Equipped with four aluminum film stretchers to speed up wrapping while reducing the frequency of roll replacements, saving both time and effort.
- Remote-Control Functionality: The WRAPTOR™ features a remote control system, enabling the operator to manage all functions directly from the tractor seat, increasing convenience and operational efficiency.
- Efficient Hydraulic Push Ramp System: Streamlines bale unloading, ensuring smooth and precise handling without additional manual intervention.
- Versatile Bale Collection: Handles round bales with a diameter of up to 5 feet, making it suitable for both baleage and dry hay operations.
- Road-Ready Design: Includes road lights, steerable tandem axles, and traction tires for safe transportation on public roads, aligning with operational and regulatory needs.

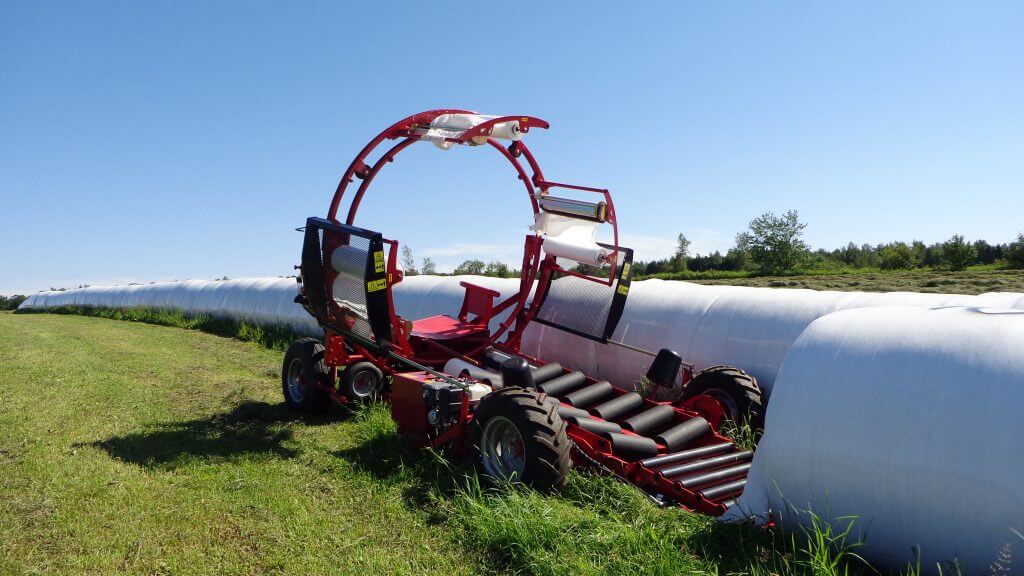

- V-Shaped Wrapper Bed: Specifically designed for round bales, the bed ensures proper alignment and secure placement during wrapping.
- Heavy-Duty Build and Capacity: The trailer boasts a loading capacity of 40,000 lbs (18,143 kg), supporting heavy-duty operations with reliability.
- Adjustable Bale Handling Systems: Features adjustable lateral ramps and hydraulic compaction systems to accommodate bales of varying sizes and dimensions seamlessly.
- Safety and Monitoring Enhancements: Equipped with auto-locking wheels, a full-charge indicator, and a standard camera for efficient operation and increased safety during collection and wrapping.
Detailed Specifications
| Category | Trailer Specifications | Wrapper Specifications |
|---|---|---|
| Width | 8' 4" (2.5 m) | 9' 6" (2.8 m) |
| Height | 8' 8" (2.7 m) | 9' 7" (2.9 m) |
| Overall Width | 9' 8" (3 m, incl. loading arm) | 8' 5" (2.5 m, transport mode) |
| Overall Height | 12' (3.6 m, incl. loading arm) | 9' 7" (2.9 m) |
| Overall Length | 41' 3" (12.6 m) | 14' 6" (4.4 m) |
| Bed Height | 4' 6" (1.4 m) | n/a |
| Weight | 10,800 lb (4870 kg) | 3571 lb (1620 kg) |
| Bale Capacity | Up to 5' (1.5 m diameter, round bales) | Baleage & dry hay |
| Engine | n/a | 13 HP Honda |
| Hydraulic Requirements | Min. 10 Gal/min, 2200 psi | Min. 10 Gal/min, 2200 psi |
| Loading Capacity | 40,000 lb (18,143 kg) | n/a |
| Hydraulic Tail Gate | Standard | Standard |
| Tires | 550/45-22.5 | 29 × 12.5-15 (traction), 11 L-15 (rear) |
