Ascent Spirit UAV Systems

Ascent Spirit UAV

Ascent Spirit UAV

Regular price $1.00 USD
Regular price Sale price $1.00 USD
Sale Sold out
Shipping calculated at checkout.

Ascent Spirit UAV

DESCRIPTION

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Ascent Spirit - The Ideal Platform for Mission Critical Operations

With nearly ten pounds available for batteries and payloads, Spirit sets the new standard for performance in its weight class. The highly streamlined airframe has a top speed of over 60 miles per hour and can operate in winds that would ground other UAVs. Enterprise level operations require solutions that are practical in the field.

Compact & Modular

Spirit is compact and modular to support a growing ecosystem of easily swappable payloads and technology upgrades so it’s easy to bring what’s needed, where it’s needed, when it’s needed. No more high-stakes tradeoffs that compromise capability against bulky, heavy equipment. Setup is quick and easy, allowing for takeoff from any type of terrain.

Rugged & All Weather

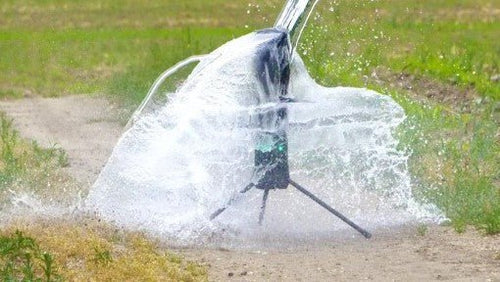

Spirit is protected against contamination and can reliably operate in adverse weather conditions, including heavy rain, sleet, sand and snow, and can operate in winds that would ground other UAVs.

Efficient & High-Performance

Spirit sets the new standard for performance in its weight class with nearly 10 lbs. available for batteries and payloads. The highly streamlined airframe has a top speed of over 60mph to go farther, faster, longer, and carry more.

Versatile & Adaptable

Spirit’s adaptable design avails entirely new deployment methods and allows operators to easily incorporate a growing ecosystem of swappable payloads and software. Top to bottom quick-attach fittings payloads and batteries that can be mounted or stacked on either point modules lock and unlock with a simple twist generous CG envelope accommodates a wide range of configurations.

Ascent Spirit - Compact, Rugged, and Efficient

    APPLICATIONS

    Government - Rapidly deployable, rugged & efficient UAV for mission critical operations

    • Intelligence, Surveillance, and Reconnaissance
    • Precision delivery
    • Communications relay
    • Target identification and designation

    Public Safety - Reliable response in any environment

    • Search & rescue operations
    • Law enforcement
    • Rural firefighting
    • Disaster response

    Industrial - Coaxial system designed for quick & dependable deployment in extreme conditions

    • Security
    • Inspection
    • Incident response
    • Precision delivery

    SPECIFICATIONS

    SPECIFICATIONS & PERFORMANCE

    TYPE & CONSTRUCTION Coaxial Unmanned Aerial Vehicle. Polycarbonates, composites, aluminum
    AVAILABLE PAYLOAD MOUNTS Top and bottom mounts can accept wide combination of batteries or payload (stackable)

    DIMENSIONS

    (NO BATTERY OR PAYLOAD)

    1. 12.0 inches (257mm) x 4.2 inches (106mm) (Other payload diameters are supported)
    2. Tip-to-tip diameter w/blades extended 25.5 inches (650mm)
    DRIVE SYSTEM Direct drive with 2x brushless motors
    MAXIMUM TAKEOFF WEIGHT 13.5 lbs (6.1 kg)
    EMPTY WEIGHT Core Vehicle (no battery or payload) 4.0 lbs. (1.8 kg)
    SYSTEM VOLTAGE 12S 44.4 volts
    BATTERY OPTIONS • Single (6.0 A h) Double (2x 6.0 A h)
    • Battery weight 3.0 lbs. (1.4 kg) 6.0 lbs. (2.7 kg)
    • Maximum available payload 6.5 lbs. (3.0 kg) 3.5 lbs. (1.6 kg)
    FLIGHT ENDURANCE ONE BATTERY: 38 min with no payload / 16 min w/max payload
    TWO BATTERIES: 53 min with no payload / 32 min w/max payload
    ENVIRONMENTAL MAX DENSITY ALTITUDE: 14,600 feet above MSL (5,000m) OPERATING TEMP: -40 to 130F (-40 to 54C)
    ENVIRONMENTAL RATING IP56
    MAXIMUM FORWARD AIRSPEED* Max (manual mode): >60 mph (100 kph, 27 m/s) Auto (Recommended): 40 mph (65 kph, 18 m/s)
    MAXIMUM RECOMMENDED WIND Recommended 40 mph (65 kph, 18 m/s) or operator’s discretion


    STANDARD AUTOPILOT & NAVIGATION (Other Options Available)

    STANDARD AUTOPILOT  • Pixhawk 2 (Cube) Ardupilot/MAVLink. Commercial specifications standard, Domestic & MIL-spec available.
    • Other autopilots and encrypted communications standards are available
    GUIDANCE SENSORS Redundant sensors (barometer, compass, accelerometers, gyroscope)
    SATELLITE GPS, GLONASS
    GROUND CONTROL STATION • Integrated manual mode 2-stick control, autonomous navigation w/integrated 1920 x 1080 touchscreen LCD
    • Alternative options include ruggedized Windows PCs, Android, iOS available
    COMPATIBLE GCS SOFTWARE All Windows, Android and iOS versions of Mission Planner, QGroundControl, Tower, U.S. DoD ATAK


    STANDARD WIRELESS COMMUNICATION & VIDEO (Other Options Available)

    MANUAL FLIGHT CONTROL FREQUENCY 2.4GHz Range: 12 miles (20 km) FCC; 7 miles (12 km) CE & SRRC
    VIDEO LINK 1080p @60/30 fps, 720p @30 fps. Latency <110ms from input source to GCS display
    AIRBORNE VIDEO INPUTS Dual HDMI inputs support simultaneous use of two airborne sensors


    BLUE SUAS COMPATIBILITY

    AIR VEHICLE NDAA and Executive Order 13981-compliant
    GROUND CONTROL STATION Compatible with multiple Blue sUAS-approved GCS
    SENSORS NDAA-compliant sensors available
