Product Description
Baumalight Mini Barrier Mower | Model BMM230 | Cutting Width 32" | 8-15 GPM | For Mini Skid Steers
DESCRIPTION

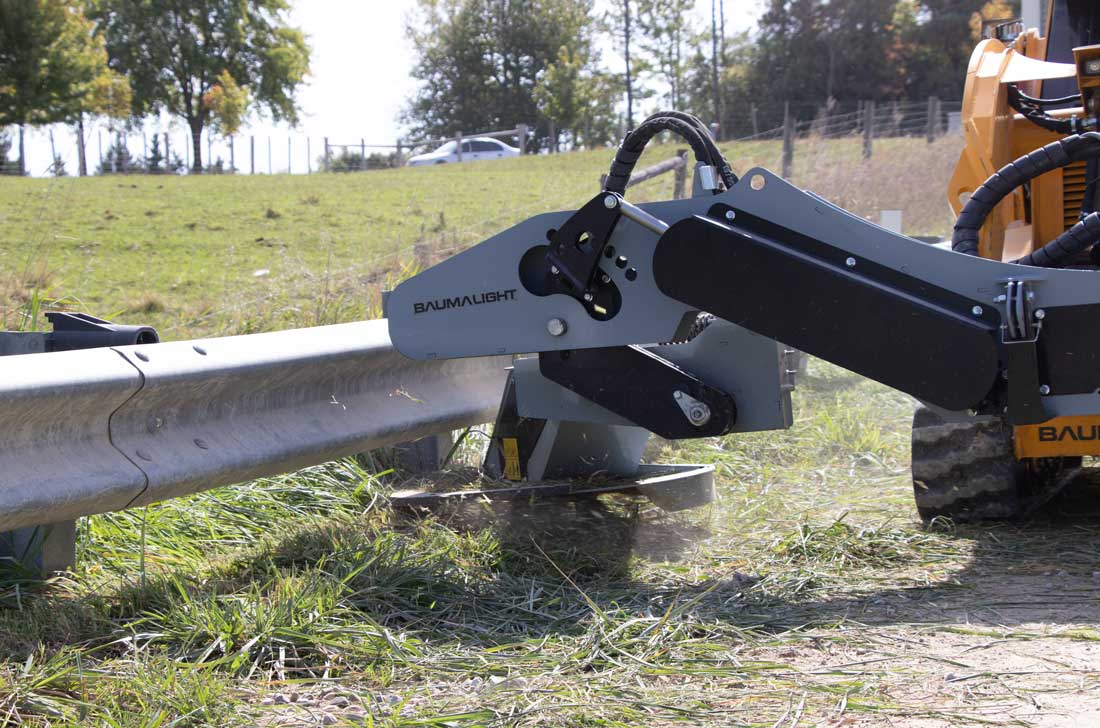

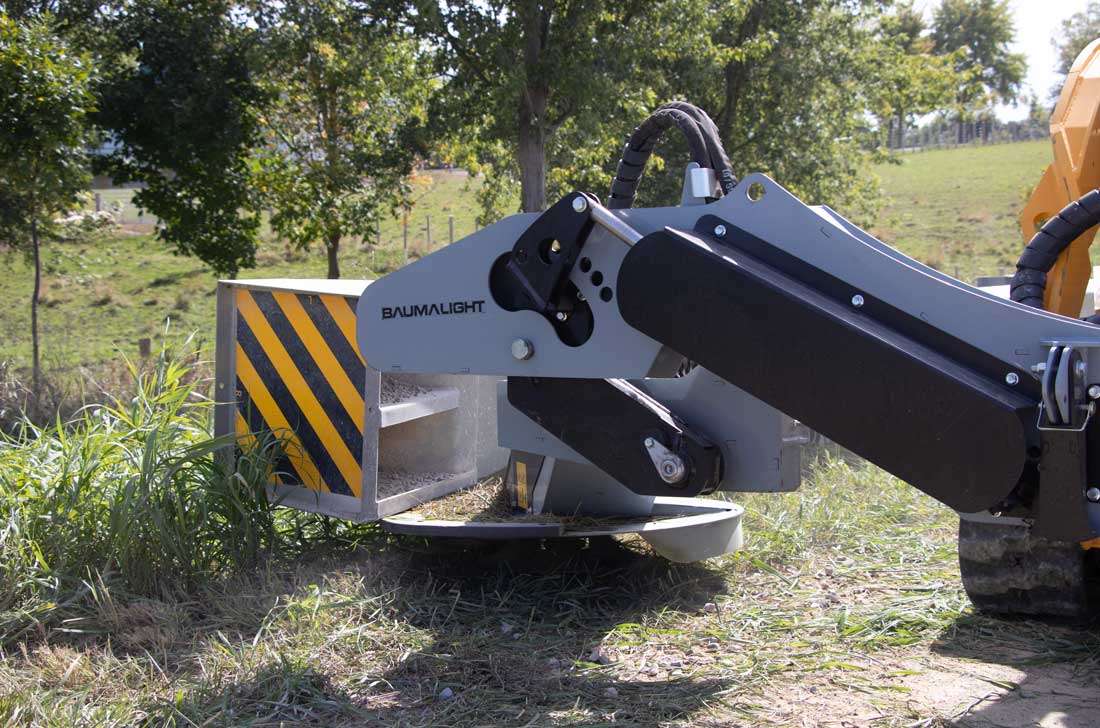

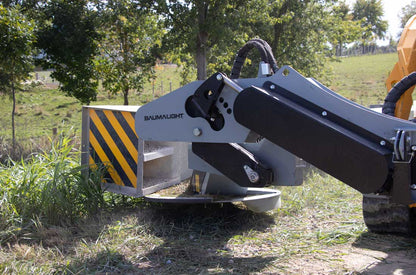

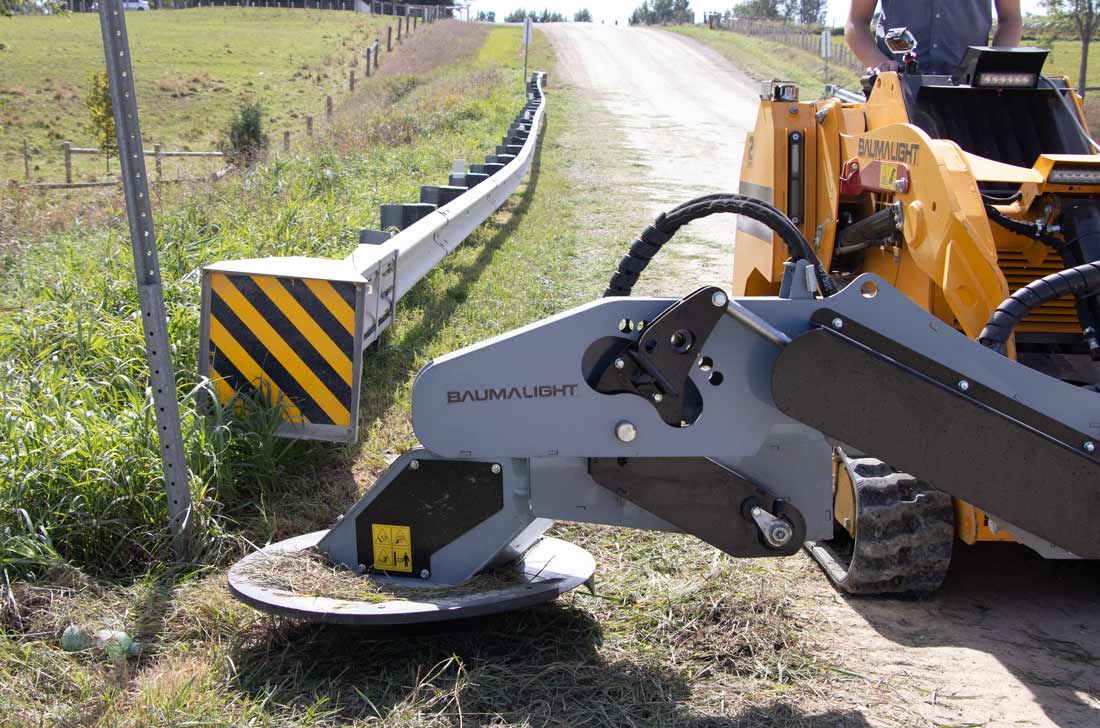

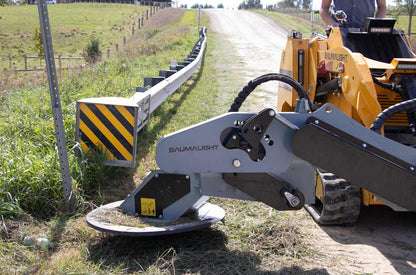

Designed for Mini Skid Steers, the BMM230 is capable of efficiently cutting through long, heavy grass or small-diameter brush. Equipped with two AR400 blades featuring a 30" path width, the BMM230 Mini Barrier Mower is ideal for maintaining fence lines, guardrails, orchards, and vineyards. This fence line mower easily manoeuvres around obstacles such as fence posts, crash barriers, or trees. The Mini Barrier Mower can cut grass, but it's built to do more than just grass.
The unit's rear side, with a 30" open mouth, is protected by a sheet metal guard that helps discharge cut material away from the operator.

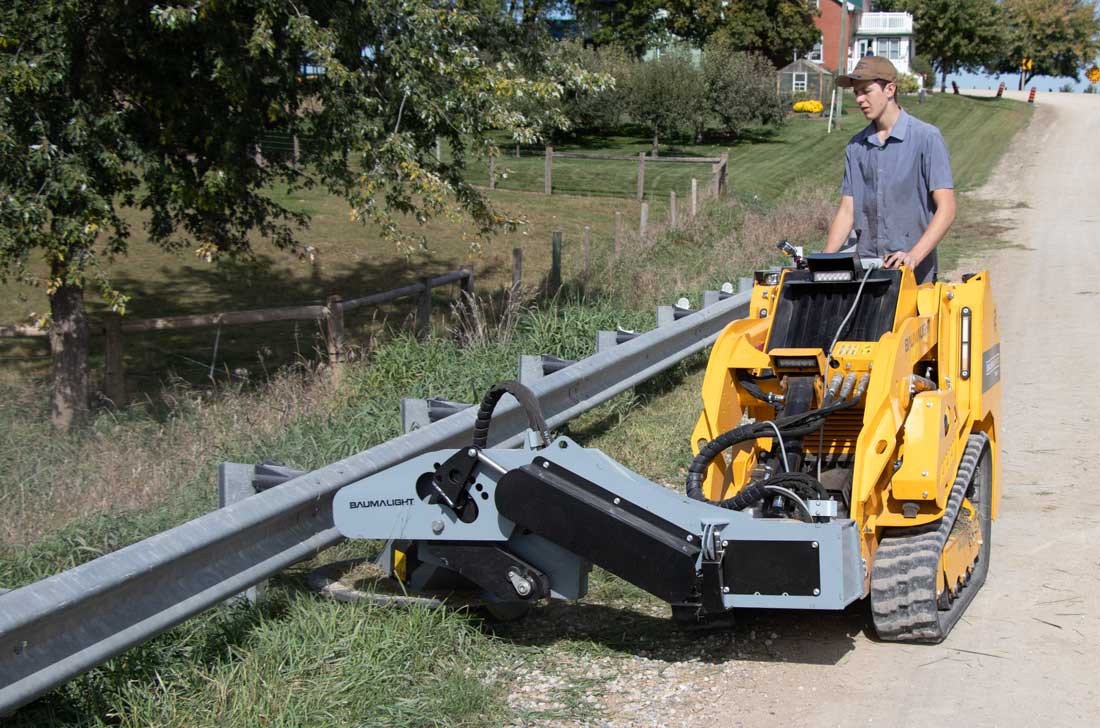

It comes standard with a manual angle adjustment that can be upgraded with an optional electrical actuator at an added cost which is a nice feature if you have rolling terrain.
Key Features
- 32" Compact Cutting Width – ideal for precision trimming and small-scale brush clearing
- Optional Tilt Actuator – flexibility to add angle control when needed
- C508 Motor Option – dependable performance tailored for lighter hydraulic systems
- Efficient Hydraulic Range – operates at 8–15 GPM, 2700–4000 PSI for versatile skid steer setups
- Mini Skid Steer Compatibility – designed for carriers weighing 2,100–4,000 lbs
- Compact Dimensions – 90" length × 40" width × 30" height for maneuverability in tight spaces
- Lightweight Build – unit weight of 475 lbs ensures easy handling and transport
- Versatile Brush Management – perfect for mini skid steers tackling moderate vegetation and property maintenance
Detailed Specifications
| Specification | BMM230 (Mini Series) | BMS230 (Industrial Series) |
| Primary Carrier | Mini Skid Steer | Standard / Full Skid Steer |
| Cutting Width | 32" | 32" |
| Tilt Actuator | Optional | Standard (Included) |
| Motor Option | C508 | C530 (High Performance) |
| Required Flow | 8 – 15 GPM | 15 – 25 GPM |
| Operating Pressure | 2700 – 4000 PSI | 2700 – 4000 PSI |
| Carrier Weight | 2,100 – 4,000 lbs | 3,100 – 8,000 lbs |
| Dimensions (LxWxH) | 90" x 40" x 30" | 98" x 60" x 35.5" |
| Unit Weight | 475 lbs | 604 lbs |
| Target Material | Grass & Light Brush | Heavy Grass & Large-Diameter Brush |
| Best For | Tight spaces & Landscaping | Orchards, Guardrails & Fence Lines |
