Product Description
CL Fabrication EZ Rock Bucket | Width 56"-90" inches | Oil Flow Range 15-25 GPM | For Large Skid Steers
DESCRIPTION

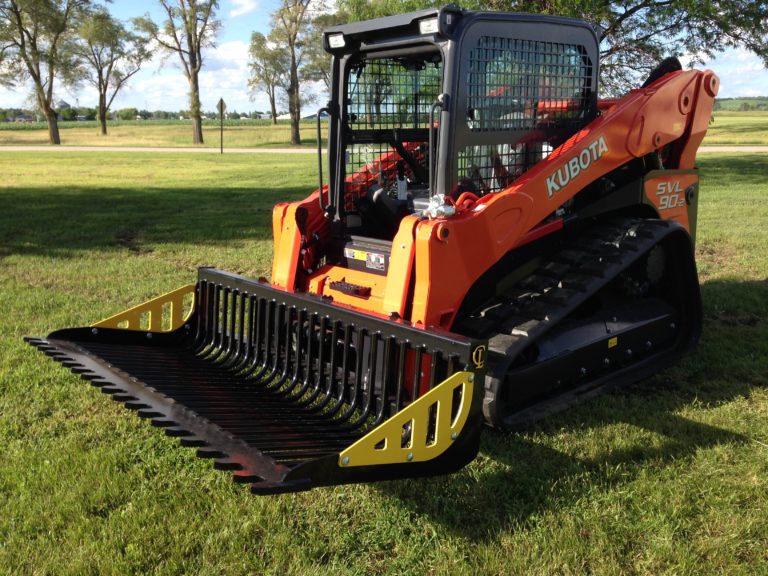

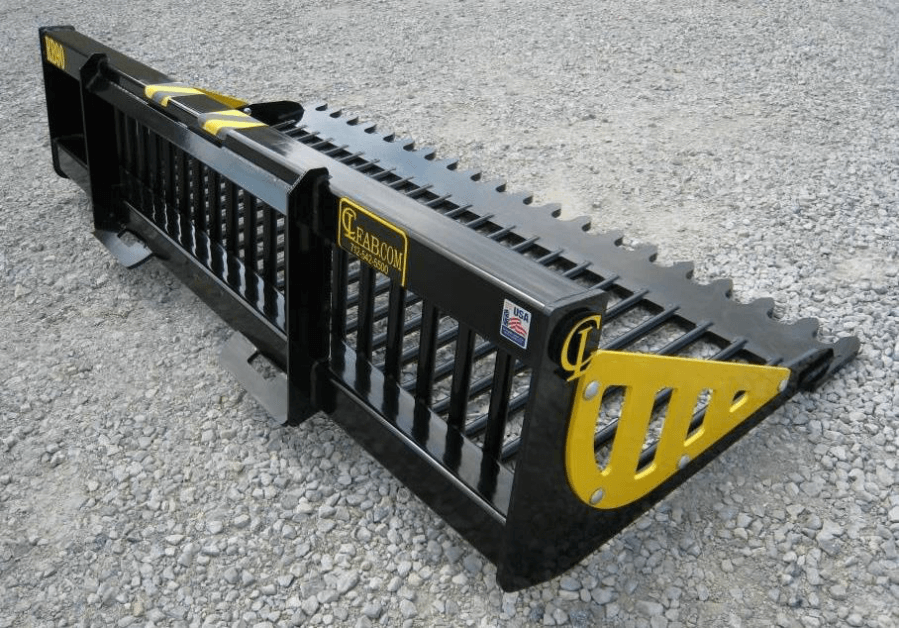

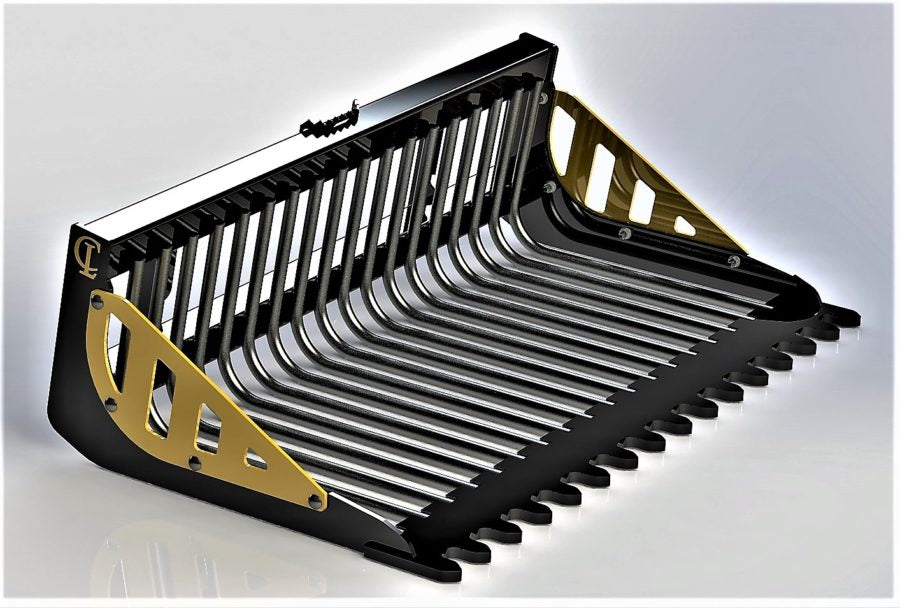

The EZ Rock Bucket is a high-strength, low-profile attachment designed for large skid steers and compact track loaders. Featuring reinforced steel construction, optimized visibility, and optional hydraulic grapples, this bucket provides exceptional durability and efficiency in rock, debris, and material handling applications.
Key Features
- Heavy-Duty Front Tooth Bar :– Cut from 1" thick high-strength steel, ensuring durability for demanding tasks.
- Cold-Formed Steel Bars :– One-piece 1.25" diameter round bars with 2.5" spacing maximize material retention while allowing debris to fall through.
- Reinforced Frame & Bucket Plates :– 1/2" thick high-strength bucket end plates and 4"x4"x1/4" upper/lower frame tubes provide exceptional structural integrity.

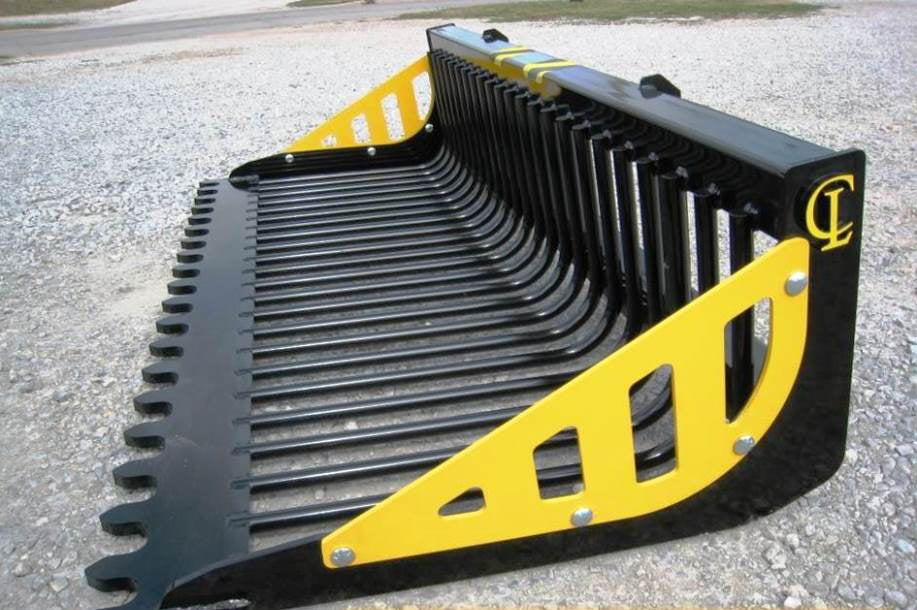

- Bolt-On End Filler Plates :– 3/8" thick removable plates enhance bucket functionality and durability.
- Standard Welded Chain Hooks :– Three weld-on chain hooks positioned on the upper frame cross tube for secure attachment and lifting.

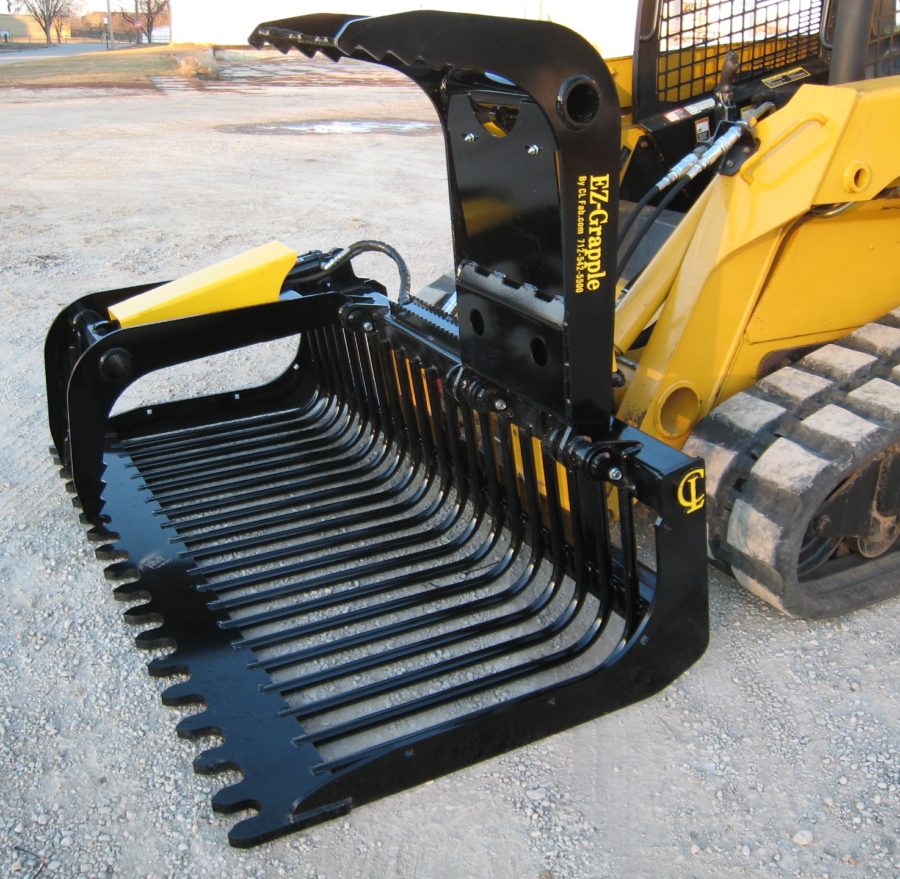

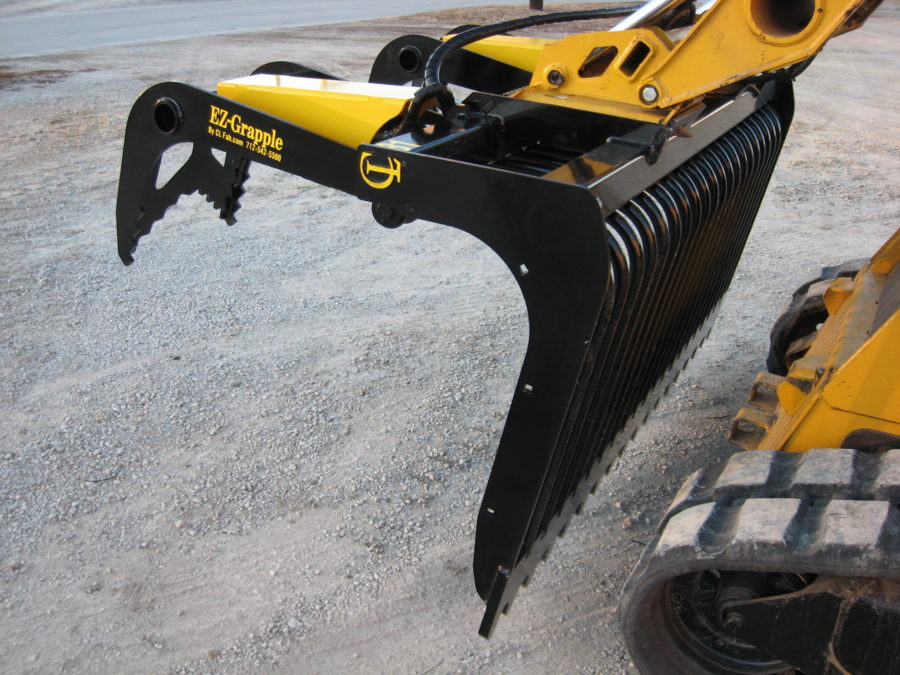

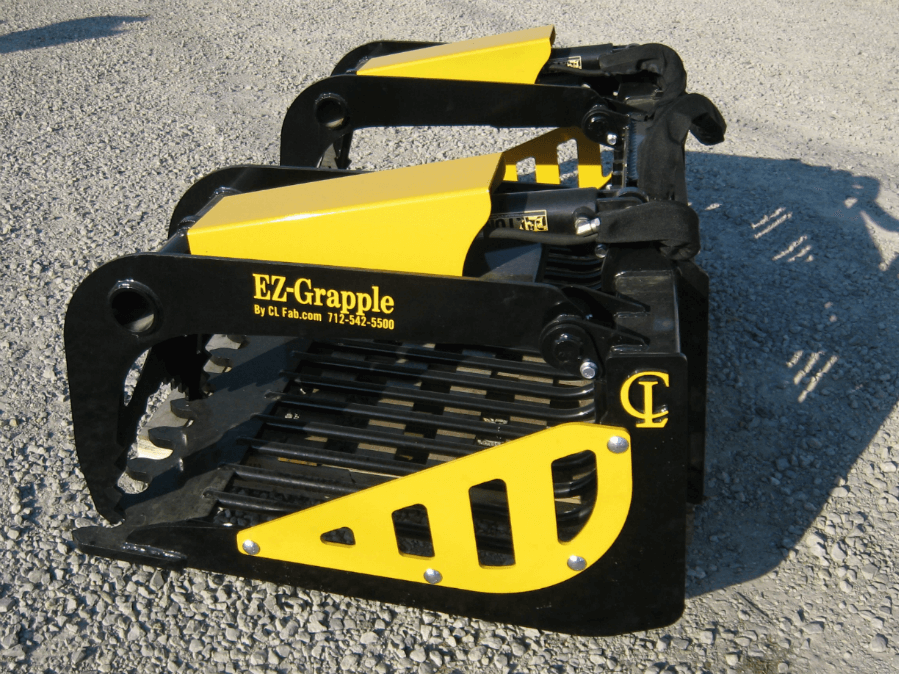

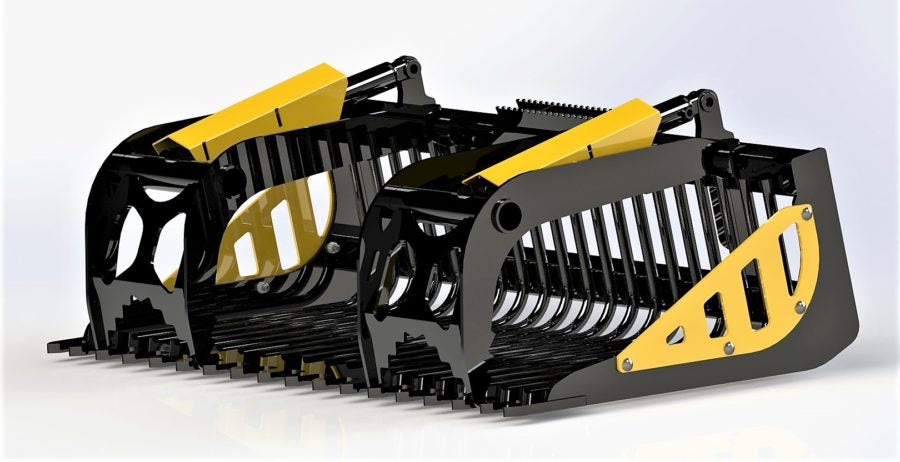

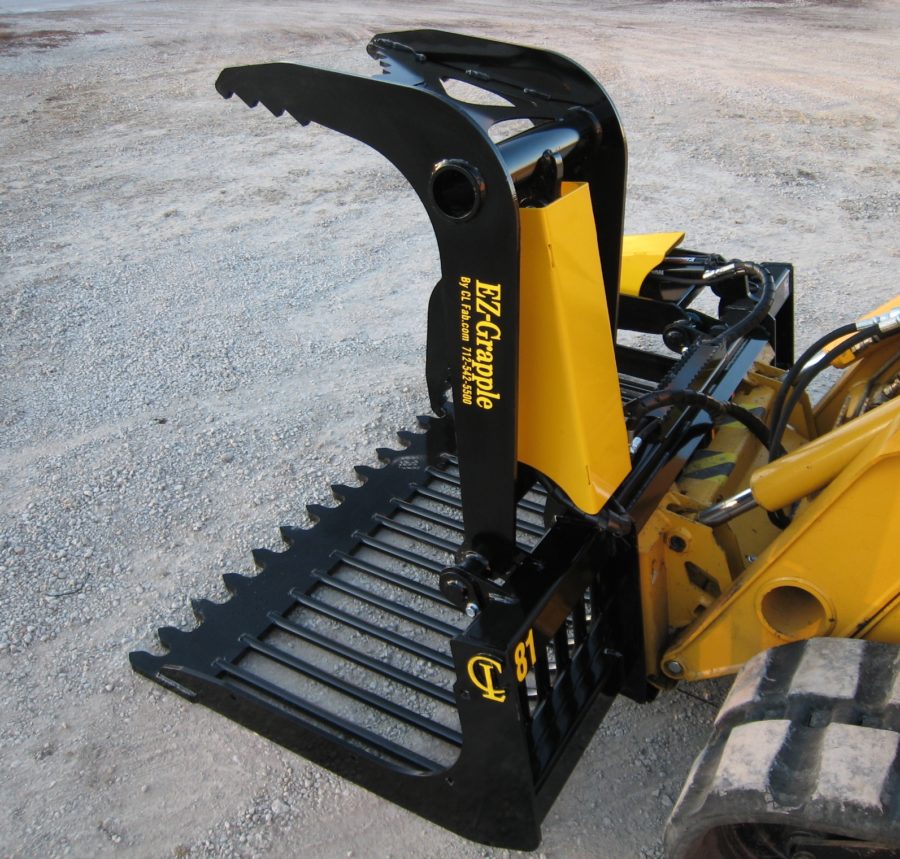

- Optional Dual Independent Hydraulic Grapples :– Available for superior material grasping and handling efficiency.
- Abrasive Blasted & Powder-Coated Finish :– Provides long-term protection against corrosion and wear.

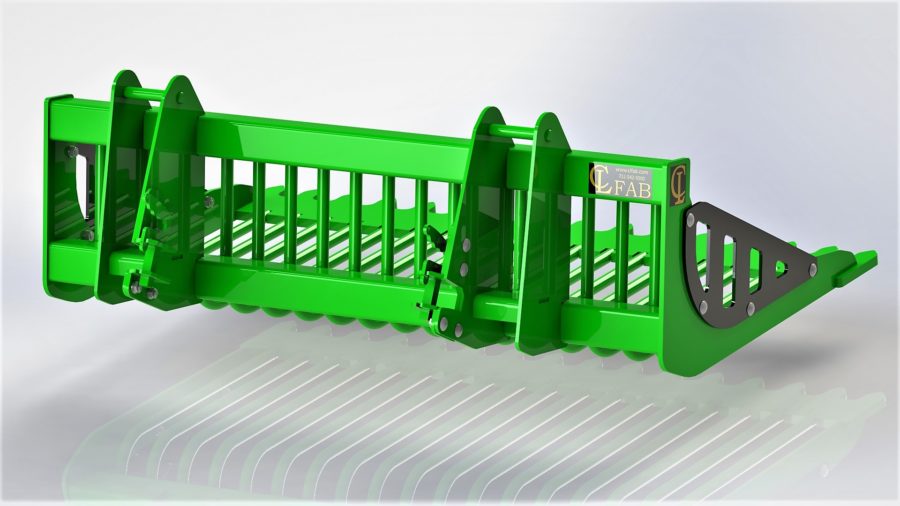

- Custom Mounts Available :– Designed for tractor loaders, ensuring broad machine compatibility.
Detailed Specifications
| eature | EZ Rock Bucket 56" | EZ Rock Bucket 72" | EZ Rock Bucket 81" | EZ Rock Bucket 90" |
|---|---|---|---|---|
| Width (in) | 56 | 72 | 81 | 90 |
| Weight (lbs) Without Grapple | 600 | 800 | 940 | 1,020 |
| Weight (lbs) With Grapple | 800 | 1,120 | 1,260 | 1,440 |
| Front Tooth Bar Thickness (in) | 1" High-Strength Steel | 1" High-Strength Steel | 1" High-Strength Steel | 1" High-Strength Steel |
| Cold-Formed Round Steel Bars | 1.25" Diameter, 2.5" Spacing | 1.25" Diameter, 2.5" Spacing | 1.25" Diameter, 2.5" Spacing | 1.25" Diameter, 2.5" Spacing |
| Frame Tube Dimensions | 4"x4"x1/4" Steel | 4"x4"x1/4" Steel | 4"x4"x1/4" Steel | 4"x4"x1/4" Steel |
| Bucket End Plate Thickness (in) | 1/2" High-Strength Steel | 1/2" High-Strength Steel | 1/2" High-Strength Steel | 1/2" High-Strength Steel |
| End Filler Plate Thickness (in) | 3/8" Bolt-On, Removable | 3/8" Bolt-On, Removable | 3/8" Bolt-On, Removable | 3/8" Bolt-On, Removable |
| Weld-On Chain Hooks | 3 (Located on Upper Frame Cross Tube) | 3 (Located on Upper Frame Cross Tube) | 3 (Located on Upper Frame Cross Tube) | 3 (Located on Upper Frame Cross Tube) |
| Skid Steer Attach Points | 1/2" Thick High-Strength Steel | 1/2" Thick High-Strength Steel | 1/2" Thick High-Strength Steel | 1/2" Thick High-Strength Steel |
| Finish | Abrasive Blasted & Powder-Coated | Abrasive Blasted & Powder-Coated | Abrasive Blasted & Powder-Coated | Abrasive Blasted & Powder-Coated |
| Height (in) | 23 | 23 | 23 | 23 |
| Depth (Front to Rear) (in) | 43.5 | 43.5 | 43.5 | 43.5 |
| Optional Dual Independent Hydraulic Grapples | Available | Available | Available | Available |
