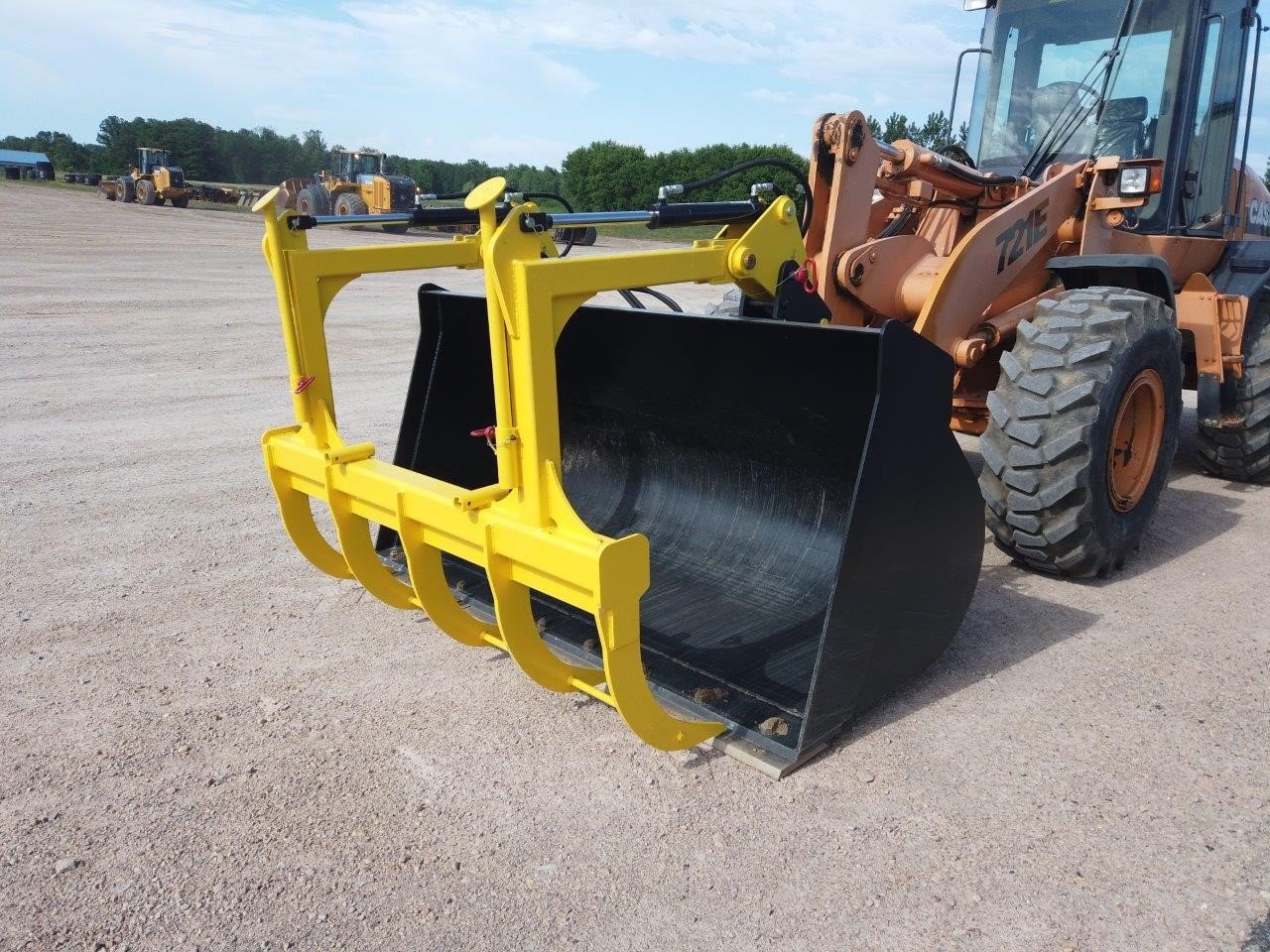

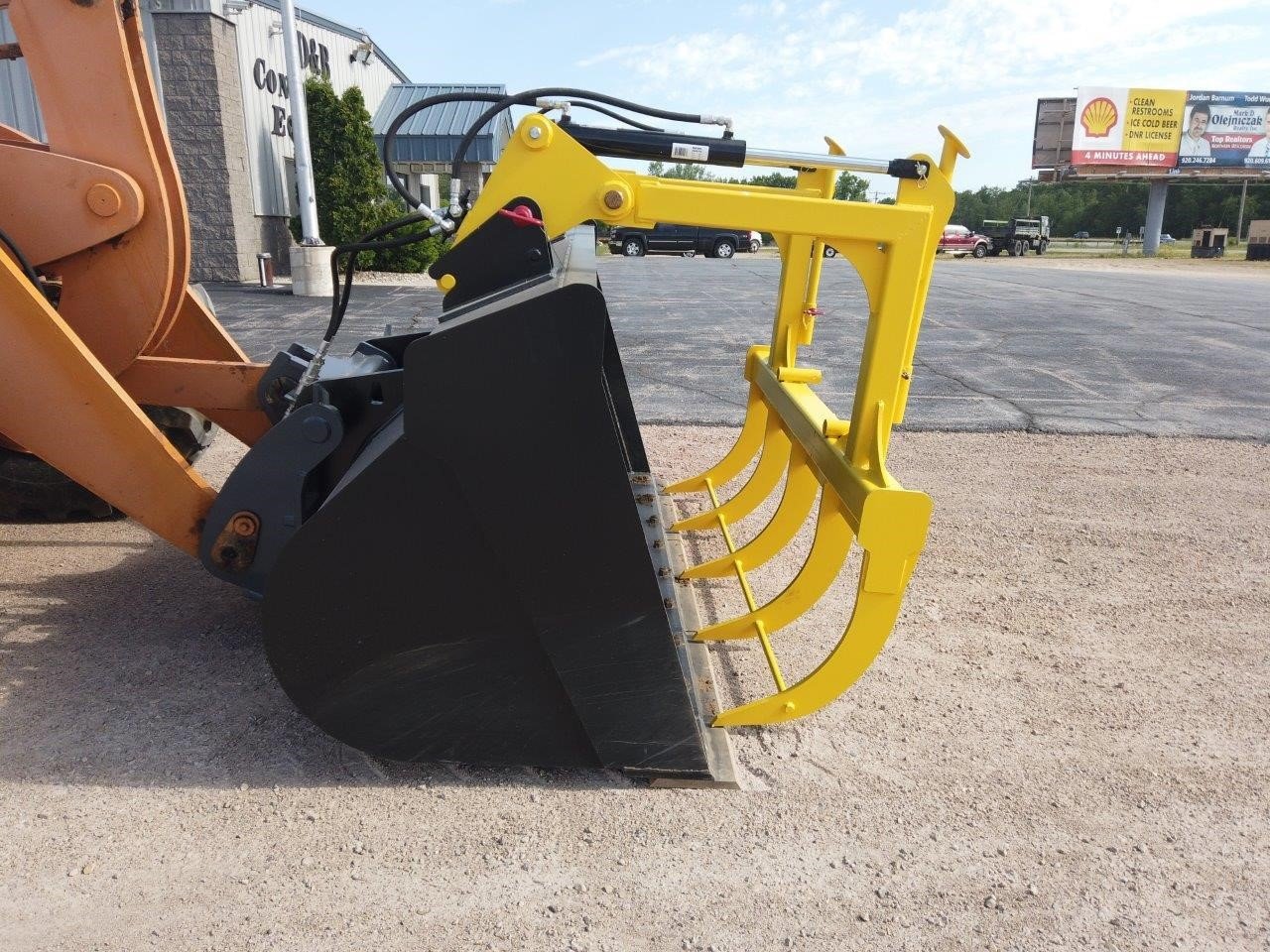

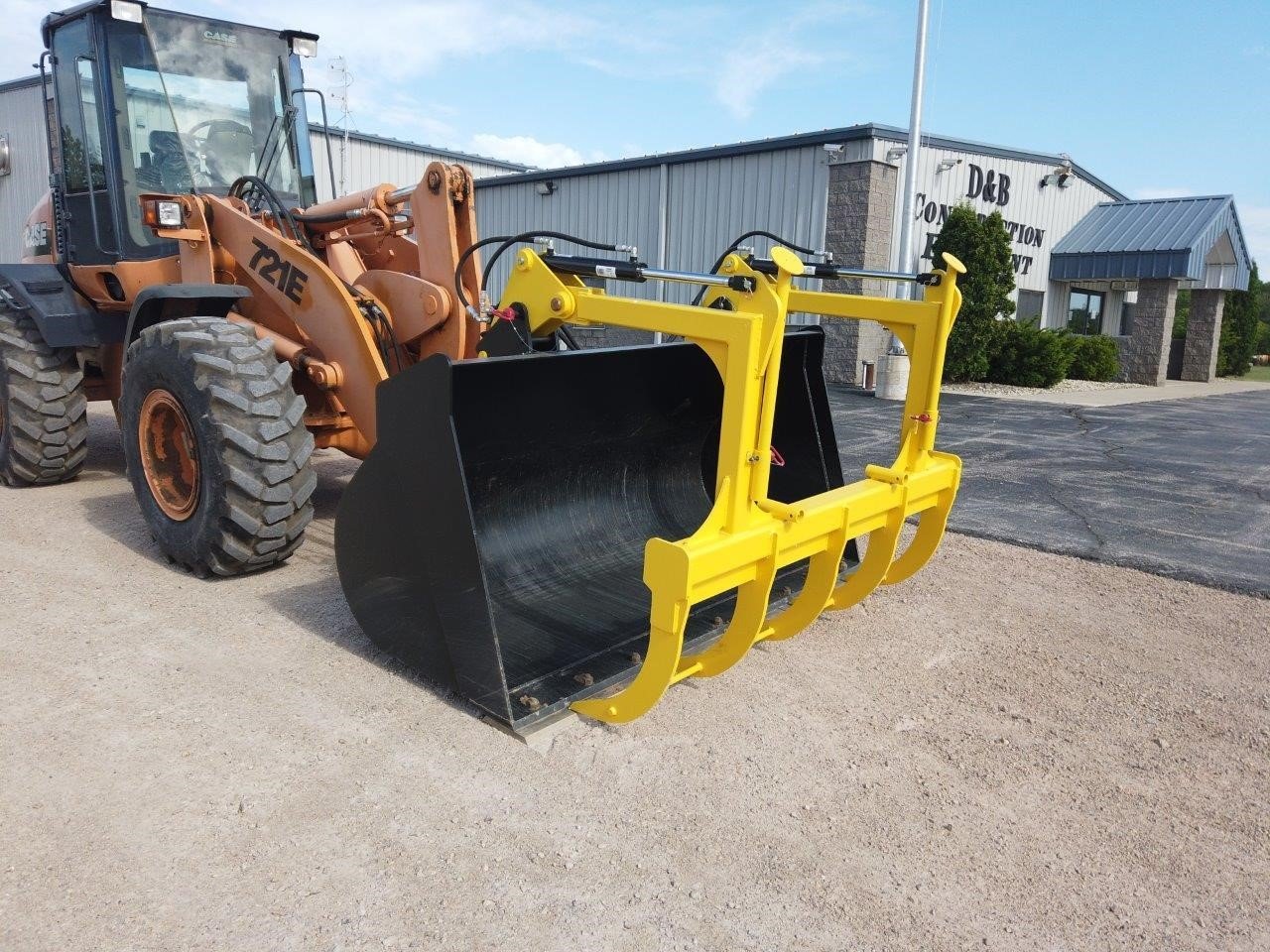

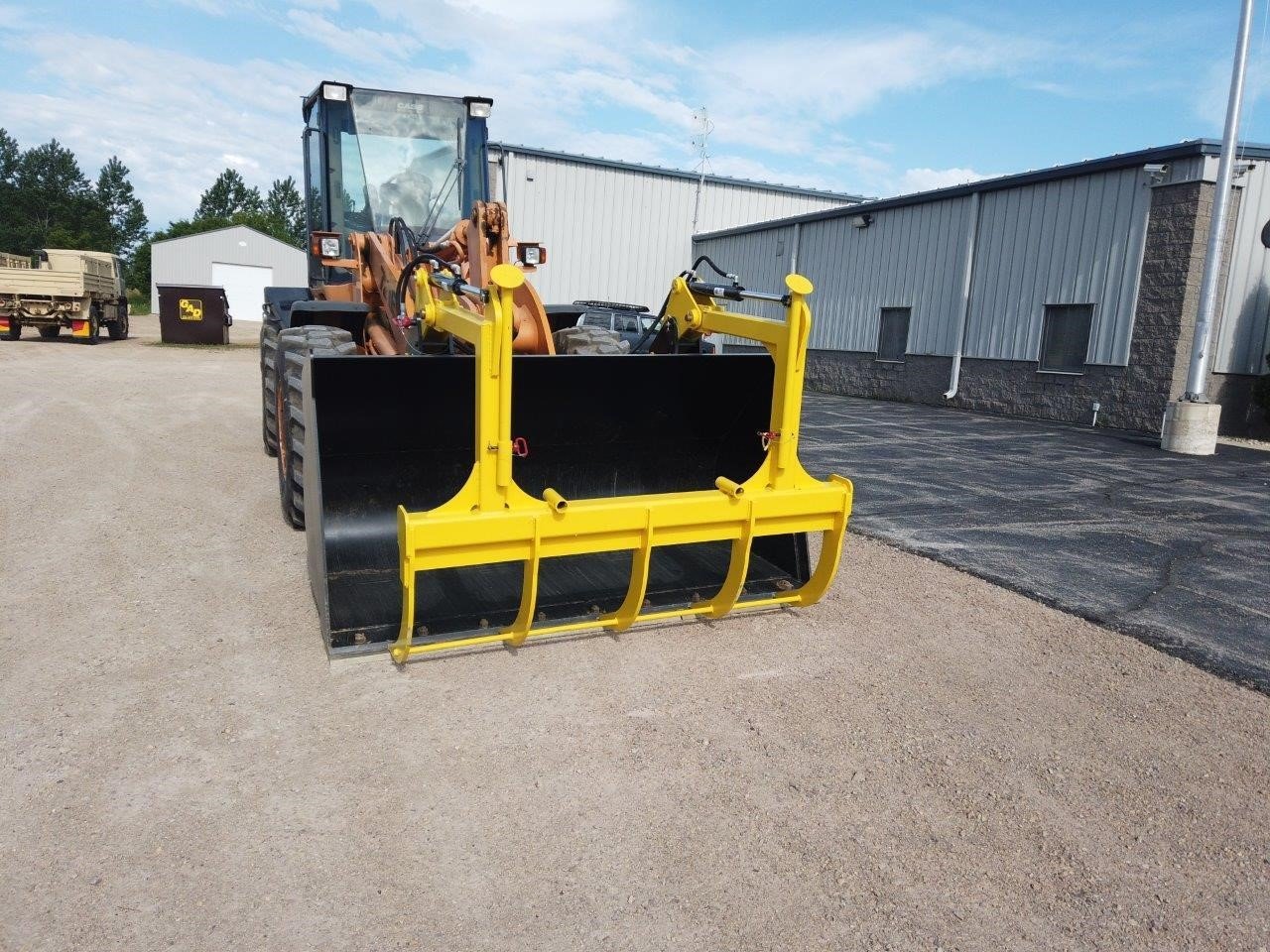

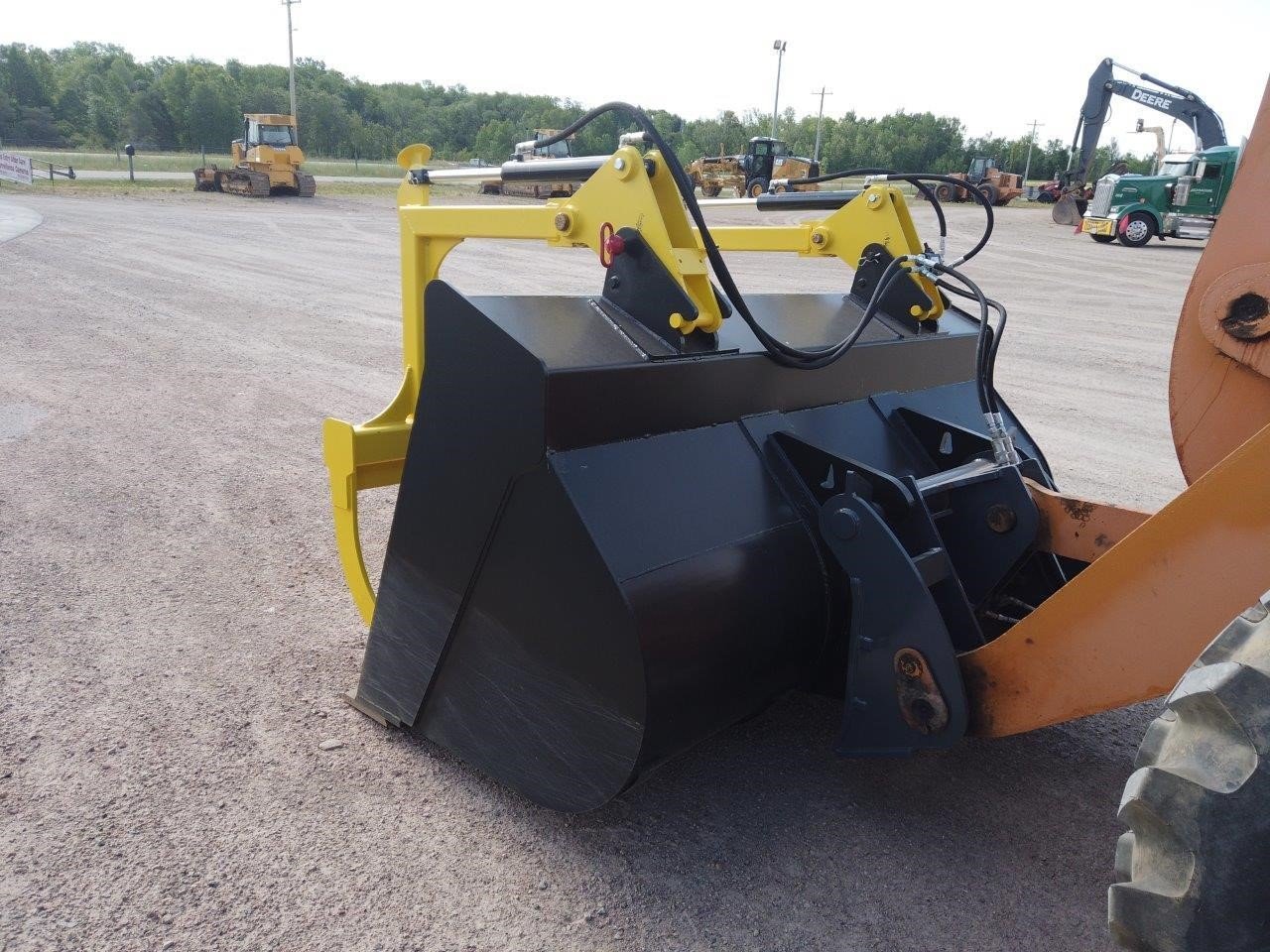

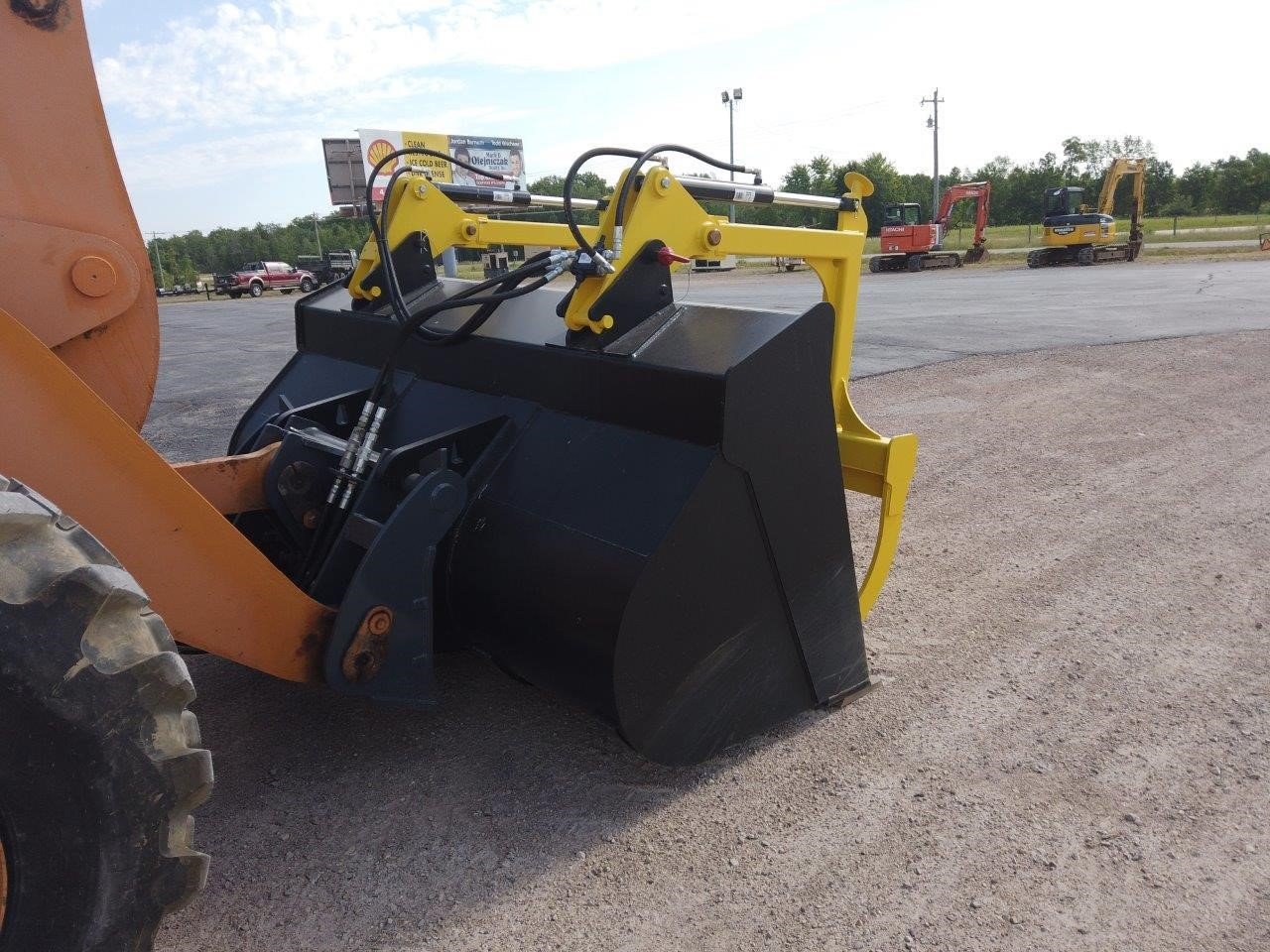

D&B Construction Equipment Grapple Bucket | Width 108" | Bucket Capacity 3.5 YD | Horsepower 100 To 200 HP | For Loaders

D&B Construction Equipment Grapple Bucket | Width 108" | Bucket Capacity 3.5 YD | Horsepower 100 To 200 HP | For Loaders

Regular price $10,800.00
Regular price Sale price $10,800.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Width 108"inches.
  • Horsepower 100 To 200 HP For Loaders.
  • 3.5 Cubic Yard Capacity: Ideal for handling large volumes of material, reducing cycle times.
  • 5-Tine Grapple: Heavy-duty clamp ensures secure handling of irregular materials like bales and brush.
  • Bolt-On Edge: Replaceable and reversible for extended bucket life and easier maintenance.
View full details

Product Description

D&B Construction Equipment Grapple Bucket | Width 108" | Bucket Capacity 3.5 YD | Horsepower 100 To 200 HP | For Loaders



Description

The D&B Construction Equipment 3.5 Yard Grapple Bucket is a high-performance loader attachment designed to handle tough material like feed, silage, bales, brush, and bulk debris. With a rugged 5-tine hydraulic grapple and bolt-on cutting edge, it offers exceptional durability, ease of use, and secure material control. This bucket is built to match or exceed the quality of top-tier brands, delivering reliable performance in agricultural, construction, and industrial applications.

Key Features

  • 3.5 Cubic Yard Capacity: Ideal for handling large volumes of material, reducing cycle times.
  • 5-Tine Grapple: Heavy-duty clamp ensures secure handling of irregular materials like bales and brush.
  • Bolt-On Edge: Replaceable and reversible for extended bucket life and easier maintenance.
  • Horsepower 100 To 200 HP For Loaders
  • Quick Attach Compatible: Fits JRB 416 (in stock) and optional Volvo ISO Hi-Viz couplers.
  • Premium Build Quality: Constructed from high-strength steel to withstand rigorous use.
  • Multi-Loader Compatibility: Works with loaders from Case, John Deere, and Volvo (see models list).

Detailed Specifications

Feature Specification
Model D&B 3.5 YD Grapple Bucket
Condition New
Bucket Capacity 3.5 cubic yards
Width Approx. 108 inches (9 ft)
Length (Depth) Approx. 54 inches
Height (with Grapple) Approx. 36–42 inches
Weight Approx. 3,550 lbs
Edge Type Bolt-On Reversible Cutting Edge

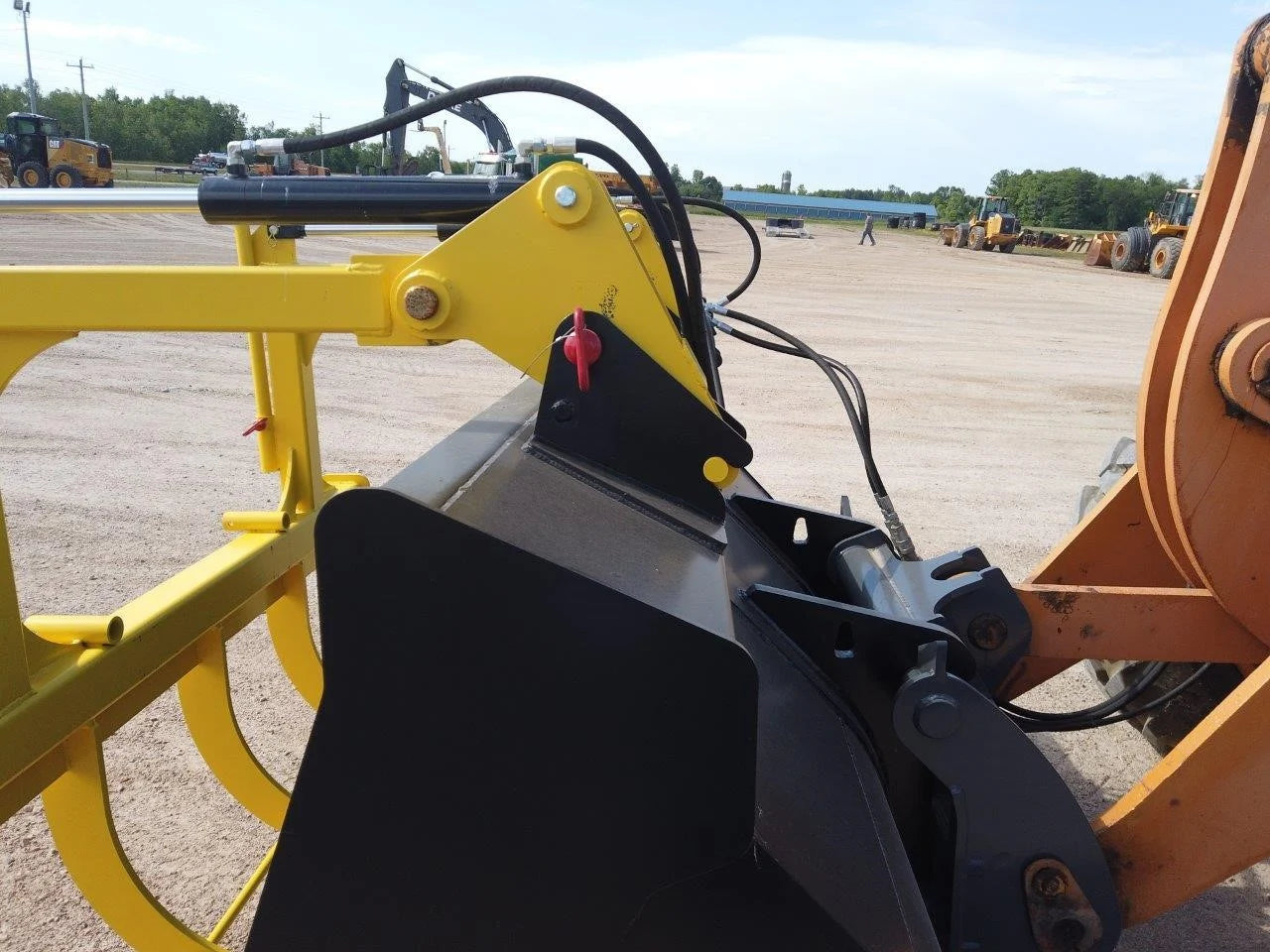

Grapple Type Hydraulic 5-Tine Grapple
Material High-strength steel
Attachment Types JRB 416 (standard), Volvo ISO Hi-Viz (optional)
Hydraulics Standard loader auxiliary hydraulic system
Horsepower Required Matches loader spec; typically 100 To 200 HP
