Demco | Big Wheel Sprayer | Models 1050 & 1250 Gallon | Hydraulic Boom Width 80′ & 90′ | Horsepower 150 To 200+ HP | For Tractor

Demco | Big Wheel Sprayer | Models 1050 & 1250 Gallon | Hydraulic Boom Width 80′ & 90′ | Horsepower 150 To 200+ HP | For Tractor

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Tank Capacity: 1050  & 1250 Gallons with Dual Jet Agitation.
  • Boom Width: 80' & 90' Hydraulic Front-Fold with 2-Stage Wing Fold.
  • Tractor Compatibility: 150 To 200+ HP with Closed Center Hydraulic System.
  • Trailer Length: 140" Hitch to Axle for tight turning radius.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Demco | Big Wheel Sprayer | Models 1050 & 1250 Gallon | Hydraulic Boom Width 80′ & 90′ | Horsepower 150 To 200+ HP | For Tractor

DESCRIPTION

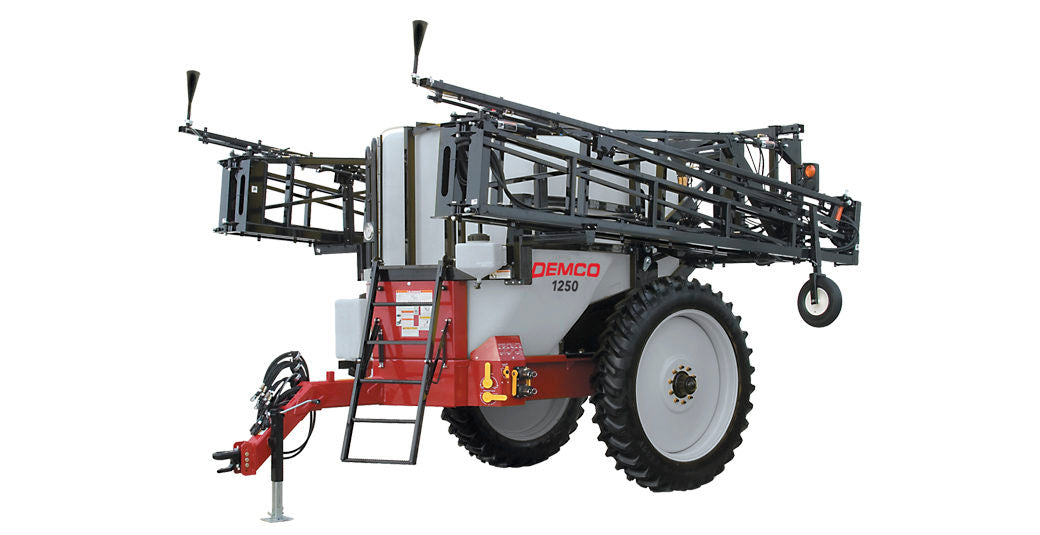

Demco Big Wheel Sprayers are built for efficiency and convenience, with tank capacities of 1050 and 1250 gallons and a robust hydraulic front-folding boom available in 80' & 90' widths. Designed to optimize field spraying, these sprayers feature a unique tank with a 16” flip-top lid, dual high-volume jet agitators, and a 100-gallon 2-stage sump for maximum drainage and reduced sloshing. Equipped with a short trailer design, these sprayers minimize crop damage and make turns easier.

The sprayers are designed to meet all your needs, from easy access to the large work platform via a fold-away ladder to integrated lighting and a hydraulic suspension system that ensures stability. The Raven® 450 Automatic Rate Control system and multiple pump and plumbing options make this sprayer adaptable to various applications, offering precision and ease during operations. With Demco, you get quality construction and innovation for effective spraying.

Key Features

  • Tank Capacity: 1050  & 1250 Gallons with Dual Jet Agitation.
  • Boom Width: 80' & 90' Hydraulic Front-Fold with 2-Stage Wing Fold.
  • Tractor Compatibility: 150 To 200+ HP with Closed Center Hydraulic System.
  • Trailer Length: 140" Hitch to Axle for tight turning radius.
  • For Row Crop Tractors in Large-Scale Field Spraying.
  • 100-Gallon Sump for Optimal Drainage and Reduced Sloshing.
  • 120-Gallon Rinse Tank + 2.5-Gallon Hand Wash Tank for operator safety.
  • Molded Spill Trough Directs Overflow to Rear for cleaner operation.
  • 320/90R46 Radial Tires for smooth ride and low compaction.
  • ¾" High Volume Plumbing with TeeJet® Diaphragm Check Nozzles.
  • Stainless Steel Boom and Hose Clamps for corrosion resistance.
  • Hydraulic Height Adjust, Wing Leveling, and Breakaway Tips for boom protection.
  • LED Lights, Turn Signals, and Taillights for road safety.
  • Optional Raven® Rate Control and Flow Meter Systems for precision application.
  • Foam Marker and Fence Line Spray Kits available for enhanced coverage.

Detailed Specifications

Specification Details
Tank Capacity 1050 or 1250 gallons
Boom Width 80' or 90' hydraulic front-fold boom
Tank Lid 16” flip-top lid with ergonomic design
Agitation System Dual high-volume jet agitators
Sump Capacity 100-gallon 2-stage sump for full clean-out
Tire Size 320/90R46 radial tires
Pump Options Hypro® Life Guard™ Seal or Ace® w/ Silicone Carbide Seal
Controls Raven® 450 Automatic Rate Control with speed sensor
Boom Plumbing TeeJet® Drip Free or Triple Drip Free nozzles at 20" spacing
Lighting Package LED flasher, turn signal, and taillights
Chemical Eductor Vacuum flow system (optional)
Fence Line Spray Kit Electric-powered (optional)
Additional Tank Options 33-gallon foam marker tanks (charcoal or yellow)
Wheel Spacing (Adjustable) 90" – 144"
Weight (with Glide Suspension) Approx. 140 lbs (hydraulic suspension system only)
Operator Access Fold-away ladder with large work platform
