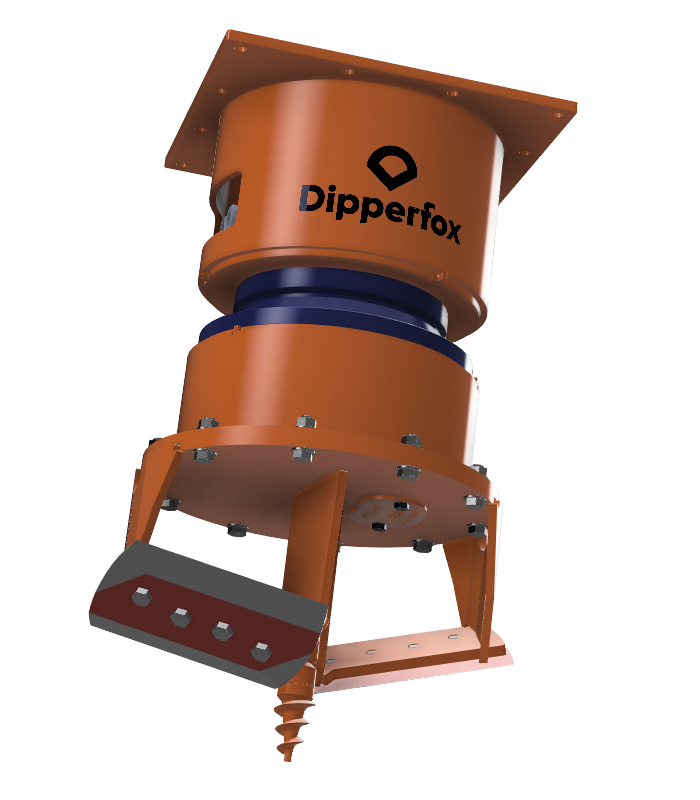

Dipperfox Stump Crushers | Model SC-600 | Cutting Diameter 23.6" | Hydraulic Flow Range 17-40 GPM | For Skid Steers

Product Description

Dipperfox Stump Crushers | Model SC-600 | Cutting Diameter 23.6" | Hydraulic Flow Range 17-40 GPM | For Skid Steers

DESCRIPTION

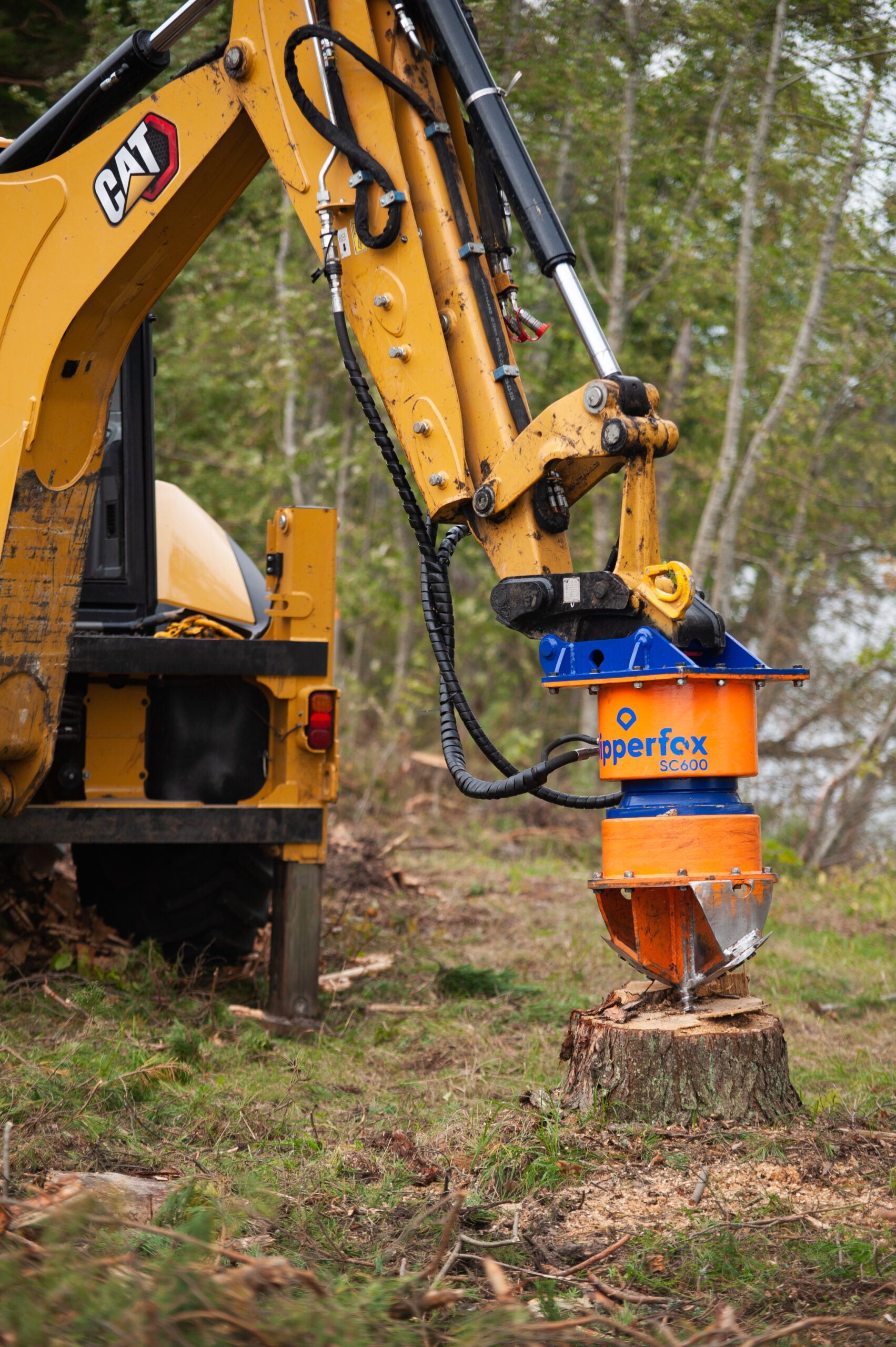

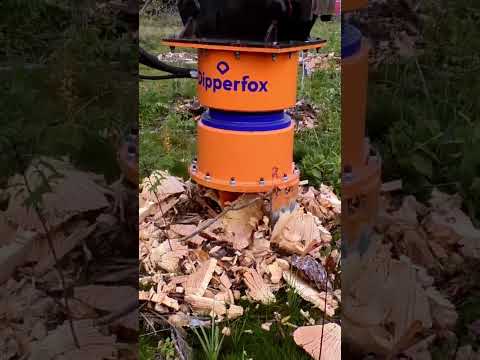

Dipperfox Stump Crusher 600- The Stump Crusher 600 is a tool designed for cities, councils, arborists and gardens where large excavators are too big and access is limited. This model requires a smaller carrier with the unit weighing 285kg.

The main advantage of this tool is that compared to alternative stump grinders, it is safer, less noisy and more efficient. This is due to the Dipperfox having a low revolving speed with a max of 60 RPM which prevents high speed debris and in the event of the blade hitting any rock, it will be pushed away rather than ricocheting. Therefore, this allows you to create a much smaller risk zone compared to horizontal high speed grinders.

The Stump Crusher 600 is also much faster at removing stumps than other grinders and allows a drilling depth of 500mm below ground level. This allows you to plant a sampling in the same footprint of the previous tree.

Requirements for Excavator:
Size: 6-14 tons
Engine power: 35-83 kW
working pressure: 3190-3629 psi
Hydraulic flow: 17-40 gpm

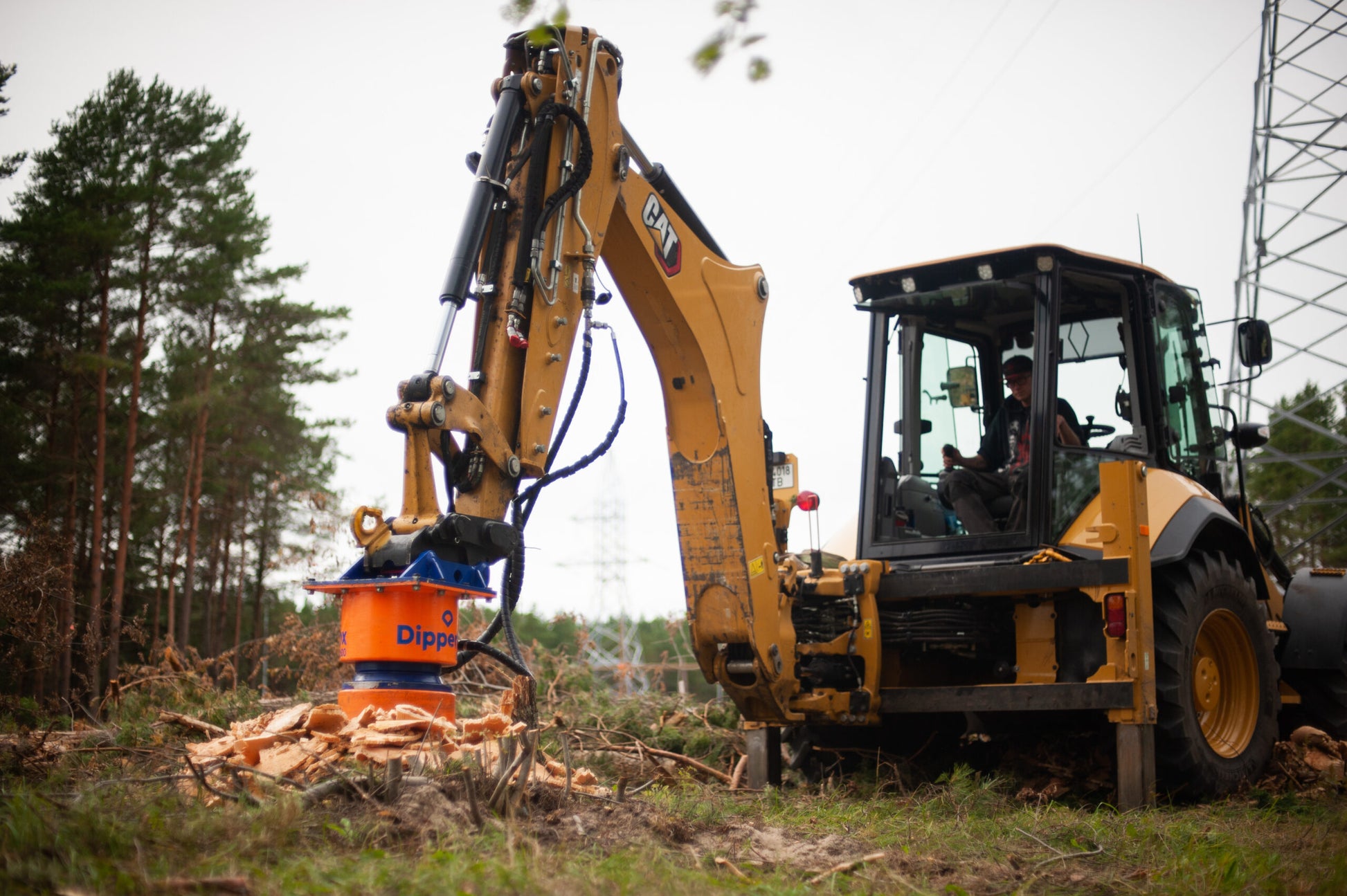

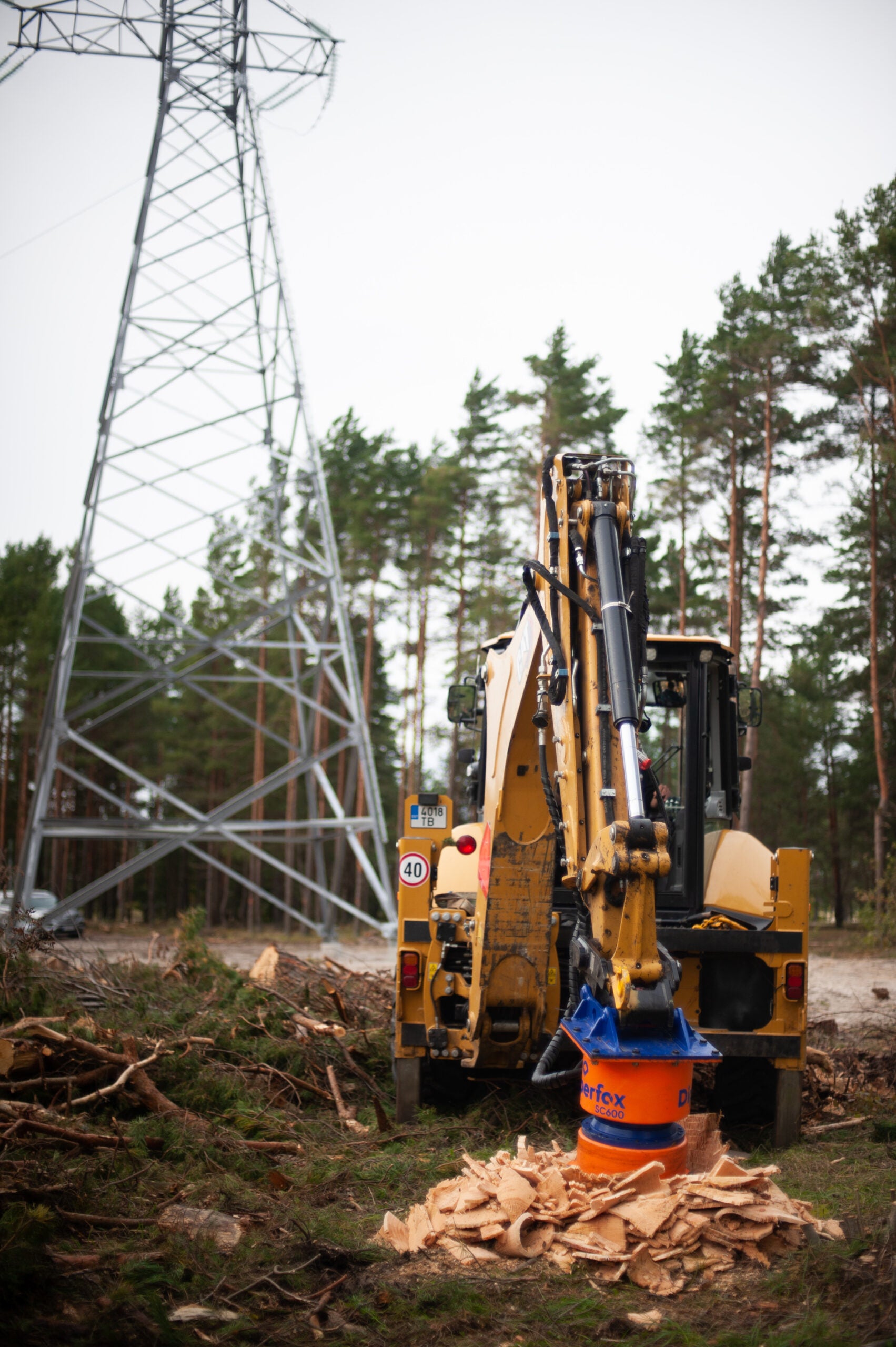

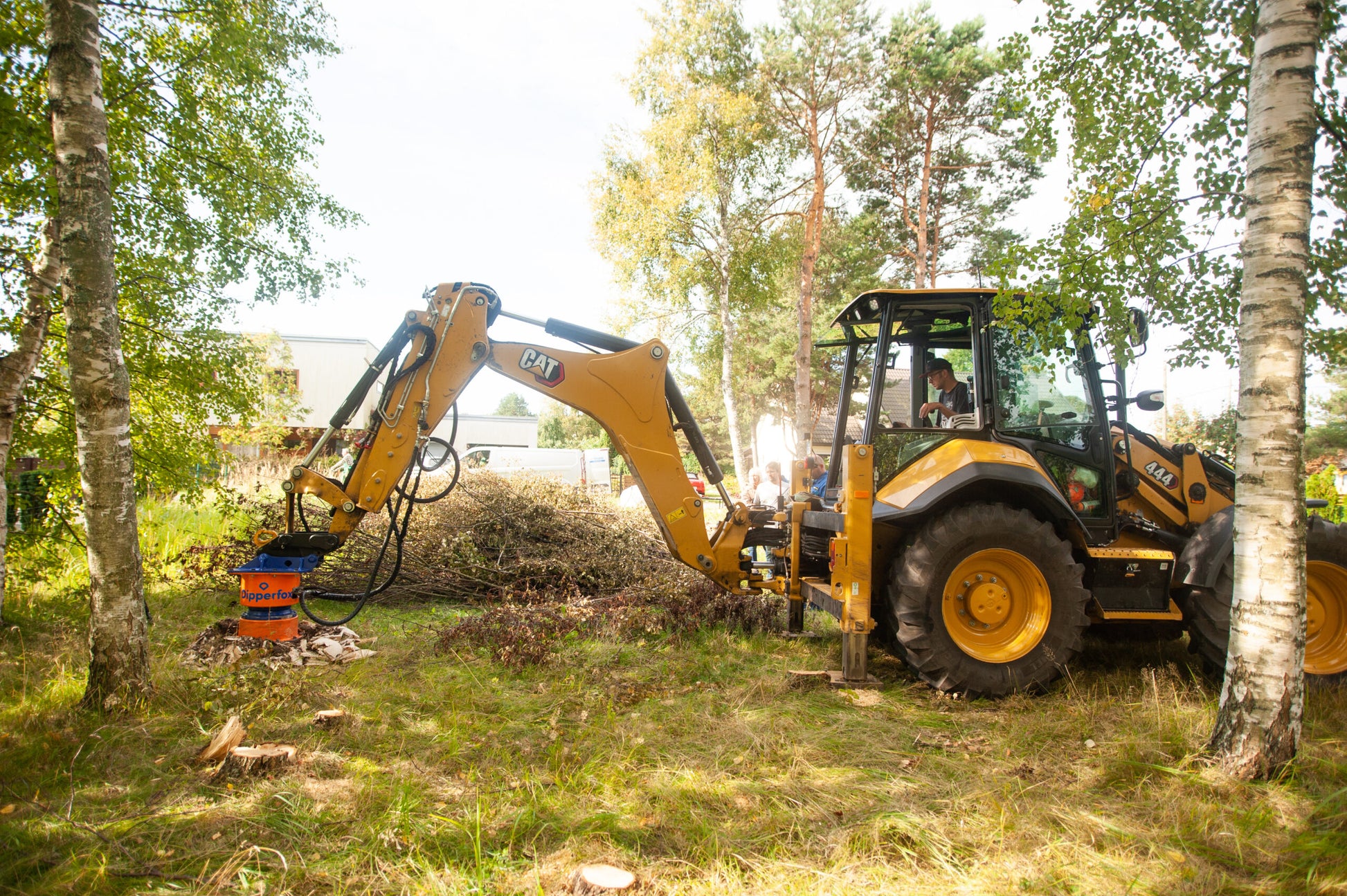

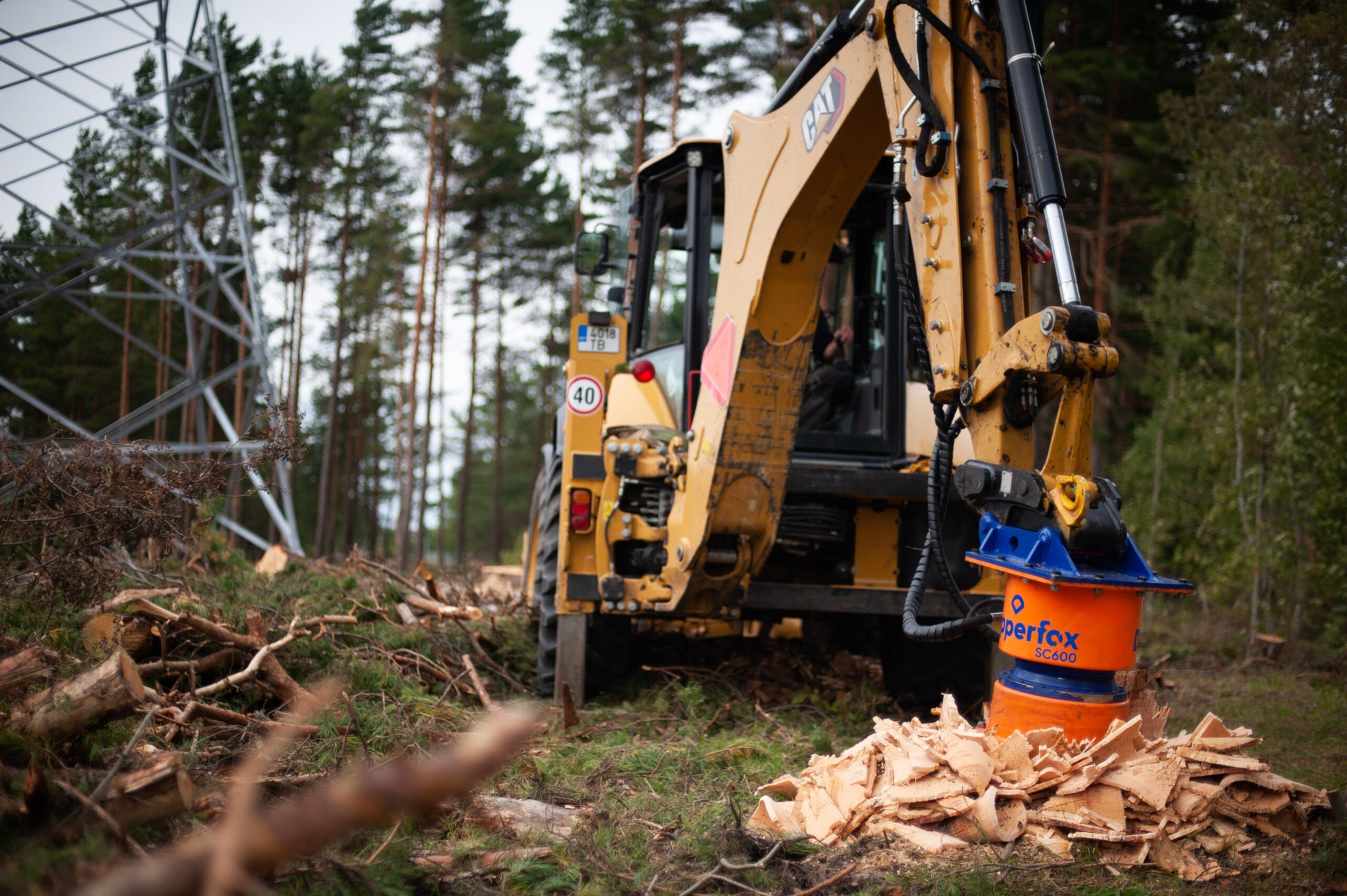

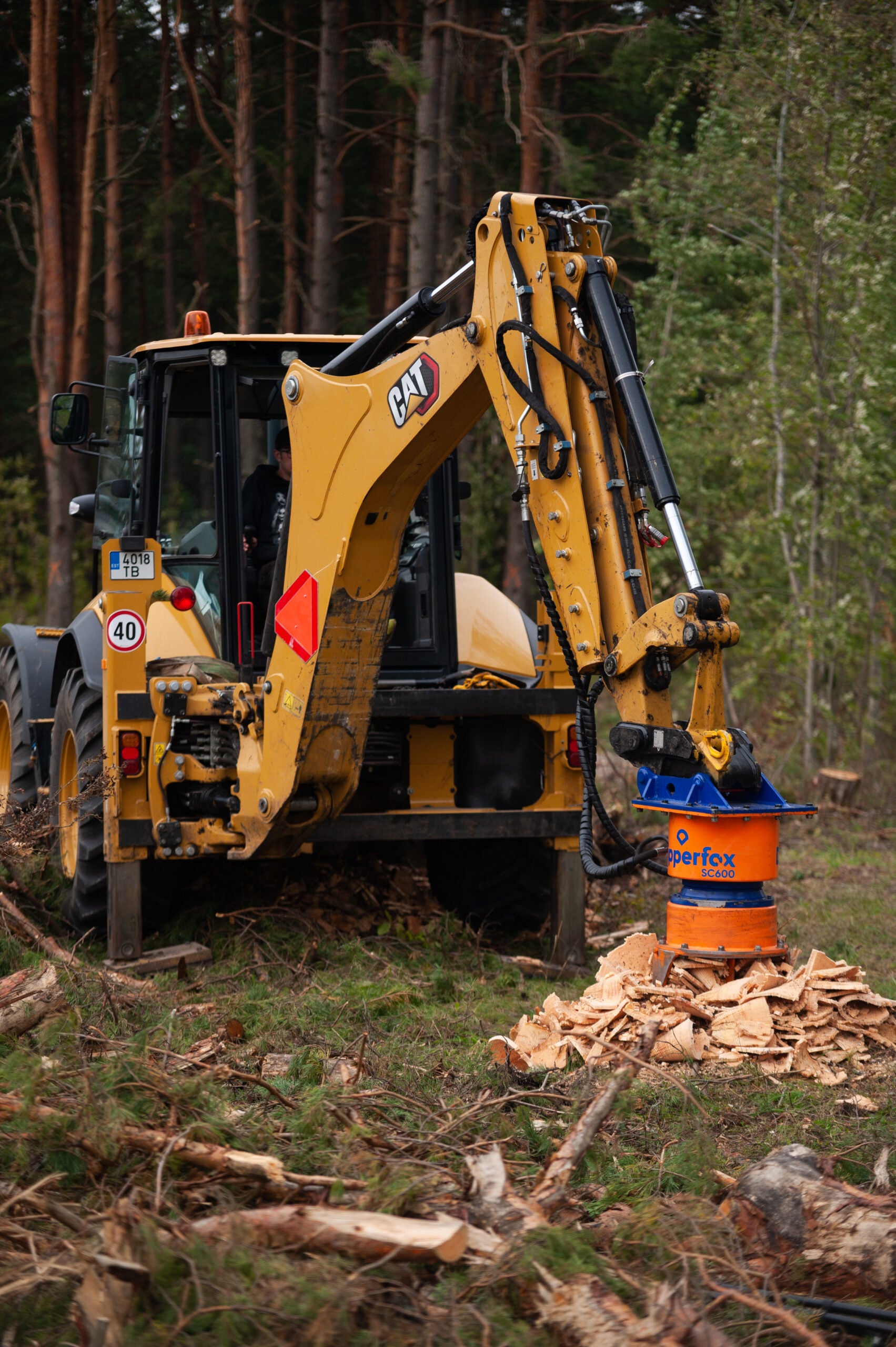

Requirements for Backhoe Loader
Size: 6-14 tons
Engine power: 50-80 kW;
Working pressure: 3190-3629 psi
Hydraulic flow: 17-40 gpm

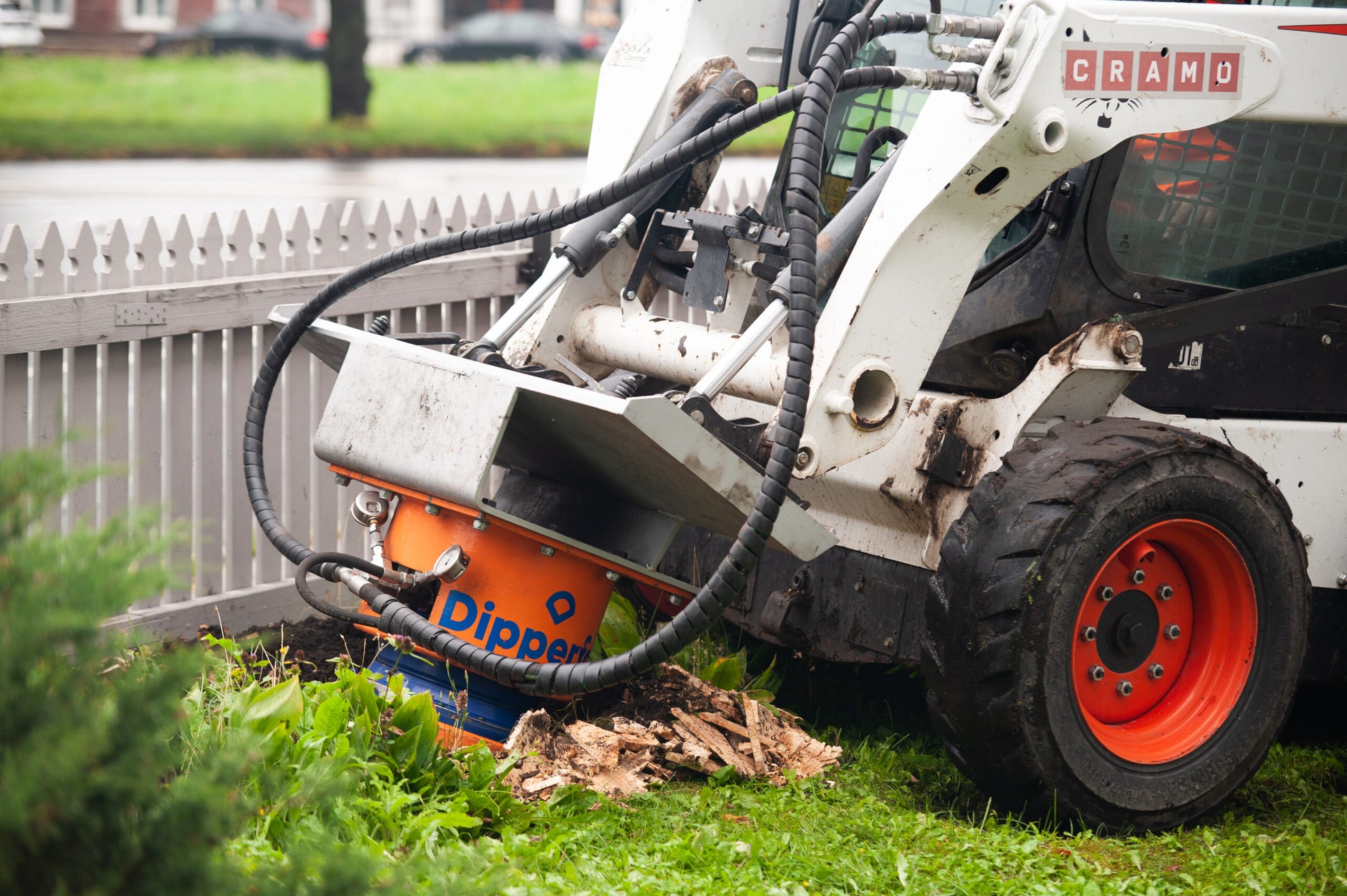

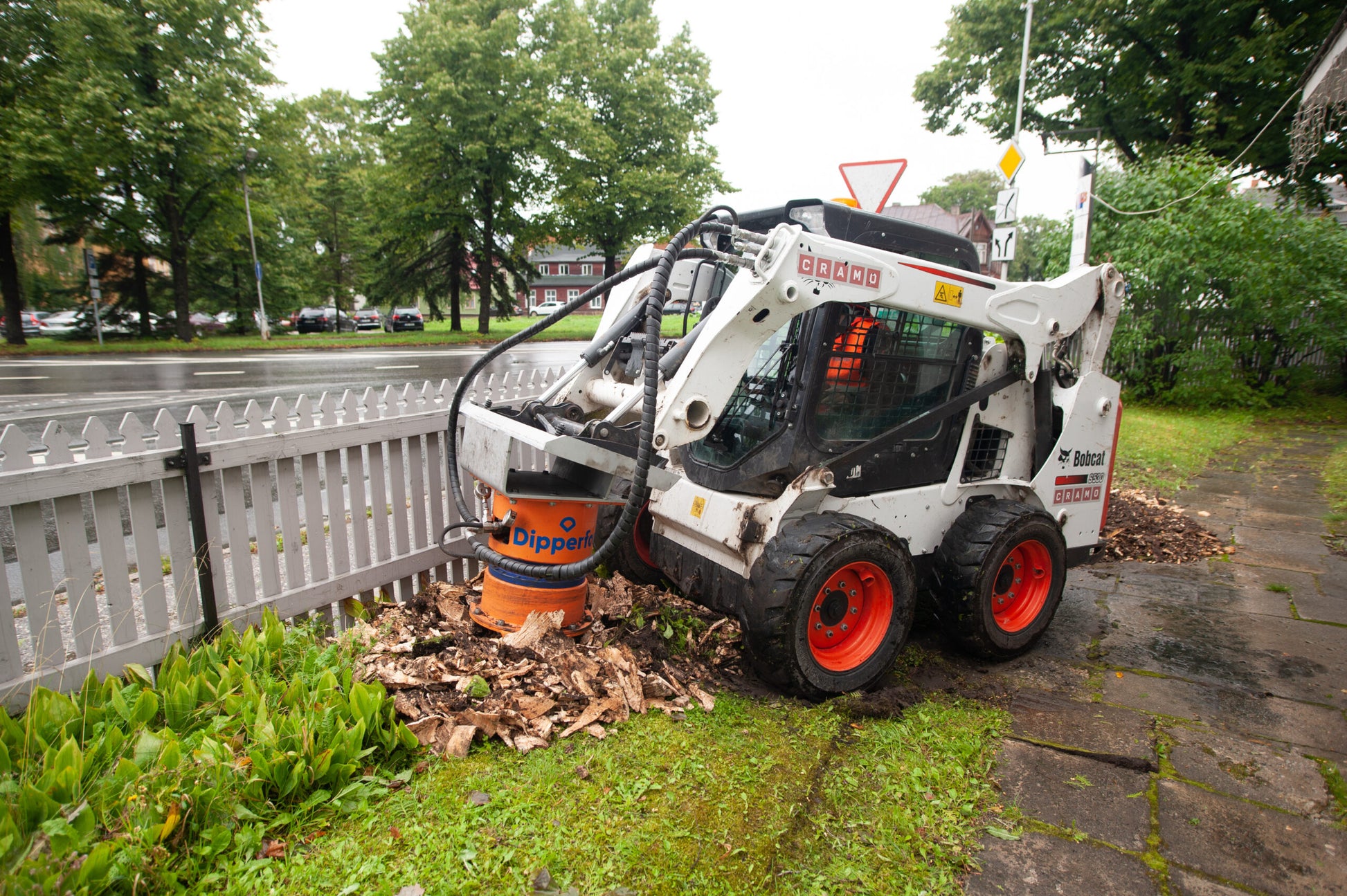

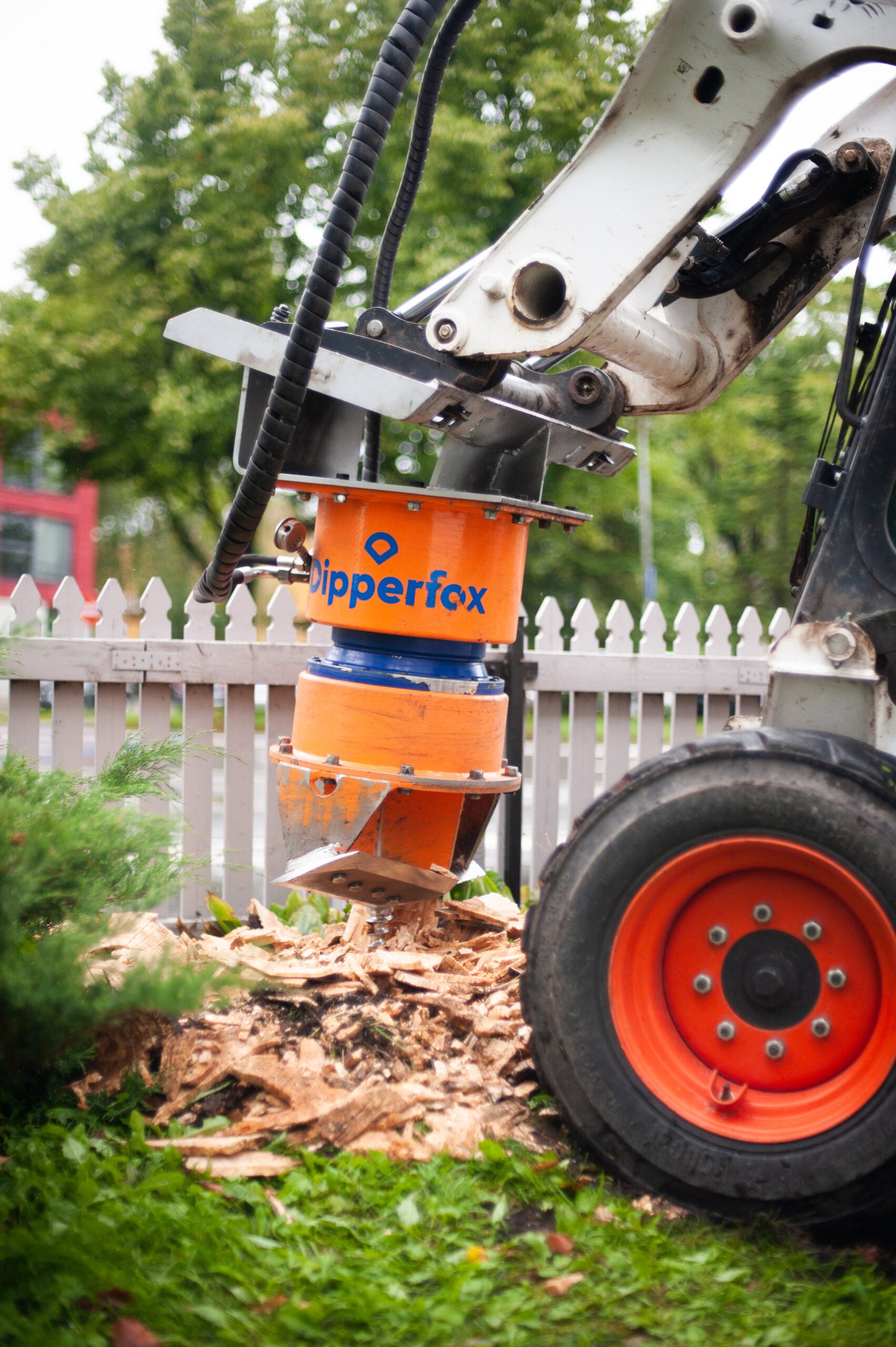

Requirements for Compact Loader  or Track Loader
Size: 2-6 tons
Engine power: 40-80 kW;
Working pressure: 3190-3629 psi
Hydraulic flow: 17-40 gpm

Key Features

• Cutting Diameter: 23.62″ head designed for rapid removal of stumps under 60 cm
• Working Pressure: Operates between 3,190–3,629 PSI for high-force cutting performance
• Hydraulic Flow Range: Compatible with systems delivering 17–40 GPM for flexible machine integration
• Unit Weight: 628 lbs for stable mounting and balanced operation across carrier types
• Excavator Compatibility: Fits 6–14 ton excavators for forestry, land clearing, and utility work
• Backhoe Loader Compatibility: Suitable for 6–14 ton TLBs in agri, municipal, and roadside use
• Compact Track Loader Compatibility: Mounts on 2–6 ton CTLs for landscaping and urban clearing
• 1st Gear Output: 12,645 ft-lbs torque @ 37 RPM for high-torque, low-speed grinding
• 2nd Gear Output: 7,966 ft-lbs torque @ 57 RPM for faster rotation and lighter stump removal
• Stump Removal Rate: Clears up to 60 stumps/hour under 60 cm diameter
• Drilling Speed: Removes each stump in ~60 seconds for fast cycle times
• Horsepower Requirement: Recommended for host machines with hydraulic systems powered by 70–130 HP, depending on flow and pressure output
• Compact & Powerful: Designed for confined areas with torque optimized for efficient low-speed cutting.
• Enhanced Safety & Control: Operates at low RPM, reducing debris spread and minimizing the safety zone.
• Versatile Compatibility: Ideal for compact track loaders, skid steers, and mini compact loaders.
• Maintenance-Ready Design: Equipped with replaceable blades and a center screw for durability.
• Efficient Stump Removal: Processes up to 60 stumps per hour, drilling up to 500mm deep.
