Dirt Dog 3-Point Lift Tandem Disc Harrow | Model 200 Series | Overall Width 63", 73", 78" & 96" inches | Horsepower 35-65 HP | For Tractors
Dirt Dog 3-Point Lift Tandem Disc Harrow | Model 200 Series | Overall Width 63", 73", 78" & 96" inches | Horsepower 35-65 HP | For Tractors
Regular price
$2,953.50
Regular price
Sale price
$2,953.50
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

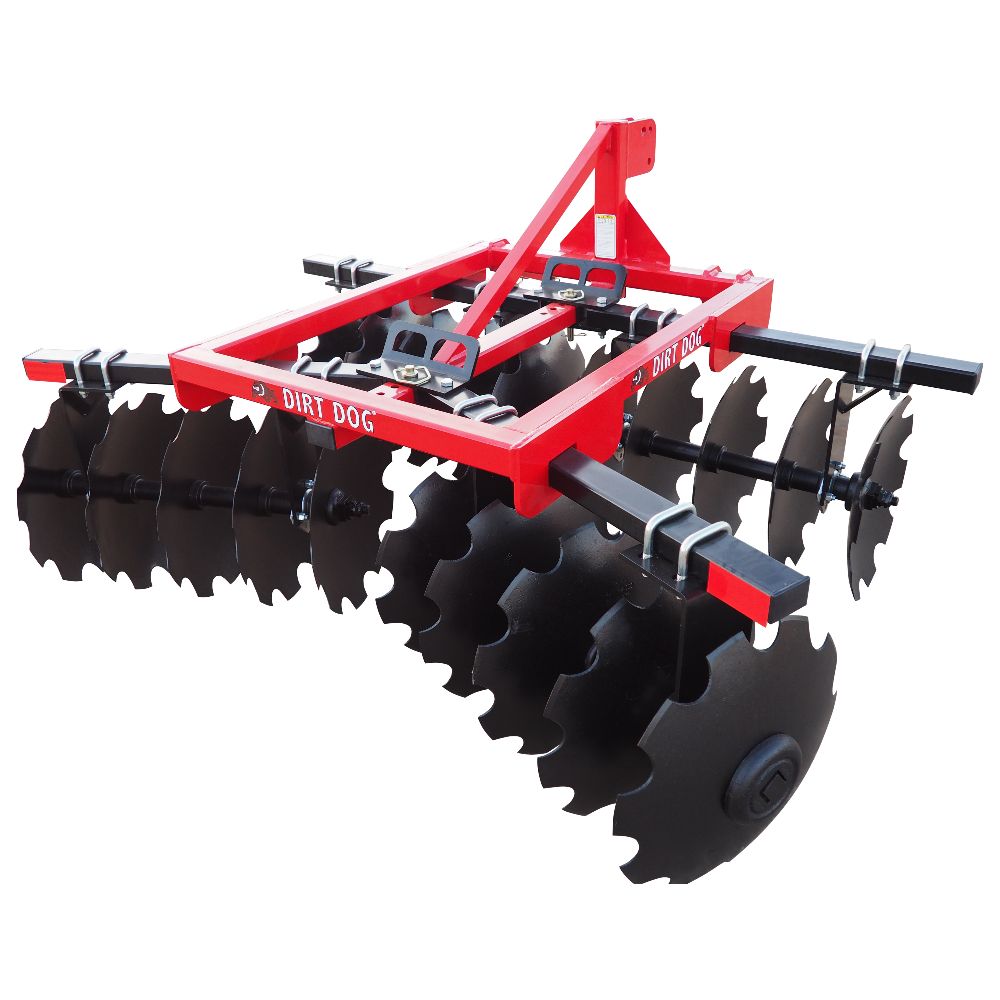

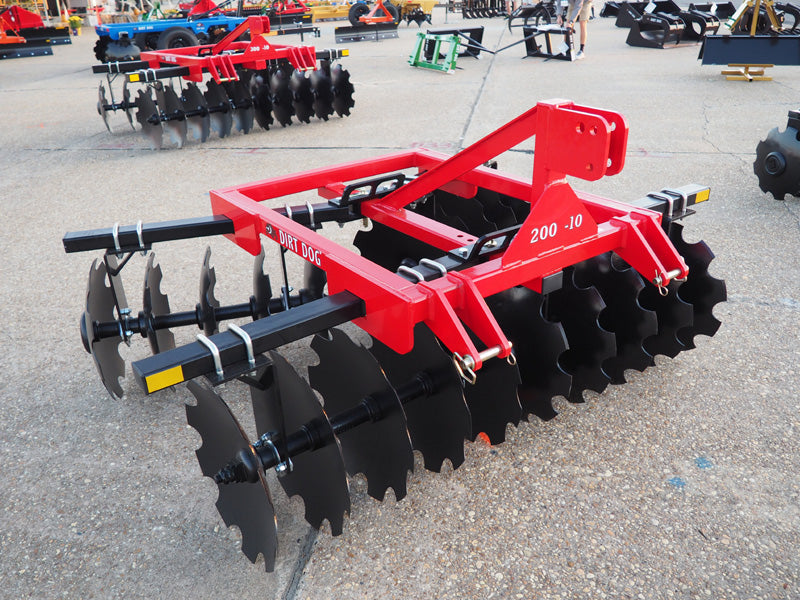

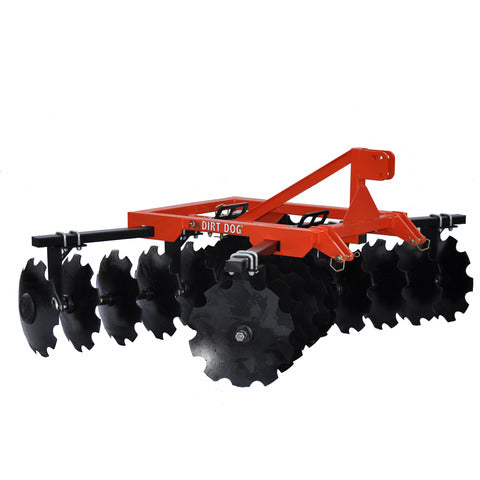

Dirt Dog 3-Point Lift Tandem Disc Harrow | Model 200 Series | Overall Width 63", 73", 78" & 96" inches | Horsepower 35-65 HP | For Tractors
Included Options:
Description
Dirt Dog’s line of lift disc harrows is designed to expand your tractor’s productivity potential! Whether you are a gardener, small farmer, wildlife manager, landscaper, operate a nursery or simply someone looking to break up the ground, the heavy duty frames and the heat-treated notched disc blades of Dirt Dog’s lift disc harrows make them the right choice for the job. The three disc harrow series in the Dirt Dog line are designed to fit tractors from 35 to 65 horsepower, giving you several choices to properly fit your tractor and application. Easy-to-adjust front and rear gangs allow you to change from light tilling to more aggressive cutting action with a simple pull of a pin and repositioning of the gangs. The sky, well actually the dirt, is the limit when using a Dirt Dog lift disc harrow to solve your groundbreaking needs.
Key Features
- Category 1 Quick Hitch Compatible: Ensures compatibility with Category 1 quick hitches for easy attachment and detachment.
- Disc Spacing Options: Available with 7 1/2” or 9” disc spacing to suit different soil types and conditions.
- Sturdy Frame: Constructed with a 2 1/2” square tube frame for enhanced durability.
- Secure Gang Hanger: 3/8” gang hanger secured with two 5/8” u-bolts for reliable operation.
- Self-Aligning Bearings: Sealed, self-aligning ball bearings for smooth and maintenance-free performance.
- Horse Power Range: Suitable for 65 horsepower range tractors.
- Robust Gang Tubes: Equipped with 3” x 2” gang tubes for added strength.
- High Carbon Gang Axles: Features 1” square high carbon gang axles for superior performance.
- Adjustable Gangs: Front gang adjustable to 0°, 7°, 14°, 21° and rear gang adjustable to 7°, 14°, 21° with easy-to-use adjustment handle.
- Color Options: Available in yellow, red, orange, green, and blue to match various preferences.
- Optional Scraper Kits: Optional scraper kits available for enhanced functionality.
Detailed Specifications
| Model # | # of Discs | Disc Size | Disc Type | Spacing Front (in) | Spacing Rear (in) | Cut Width (in) | Weight (lbs) | Recommended HP |
|---|---|---|---|---|---|---|---|---|
| 200-1 | 16 | 18" | Notched | 7-1/2" | 7-1/2" | 62"-69" | 646 | 35 HP |
| 200-2 | 16 | 20" | Notched | 7-1/2" | 7-1/2" | 62"-69" | 701 | 40 HP |
| 200-5 | 16 | 18" | Notched | 9" | 9" | 71"-77.5" | 675 | 45 HP |
| 200-6 | 16 | 20" | Notched | 9" | 9" | 71"-77.5" | 727 | 50 HP |
| 200-9 | 20 | 18" | Notched | 7-1/2" | 7-1/2" | 78"-85" | 700 | 40 HP |
| 200-10 | 20 | 20" | Notched | 7-1/2" | 7-1/2" | 78"-85" | 770 | 45 HP |
| 200-13 | 18 | 18" | Notched | 9" | 7-1/2" | 78"-85" | 695 | 50 HP |
| 200-14 | 18 | 20" | Notched | 9" | 7-1/2" | 78"-85" | 766 | 55 HP |
| 200-17 | 20 | 18" | Notched | 9" | 9" | 89"-96" | 740 | 55 HP |
| 200-18 | 20 | 20" | Notched | 9" | 9" | 89"-96" | 815 | 60 HP |
| 200-21 | 22 | 18" | Notched | 9" | 7-1/2" | 91"-98" | 858 | 60 HP |
| 200-22 | 22 | 20" | Notched | 9" | 7-1/2" | 91"-98" | 902 | 65 HP |
Scraper Kits for Disc Harrows
| Scraper Kit # | Description | Compatible Models |
|---|---|---|
| 98548 | 16 Disc - 7-1/2" Spacing - 63" | 200-1 to 200-4 |
| 98599 | 16 Disc - 9" Spacing - 73" | 200-5 to 200-8 |
| 98598 | 20 Disc - 7-1/2" Spacing - 78" | 200-9 to 200-12 |
| 98575 | 18 Disc - 9"/7-1/2" Spacing - 78" | 200-13 to 200-16 |
| 98512 | 20 Disc - 9" Spacing - 96" | 200-17 to 200-20 |
| 98576 | 22 Disc - 9"/7-1/2" Spacing - 96" | 200-21, 200-22 |
