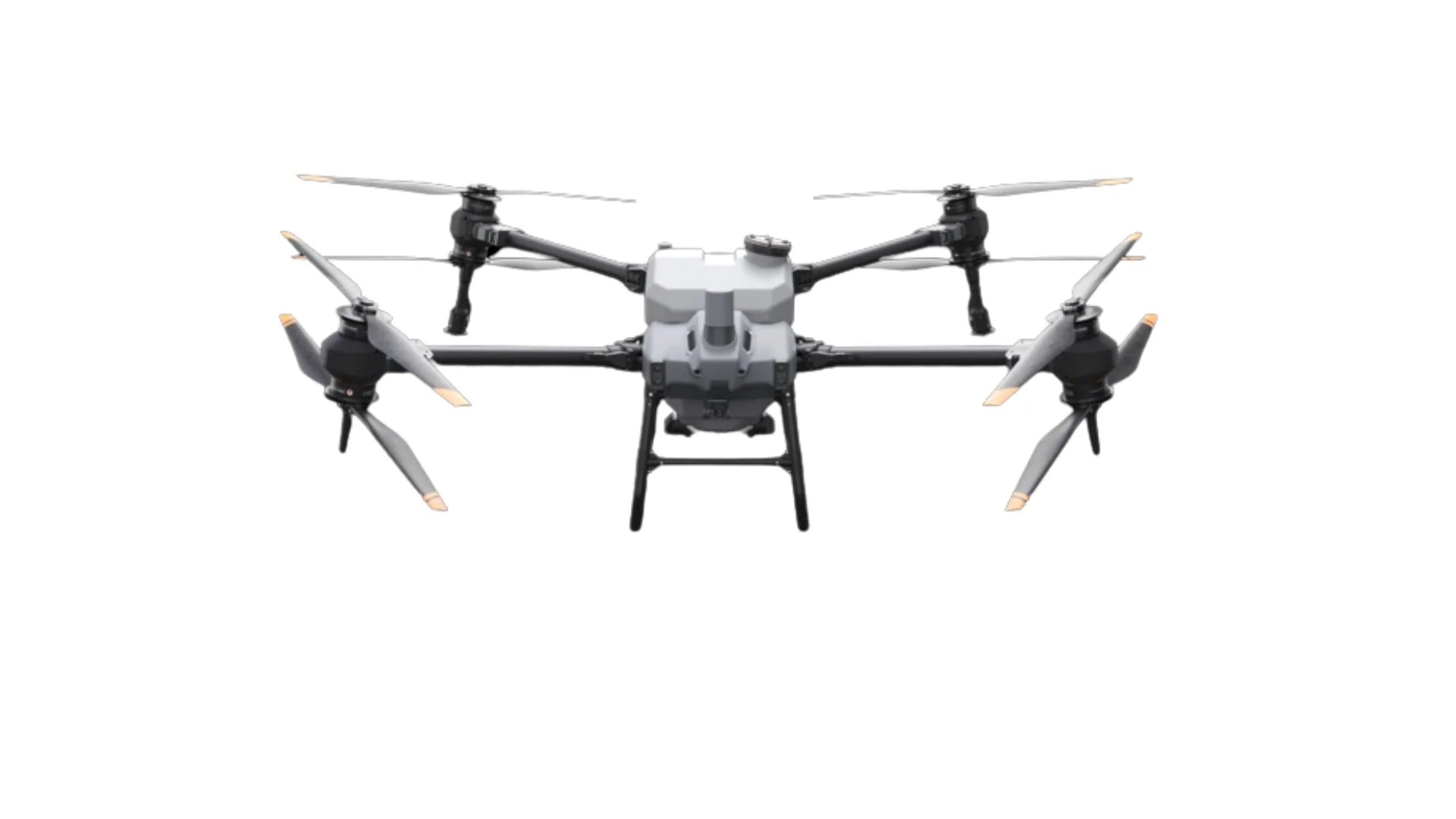

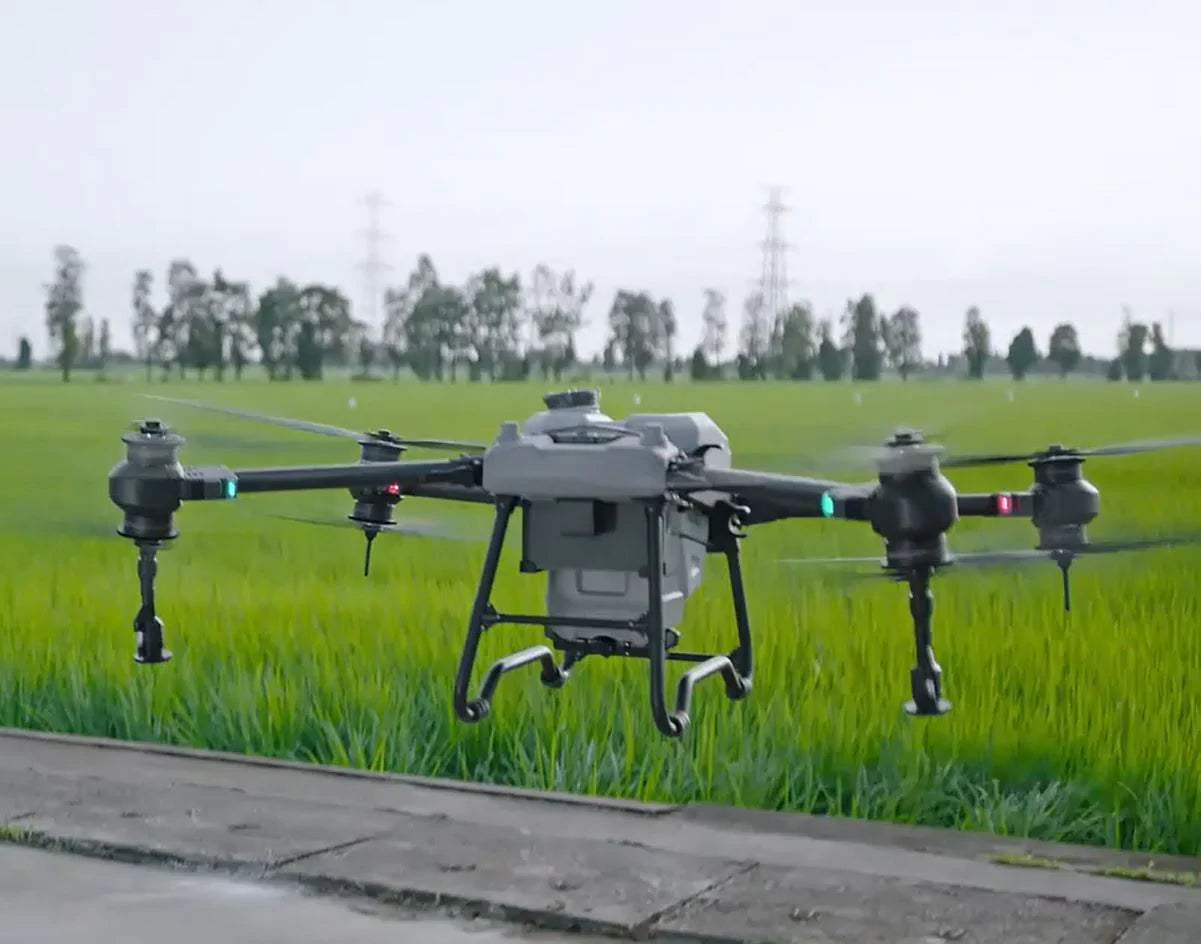

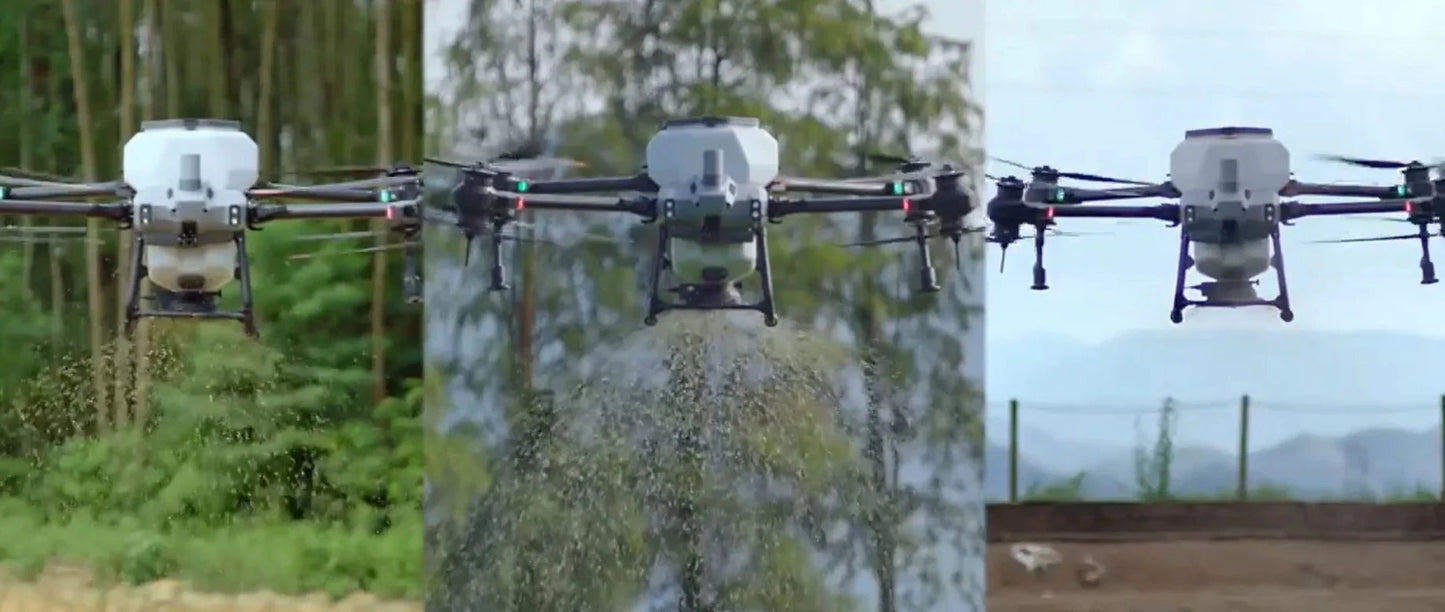

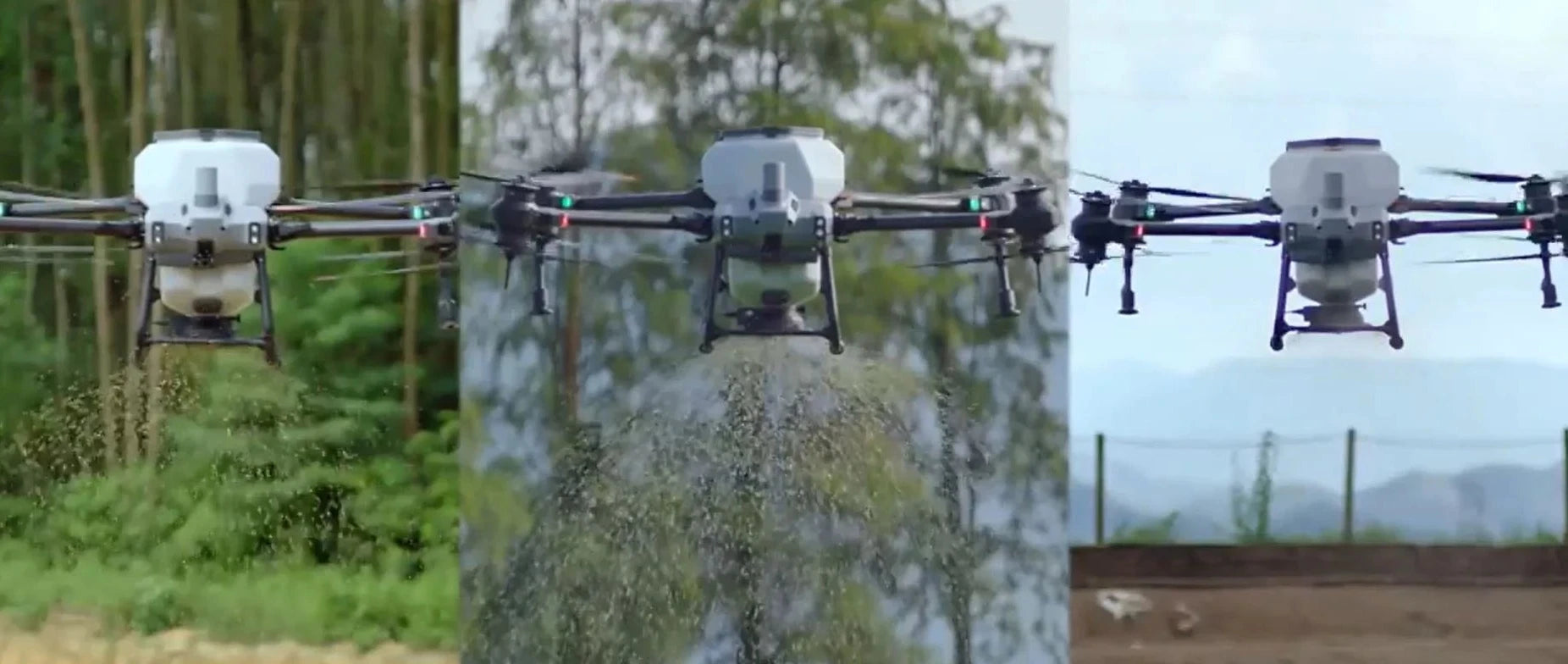

DJI Agras T40 Spraying Drone (10.5gal / 40L)

DJI Agras T40 Spraying Drone (10.5gal / 40L)

Regular price $19,999.88 USD
Regular price Sale price $19,999.88 USD
Sale Sold out
Shipping calculated at checkout.
Choose Your Bundle

DJI Agras T40 Spraying Drone (10.5gal / 40L)


HIGHLIGHTS

  • Great for Vineyards

  • Great for Orchards

  • FAA Approval Pending

52.6 Acres per Hour*  |  Capacity: 10.5 Gal  |  Swath: 36ft |  Max Flow: 6L / min*2 |  Droplet Size 50 - 300 microns (depending on the actual operating environment, spray flow, and other factors)

Specifications

Aircraft Parameters
Total weight 38 kg (without battery)
50 kg (with battery)
Max Takeoff Weight Max takeoff weight for spraying: 90 kg (at sea level)
Maximum takeoff weight for spreading: 101 kg (at sea level)
Max Diagonal Wheelbase 2184 mm
Dimensions 2800 mm × 3150 mm × 780 mm (arms & propellers unfolded)
1590 mm × 1930 mm × 780 mm (arms unfolded, propellers folded)

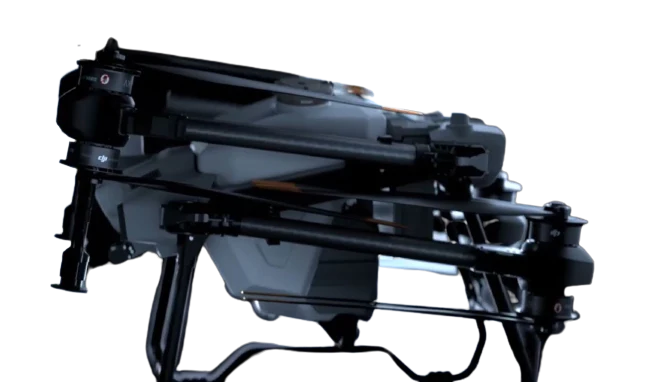

1125 mm × 750 mm × 850 mm (arms folded)
Hovering Accuracy Range (with strong GNSS signal) RTK positioning enabled:
±10 cm horizontal, ±10 cm vertical
RTK positioning disabled:
±60 cm horizontal and ±30 cm vertical (radar enabled: ±10 cm)
RTK/GNSS Operating Frequency

RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, Galileo E1/E5

GNSS: GPS L1, GLONASS F1, Galileo E1, BeiDou B1
Hovering Time

Hovering without payload: 18 min (@30000 mAh & takeoff weight 50 kg)

Hovering and spraying with full payload: 7 min (@30000 mAh & takeoff weight 90 kg)
Hovering and speading with full payload: 6 min (@30000 mAh & takeoff weight 101 kg)
Max flight radius can be set

2000 m

Max Wind Resistance

6 m/s

Propulsion System - Motor
Stator Size

100×33 mm

Motor KV Value

48 RPM/V

Motor Power

4000 W/rotor

Propulsion System -Propeller
Diameter

54 inch

Rotor Quantity

8

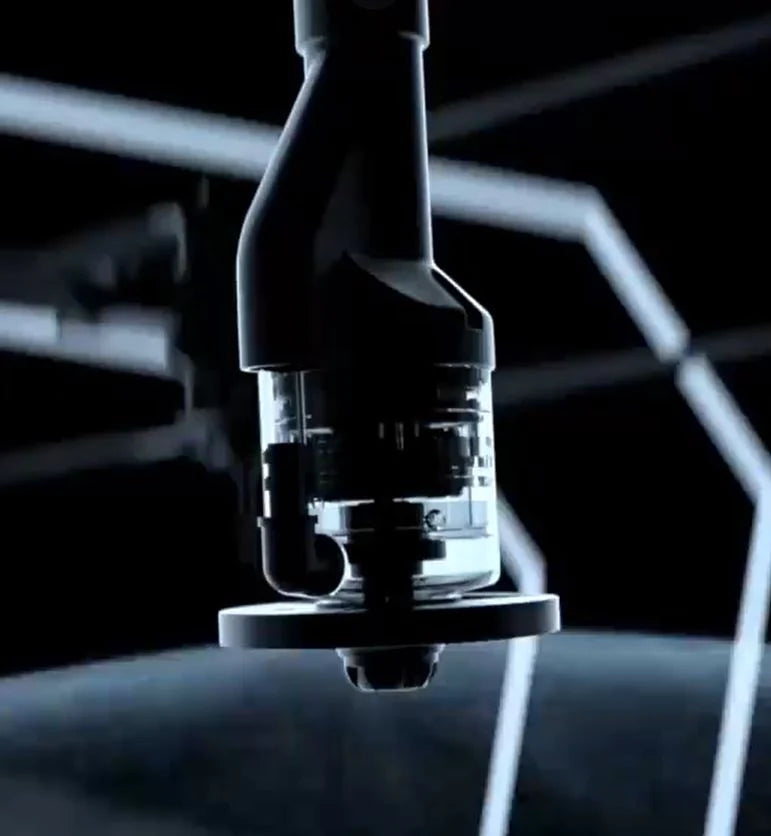

Dual Atomized Spraying System - Operation Box
Sprinkler Model

LX8060SZ

Sprinkler Quantity 2
Droplet Size

50-300 μm

Max Effective Spray Width

11 m (relative operating altitude 2.5 m, flight speed 7 m/s)

Dual Atomized Spraying System - Water Pump
Pump Model

Magnetic Drive Impeller Pump

Max Flow Rate

6 L/min*2

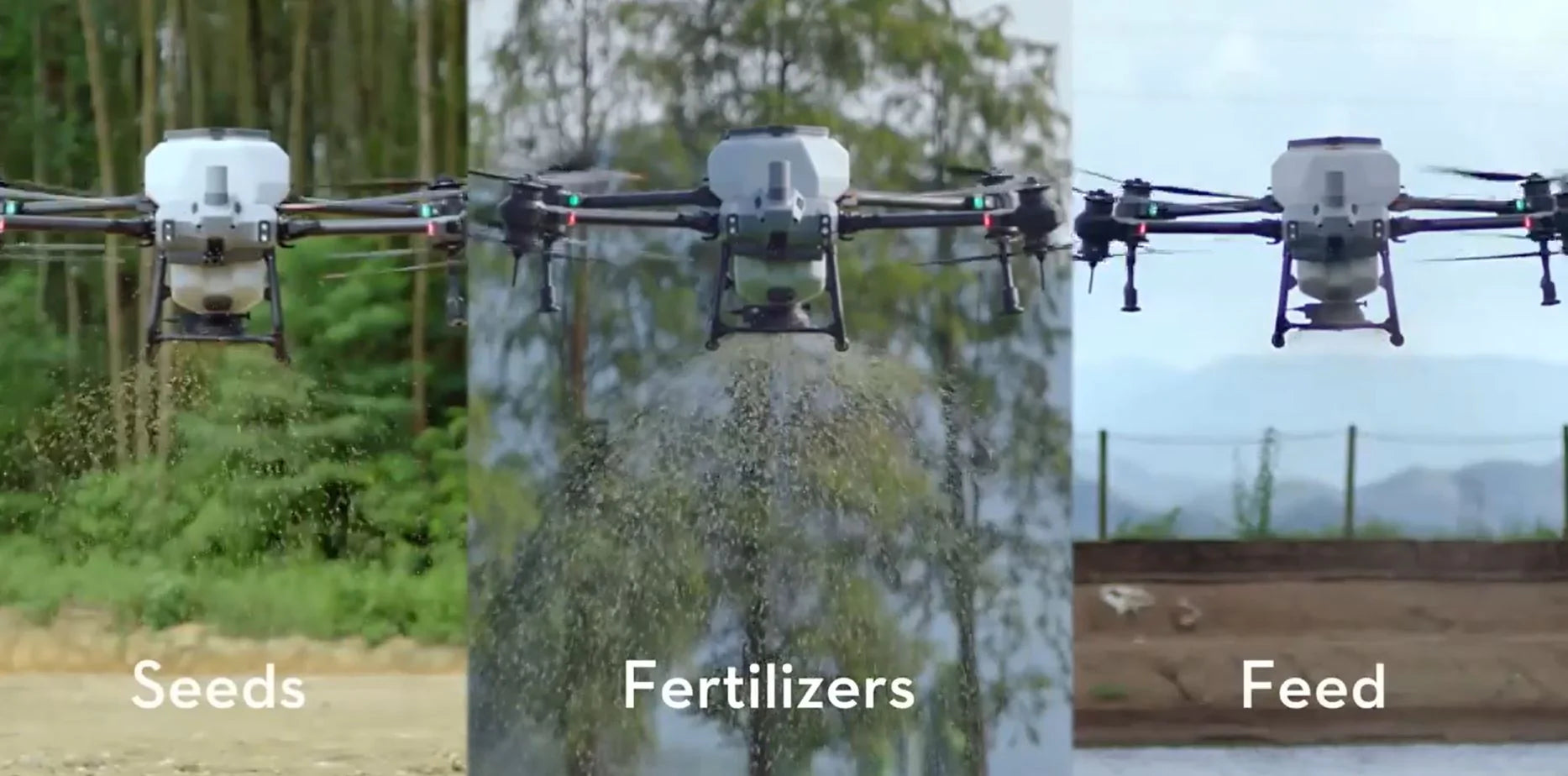

T40 Spreading System
Applicable Materials

Solid dry particles with a diameter of 0.5 to 5 mm

Spread Tank Volume

70 L

Spread Tank Internal Load 50 kg
Spread Width of Spreading System

7 m

Recommended Operating Temperature

0°C to 40°C (32°F to 104°F)

Active Phased Array Omnidirectional Radar
Model Number

RD2484R

Terrain Follow

Max incline: 30°

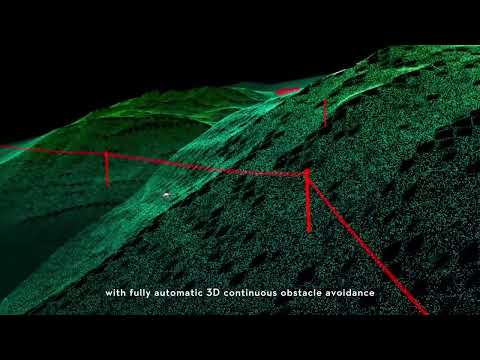

Obstacle Avoidance

Sensible distance (horizontal): 1.5-50 m

FOV: 360° horizontal, ±45° vertical
Operating conditions: Flying higher than 1.5 m over the obstacle at a speed not exceeding 7 m/s
Safe distance: 2.5 m (distance between the propeller tip and obstacle when the aircraft is hovering after braking)
Sensing direction: horizontal omnidirectional avoidance;
Sensible distance (above): 1.5-30 m
FOV: 45°
Operating conditions: Available during takeoff, landing, and ascending when an obstacle is more than 1.5 m above the aircraft
Safe distance: 2.5 m (distance between the top of the aircraft and the obstacle when the aircraft is hovering after braking)
Sensing direction: Upward

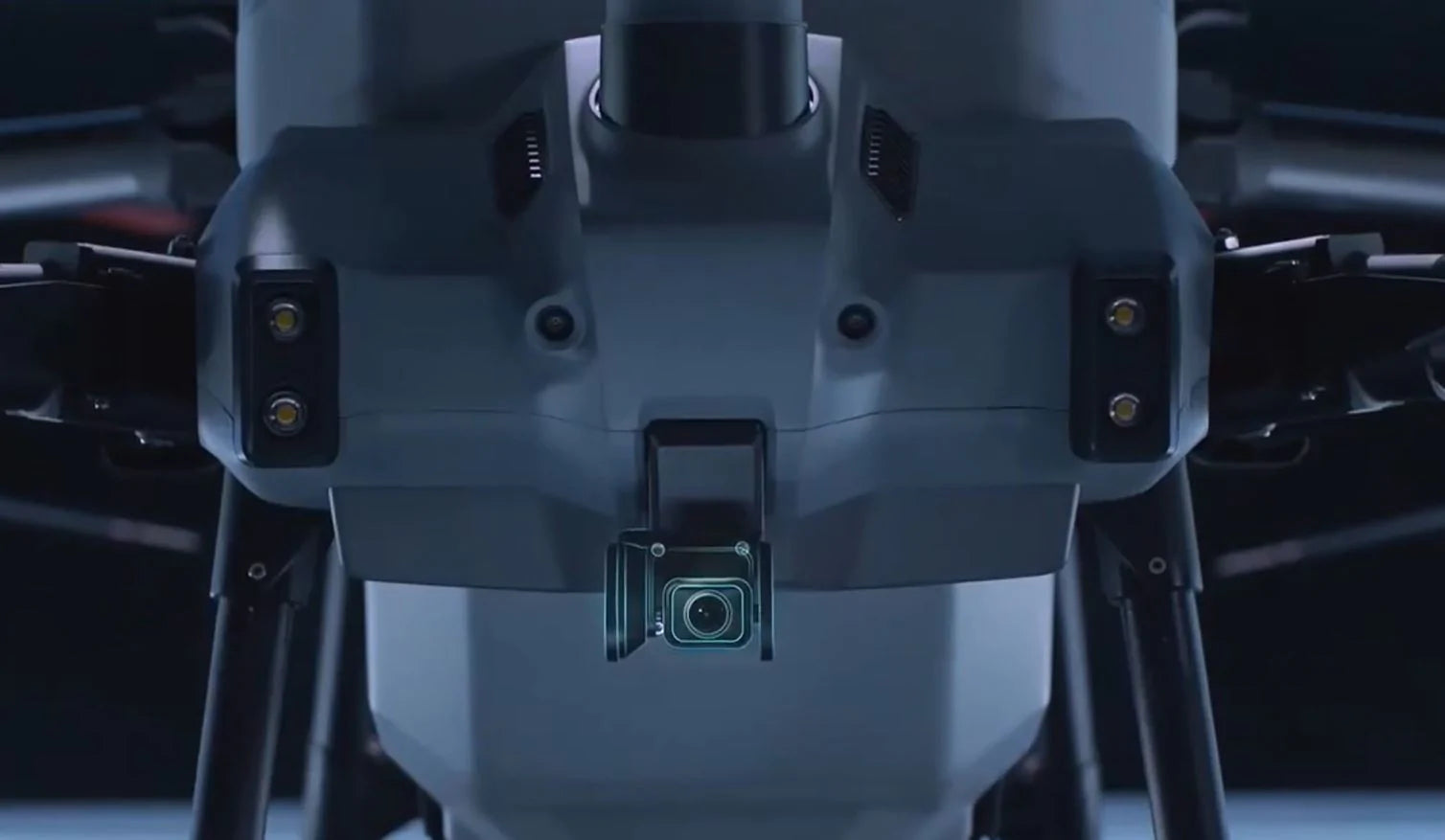

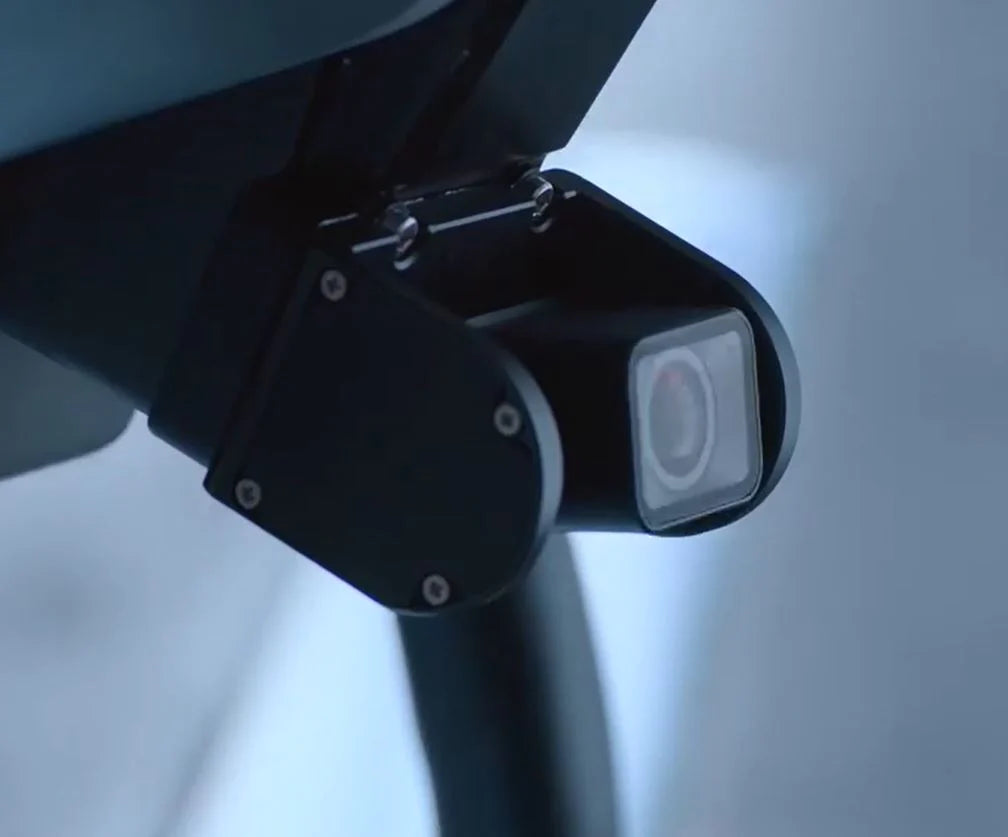

Binocular Vision System
Measurable Range

0.4-25 m

Effective Sensing Speed

≤7 m/s

FOV

Horizontal: 90; Vertical: 106°

Work Environment Requirements

Normal lighting with clearly textured surfaces

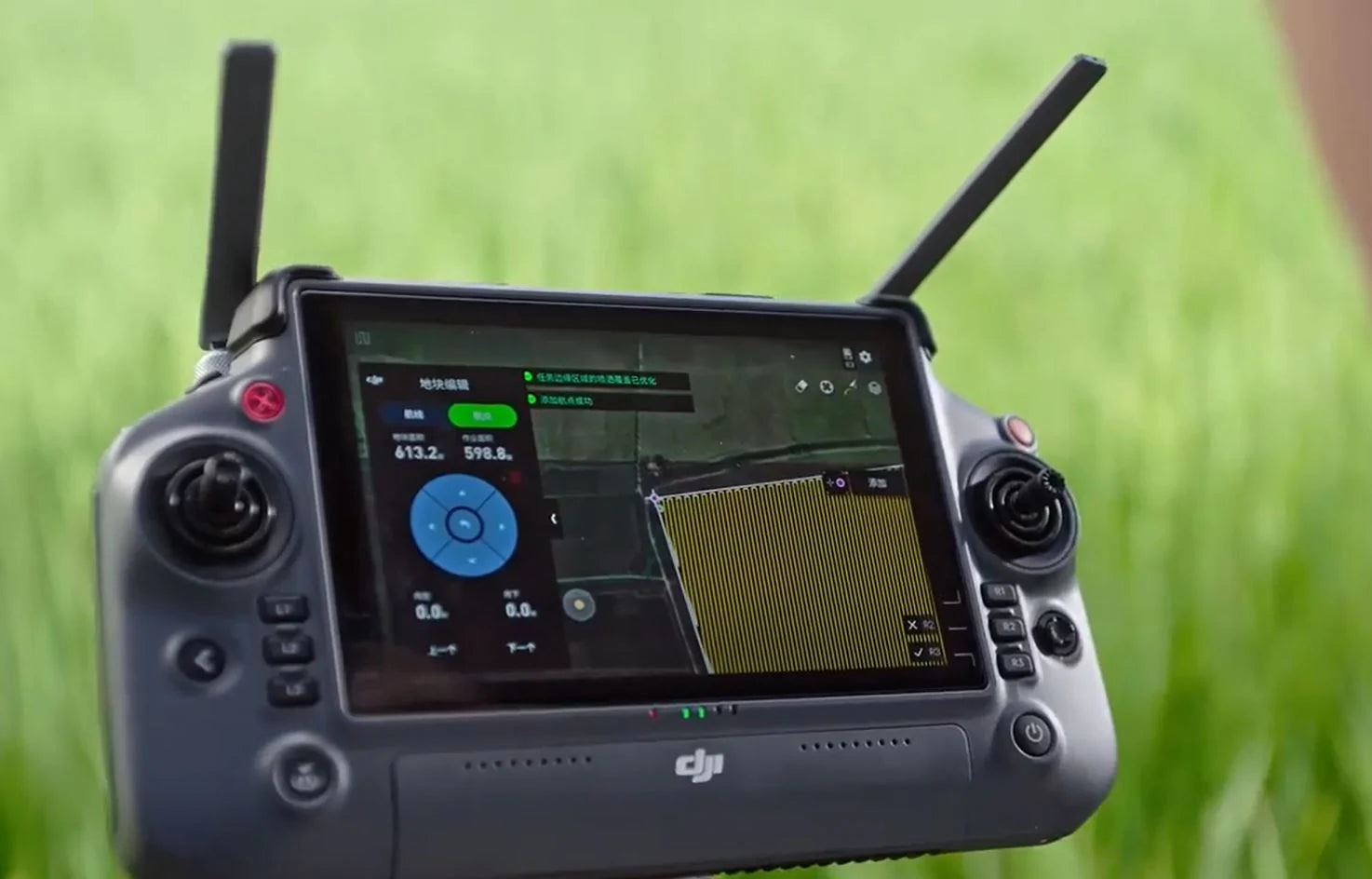

Intelligent Remote Controller
Model

RM700

O3 Pro Operating Frequency

2.4000 to 2.4835 GHz

5.725 to 5.850 GHz
O3 Pro Signal Effective Distance

SRRC: 5 km

MIC/KCC/CE: 4 km
FCC: 7 km
(aircraft altitude at 2.5 m in an unobstructed environment with no interference)
Wi-Fi Protocol

WIFI 6

Wi-Fi Operating Frequency

2.4000 to 2.4835 GHz

5.150 to 5.250 GHz
5.725 to 5.850 GHz
Bluetooth Protocol

Bluetooth 5.1

Bluetooth Operating Frequency

2.4000-2.4835 GHz

Location

GPS + Galileo + BeiDou

Display Screens 7.02-inch touch LCD with 1920*1200 resolution and 1200cd/m brightness
Supported Aircraft

AGRAS T40, AGRAS T20P

Operating temperature

-20°C to 50°C (-4°F to 122°F)

Storage Temperature Range

-30°C to 45°C (within one month)

-30°C to 35°C (between one month and three months)
-30°C to 30°C (between three months and one year)
Charging Temperature

5° to 40°C (41° to 104°F)

Internal Battery Life

3.3 hours

External Battery Life

2.7 hours

Charging Type

Use a USB-C charger with a maximum rated power and voltage of 65 W and 20 V. The DJI Portable Charger is recommended.

Charging Time

Two hours for both internal and internal plus external batteries (to use the official charging method when the aircraft is off)

T40 Intelligent Flight Battery
Model

BAX601-30000mAh-52.22V

Weight

Approx. 12 kg

Capacity

30000 mAh

Voltage

52.22 V

D12000iE Multifunctional Inverter Generator
Output Channel 1. DC charging output 42-59.92V/9000W
2.Power supply for air-cooled heat sink 12 V/6 A
3.AC output 230V/1500W or 120V/750W
Battery Charging Time

To fully charge one battery (T40 battery) takes 9-12 mins

Fuel Tank Capacity
30 L
Starting Method

Starting the Generator via the One-Button Start Switch

Max Power of Engine

12000 W

Fuel Type

Unleaded gasoline with RON ≥91 (AKI ≥87) and alcohol content less than 10%

(*Brazil: unleaded gasoline with RON ≥ 91 and alcohol content of 27%)
Reference Fuel Consumption

500 ml/kWh

Engine Oil Model

SJ 10W-40


The DJI Agras T40 Spraying, Seeding & Mapping Drone

ONE for ALL

HIGH CAPACITY | LONG TERM SERVICE | SPRAYING EFFICIENCY

  • T40 7.9 GAL (10.5L) SPRAYING DRONE
  • Coaxial Twin Rotor = Massive Increase in Payload
  • Dual Atomization for Even Spraying
  • Enhanced Spreading Efficiency for Superior Performance
  • Omnidirectional Obstacle Sensing
  • Mapping, Spraying and Spreading ALL in One
  • Fully Enhance Remote Control for smoother and faster mapping
  • Robustly Tested for Ultimate Reliability
  • Ultra Fast Charging
  • DJI Agras Intelligent Cloud

In The Box

Ready to Fly Kit

  • 1x DJI T40 Drone
  • 1x Spray System
  • 1x Charging Station
  • 1x RC plus Controller
  • 2x Flight Batteries

Productivity Kit

  • 1x DJI T40 PRODUCTIVITY KIT
  • 4x T40 Intelligent Batteries
  • 1x T40 Smart Charging Station (ACDC)
  • 1x T40 Spreading Accessory (v3.0)
  • 1x Virtual Training
  • 1x Assembly & Maintenance Tools
  • 1x Operator's e-manual
  • INCLUDES EXCLUSIVE BENEFITS
  • U.S. Based Spray Drone Experts
  • U.S. Based Technical Support
  • 24/7 Online Support Porta

Productivity MAX Kit

  • 1x DJI T40 PRODUCTIVITY KIT (U.S. ONLY)
  • 4x T40 Intelligent Batteries
  • 1x T40 Smart Charging Station (ACDC)
  • 1x T40 Spreading Accessory (v3.0)
  • 1x T40 Spare & Wear Parts Kit
  • 1x Drone Protection Plan covers up to $35k hardware 24-Months $750 deductible
  • 1x 2-Day PRO Flight Training (in-person Florida)
  • 1x Assembly & Maintenance Tools
  • 1x Operator's e-manual
  • INCLUDES EXCLUSIVE BENEFITS
  • U.S. Based Spray Drone Experts
  • U.S. Based Technical Support
  • 24/7 Online Support Portal
