DJI Agras T50 Agricultural Unmanned Aerial Drone Vehicle

DJI Agras T50 Agricultural Unmanned Aerial Drone Vehicle

$17,999.00
$17,999.00
Sale Sold out
Customizable
Fast
24/7 Support

DJI Agras T50- Agricultural Unmanned Aerial Vehicle/Drone

DESCRIPTION

The T50 agricultural unmanned aerial vehicle continues the powerful coaxial dual-rotor power system, and adopts a split anti-torsion fixed structure with higher strength. Equipped with dual atomization spraying system, front and rear phased array radar and binocular vision system, it integrates aerial survey and flight defense, bringing you more stable operation guarantee and better operation effect.

FEATURES

  • Field Work: 59.3 Acres Per Hour

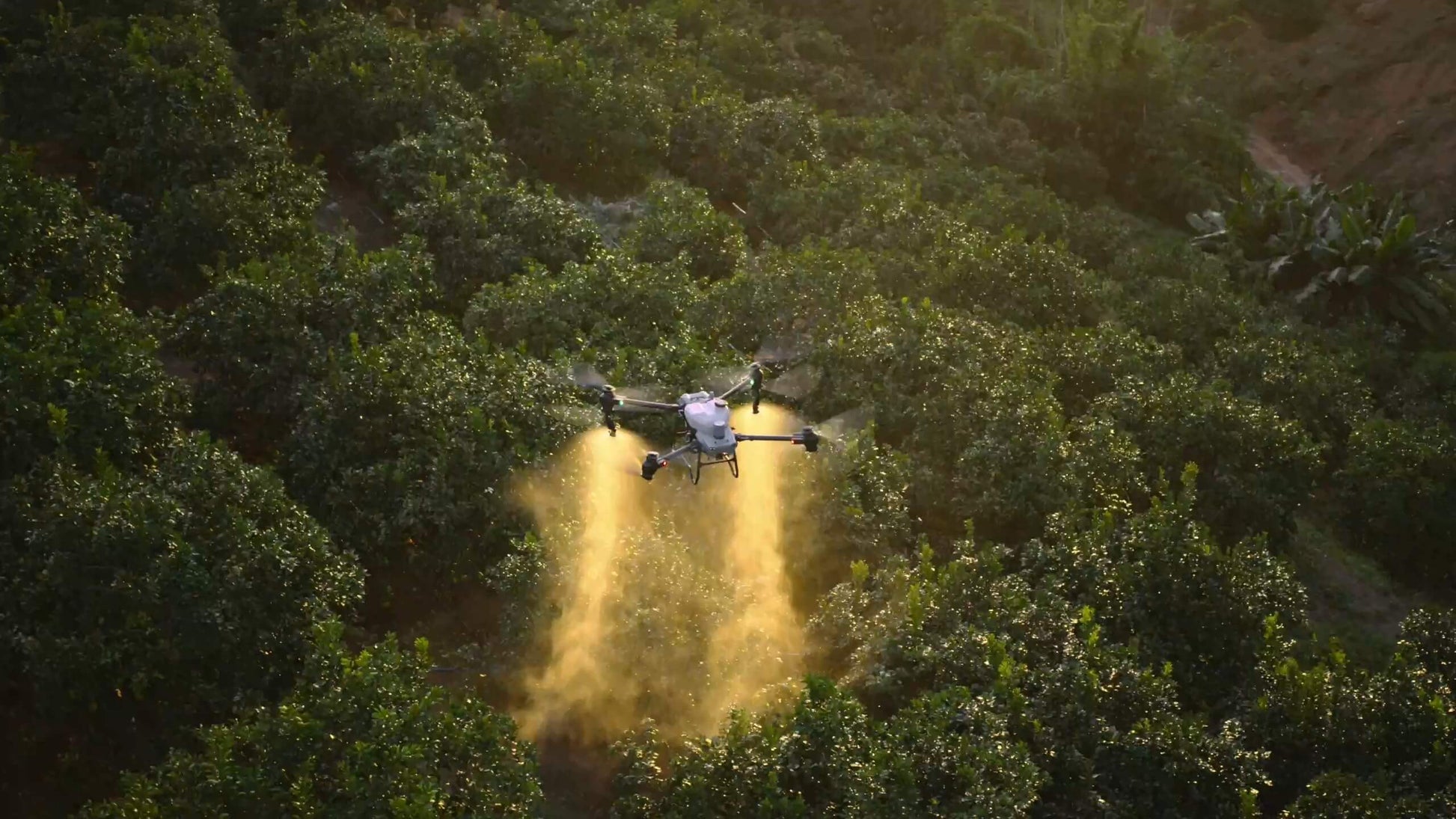

  • Fruit Tree Work: 11.8 Acres Per Hour
  • Seeding Operations: 1.5 Tons Per Hour
  • Magnetic Drive Impeller Pump
  • Double Atomizing Centrifugal Nozzles
  • Brand New Solenoid Valve
  • The T50 has been upgraded to two sets of active phased array radars, two sets of binocular vision, and a dual atomization spraying system, which integrates functions of aerial survey and flight defense.
  • The T50 is equipped with a seven-inch remote controller screen, which supports intelligent route planning and a transmission distance as far as 2 km.
  • Weighing 52kg, the T50 supports the spreading of a 50kg load and spraying a 40kg load, with a 2200mm maximum wheelbase, 16 L/min spraying and 108 kg/min sowing.

    SPECIFICATION

    AIRCRAFT

    Total Weight

    • 52 kg (including battery)
    • 39.9 kg (excluding battery)

    Max takeoff weight103 kg (near sea level)Accuracy

    • with good GNSS signal, Using RTK positioning: Horizontal: ±10 cm, Vertical: ±10 cm
    • Without using RTK positioning: Horizontal: ±60 cm, Vertical: ±30 cm

    GPS systems

    • RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2
    • GNSS: GPS L1, BeiDou B1I, GLONASS F1, Galileo E1, QZSS L1

    Dimensions

    • Wings open, fan blades open: 2800×3085×860 mm
    • Wings open, fan blades folded: 1590×1900×860 mm
    • Wings folded, fan blades folded: 1115×760×900 mm

    Maximum Wind Resistance6m/s



    The DJI Agras T50 Spraying, Seeding & Mapping Drone

    DJI's Ultimate Agriculture Drone

    HIGH CAPACITY | AWESOME EFFICIENCY | ROTARY ATOMIZATION

    • T50 40L (upgradeable to 50L with optional Orchard Kit)
    • Coaxial Twin Rotor = Massive Increase in Payload
    • Dual Atomization for Even Spraying
    • Enhanced Spreading Efficiency for Superior Performance
    • Omnidirectional Obstacle Sensing
    • Mapping, Spraying and Spreading ALL in One
    • Fully Enhance Remote Control for smoother and faster mapping
    • Robustly Tested for Ultimate Reliability
    • Ultra Fast Charging
    • DJI Agras Intelligent Cloud

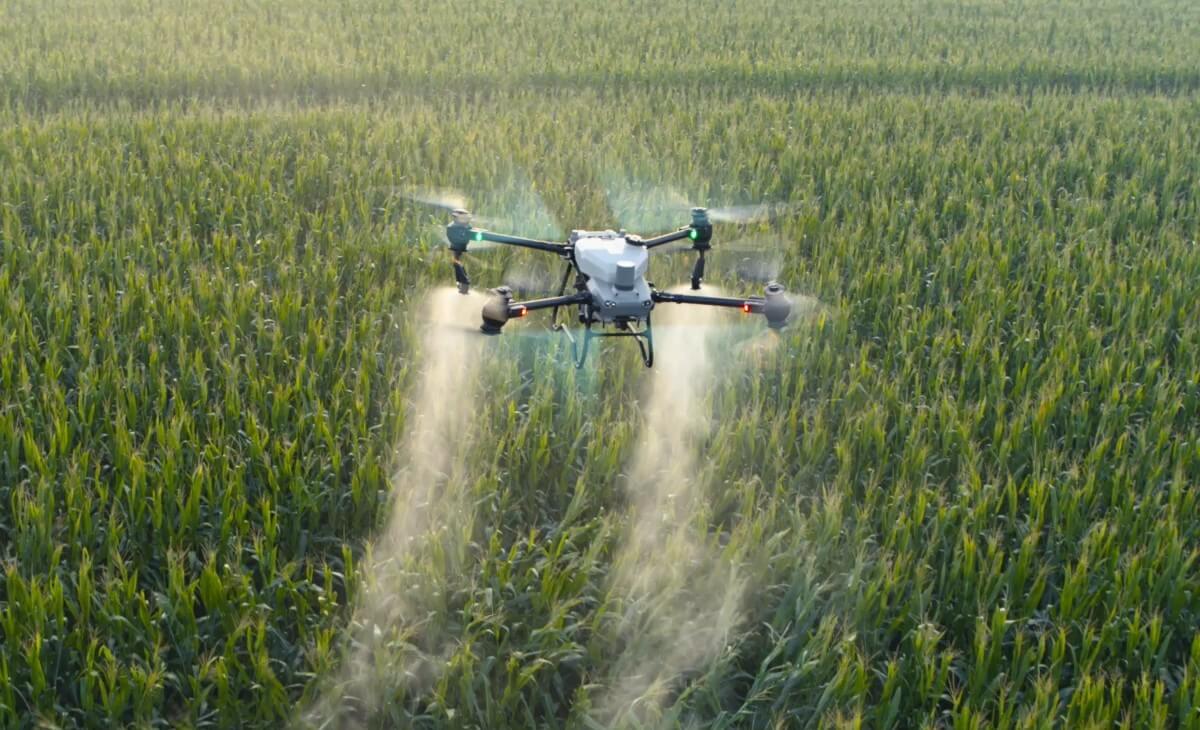

    Spray System

    • 10.5-gallon liquid tank designed to empty in under 3 minutes
    • Estimated 36-foot swath with pattern consistency across the entire swath
    • Up to four rotary style nozzles spray through centrifugal force rather than pressure, making
      adjusting droplet size as easy as clicking a button
    • Magnetic drive impeller pump with up to 6.34 gal/min (4 nozzles) and 4.23 gal/min (2
      nozzles)
    • Live level meter, in addition to on-board scales, provide readings of the remaining volume of
      liquid in tank signaling time remaining in field

    Spreader System

    • 19.8-gallon spreader tank designed to hold 110 lbs of granular material
    • Get higher spreading efficiency with the spiral channel spinner disk
    • A jam-free, high-torque spreading motor

    Efficiency & Operations

    • Improved terrain following ability with up to 50° in spraying/spreading missions
    • 2 sets of binocular vision and 2 omnidirctional
      radars helping to achieve maximum efficiency
      terrain following and obstacle bypassing
    • 12 mega-pixel camera with adjustable angles
      for a smooth and crisp view
    • 4 aircraft image transmission antennas
    • Complete mapping capabilityWhole field coverage - up to 50 acres per hour
      at 2 GPA
    • Up to 5 gal/acre while still maintaining 32 ft/sec with a swath of 32 feet
    • Ability to operate continuously with 3 batteries, 1 charger and a generator on site



    IN THE BOX

    Just Drone

    •  1 - Agras T50

    Ready To Fly Kit

    •  1 - Agras T50
    • 2 - DB1560 Intelligent Battery 1 - DJI RC Plus remote
    • 1 - Charging Station
    • 1 - Carrying Case
    • 1 - Spray Tank
    • 1 - Spreading System
    • 8 - Propellers
    • 1 - Weight Sensor Harness
    • 1 - User Manual
    • 1 - FCC Compliance
