DJI

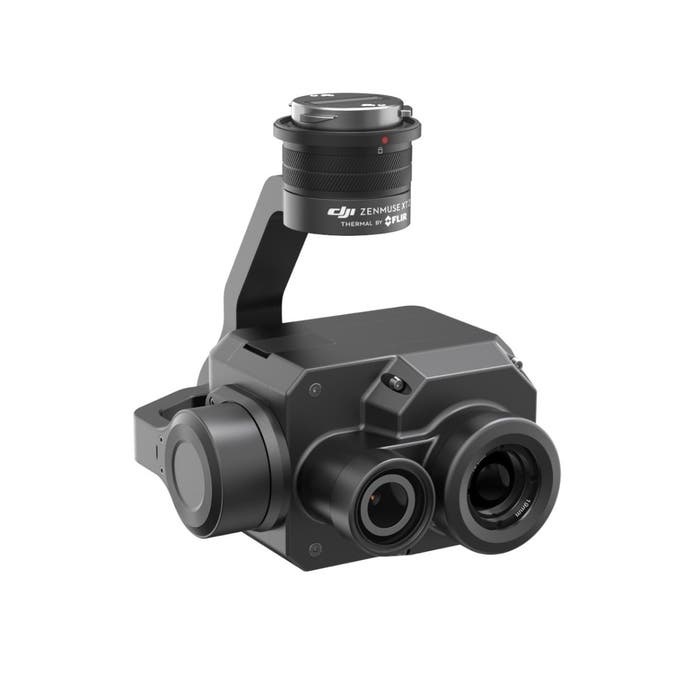

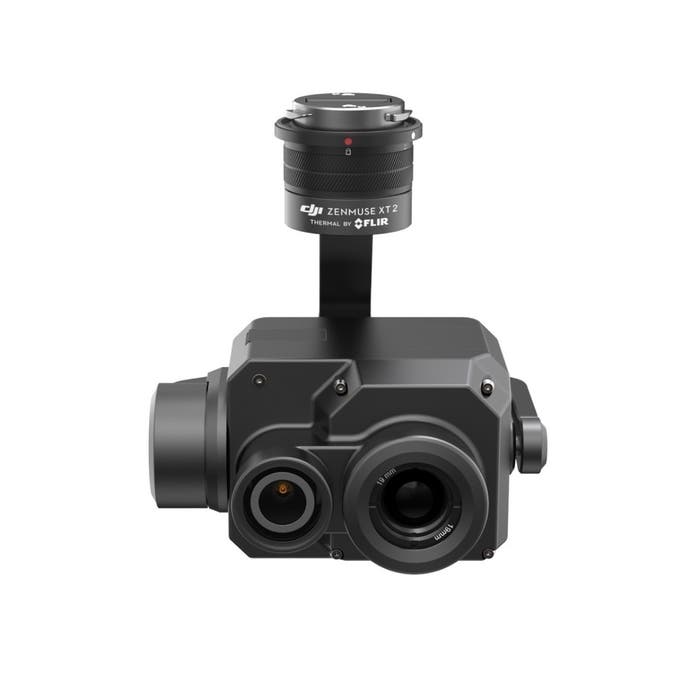

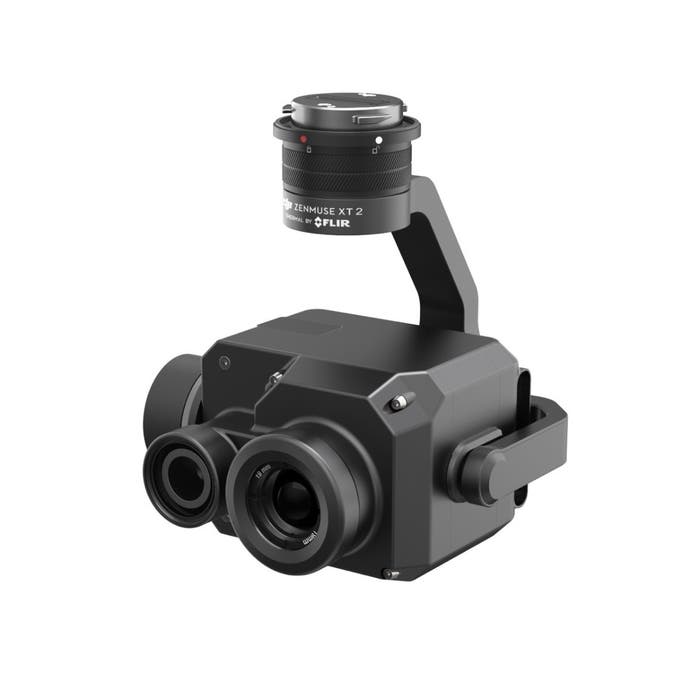

DJI Zenmuse XT2 R 336 9mm (30hz)

DJI Zenmuse XT2 R 336 9mm (30hz)

$6,300.00 USD
$6,300.00 USD
Sale Sold out
Shipping calculated at checkout.

DJI Zenmuse XT2 R 336 9mm (30hz)

DESCRIPTION

Superior intelligence and double vision with DJI Zenmuse XT2 R

The XT2 represents the cutting-edge of commercial drone solutions, offering dual vision and superior intelligence. By combining FLIR Tau 2 thermal sensor and 4K visual camera with DJI's exceptional stabilization and machine intelligence technology, the XT2 facilitates the rapid conversion of aerial data into actionable insights, resulting in significant savings in time, resources, and human lives. This drone solution belongs to the next generation of commercial drone solutions, providing unprecedented levels of performance and value.

SPECIFICATION

GENERAL

Name

Zenmuse XT2

Dimensions

With 25 mm lens: 123.7×112.6×127.1 mm
With other lens: 118.02×111.6×125.5 mm

THERMAL CAMERA

Thermal Imager

Uncooled VOx Microbolometer

FPA/Digital Video Display Formats

640×512
336×256

Digital Zoom

640×512: 1x, 2x, 4x, 8x
336×256: 1x, 2x, 4x

Pixel Pitch

17 μm

Spectral Band

7.5-13.5 μm

Full Frame Rates

30 Hz

Exportable Frame Rates

<9 Hz

Sensitivity (NEdT)

<50 mk @ f/1.0

Scene Range (High Gain)

640×512: -25° to 135℃
336×256: -25° to 100℃

Scene Range (Low Gain)

-40° to 550℃

File Storage

MicroSD card*

Photo Format

JPEG, TIFF, R-JPEG

Video Format

8 bit: MOV, MP4 14 bit: TIFF Sequence, SEQ**

IMAGE PROCESSING & DISPLAY CONTROL

Image Optimization

Yes

Digital Detail Enhancement

Yes

Polarity Control (Black Hot/ White Hot)

Yes

GIMBAL

Angular Vibration Range

±0.01°

Mount

Detachable

Controllable Range

Tilt: +30° to -90°
Pan: ±320°

Mechanical Range

Tilt: +45° to -130°
Pan: ±330°
Roll: -90° to +60°

Max Controllable Speed

Tilt: 90°/s
Pan: 90°/s

VISUAL CAMERA

Sensor

1/1.7" CMOS
Effective Pixels: 12 M

Lens

Prime lens
Focus at 8 mm
FOV 57.12°× 42.44°

Digital Zoom

1x, 2x, 4x, 8x

Photo Formats

JPEG

Video Formats

MOV, MP4

Video Resolutions

4K Ultra HD: 3840×2160 29.97p
FHD: 1920×1080 29.97p

Working Modes

Capture, Record, Playback

Still Photography Modes

Single Shot
Burst Shooting(3/5 frames)
Interval (2/3/4/7/10/15/20/30 sec)

Video Caption

Supported

Anti-flicker

Auto, 50 Hz, 60 Hz

Storage

MicroSD card
Max capacity: 128 GB. UHS-3 required
Recommended model: Sandisk Extreme 16/32 GB UHS-3 microSDHC
Sandisk Extreme 64/128 GB UHS-3 microSDXC

Supported File System

FAT 32 (≤32GB), exFAT (>32GB)

IMAGE PROCESSING & DISPLAY CONTROL

Color & Monochrome Palettes (LUT)

Yes

MODELS – LENS AND RESOLUTION OPTIONS

Thermal Lens Models

9 mm, 13 mm, 19 mm, 25 mm

640×512 FoV, iFoV

N/A, f/1.25 45°×37° 1.308 mr, f/1.25 32°×26° 0.895 mr, f/1.1 25°×20° 0.680 mr

336×256 FoV, iFoV

f/1.25 35°×27° 1.889 mr, f/1.25 25°×19° 1.308 mr, f/1.25 17°×13° 0.895 mr, N/A

Min Focus Distance

3.2 cm, 7.6 cm, 15.3 cm, 30 cm

Hyperfocal Distance

2.1 m, 4.4 m, 9.5 m, 21m

Hyperfocal Depth of Field

1.1 m, 2.2 m, 4.8 m, 11m

Notes

The SD card, which is located near the lens, is used to store TIFF Sequence and SEQ infrared RAW video only. The other format footage will be stored in the other SD card.
*It is recommended to use ImageJ to play the TIFF Sequence video and Flir Tools to play SEQ video

IN THE BOX

  • 1x DJI Zenmuse XT2 R 336 9mm (30hz)
