DESCRIPTION

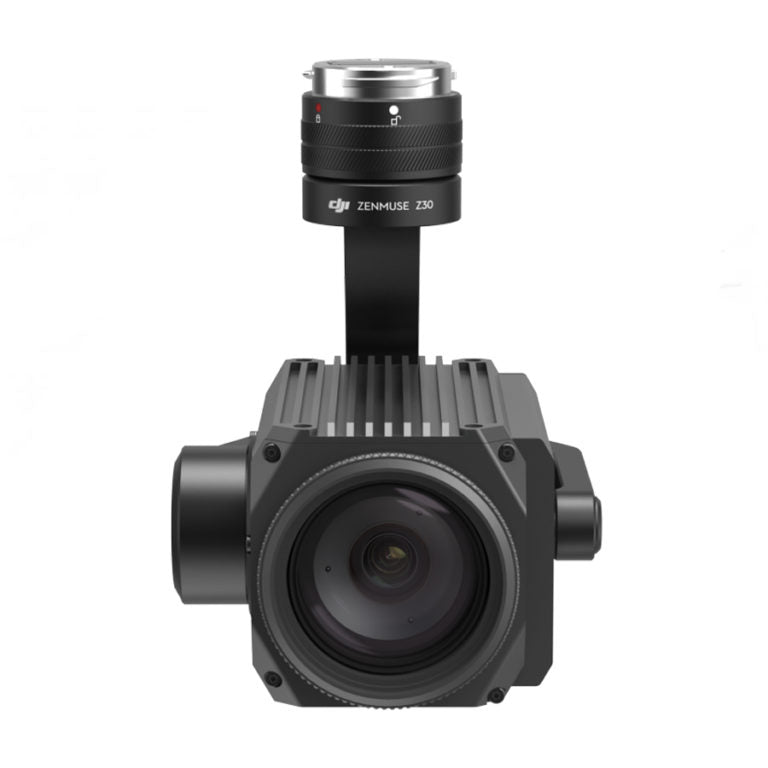

The DJI Zenmuse Z30 is the most powerful integrated aerial zoom camera on the market with 30x optical and 6x digital zoom for a total magnification up to 180x. Whether you are inspecting cell towers or wind turbines, it enables you to get a detailed look at structures, wires, modules and components to inspect and detect damage.
Enterprises are now able to capture the information they require from a greater range, making image data collection significantly faster and eliminating the risk of harm to both personnel and equipment.

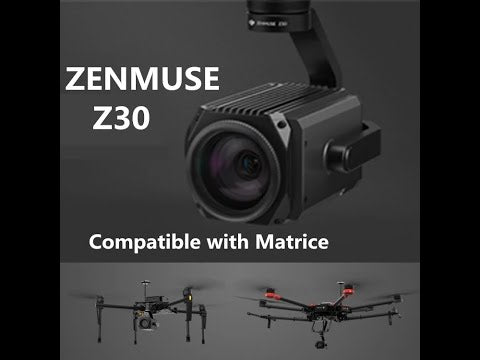

The DJI Zenmuse Z30 is fully compatible with the entire Matrice series including the Matrice 200, Matrice 210, Matrice 210 RTK and the Matrice 600.
SPECIFICATION
General
| Name | Zenmuse Z30 |
|---|---|
| Dimensions | 152×137×61 mm |
| Weight | 556 g |
Camera
| Sensor | CMOS, 1/2.8" Effective Pixels: 2.13 M |
|---|---|
| Lens | 30x Optical Zoom F1.6 (Wide) - F4.7 (Tele) Zoom Movement Speed: - Optical Wide – Optical Tele: 4.6 sec - Optical Wide – Digital Tele: 6.4 sec - Digital Wide – Digital Tele : 1.8 sec Focus Movement Time: ∞ - near: 1.1 sec |
| FOV | 63.7°(Wide) - 2.3°(Tele) |
| Digital Zoom | 6x |
| Min. Working Distance | 10 mm - 1200 mm |
| Photo Formats | JPEG |
| Video Formats | MOV, MP4 |
| Working Modes | Capture, Record, Playback |
| Still Photography Modes | Single shot, Burst shooting: 3/5 frames, Interval (2/3/4/7/10/15/20/30 sec) |
| Exposure Mode | Exposure Mode Auto, Manual, Shutter priority, Aperture priority |
| Exposure Compensation | ±2.3 (1/3 increments) |
| Metering Mode | Center-weighted metering, Spot metering (Area option 12x8) |
| AE Lock | Supported |
| Electronic Shutter Speed | 1/30 – 1/6000 s |
| White Balance | Auto, Sunny, Cloudy, Incandescent, Custom (2000K - 10000K) |
| Video Captions | Supported |
| TapZoom | Supported |
| TapZoom Range | 1-5 |
| Defog | Supported |
| One Key to 1x Image | Supported |
| Anti-flicker | 50 Hz, 60 Hz |
| PAL/NTSC | Supported |
| Supported SD Cards | MicroSD (SD / SDHC / SDXC) Max. Capacity: 64 GB, Class 10 or UHS-1 |
| Supported File Systems | FAT32 (≤ 32 GB) exFAT (> 32 GB) |
