Product Description
Faresin USA Full Electric Telehandler | Model Big Range FR Series | Lift Height 44.6–53.8 ft | Capacity 8,400–9,000 lbs | For Construction & Agriculture
DESCRIPTION

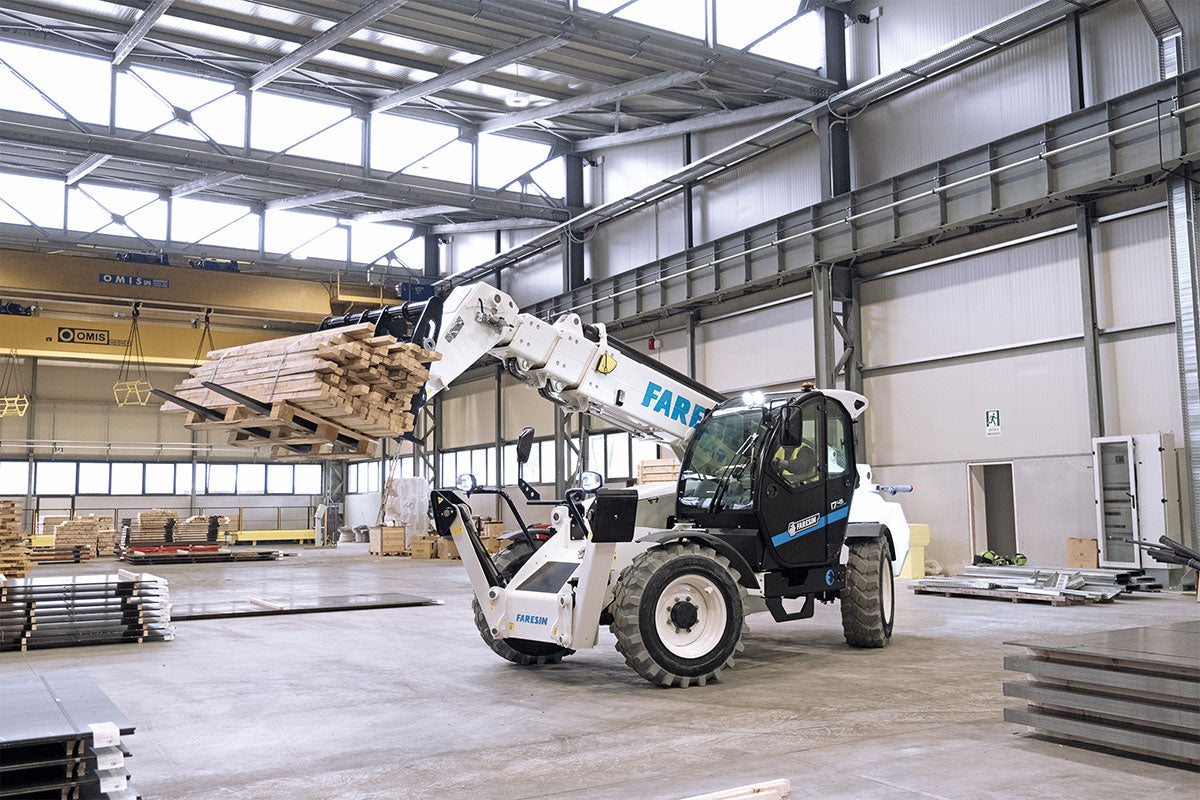

The Faresin USA Big Range Full Electric Telehandler redefines performance in eco-sensitive construction and agricultural environments. With a maximum lifting height of 44.6–53.8 ft and a capacity of up to 9,000 lbs, this machine delivers the same power as traditional endothermic models without emissions. Powered by a 45 kWh lithium-ion battery, it ensures long-lasting efficiency, while advanced regenerative braking optimizes energy use. Designed for versatility, it supports a wide range of attachments, making it ideal for lifting, loading, and site operations. The spacious cabin, intuitive controls, and LED display enhance operator comfort and productivity. Whether on rugged terrain or in regulated zones, the Big Range Full Electric Telehandler is the sustainable solution for heavy-duty lifting at great heights.
Key Features
- Zero-emission performance ensures compliance with eco-sensitive construction and agricultural regulations.
- High lifting capacity up to 9,000 lbs provides reliable strength for demanding site operations.

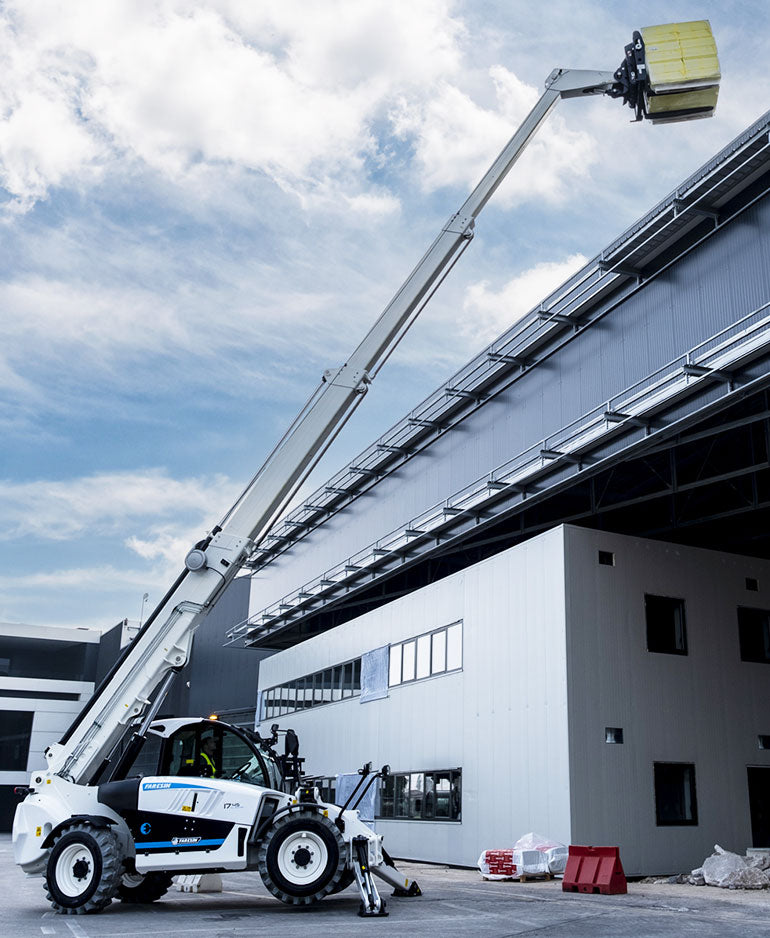

- Extended reach of 44.6–53.8 ft allows safe and efficient handling at great heights.

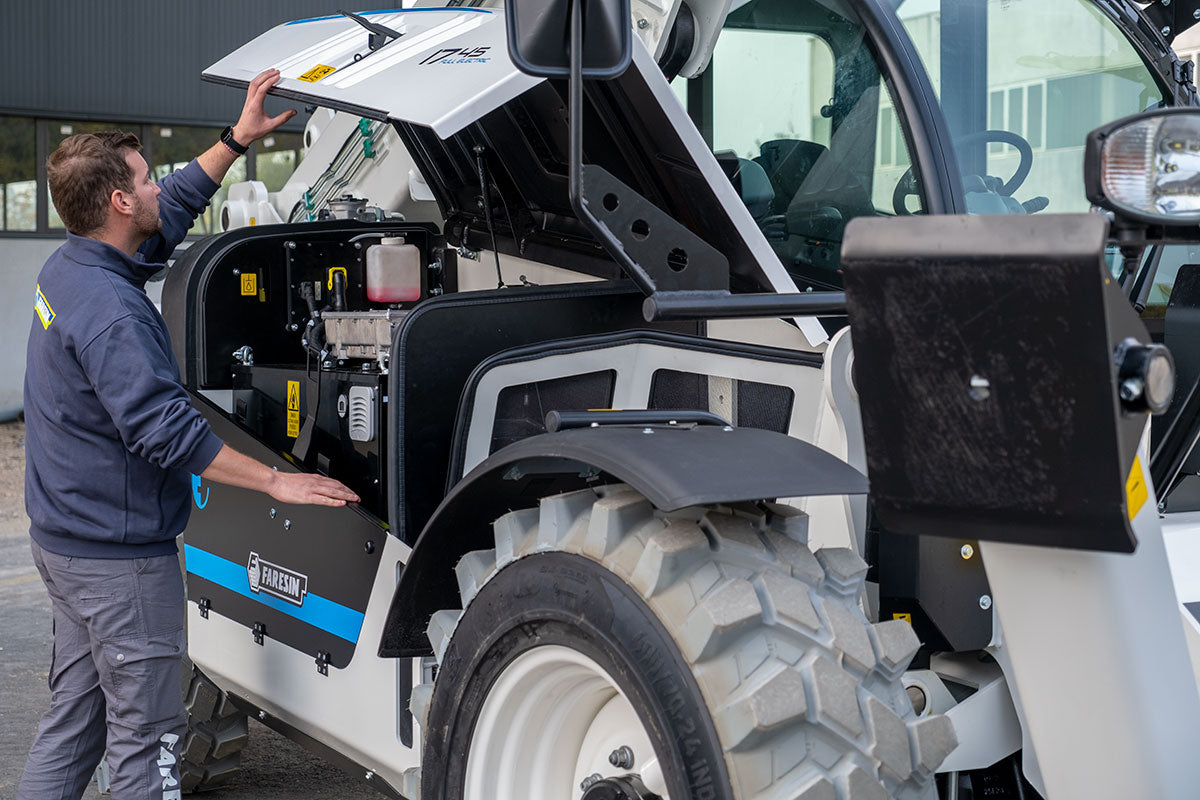

- 45 kWh lithium-ion battery delivers consistent power with optimized energy management.
- Dual electric motors (51 kW + 23 kW) ensure smooth transmission and hydraulic service performance.
- Regenerative braking system maximizes battery life and reduces energy waste during transfers.

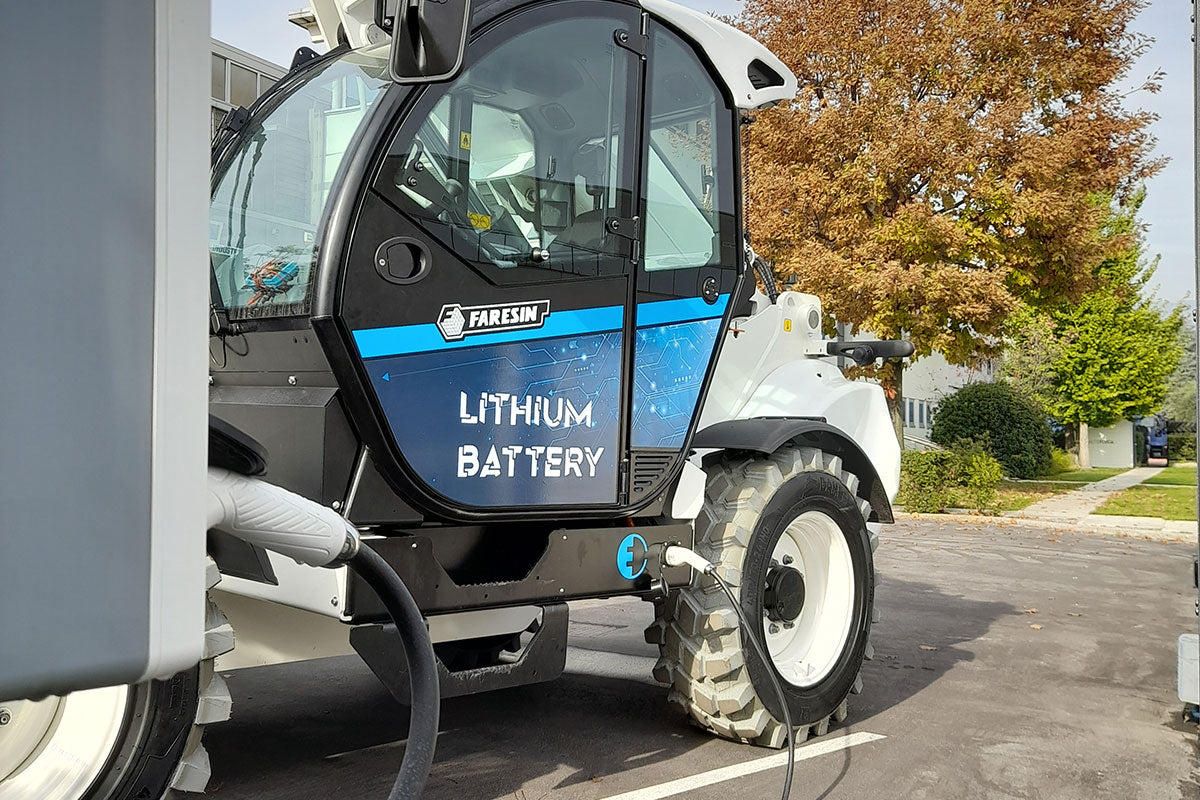

- Universal charging interface supports 220V single-phase, 400V three-phase, and fast charging stations.
- Compact, durable chassis engineered for stability across varied terrain and heavy workloads.
- Wide attachment compatibility with Euro and Faresin tools for construction, industrial, and agricultural use.
- Floating arm technology ensures precise ground-following when using sweepers or blades.
- LED work lights provide clear visibility in low-light or night operations.
- Spacious ergonomic cabin with LED monitor enhances operator comfort and control.
- Two-speed gearbox enables efficient travel with a maximum speed of 15.5 mph.
- Front outriggers and transverse leveling guarantee stability during high-altitude lifts.
- Low turning radius (13.1 ft) improves maneuverability in confined job sites.
Detailed Specifications
| Specification | 14.42 Full Electric | 17.40 Full Electric |
|---|---|---|
| Maximum Capacity | 8,400 lbs | 8,800 lbs |
| Lifting Height | 44.6 ft | 53.8 ft |
| Horizontal Outreach | 32 ft | 41.3 ft |
| Battery Capacity | 45 kWh (105 Ah) | 45 kWh (105 Ah) |
| Transmission Motor | 51 kW (S1) | 51 kW (S1) |
| Hydraulic Services Motor | 23 kW (S1) | 23 kW (S1) |
| Maximum Speed | 15.5 mph | 15.5 mph |
| Hydraulic Flow Rate | 120/250 l/bar | 120/250 l/bar |
| Turning Radius | 13.1 ft | 13.1 ft |
| Swinging Angle | 144° | 144° |
| Boom Sections | 2 | 3 |
| Machine Weight | 25,243 lbs | 26,676 lbs |
| Dimensions (L × W × H) | 20.9 × 7.6 × 8.2 ft | 21.4 × 7.6 × 8.2 ft |
| Wheel Options | 405/70 20 | 405/70 20 |
| Specification | 17.45 Full Electric |
|---|---|
| Maximum Capacity | 9,000 lbs |
| Lifting Height | 53.8 ft |
| Horizontal Outreach | 41.3 ft |
| Battery Capacity | 45 kWh (105 Ah) |
| Transmission Motor | 51 kW (S1) |
| Hydraulic Services Motor | 23 kW (S1) |
| Maximum Speed | 15.5 mph |
| Hydraulic Flow Rate | 120/250 l/bar |
| Turning Radius | 13.1 ft |
| Swinging Angle | 144° |
| Boom Sections | 3 |
| Machine Weight | 26,676 lbs |
| Dimensions (L × W × H) | 21.4 × 7.7 × 8.4 ft |
| Wheel Options | 445/65 R22.5 |
