Product Description
Farm King Conventional Auger | Model 1031 | Tube Width 10" | Wheel track 6' 0" | Electric Horsepower 15 HP | For Tractors
DESCRIPTION

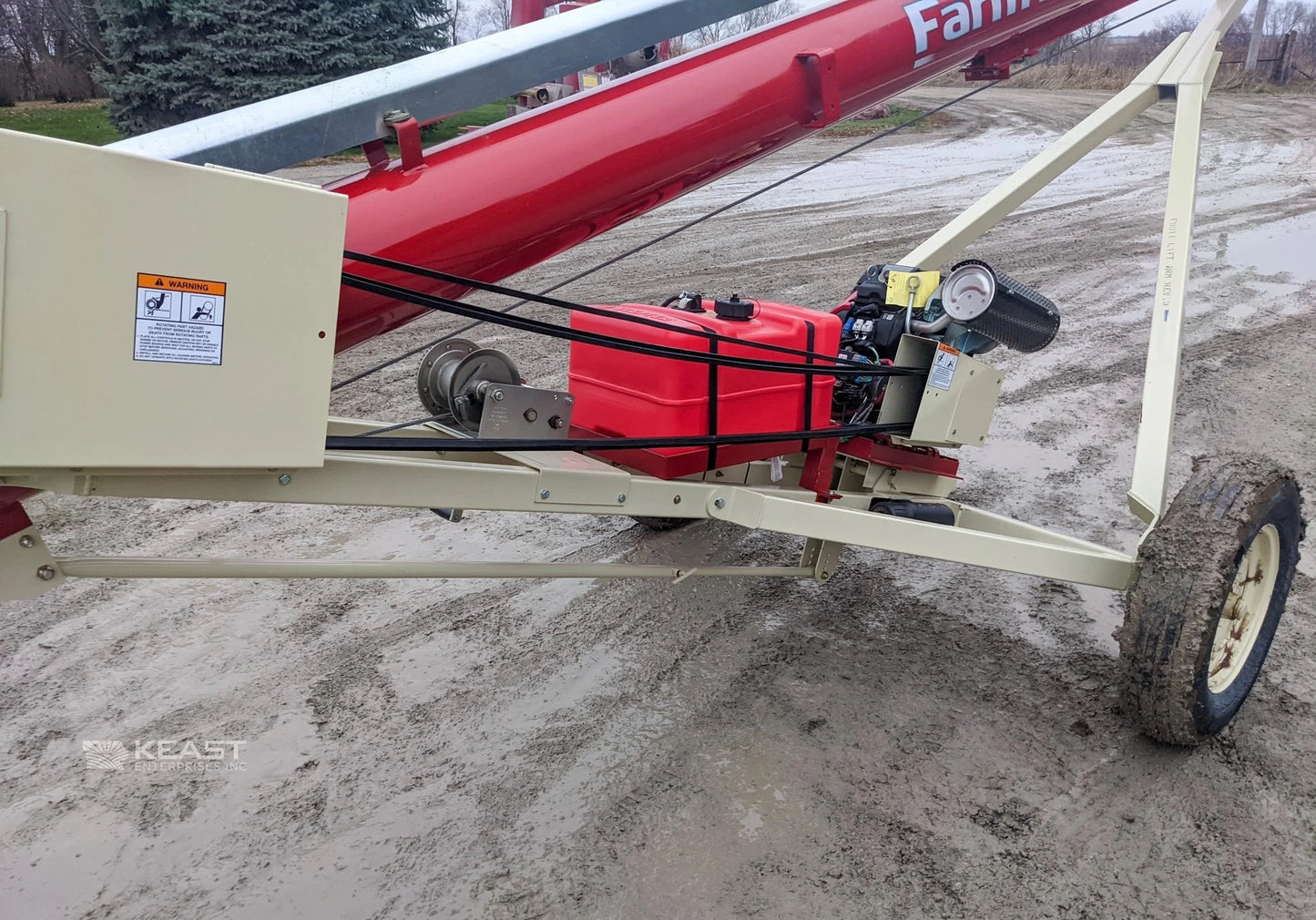

The Farm King Conventional Auger Model 1031 is a rugged, high-capacity grain handling solution designed to meet the demands of modern agriculture. Built with a 10" tube width and 31-foot length, this auger is perfect for farmers who need fast, reliable grain transfer from truck to bin or bin to truck.
With an electric motor power of 15 HP and a wide 6-foot wheel track, the 1031 offers outstanding stability and efficiency. Its reinforced undercarriage, sealed oil bath drive system, and high-flow double flighting intake make it a workhorse in any grain operation.
Whether you're operating a large-scale farm or running a diversified operation, the Farm King 1031 auger brings together strength, precision, and dependability, helping you move more grain with less effort.
Ideal for:
Grain producers, farm operators, co-ops, and commercial grain handlers using tractors with electric power sources looking for mid-length, high-flow auger systems.
Key Features
- Heavy-Duty Grain Auger for Tractors Designed for compatibility with electric-powered tractor setups (15 HP).
- High-Capacity 10" Tube Move more grain, faster, with a wide 10-inch auger tube ideal for high-throughput needs.
- 31-Foot Length for Deep Reach Easily access bins or trucks with tall walls or distant auger ports.
- Reinforced Undercarriage with Wide Wheel Track Provides a stable base, even on uneven terrain.
- Double Flighting Intake Design Increases grain flow and reduces loading time dramatically.
- Left- or Right-Side Drive Options Greater flexibility in tight or awkward loading spaces.
- Sealed Top Drive in Oil Bath Protects components from dust, debris, and moisture—reducing downtime.
- Durable Ductile Cast Gearbox Forged gears and sealed ball bearings for long-lasting performance.
- Triple Belt Drive System Provides consistent torque and power transmission with minimal wear.
- Self-Leveling Engine Mount Maintains tension automatically for optimal belt performance.
- #80 Heavy-Duty Roller Chain Built to withstand the rigors of high-load, high-speed grain transfer.
- Automotive-Style Hubs & Bearings For smooth towing and long-term durability in mobile use.
- Narrow Safety Guard & Removable Hitch Perfect for accessing tight auger ports and safer operation.
- Versatile Drive Configurations Electric motor, gas engine, PTO, and belt drive options available.
- Built for North American Farming Conditions Proven on real farms across the U.S. and Canada.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | Farm King |
| Model | 1031 |
| Product Type | Conventional Grain Auger |
| Tube Width | 10" |
| Tube Length | 31' |
| Wheel Track | 6' 0" |
| Drive Type | Electric Belt/Direct |
| Electric Horsepower | 15 HP (1725 RPM) |
| Gasoline Horsepower | 18 HP (3450 RPM) |
| Electric Belt Pulley | 6" |
| Electric Direct Pulley | 3-1/2" |
| Gasoline Pulley | 3-1/2" |
| Belt Drives | Triple |
| Top Tube Gauge | 14 |
| Flighting Gauge | 7 |
| Flighting Shaft Diameter | 2-3/8" |
| Drive Line Size | 1-3/8" |
| Roller Chain Size | #80 (for 10" model) |
| Compatibility | For Tractors (Electric) |
