Product Description
Gentec Equipment Hydraulic Weld-On Thumb | Model HT618 | Size 6"x18" | Machine Size 1.5-3.9 Tons | For Excavators
DESCRIPTION
The Gentec Equipment Hydraulic Weld-On Thumb (Model HT618) is a robust, heavy-duty attachment built for maximum performance and durability. Ideal for excavators weighing between 1.5 to 3.9 tons, this 6"x18" hydraulic thumb is crafted from high-strength AR400 steel for superior resilience. Its 1/2" thick tines and ladder frame design with gussets ensure outstanding strength, while the double-sealed welded cylinder offers extended reliability for years of use. With a maximum extension angle of 140°, the thumb provides impressive versatility without compromising space, as it stows only 7.5" away from the stick. The greaseable pins further enhance the thumb's smooth operation and longevity. Whether you're working on excavation, landscaping, or other heavy-duty tasks, the HT618 hydraulic thumb is engineered to withstand the toughest conditions and boost your machine’s performance. Maximize your excavator’s potential with the Gentec HT618 thumb your investment in reliability and productivity.
Key Features
- 6" Width, 18" Length Perfect for compact excavators in the 1.5 to 3.9-ton range, offering superior functionality and strength.
- Durable AR400 Steel Tines Constructed from 1/2" thick AR400 steel, providing long-lasting performance even in harsh conditions.
- Hydraulic Operation Operates smoothly and efficiently with hydraulic power, improving flexibility and control in various tasks.
- Double-Sealed Welded Cylinder Enhances reliability and minimizes downtime with a sealed cylinder for continuous, trouble-free operation.
- Greaseable Pins Main and cylinder pins are greaseable, ensuring smooth motion and reducing wear for longer lifespan.

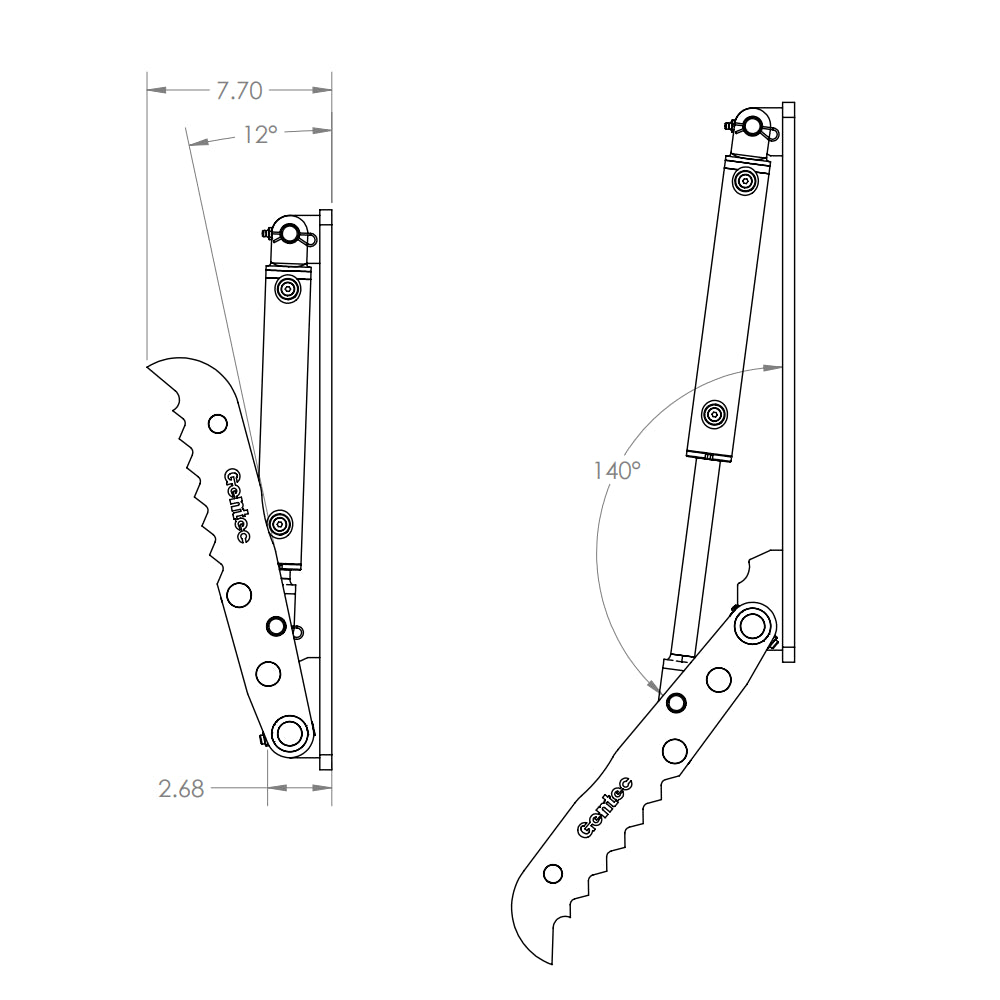

- 140° Maximum Extension Angle Wide range of motion for increased versatility when handling different materials and projects.
- Minimal Stowed Dimensions The tines are only 7.5" away from the excavator stick when retracted, preventing interference during digging.
- Mechanical Lock-Out Prevention Advanced thumb geometry prevents cylinder lock-out during retraction for better protection and smoother operation.
- Easy Installation Designed for weld-on mounting, making it a hassle-free addition to your excavator.
- Compact and Lightweight Weighs just 40 lbs, making it a practical solution for lighter machines in the 1,500 to 3,900 lb range.
- Backplate for Stability Includes a 23 3/8" backplate for added structural integrity and secure attachment.
- Replacement Parts Availability Replacement parts are readily available for easy maintenance and long-term use.
- Enhanced Productivity Designed for excavators, this thumb attachment improves handling and control, allowing for faster, more efficient work.
- Weld-On Mounting Sturdy weld-on installation ensures secure attachment, suitable for rugged and heavy-duty use.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | HT618 |
| Mounting Type | Weld-On |

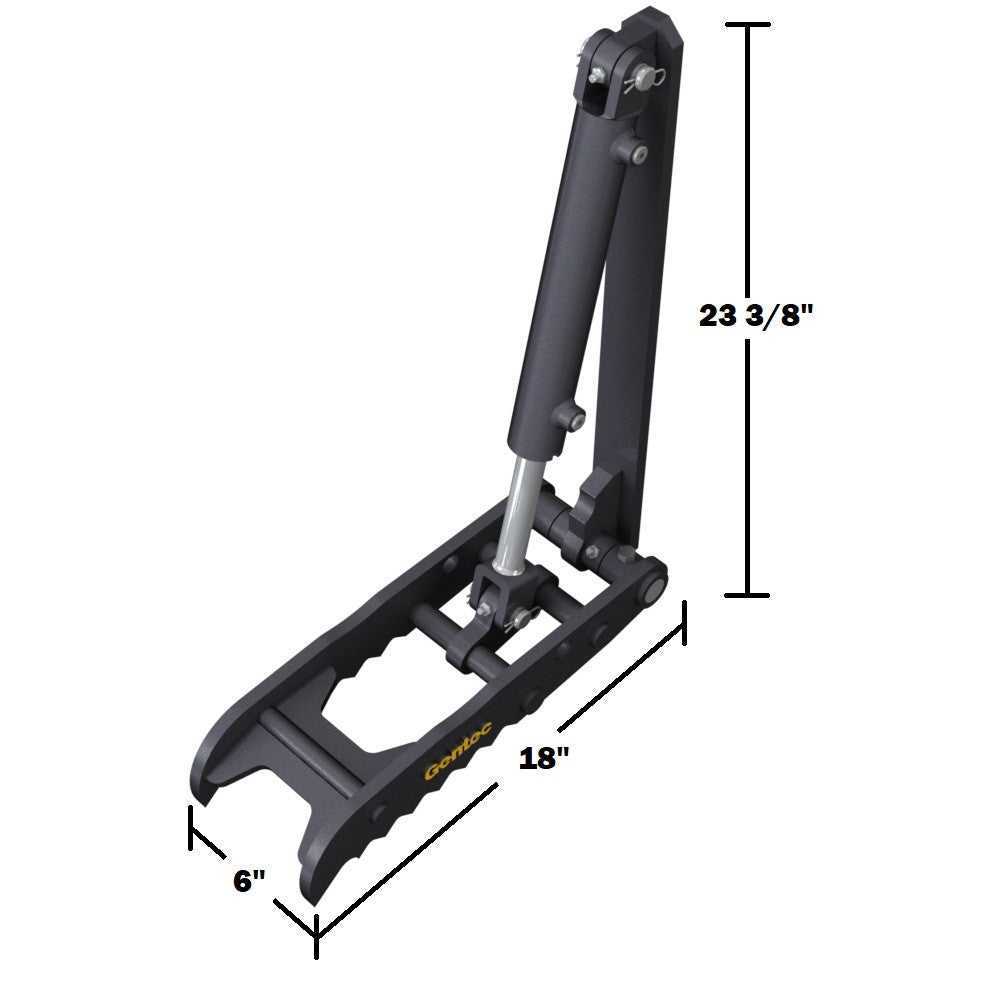

| Width | 6" |
| Length | 18" |
| Operation | Hydraulic |
| Tine Material | Hardox 400 |
| Tine Thickness | 1/2" |
| Backplate Width | 2" |
| Backplate Height | 23.375" |
| Main Pin Diameter | 1" |
| Hydraulic Port Size | SAE-04 (ORB-04) |
| Max. Extension Angle | 140 Degrees |
| Max. Operating Weight | 3,900 lbs |
| Min. Operating Weight | 1,500 lbs |
| Excavator Weight Class | 1,500 lbs to 3,900 lbs |
| Stowed Position Height | 23 3/8" |
| Weight Class (Metric Tons) | 0.6-1.4, 1.5-2.2 |
| Net Weight | 140 lbs |
| Hydraulic Cylinder Included | Yes |
