GKB Sand-Spreader Material Handler | SPM Series | Width 75" & 98" inches | Horsepower 40-70+ HP | For Tractor
DESCRIPTION

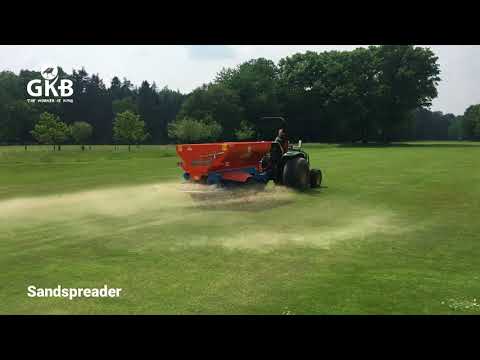

Do you want to spread sand precisely with a clean spread pattern on your sports field? There are several reasons for topdressing during both construction and maintenance. The Sandspreader is the perfect machine to spread different substances evenly over your field.
The SPM Material handler is a basically our Sand Spreader with a conveyor belt. The conveyor belt system helps you to top off sand bunkers on your golf courses and deliver bulk sand precisely and efficiently and where you might need it.
Key Features
- Conveyor Belt Location: Front-mounted for direct material feed and efficient topdressing
- Spreader Type: Hydraulic double spinner system for consistent and even sand distribution
- Adjustable Layer Thickness: Controlled via sand valve, conveyor speed, and spinner settings
- Tires: Four oscillating balloon tires (500/50R 17) for smooth travel and reduced turf compaction
- Dimensions (LxWxH): SPM230: 169.5″ x 75″ x 63″, SPM300: 201″ x 75″ x 63″, SPM400: 201″ x 98″ x 83″
- Weight: SPM230: 2,536 lbs, SPM300: 2,922 lbs, SPM400: 3,473 lbs (including subframe, excluding sand)
- Sand Bucket Capacity: SPM230: 3 cu yd, SPM300: 4 cu yd, SPM400: 5.25 cu yd for extended operation
- Power Requirement: SPM230: > 40 hp, SPM300: > 50 hp, SPM400: > 70 hp—tractor matched by model size
- Hydraulic Requirements: SPM230 & SPM300: 2x double acting valves, 8 gal/min; SPM400: 2x double acting valves, 12 gal/min
- Application: Designed for precision topdressing on sports fields, golf courses, and turf renovation projects
- Precision Sand Spreading: Designed to provide a clean spread pattern, ideal for topdressing sports fields.
- Hydraulic Drive: Both the spinner and conveyor belt are hydraulically driven for optimal distribution and speed control.
- Adjustable Layer Thickness: Customize the spread thickness with a sand valve and adjustable conveyor and spinner speeds.
- Efficient Bulk Delivery: Perfect for topping off sand bunkers on golf courses or delivering bulk sand precisely.
- Optimal Ground Pressure: Equipped with four oscillating balloon tires for minimal ground pressure and better field protection.
- Durable Design: Built to handle various materials and terrains, ensuring long-lasting use.
- Hydraulic Efficiency: Simplifies operation with hydraulic valves that control both spinners and conveyor systems.
Detailed Specifications
| Specification | SPM230" | SPM300" | SPM400" |
|---|---|---|---|
| Conveyor Belt Location | Front of the machine | Front of the machine | Front of the machine |
| Spreader Type | Double spinner, hydraulic driven | Double spinner, hydraulic driven | Double spinner, hydraulic driven |
| Adjustable Layer Thickness | Yes (sand valve, conveyor, spinner) | Yes (sand valve, conveyor, spinner) | Yes (sand valve, conveyor, spinner) |
| Tires | Four oscillating balloon tires 500/50R 17 | Four oscillating balloon tires 500/50R 17 | Four oscillating balloon tires 500/50R 17 |
| Dimensions (LxWxH) | 169.5 x 75 x 63 inches | 201 x 75 x 63 inches | 201 x 98 x 83 inches |
| Weight | 2536 lbs (including subframe, excluding sand) | 2922 lbs (including subframe, excluding sand) | 3473 lbs (including subframe, excluding sand) |
| Sand Bucket Capacity | 3 cubic yards | 4 cubic yards | 5.25 cubic yards |
| Power Requirement | > 40 hp | > 50 hp | > 70 hp |
| Hydraulic Requirements | 2x double acting valve, 8 gal/min | 2x double acting valve, 8 gal/min | 2x double acting valve, 12 gal/min |
