Product Description
Grim Reaper Industries Rock Crushing Head | Model Mark I | Cut Width 72" | Hydraulic Flow Range 20–40 GPM | For Skid Steers
DESCRIPTION

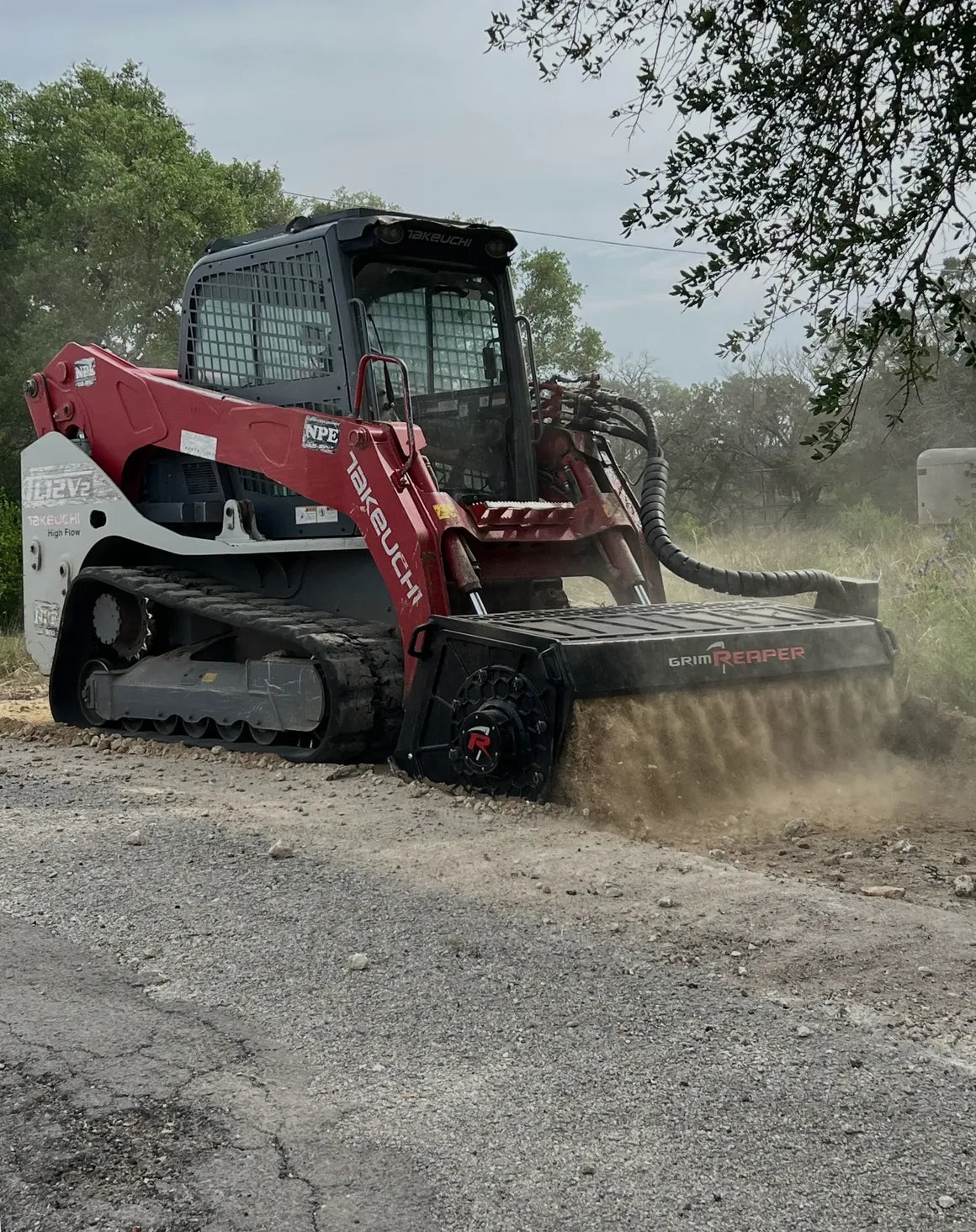

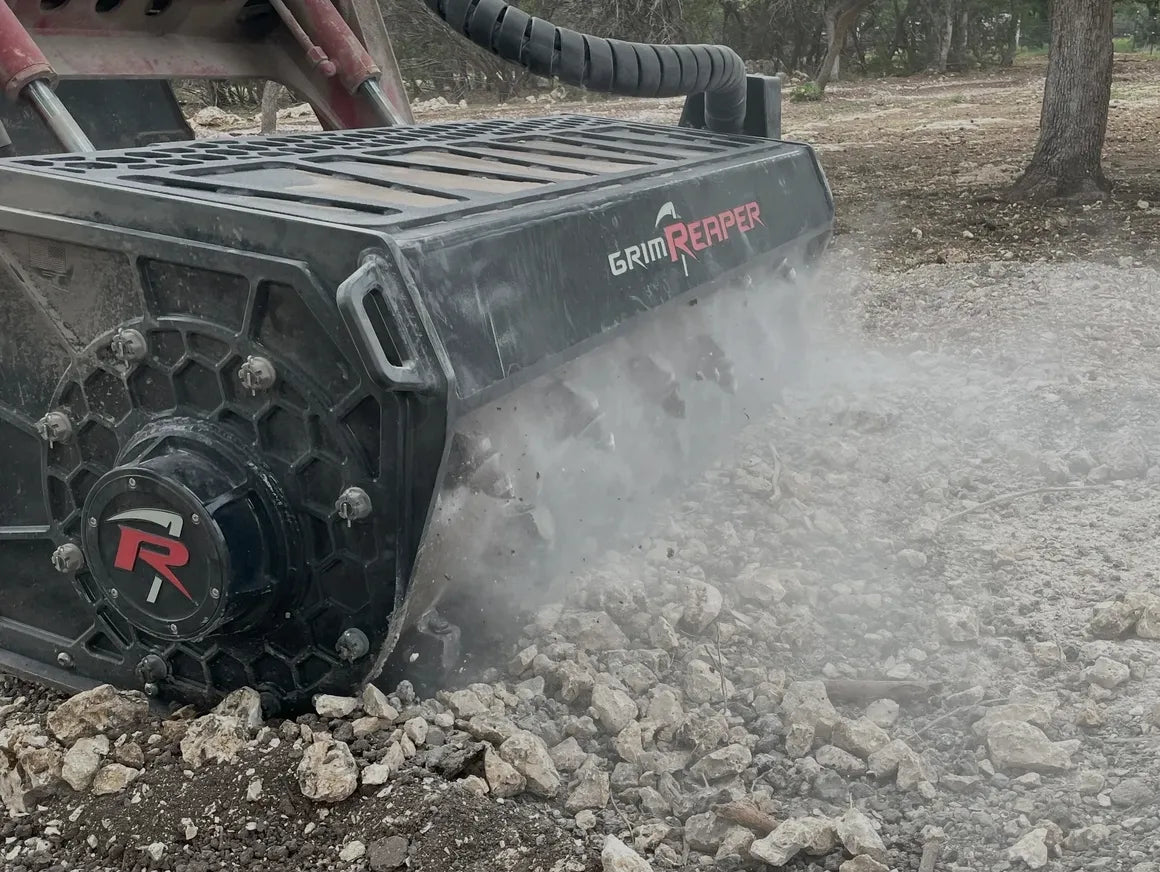

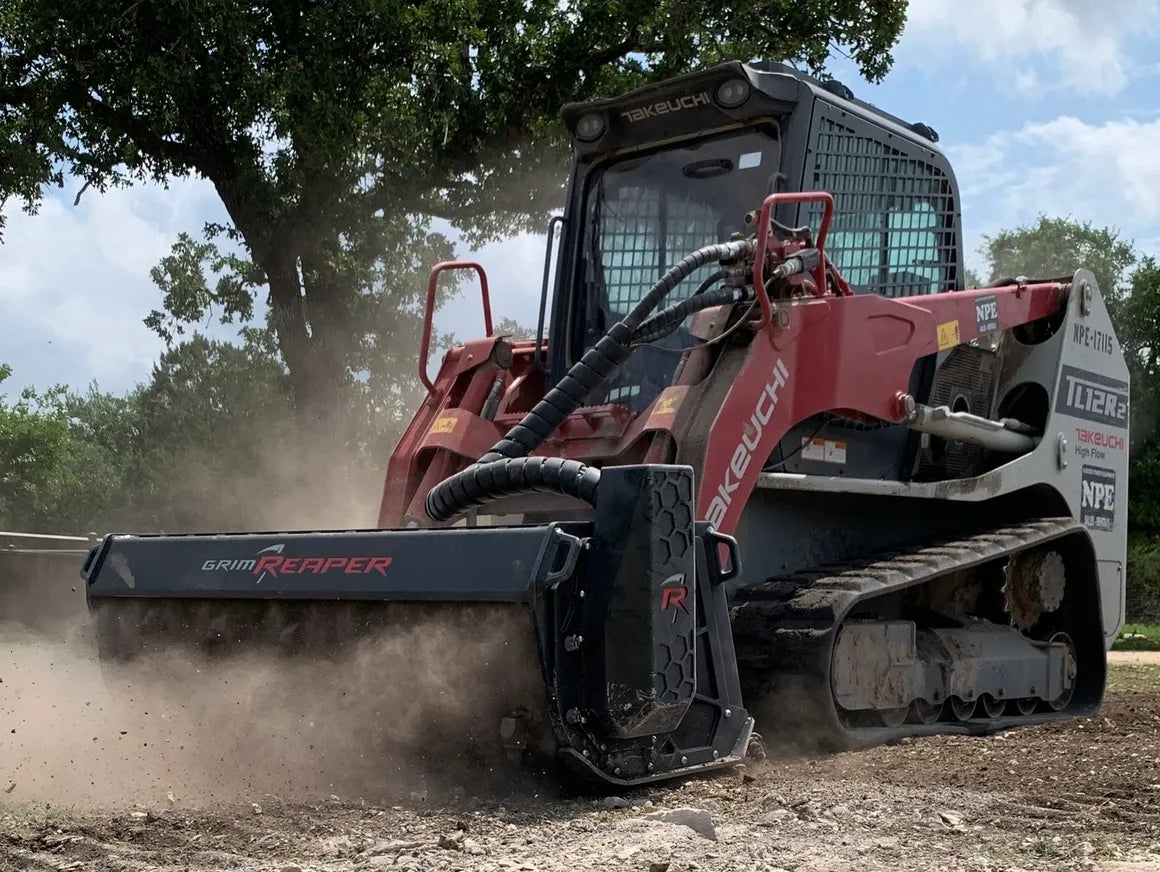

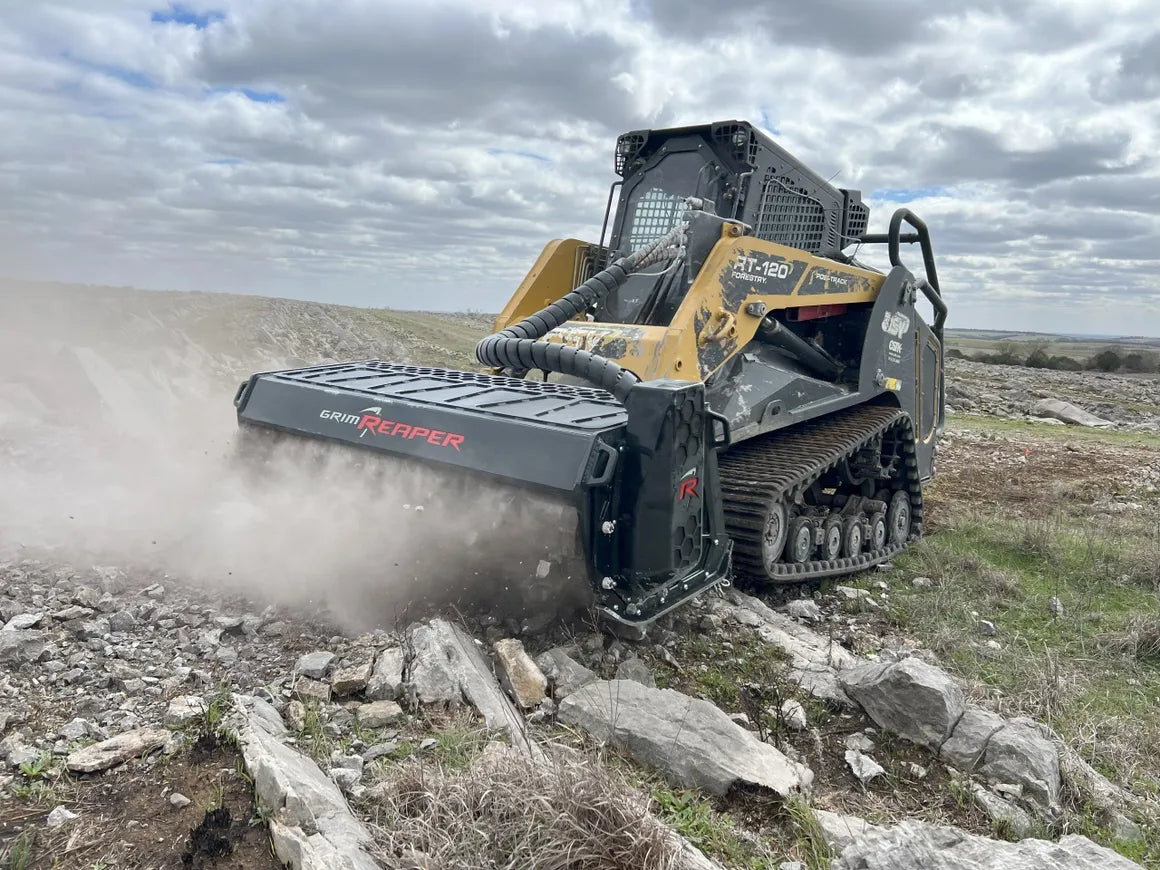

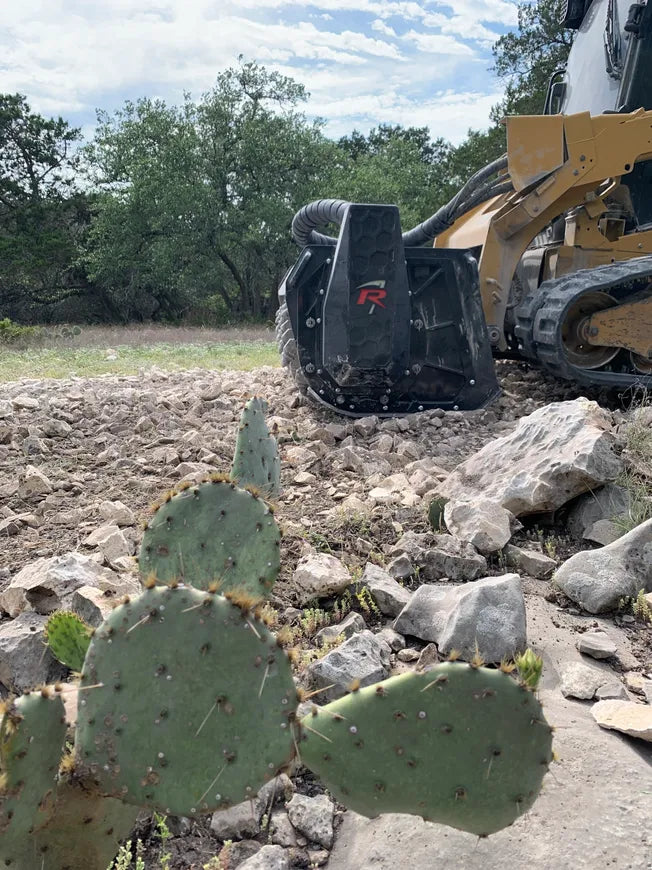

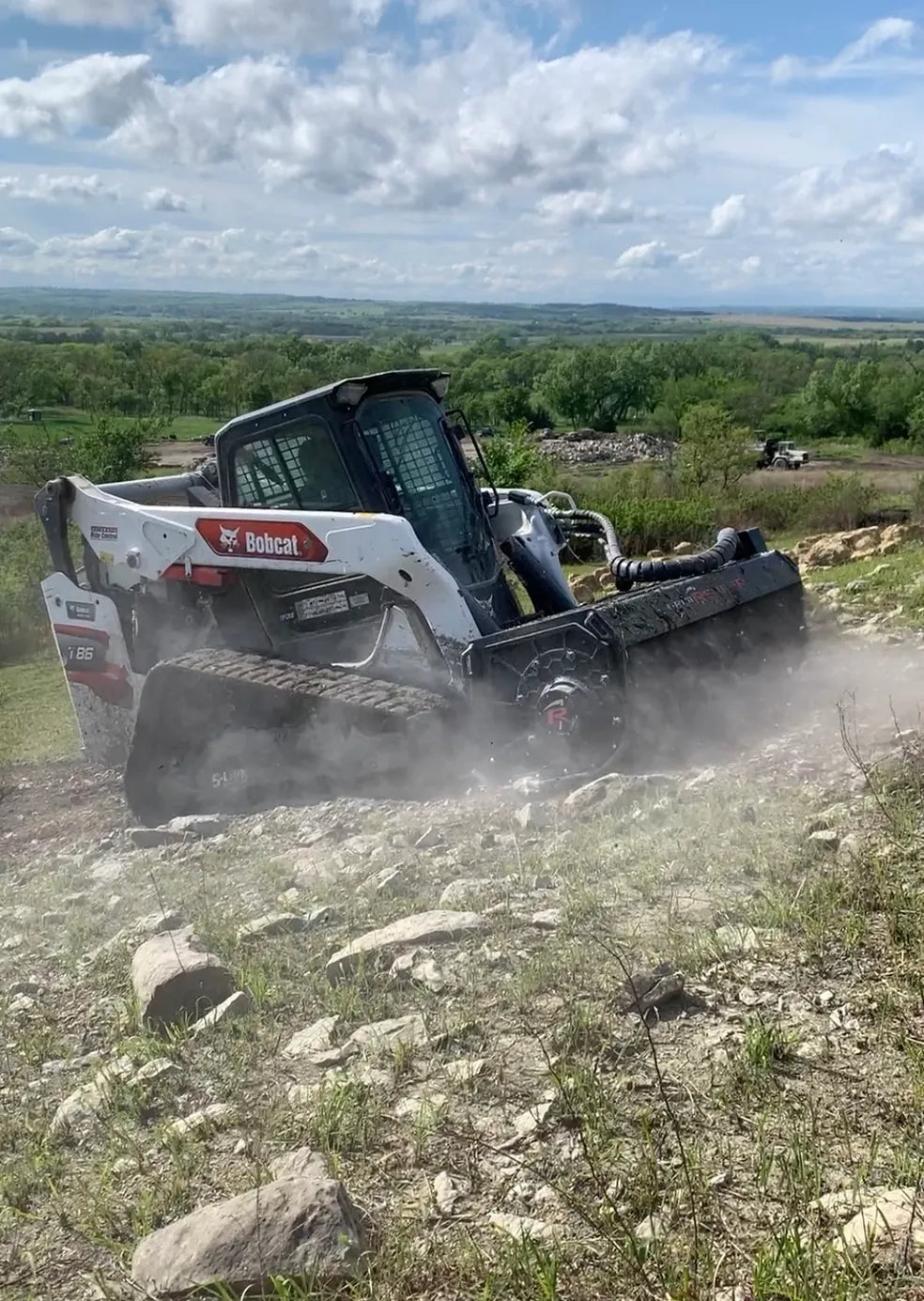

The Grim Reaper Mark I Rock Crushing Head redefines what's possible in skid steer material processing. Boasting the largest cut capacity in its class, the Mark I delivers a 72-inch working width and 2.5-inch below-grade cuts into solid bedrock. With its unique 22-inch unobstructed frontal cut design, no articulation is needed to tackle massive rock formations — even vertical cliff faces fall in minutes. Designed, engineered, and built entirely in the USA, this powerhouse attachment transforms your skid steer into a rock-destroying beast. Whether you're in demolition, excavation, or site prep, the Mark I offers unmatched productivity, durability, and field-tested reliability.
Key Features
- Heavy-Duty 72" Crushing Head: Engineered for extreme rock milling and demolition.
- Fixed Tungsten-Carbide Teeth: 22” frontal cut for precision crushing without articulation.
- High-Flow Hydraulic System: Operates efficiently within 20–40 GPM for optimal torque.
- 2.5″ Below-Grade Cutting Depth: Directly excavates into solid bedrock.
- Fully Enclosed Drive Housing: Protects internal components from debris and harsh environments.
- Universal Skid Steer Mount: Quick-attach ready for seamless installation.
-
Reinforced Steel Frame: Designed for durability in mining and excavation applications.
Detailed Specifications
| Specification | Detail |
|---|---|
| Model | Mark I |
| Mount Type | Universal Skid Steer Quick-Attach |
| Working Width | 72 inches (1829 mm) |
| Frontal Cut Width | 22 inches (559 mm) unobstructed |
| Below-Grade Cutting Depth | 2.5 inches (64 mm) into solid bedrock |
| Hydraulic Flow Range | 20 – 40 GPM |
| Operating Pressure | 3,000 – 4,000 PSI |
| Blade Material | Tungsten-Carbide Teeth |
| Blade Thickness | 1/2" (12.7 mm) Hardened Alloy Steel |
| Drive System | Direct-drive hydraulic motor |
| Motor Type | Heavy-duty axial piston or gear motor |
| Protective Housing | Fully enclosed steel case with debris shielding |
| Length | 84 inches (2134 mm) |
| Height | 30 inches (762 mm) |
| Weight | ~2,950 lbs (1,338 kg) |
| Compatibility | All major skid steer brands (Bobcat, CAT, etc.) |
| Cutting Application | Rock, concrete, cliff face, frozen ground |

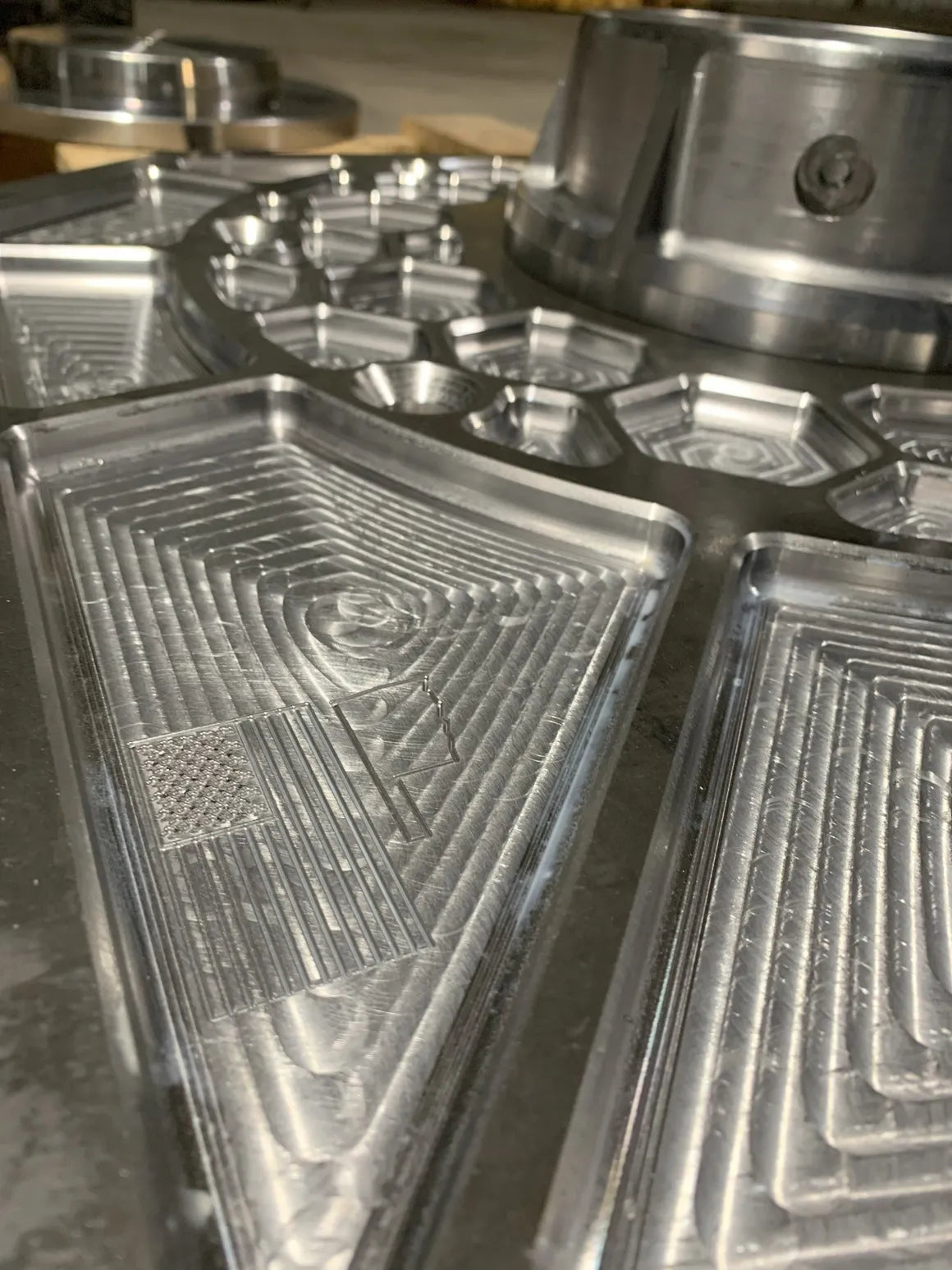

| Construction | CNC-machined, precision-welded, USA-built |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

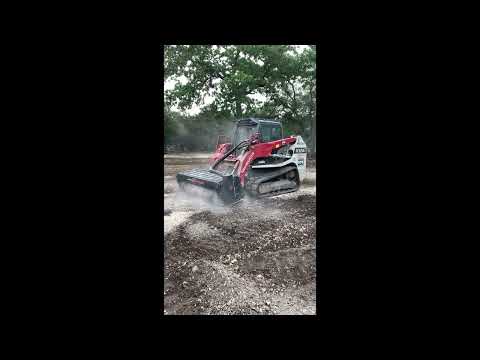

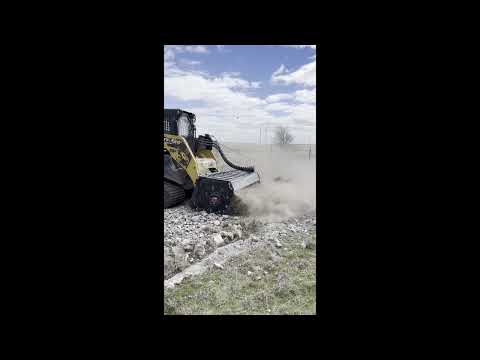

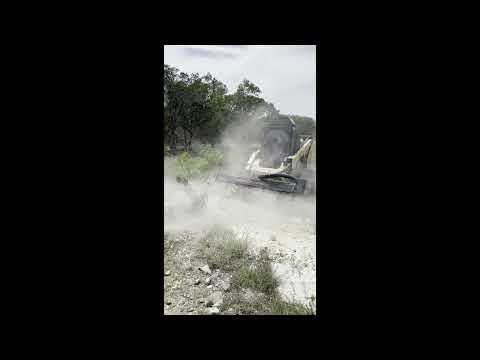

Videos
