Product Description

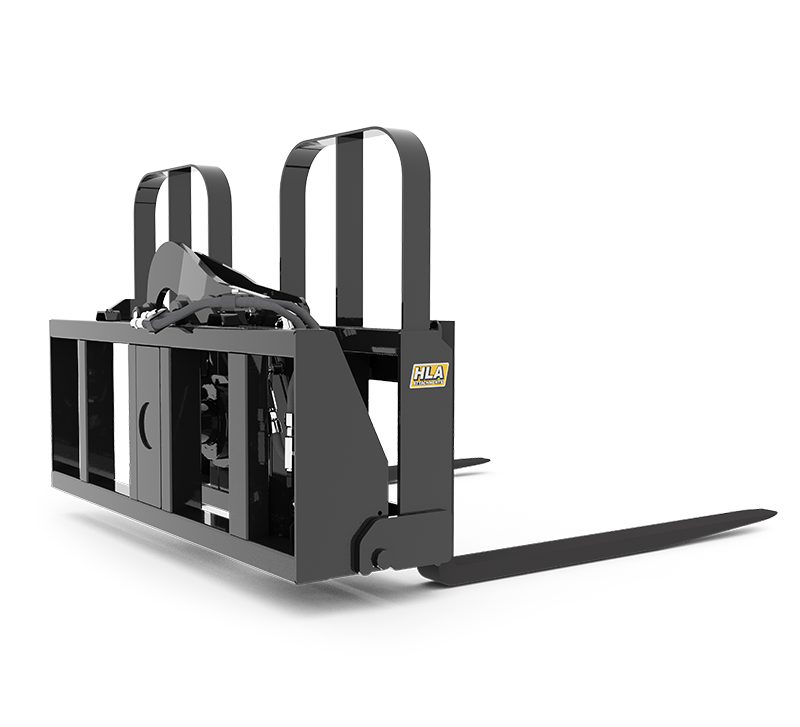

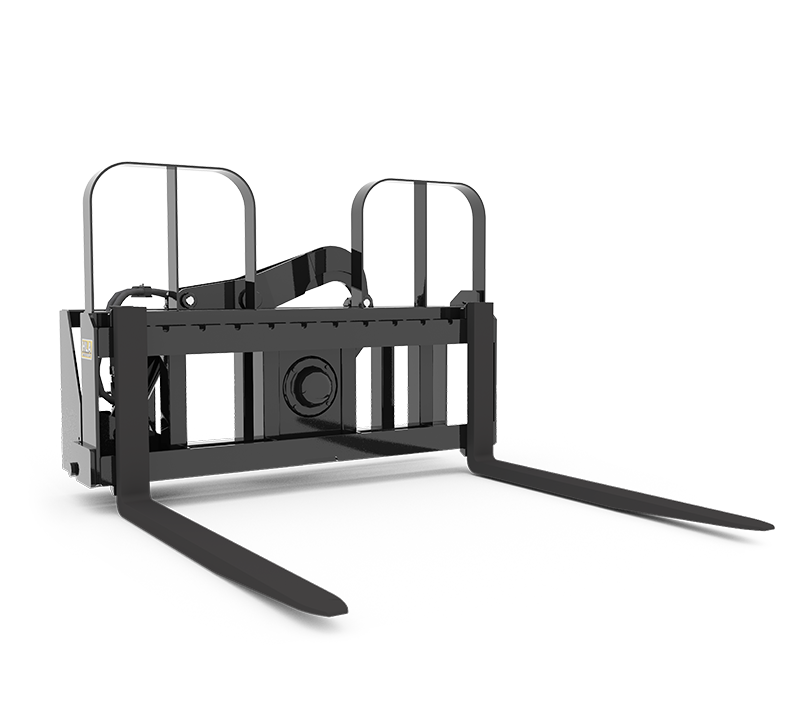

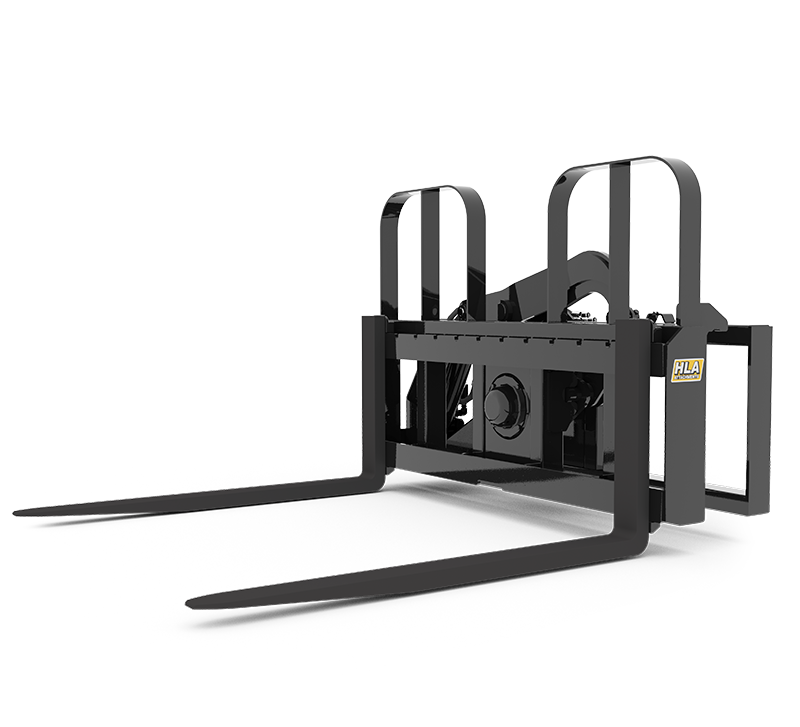

HLA Attachments Rotating Pallet Fork Less Mount & Tines | Model 4200# & 5500# | For Loader
DESCRIPTION
Take your material handling capabilities to the next level with the HLA HDR Series Rotating Pallet Forks engineered for professionals who demand precision, strength, and adaptability in the field. Available in two heavy-duty capacities 4,200 lb (HDR42) and 5,500 lb (HDR55 this hydraulically controlled pallet fork system rotates a full 180° to the left, giving you complete control in tight or irregular spaces.
Ideal for contractors, farmers, construction crews, and industrial operations, the rotating pallet fork attachment is perfect for lifting, turning, and placing pallets or loads with ease. Whether you’re navigating around obstacles or performing complex material placement, the HDR Series gives you flexibility without sacrificing strength.
Note: Mounting hardware and tine sets are sold separately, allowing you to customize your setup for any skid steer, tractor loader, or quick-attach system.
Key Features
- Hydraulic 180° Fork Rotation Tines rotate left up to 180° for better material control in tight spaces or complex operations.
- Choose from 4,200 lb or 5,500 lb Capacity HDR42 or HDR55 models provide the strength you need for light to heavy-duty handling.
- Compatible with Multiple Loaders Works with Euro/Global, Skid Steer, John Deere, Kubota, Westendorf, Bush Hog, Allied, and more.
- Customizable Setup Choose your loader mount and tine length separately for a fully tailored configuration.
- Reinforced Steel Construction Built tough for demanding agricultural, construction, and industrial tasks.
- Hydraulic Cylinder Included Pre-installed for smooth, reliable rotation without aftermarket installation.
- Compact & Versatile Design Ideal for confined work areas, angled lifts, or when standard forks just won’t do.
- Essential for Pallet Handling & Load Repositioning Especially useful in barns, warehouses, feedlots, and job sites with variable access.
Detailed Specifications
| Specification | HDR42 Model | HDR55 Model |
|---|---|---|
| Brand | HLA Attachments | HLA Attachments |
| Model | HDR42 | HDR55 |
| Lift Capacity | 4,200 lbs | 5,500 lbs |
| Rotation Range | 180° (left side rotation) | 180° (left side rotation) |
| Rotation Control | Hydraulic Cylinder (included) | Hydraulic Cylinder (included) |
| Mount Compatibility | Euro/Global, Skid Steer, John Deere, Kubota, Bush Hog, Westendorf, Allied | Same |
| Tines | Not included (optional) | Not included (optional) |
| Mounting Kit | Not included (select mount) | Not included (select mount) |
| Frame Construction | Heavy-Duty Steel | Heavy-Duty Steel |
| Weight (without tines) | Approx. 840 lbs | Approx. 860 lbs |
| Recommended Usage | Light to Medium Duty Forking | Heavy-Duty Forking & Rotating Loads |
| Common Applications | Farm, feedlot, construction, landscaping | Construction, agriculture, industrial yards |
