Product Description
Hobo® | Onset U20 Water Level Logger Deluxe Kit | 13’ Operation Range
DESCRIPTION
The HOBO® Onset U20 Water Level Logger Deluxe Kit is a complete and cost-effective solution for water level and temperature monitoring. Designed for use in wells, streams, lakes, and wetlands, this kit is ideal for hydrologic studies, environmental monitoring, and barometric pressure measurement.
The kit includes all essential equipment for immediate deployment, including the U20 Data Logger (13’ range), a U20 Data Logger for Barometric Pressure, a Waterproof Shuttle with Coupler, HOBOware Pro software, and a carrying case. The HOBOware Pro software enables easy conversion of logged data into accurate water level readings, fully compensated for barometric pressure, temperature, and water density.
With multiple-rate sampling, the U20 Water Level Logger captures critical data during key events such as pump cycles. Its no-vent-tube design simplifies deployment, while the stainless steel housing ensures durability and protection from lightning damage.
Key Features
- Complete kit for out-of-the-box water level and temperature monitoring.
- HOBOware Pro software for barometric and temperature compensation.
- Multiple-rate sampling for detailed data logging during critical events.
- No-vent-tube design for simple and reliable deployment.
- Stainless steel housing provides lightning protection for electronics.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | HOBO |
| MPN | KIT-D-U20-04 |
| UNSPSC | 41114300 |
| Pressure Sensor - Operation Range | 0 to 145 kPa (0 to 21 psia), approx. 0 to 13 ft. (0 to 4 m) at sea level or 0 to 23 ft. (0 to 7 m) at 10,000 ft. (3,000 m) altitude |
| Water Level Accuracy | Typical error 0.075% FS, 0.01 ft. (0.3 cm) |
| Resolution (Pressure Sensor) | <0.014 kPa (0.002 psi), 0.005 ft. (0.14 cm) |
| Temperature Sensor - Operation Range | -4°F to 122°F (-20°C to 50°C) |
| Temperature Accuracy | 0.67°F at 68°F (0.37°C at 20°C) |
| Temperature Resolution | 0.18°F at 68°F (0.1°C at 20°C) |
| Logger Memory (Non-Volatile) | 64K bytes (approx. 21,700 samples) |

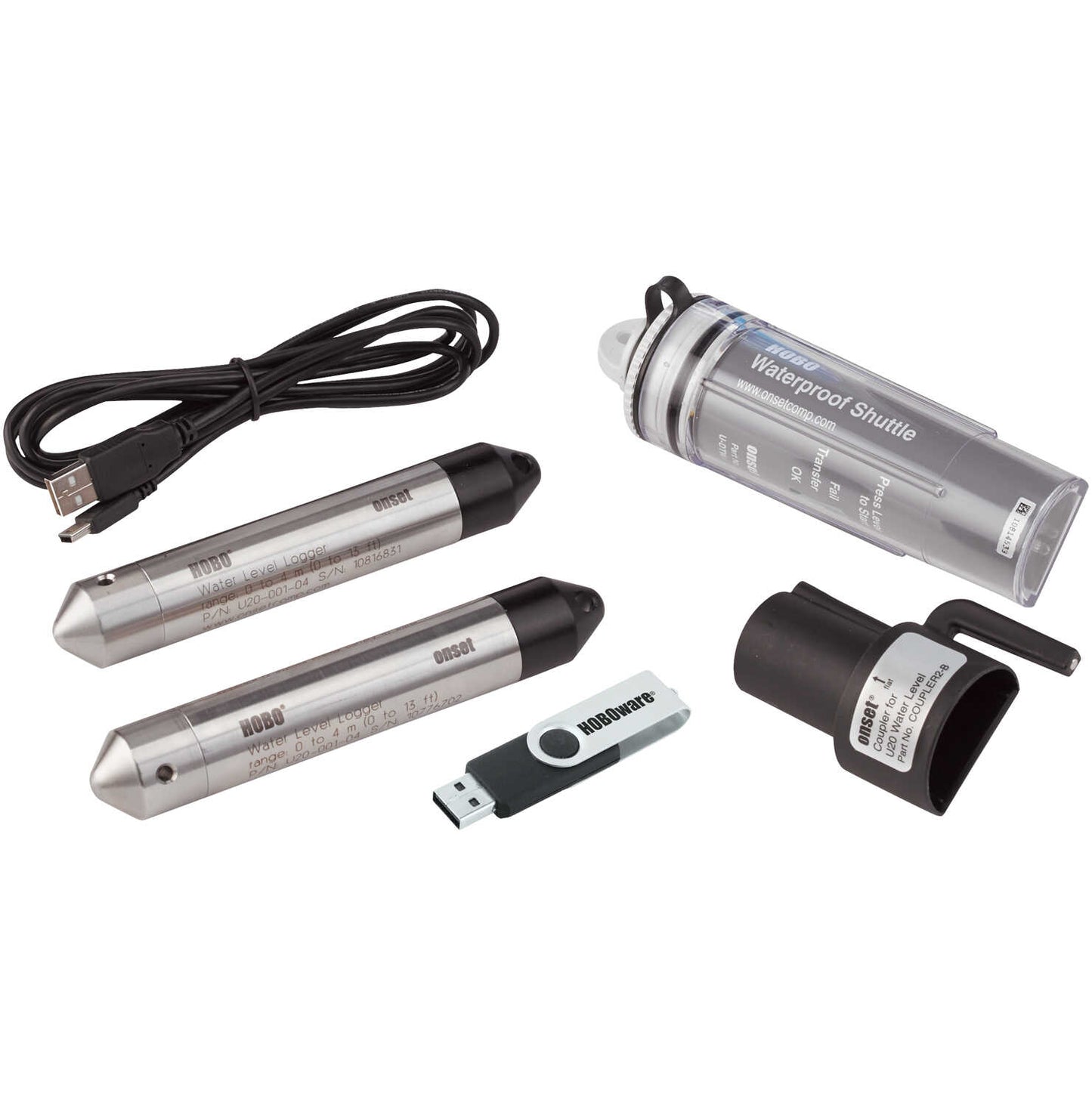

In Package
- U20 Data Logger (13’ range).
- U20 Data Logger for Barometric Pressure (13’ range).
- Waterproof Shuttle with Coupler.
- HOBOware Pro Software.
- Carrying Case.
