Industrias America Disc Plow | Model AR-04 | Disc Size 28" | Horsepower 15 To 20 HP | For Tractors

Product Description

Industrias America Disc Plow | Model AR-04 | Disc Size 28" | Horsepower 15 To 20 HP | For Tractors

DESCRIPTION

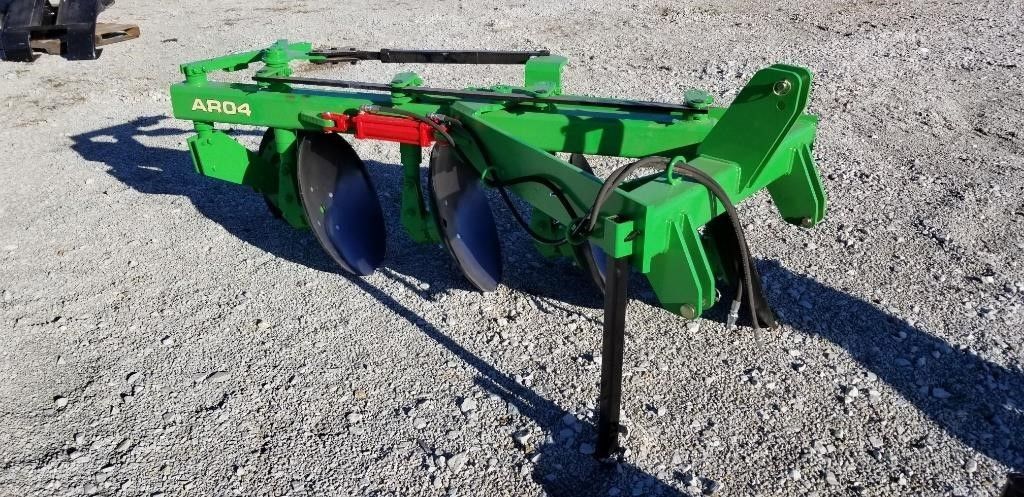

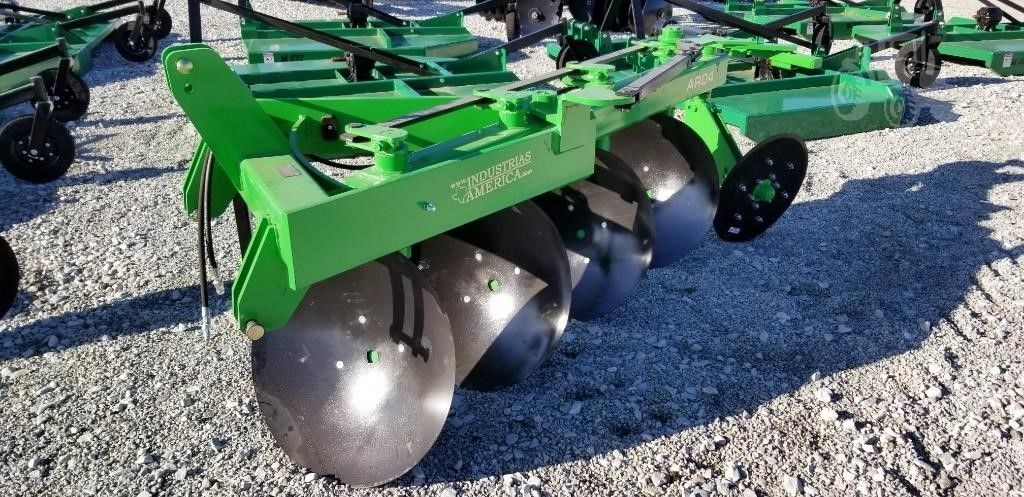

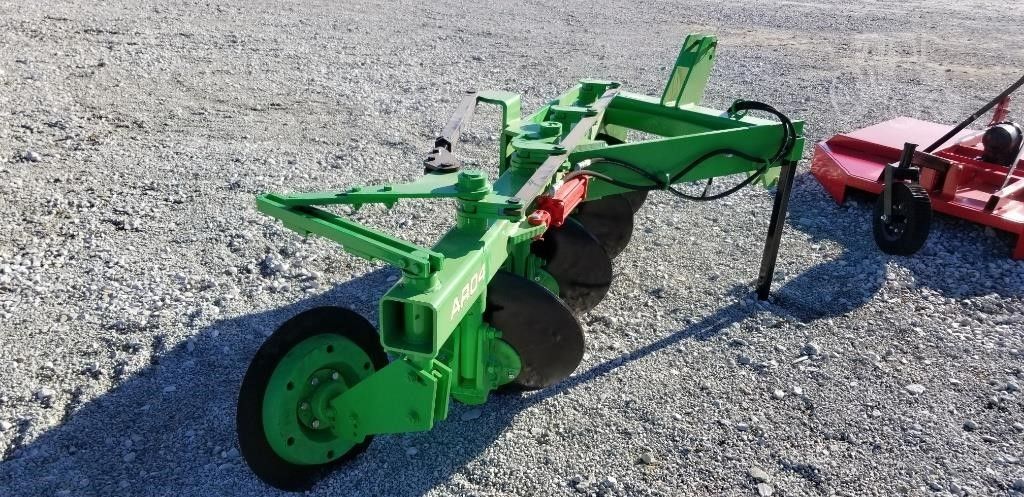

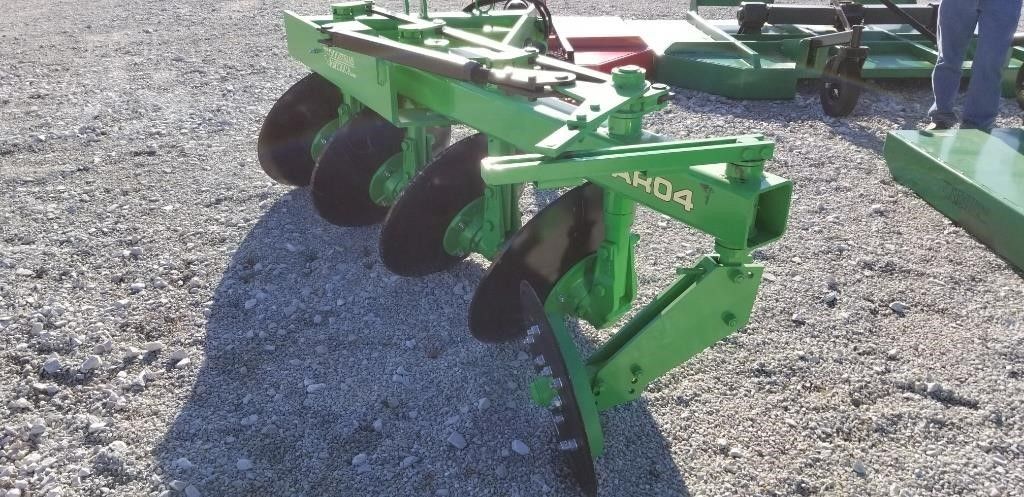

The Industrias America AR04 Disc Plow is a robust and efficient tool designed for effective tillage operations. This plow features 28-inch discs made from high-quality materials, ensuring durability and performance in various soil conditions. The hydraulic switch allows for easy adjustments, making it user-friendly and efficient for operators.

Constructed with a sturdy 6x6 inch frame made of 3/8 inch thick steel, the AR04 is built to withstand the rigors of heavy-duty farming tasks. It requires a horsepower range of 15 To 20 HP per disc, making it suitable for a variety of tractors and ensuring optimal performance in the field.

Key Features

• Disc Size: 28 inches (71.1 cm) diameter for deep soil penetration and effective primary tillage
• Disc Thickness: ¼ inch (0.64 cm) for durability and resistance to wear in tough soil conditions
• Horsepower Requirement: 15 To 20 HP per disc, suitable for compact to mid-size tractors
• Frame Dimensions: Heavy-duty 6" × 6" (15.2 cm × 15.2 cm) tubing with ⅜" (0.95 cm) wall thickness for structural strength
• Total Weight: Approximately 1,500 lbs (680 kg) for consistent ground engagement and stability
• Construction: Built with reinforced steel components for long-term field performance
• Primary Use: Ideal for breaking new ground, turning over soil, and preparing fields for planting
• Mounting Type: 3-point hitch compatible (Category I/II depending on tractor spec)
• Application Scope: Suitable for agricultural tillage, pasture renovation, and soil aeration
• Finish: Powder-coated for corrosion resistance and extended service life in harsh environments

Detailed Specifications
