Inspired Flight IF800 Quadcopter with Blue Herelink GCS

Inspired Flight IF800 Quadcopter with Blue Herelink GCS

$21,000.00
$21,000.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Impressive Flight Time and Payload Capacity: Enjoy up to 54 minutes of flight time with a 1.5 kg payload capacity (maximum 3 kg), ensuring extended operational efficiency and productivity.
  • High Speed and Stability: Achieve a top speed of 49 mph and maintain stable flight even in wind speeds up to 23 knots, perfect for challenging environments.
  • Advanced 60-Degree Upward-Angle Shooting: Capture crucial data from unique perspectives with the drone's upward-angle shooting capability, expanding the possibilities for your aerial missions.
View full details

Product Description

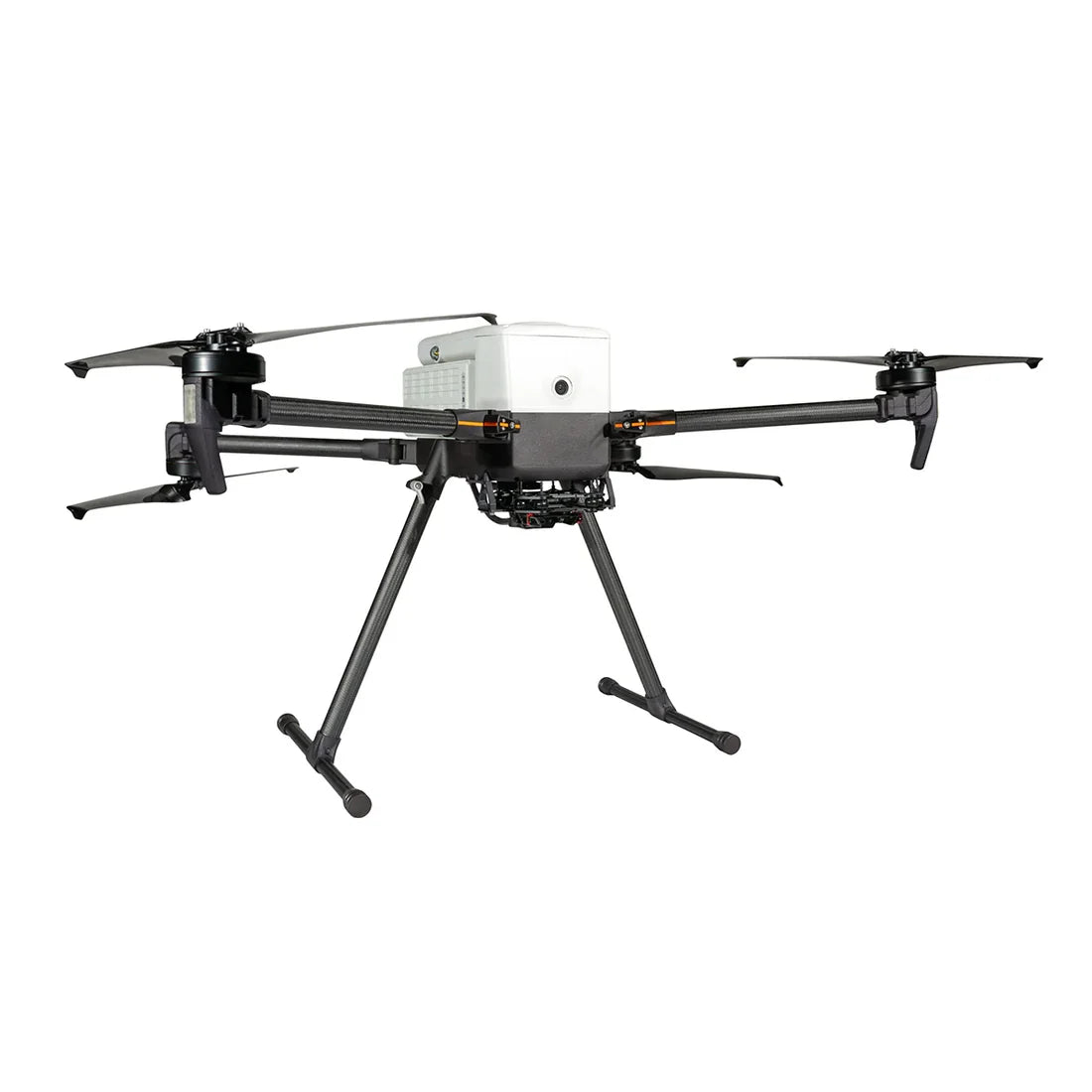

Inspired Flight IF800 Quadcopter with Blue Herelink GCS

Description

The Inspired Flight IF800 Quadcopter is a professional-grade, NDAA-compliant drone designed for teams that require operational security, reliability, and modular performance in the field. Built and supported in the U.S., the IF800 is part of the DoD’s Blue UAS list, making it approved for federal and critical infrastructure use.


This lightweight quadcopter delivers high endurance, heavy payload capacity, and full integration with the Herelink Ground Control Station, allowing for long-range encrypted communication and real-time video transmission.

Ideal for inspection, mapping, defense, and public safety use cases, the IF800 gives you enterprise capabilities without compromise.

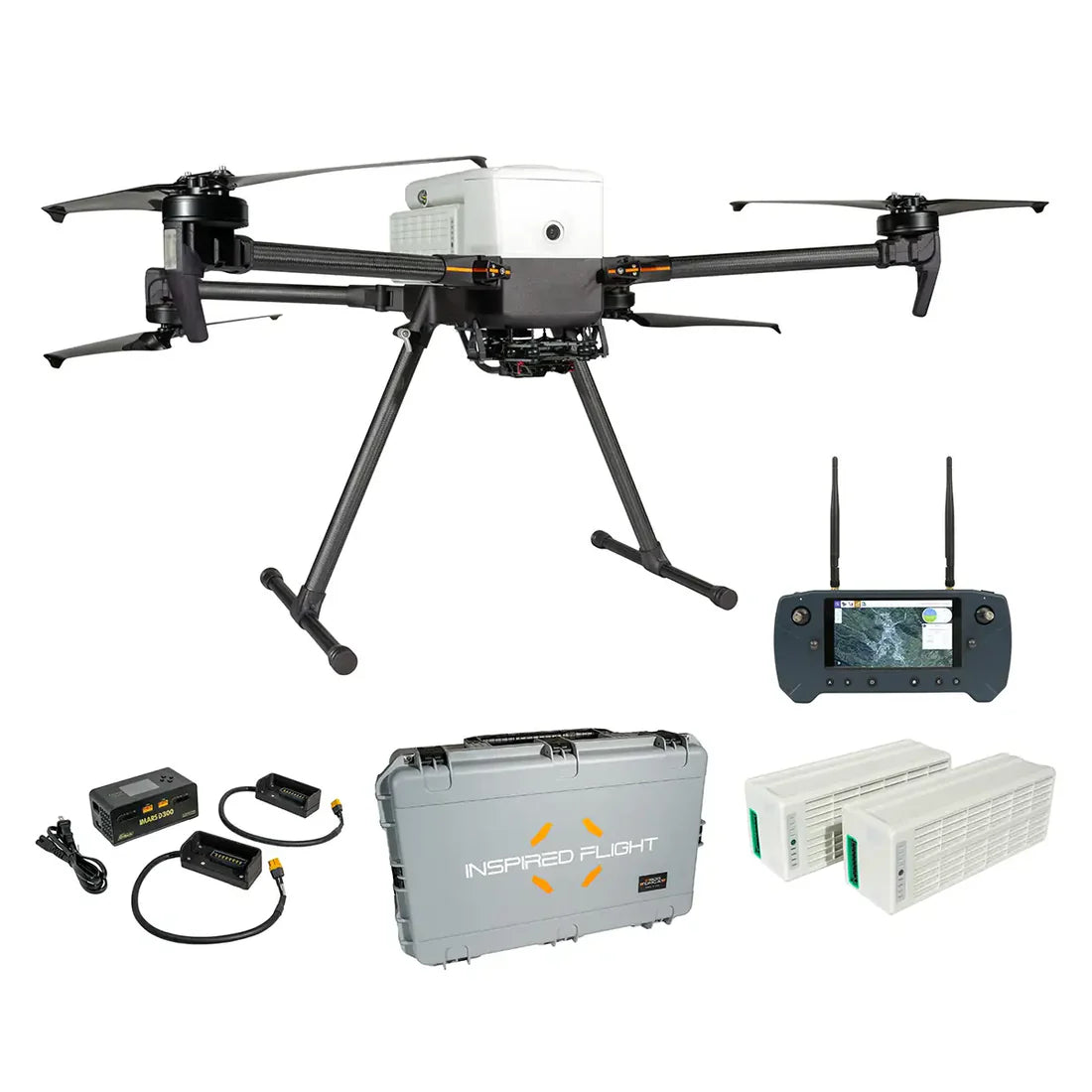

What's in the Box:

  • 1x IF800 Quadcopter

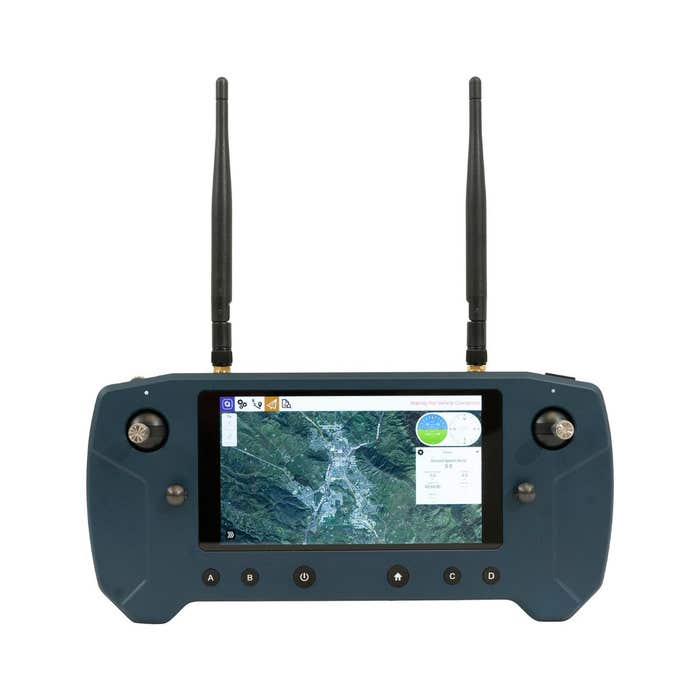

  • 1x Blue Herelink Ground Control Station

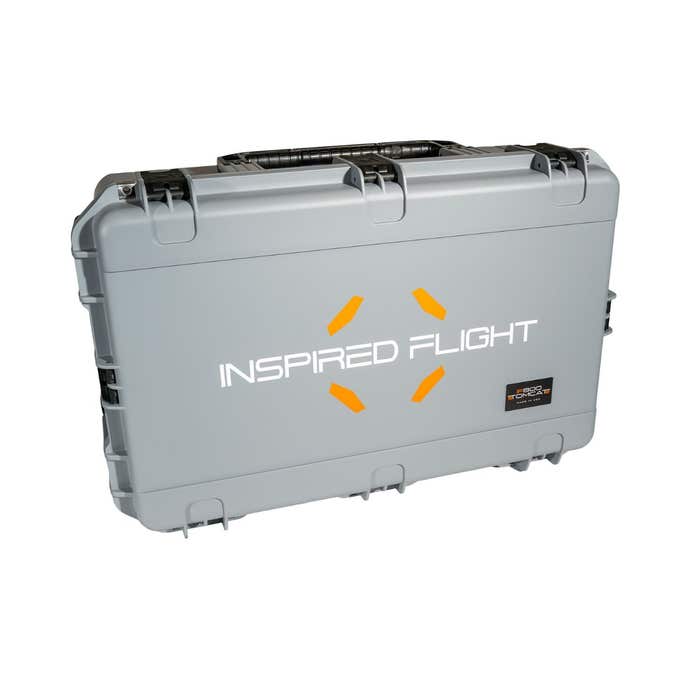

  • 1x Rugged Transport Case
  • 1x Charger Set
  • 2x Flight Batteries

Key Features

  • Impressive Flight Time and Payload Capacity: Enjoy up to 54 minutes of flight time with a 1.5 kg payload capacity (maximum 3 kg), ensuring extended operational efficiency and productivity.
  • High Speed and Stability: Achieve a top speed of 49 mph and maintain stable flight even in wind speeds up to 23 knots, perfect for challenging environments.
  • Advanced 60-Degree Upward-Angle Shooting: Capture crucial data from unique perspectives with the drone's upward-angle shooting capability, expanding the possibilities for your aerial missions.
  • Real-Time Visual Feedback: The FPV (First-Person View) camera provides real-time visual feedback, allowing precise control and navigation during flights.
  • NDAA and Blue UAS Compliant: Ensures secure and reliable performance, making it a trusted solution for commercial and government agencies concerned with national security.
  • Long-Range Control with Blue Herelink Ground Control Station: Features a 20 km (12 mi) flight range and AES-128 encryption, providing enhanced control, security, and functionality during operations.
  • Easy Transport and Deployment: Lightweight, compact, and foldable frame, combined with a specially designed case, ensures all components including batteries and payloads are protected and easily transported.

Detailed Specifications

Performance

Specification Details
Max Ascent Speed 5 m/s (16 ft/s)
Max Descent Speed 3 m/s (10 ft/s)
Max Air Speed 22 m/s (49 mph)
Max Wind Resistance 10 m/s, 12 m/s gusts (19 knots, 23 knot gusts)
Max Tilt Angle 30°
Max Angular Velocity Tilt: 300°/s, Yaw: 120°/s
Operating Temperature -20°C ~ 45°C (-4°F ~ 113°F)
Operating Humidity IP43 5% ~ 99%

Physical Features

Specification Details
Diagonal Size 905 mm (35.6 inches) (propeller center to center)
Unfolded Size 132 x 114 x 52 cm (51.8 x 44.8 x 20.3 inches) (flight ready)
Folded Size 36 x 44 x 20 cm (14.2 x 17.4 x 7.8 inches) (stow)
Empty Weight 4.2 kg (9.2 lbs)
Weight with Batteries 8.5 kg (18.7 lbs)
Max Gross Takeoff Weight 11.5 kg (25.3 lbs)
Max Payload Capacity 3.0 kg (6.6 lbs)
Transport Case Size 52.8 x 80.7 x 31.7 cm (20.8 x 31.8 x 12.5 inches)
Transport Case Weight 18 kg (40 lbs) (with aircraft & GCS)
i

Flight Stack

Specification Details
Flight Controller CubePilot Cube Blue H7, Triple Redundant IMU
GNSS / Compass Dual CubePilot Here4 Blue
Downward Ground Sensor LightWare SF000/B
Payload Power Rails 6s Battery Voltage 5v, 12v, 18v
Payload Interface IF800 Universal Payload Interface
Operating Software Copter by Ardupilot

Flight Modes

  • Position Hold: Automatically holds altitude and position, manually change position.
  • Loiter: Holds altitude and position, precision manual movements using GPS.
  • Auto: Executes pre-defined waypoint mission.
  • RTL (Return to Launch): Auto returns to takeoff location and lands.
  • Land: Auto land while maintaining horizontal position.
  • Altitude Hold: Holds altitude only, failsafe mode if GPS signal lost.
