JMA Attachments Hydraulic Hammer | Energy Class 7,500 Joules | For 30 – 50 Tons Excavators

JMA Attachments Hydraulic Hammer | Energy Class 7,500 Joules | For 30 – 50 Tons Excavators

$21,996.70
$21,996.70
Sale Sold out
Customizable
Fast
24/7 Support
  • Note: Pins are included.
  • Powerful Breaking Force: 7,500 Joules energy class for superior material processing.
  • Rapid-Fire Action: 350 - 450 bpm impact frequency accelerates project timelines.
  • Built for Extreme Conditions: AR400 Steel construction ensures reliability in the toughest environments.
  • Versatile Application: Ideal for primary demolition, secondary breaking, and recycling operations.
View full details

Product Description

JMA Attachments Hydraulic Hammer | Energy Class 7,500 Joules | For 30 – 50 Tons Excavators

Description

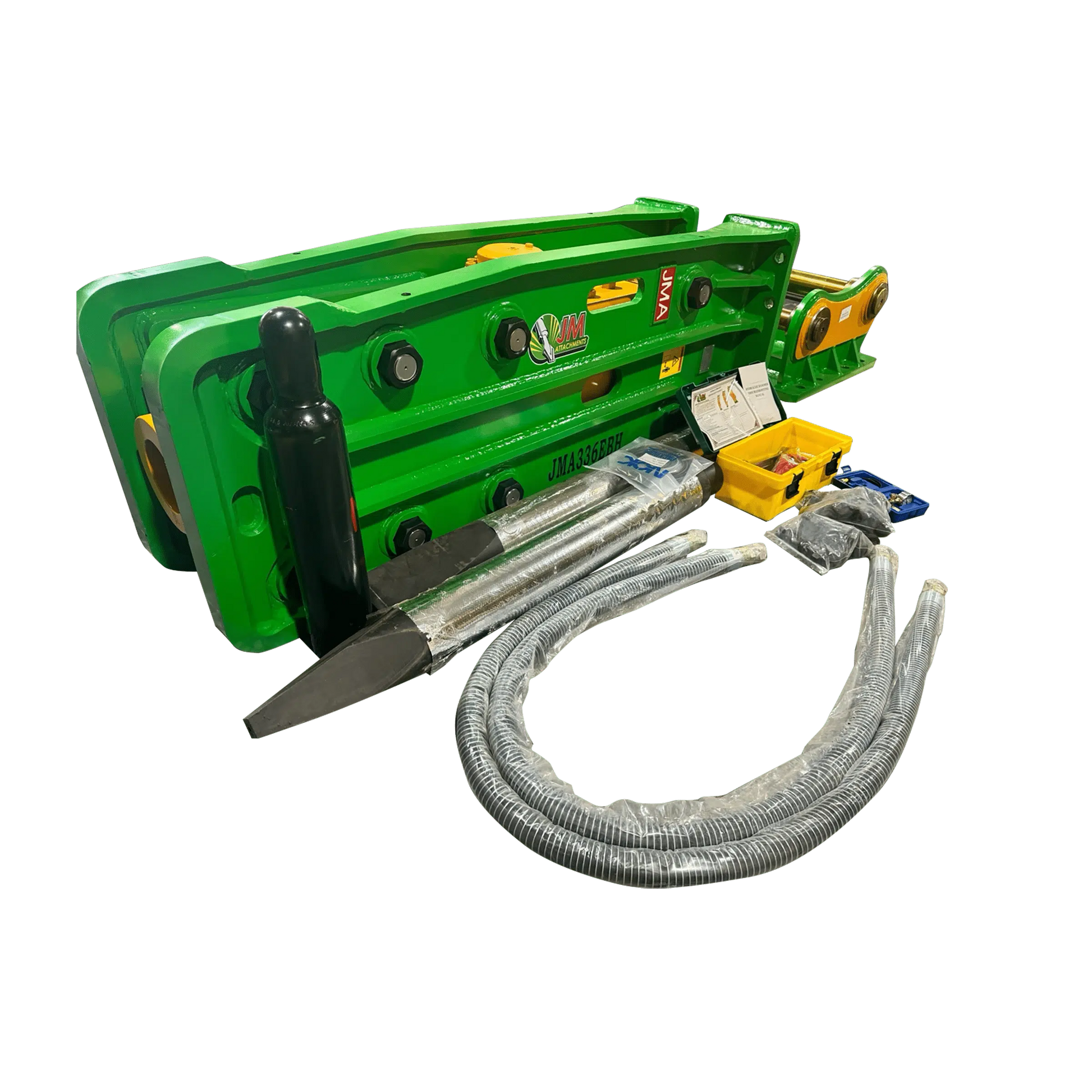

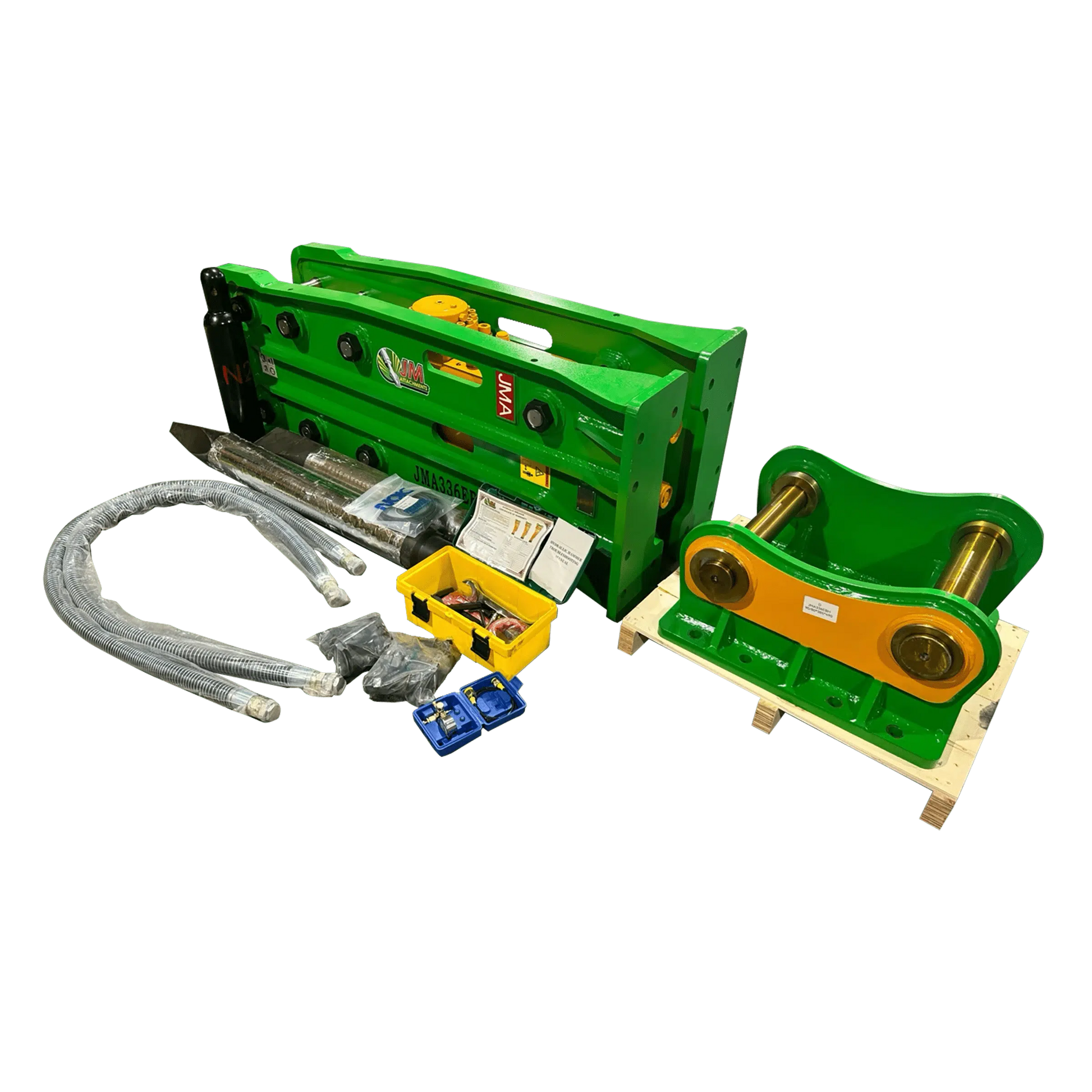

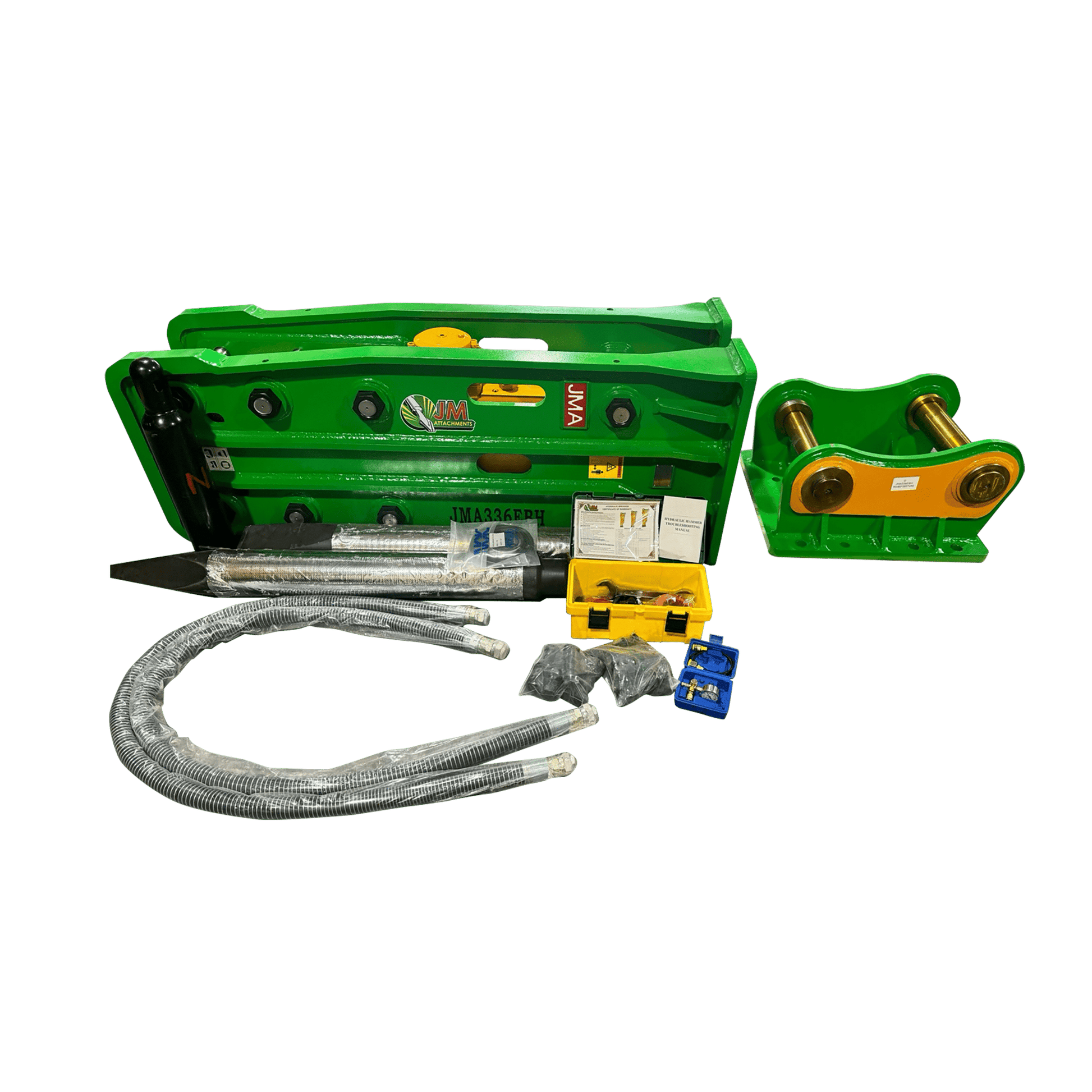

Experience breakthrough performance with the 7,500 Joules Hydraulic Hammer for 30 - 50 Tons Excavators. Equipped with 100mm | 90mm pins, this hydraulic hammer is tailored to unlock unparalleled productivity in demolition and breaking applications. Built with AR400 steel, it ensures reliability in the toughest environments. With a powerful 7,500 Joules energy class and a rapid-fire impact frequency of 350 - 450 bpm, it accelerates project timelines. The versatile application makes it ideal for primary demolition, secondary breaking, and recycling operations. The comprehensive toolkit includes 2 hydraulic hoses, 1 moil rock chisel bit, 1 wedge rock chisel bit, a toolbox, nitrogen gauge, nitrogen bottle, repair seal kit, 2 greasable pins, and 4 bushings for immediate operation.

Key Features

  • Powerful Breaking Force: 7,500 Joules energy class for superior material processing.
  • Rapid-Fire Action: 350 - 450 bpm impact frequency accelerates project timelines.
  • Built for Extreme Conditions: AR400 Steel construction ensures reliability in the toughest environments.
  • Versatile Application: Ideal for primary demolition, secondary breaking, and recycling operations.
  • Comprehensive Toolkit: Includes 2 Hydraulic Hoses, 1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins, and 4 Bushings for immediate operation.
  • Note: Pins are included.

Detailed Specifications

Details Specifications
Material Type AR400 Steel
Finish Powder-Coated Green
Energy Class (J) 7,500 Joules
Energy Class (ft·lb) 5,531.72 ft·lb
Impact Frequency (bpm) 350 - 450 bpm
Operating Pressure (kgf/m²) 170 - 200 kgf/m²
Operating Pressure (lbs/ft²) 34.82 - 40.96 lb/ft²
Oil Flow (GPM) 47.55 – 63.40 gpm
Tool Chisel Bit Diameter (mm) 155 mm
Tool Chisel Bit Length (mm) 1500 mm
Working Weight (kg) 2968 kg
Accessories Included 2 Hydraulic Hoses, 1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins, 4 Bushings
Front Pin Diameter (mm) 100 mm
Rear Pin Diameter (mm) 90 mm
Front Ear to Ear Distance (mm) 385 mm
Rear Ear to Ear Distance (mm) 385 mm
Center to Center Distance (mm) 500 mm
Carrier Weight Class (tn) 30 - 50 Tons
Carrier Weight Class (lbs) 60,000 - 100,000 lbs
Product Weight (lbs) 5,967.43 lb
Product Weight (kg) 2,706.78 kg

Fits To

Brand

Model
Case CX470C ME, CX460 LC, CX470 B, CX470B, CX470C, CX460
Caterpillar 330D DB Linkage, 350 MEL, 350 V2L, 345BLL, 350 LF, 336D2, 340D2, 340F2, 350BL, 350LL, 330B, 330E, 336D, 336E, 336F, 340D, 340F, 345F
Daewoo S340LC-V, S370LC-V, S330
Develon DX300 LCA-7M, DX350 LCR-7, DX360 LC-7M, DX320 LC-7, DX350 LC-7
Doosan DX300 LCA-7M, DX300 LC-9C, DX340 LC-HD, DX340 LC-9C, DX360 LC-7M, DX380 LC-9C, DH300 LC-7, DH370 LC-7, DH370 LC-9, DX300 LC-3, DX300 LC-5, DX300 LC-7, DX305LC-9C, DX320 LC-7, DX340 LC-3, DX340 LC-5, DX350 LC-3, DX350 LC-5, DX350 LC-7, DX380 LC-3, DX380 LC-5, DX380 LC-7, DX380 LL-5, DX300 LCA, DX340 LCA, DX350 LCA, DX360 LCA, DX380 LCA, S300 LC-7, S330 LC V, DX300 LL, DX300 RB, DX350 LC, DX360 LC, DX380 LC, DX340LC, S330LC, DX350
Hitachi ZX345US LC-6N, ZX345US LC-7H, ZX290 LCN-5B, ZX300 LCH-5A, ZX345US LC-6, ZX345US LC-7, ZX350 LCN-5B, ZX360 LCH-5B, ZX290 LC-5B, ZX290 LC-5N, ZX290 LCN-5, ZX300 LC-6N, ZX300 LCN-6, ZX300 LCN-7, ZX330 LC-3G, ZX330 LC-5B, ZX330 LC-5G, ZX350 LC-5B, ZX350 LC-5G, ZX350 LC-5N, ZX350 LC-6N, ZX350 LCD-1, ZX350 LCD-3, ZX350 LCH-3, ZX350 LCH-5, ZX350 LCK-3, ZX350 LCN-1, ZX350 LCN-3, ZX350 LCN-5, ZX350 LCN-6, ZX350 LCN-7, ZX360 LC-5B, ZX380 LC-5N, ZX380 LC-6N, ZX290 LC-5, ZX300 LC-6, ZX300 LC-7, ZX330 LC-2, ZX330 LC-3, ZX330 LC-5, ZX330 LC-7, ZX350 LC-3, ZX350 LC-5, ZX350 LC-6, ZX350 LC-7, ZX380 LC-5, ZX380 LC-6, ZX300 LCH, ZX330 LCH, ZX330LC-3, ZX330LC-5, ZX350 LCH, ZX350 LCK, ZX350 LCN, ZX350H-5A, ZX350H-5B, ZX350H-5G, ZX360H-3G, ZX360H-5A, EX300-3C, ZX290 LC, ZX300 LC, ZX330 LC, ZX330-5B, ZX330-5G, ZX350 LC, ZX350-3G, ZX350-5B, ZX350H-1, ZX350H-3, ZX350K-3, ZX350K-6, ZX360 LC, ZX360 LX, ZX360H-3, ZX370 LC, ZX370F-3, ZX370MTH, EX300-1, EX300-2, EX300-3, EX300-5, ZX330-3, ZX330-6, ZX350-3, ZX380HH, ZX400-3, ZX350F, ZX350G, ZX350H, ZX350K, ZX350M, EX300, EX370, UH143, ZX290, ZX330, ZX350, ZX360, ZX370
Hyundai R320LC-3, R320LC-7, R320LC-9, R360LC-3, R360LC-7, R380LC-9, R450LC-3, R450LC-7, R480LC-9, R450LC, R320, R350, R420
John Deere 360 P-TIER, 380 P-TIER, 290G LC, 300G LC, 330C LC, 345G LC, 350D LC, 350G LC, 380G LC, JD330, 290D, 370C, 380G, 330, 370
Kobelco SK480LC-8, SK400
Komatsu PC400 HD-3 LC, PC400 HD-6 LC, PC400 HD-6 LK, PC400 HD-6 LM, PC400 HD-5LC, PC400 LC-5LC, PC400 LC-6BL, PC400 LC-6LC, PC400 LC-6LE, PC400 LC-6LK, PC400 LC-6LM, PC400 LC-7E0, PC400 LC-8LK, PC400 HD LC, PC400 LC-4L, PC400 LC-5A, PC400 LC-5C, PC400 LC-5E, PC400 LC-5K, PC400 LC-5L, PC400 LC-5N, PC400 LC-6C, PC400 LC-6E, PC400 LC-6H, PC400 LC-6K, PC400 LC-6L, PC400 LC-6M, PC400 LC-6Z, PC400 LC-7E, PC400 LC-7L, PC400LC-8E0, PC400 HD-3, PC400 HD-5, PC400 HD-6, PC400 LC-1, PC400 LC-2, PC400 LC-3, PC400 LC-4, PC400 LC-5, PC400 LC-6, PC400 LC-7, PC400 LC-8, PC400-7EO, PC450-7EO, PC450LC-8, PC400 EX, PC400 HD, PC400 LC, PC400-8R, PC400-5, PC400-8, PC450-8, PC40-5, PC400
Linkbelt 460 LX, 460 X2, 470 X3, 470 X4, 490 X4
Sany SY365H, SY365, SY375, SY395, SY415, SY380C-10HD, SY365C LC, SY365HC-9, SY365H-9, SY375H-S, SY390H, SY360C, SY365C, SY385C, SY405C, SY350
Sumitomo SH450, SH460, SH480
