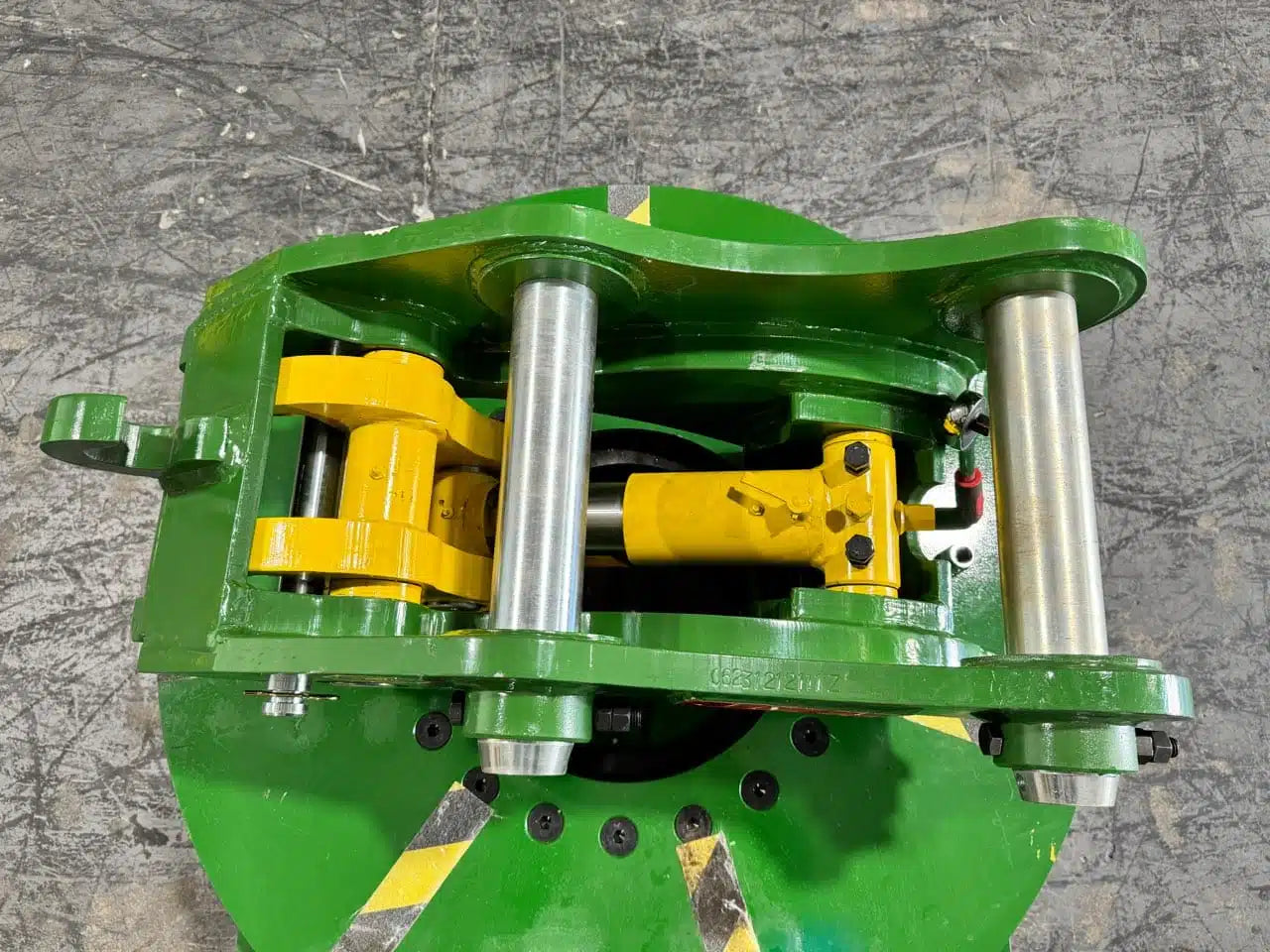

JMA Attachments Manual Quick Coupler | Pin Size 60mm & 65mm | For 10 – 15 Tons Excavators

JMA Attachments Manual Quick Coupler | Pin Size 60mm & 65mm | For 10 – 15 Tons Excavators

$3,197.80
$3,197.80
Sale Sold out
Customizable
Fast
24/7 Support
  • Robust Construction: Made from high-grade AR400 Steel, offering excellent resistance to wear and impact, ensuring an extended service life.
  • Optimized Design: Features well-thought-out designs for optimal material flow, reducing cycle times and maintaining productivity.
  • Enhanced Versatility: Suitable for various tasks, providing reliability across different conditions.
View full details

Product Description

JMA Attachments Manual Quick Coupler | Pin Size 60mm & 65mm | For 10 – 15 Tons Excavators

Description

Introducing our high-quality Hydraulic Attachments, designed to fit 10 - 15 Ton machines. These attachments are engineered to deliver exceptional performance and durability, making them ideal for a wide range of tasks. Constructed from premium AR400 steel and equipped with robust hydraulic mechanisms, they ensure efficient material handling and enhanced productivity.

Key Features

  • Robust Construction: Made from high-grade AR400 Steel, offering excellent resistance to wear and impact, ensuring an extended service life.
  • Optimized Design: Features well-thought-out designs for optimal material flow, reducing cycle times and maintaining productivity.
  • Enhanced Versatility: Suitable for various tasks, providing reliability across different conditions.
  • Durable Finish: Powder-coated green finish for added durability and corrosion resistance.
  • Convenient Installation: Includes an installation kit for easy setup and use.

Detailed Specifications

Attribute 65mm 60mm
Material Type AR400 Steel AR400 Steel
Finish Powder-Coated Green Powder-Coated Green
Accessories Included Installation Kit Installation Kit
Front Pin Diameter (mm) 65 mm 60 mm
Rear Pin Diameter (mm) 65 mm 60 mm
Front Ear to Ear Distance (mm) 260 mm 260 mm
Rear Ear to Ear Distance (mm) 260 mm 260 mm
Center to Center Distance (mm) 362 mm 380 mm
Front Pin Length (mm) 449 mm 449 mm
Rear Pin Length (mm) 449 mm 449 mm
Carrier Weight Class (tn) 10 - 15 Tons 10 - 15 Tons
Carrier Weight Class (lbs) 20,000 - 30,000 lb 20,000 - 30,000 lb
Product Weight (lbs) 374.79 lb 374.79 lb
Product Weight (kg) 170 kg 170 kg



      Fits To

      60mm Pin

      Brand

      Model
      Caterpillar 310
      Hyundai R75-5
      Ihi IS110, IS120
      Kato HD550SE
      Kobelco SK100-2, SK100-3, SK115SR, SK100V, SK100
      Komatsu PC138US LC-2E0, PC138US LC-10, PC138US LC-11, PC138US LC-2E, PC120 LC-6E0, PC120 LC-6LE, PC128US LC-2, PC138US LC-2, PC138US LC-3, PC138US LC-7, PC138US LC-8, PC138US-11E0, PC120 LC-5L, PC120 LC-6E, PC120 LC-6L, PC128US-1MB, PC128US-2E0, PC128US-2E1, PC128US-2MB, PC128USI-10, PC128UU-1MB, PC128UU-2E0, PC130 LC-11, PC138US-2E1, PC138US-8NM, PC100 LC-1, PC100 LC-2, PC100 LC-3, PC100 LC-4, PC100 LC-5, PC100 LC-6, PC120 LC-3, PC120 LC-4, PC120 LC-5, PC120 LC-6, PC120 LC-7, PC120-1 -2, PC120SC-6E, PC128US LC, PC128US-10, PC128US-11, PC128US-2A, PC128US-2H, PC128UU-15, PC128UU-1E, PC128UU-1Y, PC130 LC-6, PC130 LC-7, PC130 LC-8, PC138 LC-2, PC138US LC, PC138US-10, PC138US-11, PC138US-2E, PC100-6ZE, PC100SS-3, PC110SP-6, PC118MR-8, PC120-6AC, PC120-6E0, PC120-6ZE, PC120SS-3, PC128US-1, PC128US-2, PC128US-5, PC128US-6, PC128US-8, PC128UU-1, PC128UU-2, PC128UU-6, PC128UU-8, PC128UUMB, PC138US-2, PC138US-8, PC 100-2, PC 100-6, PC 120-6, PC100 LC, PC100-5Z, PC100-6E, PC100L-1, PC100L-2, PC100L-3, PC100L-5, PC100L-6, PC100N-6, PC100U-2, PC100U-3, PC110R-1, PC120 LC, PC120 LE, PC120-11, PC120-15, PC120-3K, PC120-3W, PC120-5C, PC120-5G, PC120-5K, PC120-5Z, PC120-6E, PC120-6J, PC120-6L, PC120-6M, PC120-6Z, PC128 LC, PC128U-2, PC130 LC, PC130-11, PC130-5K, PC130-5S, PC130-6E, PC130-6K, PC130-6W, PC130-7K, PC130F-7, PC138 LC, PC100-1, PC100-2, PC100-3, PC100-4, PC100-5, PC100-6, PC100-7, PC100-8, PC110-1, PC110-2, PC110-7, PC120-1, PC120-2, PC120-3, PC120-4, PC120-5, PC120-6, PC120-7, PC120-8, PC120BE, PC120UU, PC128-1, PC128-2, PC128US, PC128UU, PC130-3, PC130-5, PC130-6, PC130-7, PC130-8, PC138US, PC100L, PC100N, PC100U, PC120B, PC128U, PC100, PC110, PC120, PC128, PC130, PC135, PC138
      Kubota KX080-3, KX080-4, KX085-5, KX080
      Lonking CDM6150
      Nagano NS75-3
      Sumitomo S260F2
      Volvo ECR88, EC88



      65mm Pin

      Brand

      Model
      Case CX145D MSR, CX130B LC, CX130C LR, CX130D LC, CX130 LC, CX135MS3, CX135MSR, CX145CSR, CX145DSR, CX135CR, CX135SR, CX130B, CX130C, CX130D, CX130E, CX130K, CX135C, CX140E, CX145C, CX130, CX135, CX90
      Caterpillar 314CL LCR, 312B LGP, 312D2 GC, 313D2 GC, 314C LCR, 314D LCR, 314E LCR, 314G LCR, 311DLRR, 311F RR, 311FLRR, 313B CR, 313C CR, 313D CR, 313D2 L, 313FLGC, 314C CR, 314D CR, 314E CR, 314E SR, 314F CR, 311 V2, 311C U, 311DRR, 312 V2, 312BLN, 312CLR, 312D2L, 312F L, 312FGC, 313BSR, 313CSR, 313DSR, 313FGC, 311BL, 311FL, 312BL, 312CL, 312D2, 312DL, 312EL, 312GC, 313D2, 313DL, 313FL, 313GC, 314DL, 314EL, 315FL, E120B, 311B, 311C, 311D, 312B, 312C, 312D, 312E, 312F, 312L, 313B, 313C, 313D, 313E, 313F, 314C, 311, 312, 313, 314
      Daewoo S130W-111, S130 LC V, S155 LC V, S140LC-V, S130-2
      Develon DX140LCR-7K, DX140LC-7K, DX140LCR-7, DX165WR-7, DX100W-7, DX140W-5, DX140W-7, DX160W-7
      Doosan DX160 LC-5 HT, DX140 LC-9C, DX140 LCR-3, DX140 LCR-5, DX140 LCR-7, DX150 LC-9C, DH150 LC-7, DX140 LC-3, DX140 LC-5, DX140 LC-7, DX160 LC-3, DX140LCR-7, DX130-9CN, DX140 LCA, DX140 LCR, DX140WACE, DX150W-9C, DX165WR-7, S140WV RW, DX160 LC, DH140W-7, DH150W-7, DX100W-7, DX140W-3, DX140W-5, DX140W-7, DX160W-3, DX160W-5, DX160W-7, DX165W-5, DX140LC, DX140WA, DX140WE, S140W V, DX140W, DX160W, S130WV, S160WV, DX130, DX140, DX120, DX140LC-7K
      Hitachi H15 Super Long, ZX200 H15 Supe, ZX130 LCN-5B, ZX135USOS-5B, ZX130 LC-5N, ZX130 LCN-3, ZX130 LCN-5, ZX130 LCN-6, ZX130 LCN-7, ZX135USBL-3, ZX135USBL-5, ZX135USBL-6, ZX135USBL-7, ZX135USOS-3, ZX135USOS-6, ZX135USTN-Z, EX100WD-3C, ZX120USR-5, ZX130 LC-3, ZX135US LC, ZX135US-5B, ZX135US-5N, ZX135US-6N, ZX135USB-3, ZX135USB-5, ZX135USK-3, ZX135USK-6, ZX135USR-5, EX100WD-1, EX100WD-2, EX100WD-3, EX125WD-5, EX130UR-1, EX130UR-5, EX135UR-1, EX135UR-5, ZX130 LCM, ZX130 LCN, ZX130K HG, ZX130K-5B, ZX135US-1, ZX135US-2, ZX135US-3, ZX135US-5, ZX135US-6, ZX135US-7, ZX135US-E, ZX110M-3, ZX120 IV, ZX120 LC, ZX120-5B, ZX130 LC, ZX130-5A, ZX130-5B, ZX130-5G, ZX130-5N, ZX130-6N, ZX130K-3, ZX130K-6, ZX135USK, ZX135USM, ZX140W-3, EX100-1, EX100-2, EX100-3, EX100-5, EX100WD, EX120-1, EX120-2, EX120-3, EX120-5, EX135UR, ZX110-2, ZX110-3, ZX110BL, ZX120-2, ZX120-3, ZX120-6, ZX120BL, ZX125US, ZX130-3, ZX130-5, ZX130-6, ZX130-7, ZX130BL, ZX130MT, ZX135UR, ZX135US, EX130K, EX130W, ZX110E, ZX110M, ZX120B, ZX120E, ZX130H, ZX130K, ZX130L, ZX135U, ZX140H, EX100, EX120, EX130, EX135, UH053, UH063, ZX110, ZX120, ZX130, ZX135, EX-5, ZX130-7H, ZX135US-7H
      Hyundai R125LCR-9A, HX145LCR, R130LC-3, R140LC-7, R140LC-9, R145LC-9, R130W-3, R140W-7, HX140L, R110-7, R130LC, HX125, HX140, HX145, R120W, 130W, HX130A LCR, HX140A L, HX145A LCR
      JCB 131LLC, 150X-1, JS130C, JS145W, JS130, JS131, JS135, JS145, JS160, JZ140, JZ141, 131X, 140X, 145X, 150X, 814S
      John Deere 120C LC, 120 LC, JD120, 120C, 120D, 130G, 135C, 135D, 135G, 490D, 110, 120, 135 P-Tier
      Kato HD513 MR-3, HD512 E, HD512-3, HD512, 450, 512, 572
      Kobelco SK135SR 1E, SK115SRDZ, SK125SR-2, SK135SR-2, SK135SR-3, SK140LC-8, SK120-2, SK120-5, SK130-8, SK130LC, SK130UR, SK135SR, SK120v, K905, SK140SRLC, SK130LC-11
      Liebherr R914
      Linkbelt 135 X3 SPIN, 130 X4LC, 130 LX, 130 X2, 130 X3, 130 X4, 135 LX, 145 X3, 145 X4
      Liugong 915D, 915E
      Sany SY135 IV, SY135-3A, SY130-1, SY135-2, SY155U, SY155W, SY115, SY125, SY135, SY155, SY125C PRO, SY140C-9S, SY135C-9, SY155H-9, SY115C, SY135C, SY155C, SY155H
      Sumitomo SH120- 2, SH120-A3, SH125X-3, SH145X-6, SH120-1, SH120-3, SH130-5, SH135X, SH120
      Takeuchi TB2150R, TB1140, TB2150
      Terex 145
      Volvo MX135WS/LS, EC135B LC, EC140 LCM, EC140B LC, EC140E LM, SE130LC-3, EC140 LC, EC140CLM, EC140DLM, ECR145CL, ECR145EL, SE130W-3, EC140-7, EC140CL, EC140DL, EC140EL, ECR145C, EC120D, EC140B, EC140C, EC140D, EC140E, EC145E, ECR145, EC120, EC130, EC140, EW130, ECR145E, ECR145SE
      XCMG XE155UCR, XE155U, XR155U

      Manual & Documents

      General Warranty Info:

      • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
      • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
      • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
      • Please reach out to us for any specific warranty information needed about products and parts you can’t find!
