Larson Electronics 100' Self-contained Megatower™ on Skid Mount - 250lbs Payload Capacity - Auto Retract, Fully Galvanized Finish

Larson Electronics 100' Self-contained Megatower™ on Skid Mount - 250lbs Payload Capacity - Auto Retract, Fully Galvanized Finish

Regular price $162,518.48
Regular price Sale price $162,518.48
Sale Sold out
Customizable
Fast
24/7 Support
  • Adjustable Tower Height: Extends from 12 to 100 feet, supporting up to 250 lbs for lights, cameras, or antennas.
  • Versatile Power Compatibility: Operates with 120/240V single-phase, 240/120V three-phase, or 208Y/120V three-phase input.
  • Auto-Retract Wind Protection: Wind monitoring system retracts tower at 35 mph, or 50 mph when guy wires are attached.
  • Robust Skid Base: Durable steel base with DuPont™ industrial-grade paint and pick eyes for crane transport.
View full details

Product Description

Larson Electronics 100' Self-contained Megatower™ on Skid Mount - 250lbs Payload Capacity - Auto Retract, Fully Galvanized Finish

Description

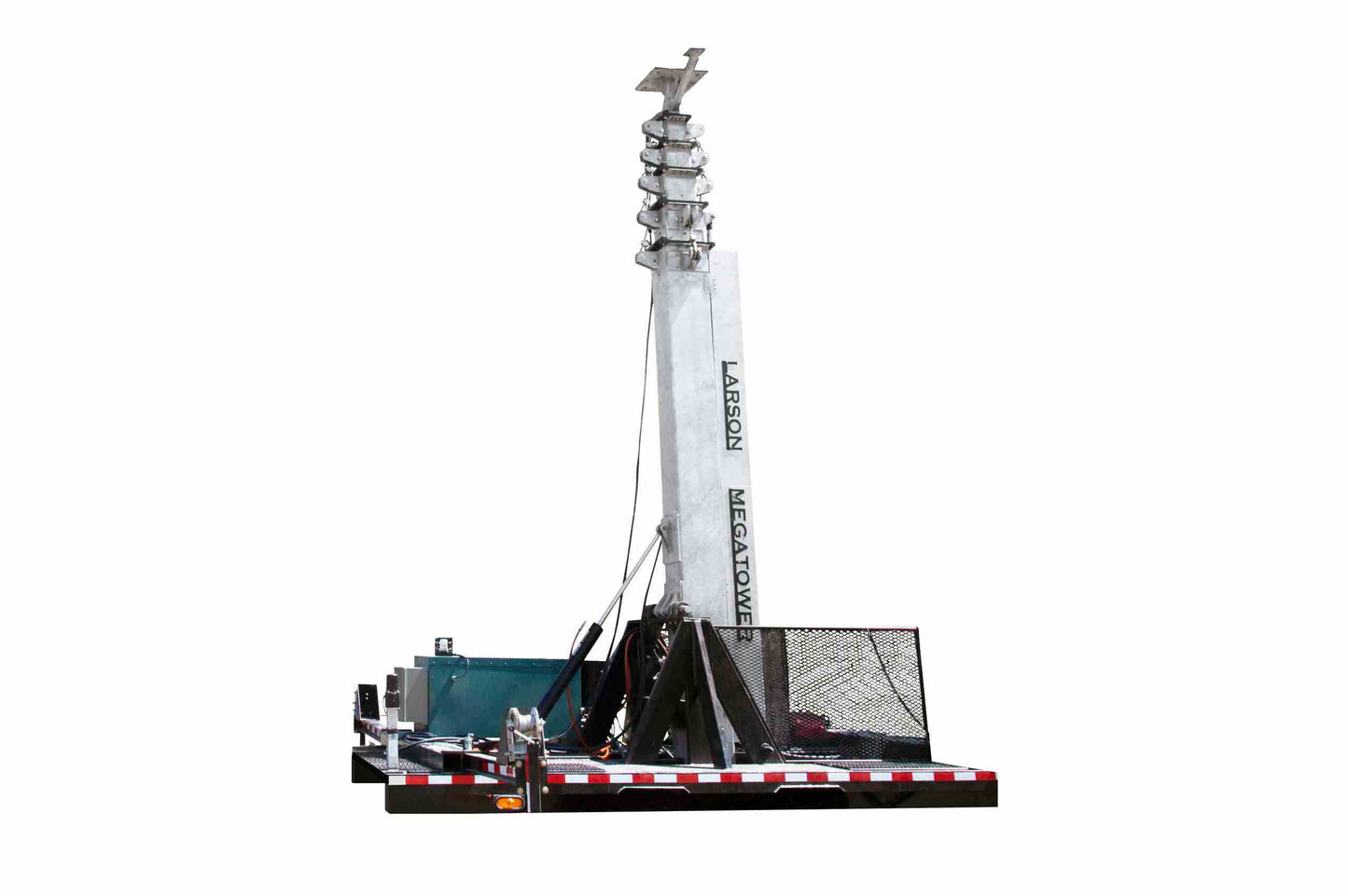

The Larson Electronics LM-SMWB-HLM100-250LB-ME-M1 Skid Mount Megatower™ is a versatile, high-power equipment tower designed for rugged outdoor applications like construction, events, and industrial operations. This hydraulic tower can elevate a 250-pound payload up to 100 feet, offering a durable and stable solution for large-area illumination or equipment deployment. The seven-stage mast features heat-treated aluminum with a galvanized finish, ensuring corrosion resistance and structural integrity.

Equipped with advanced safety features, the tower includes an auto-retract function that automatically lowers the mast in high winds, improving safety in adverse conditions. When guy wires are used, the system can withstand up to 50 mph winds before retracting. A robust cold weather package further extends the unit’s operating range, making it suitable for extremely cold climates with a de-icing hydraulic system and insulated control housing.

The system runs on multiple voltage options, including 120/240V single-phase or three-phase configurations, making it adaptable to a variety of power sources. This tower is skid-mounted, providing a stable, durable platform for remote sites, and includes a front storage area for tools and accessories.

Key Features

  • Multiple Voltage Compatibility: Operates on 120/240V single phase, 240V/120 three-phase, or 208Y/120 three-phase.
  • Heavy-Duty Payload Capacity: Supports up to 250 lbs of equipment for flexible applications.
  • Wind-Resistant Design: Withstands up to 50 mph winds with guy wires, ensuring stability in challenging conditions.
  • Convenient Skid Mount: Painted for corrosion resistance, with crane pick eyes for easy transport.
  • Cold Weather-Ready: Features de-icing system, heated battery, and cold-rated SOOW cable for reliable winter performance.

Detailed Specifications

Specification Details
Mast Height (Extended) 100 feet
Mast Height (Collapsed) 12 feet
Payload Capacity 250 lbs
Voltage Options 120/240V 1-phase, 240/120V 3-phase
Material Heat Treated 6063B/T5 Aluminum
Skid Dimensions 12' L x 5.7' W
Wind Load Rating 35 mph with standard guy wires
Cold Weather Package Included
Finish Galvanized Mast; DuPont™ Paint on Skid

Suggested Applications:

  • Construction and mining site lighting
  • Industrial equipment deployment
  • Outdoor event illumination

Package Includes:

  • LM-SMWB-HLM100-250LB-ME-M1 Skid Mount Megatower™
  • Auto retract system
  • Cold weather package with de-icing hydraulic system
