Larson Electronics 40' Self-contained Megatower™ on Skid Mount - 200lbs Payload Capacity - Auto Retract - Anchor

Product Description

Larson Electronics 40' Self-contained Megatower™ on Skid Mount - 200lbs Payload Capacity - Auto Retract - Anchor

Description

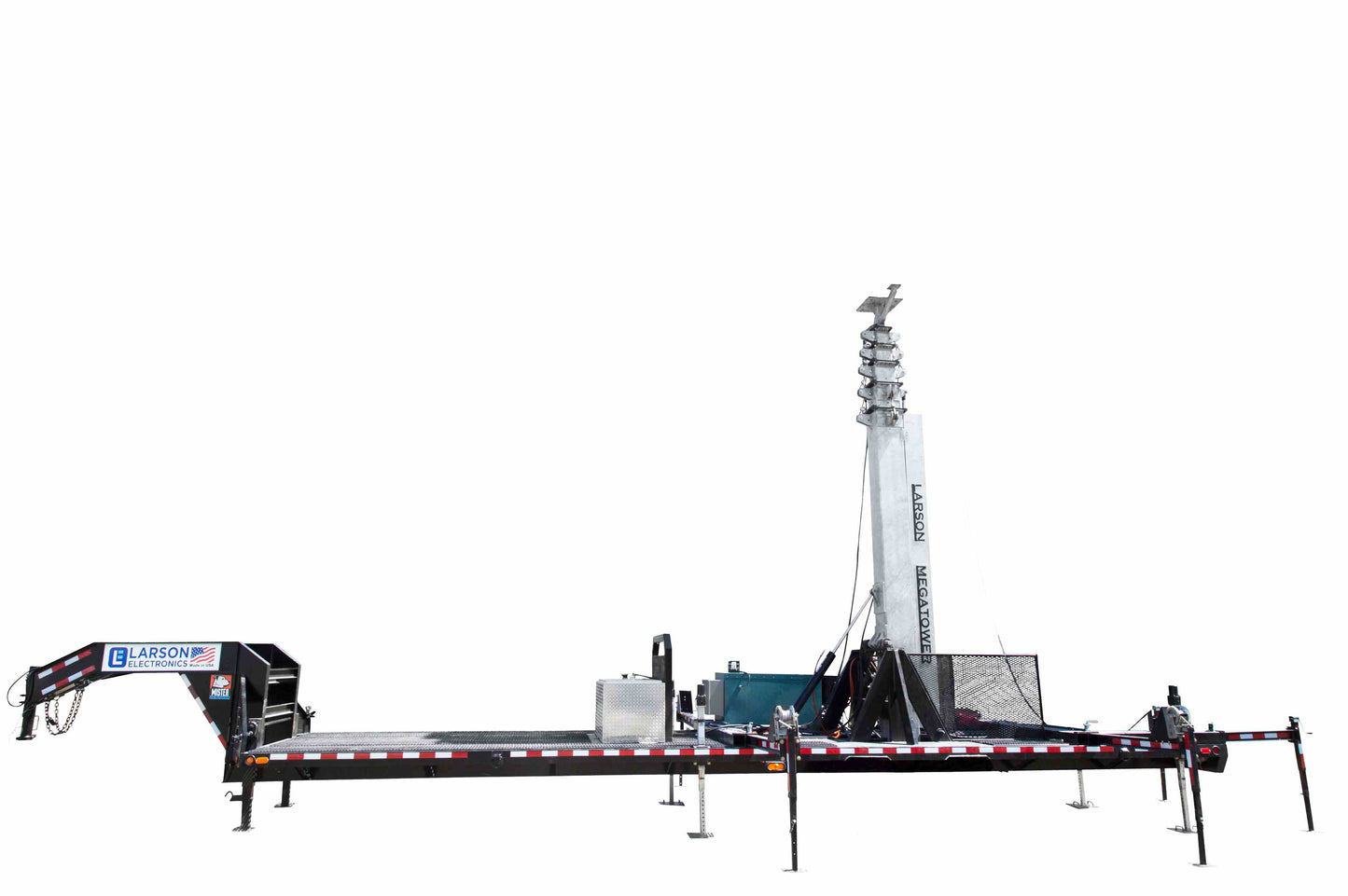

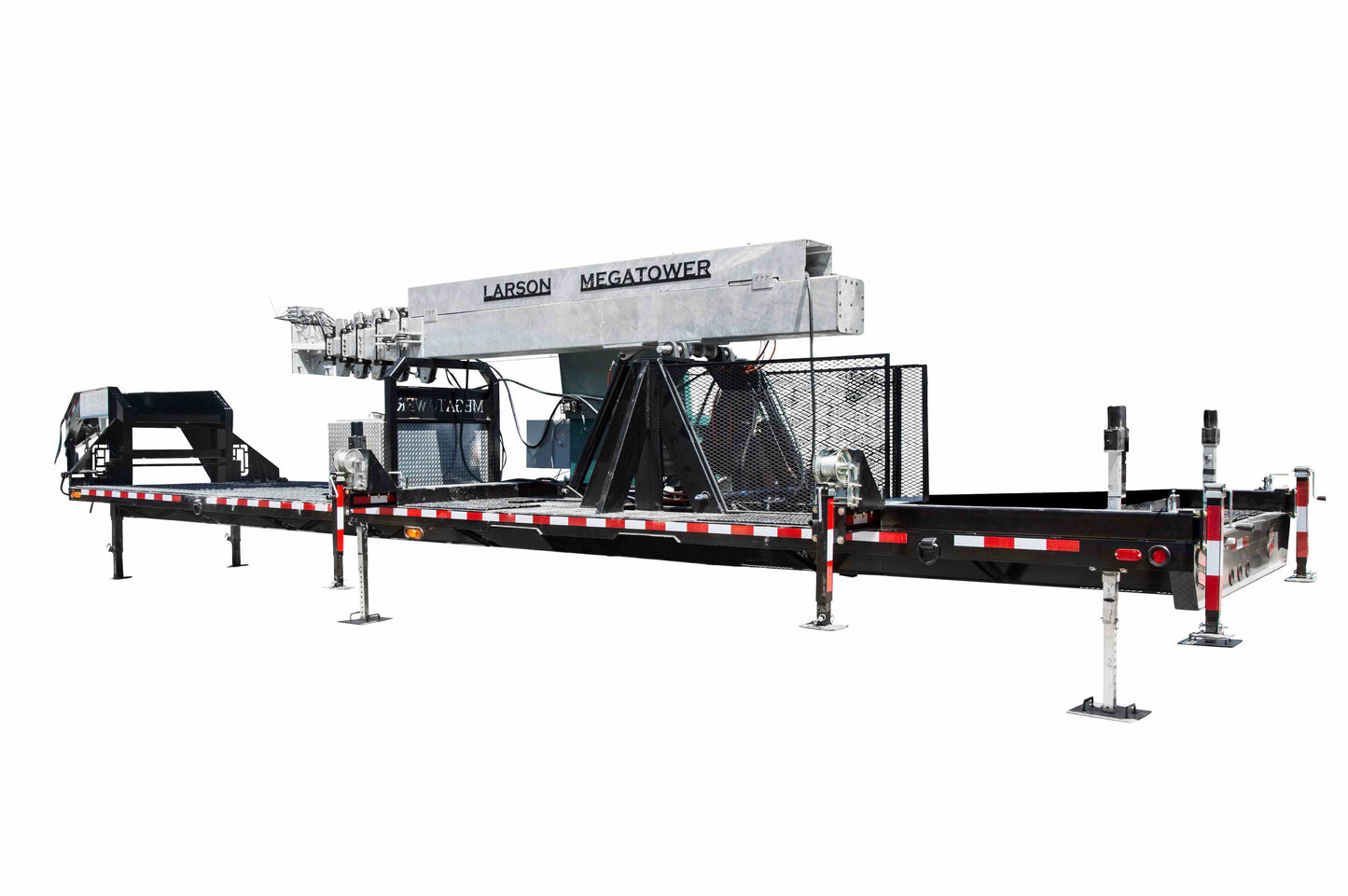

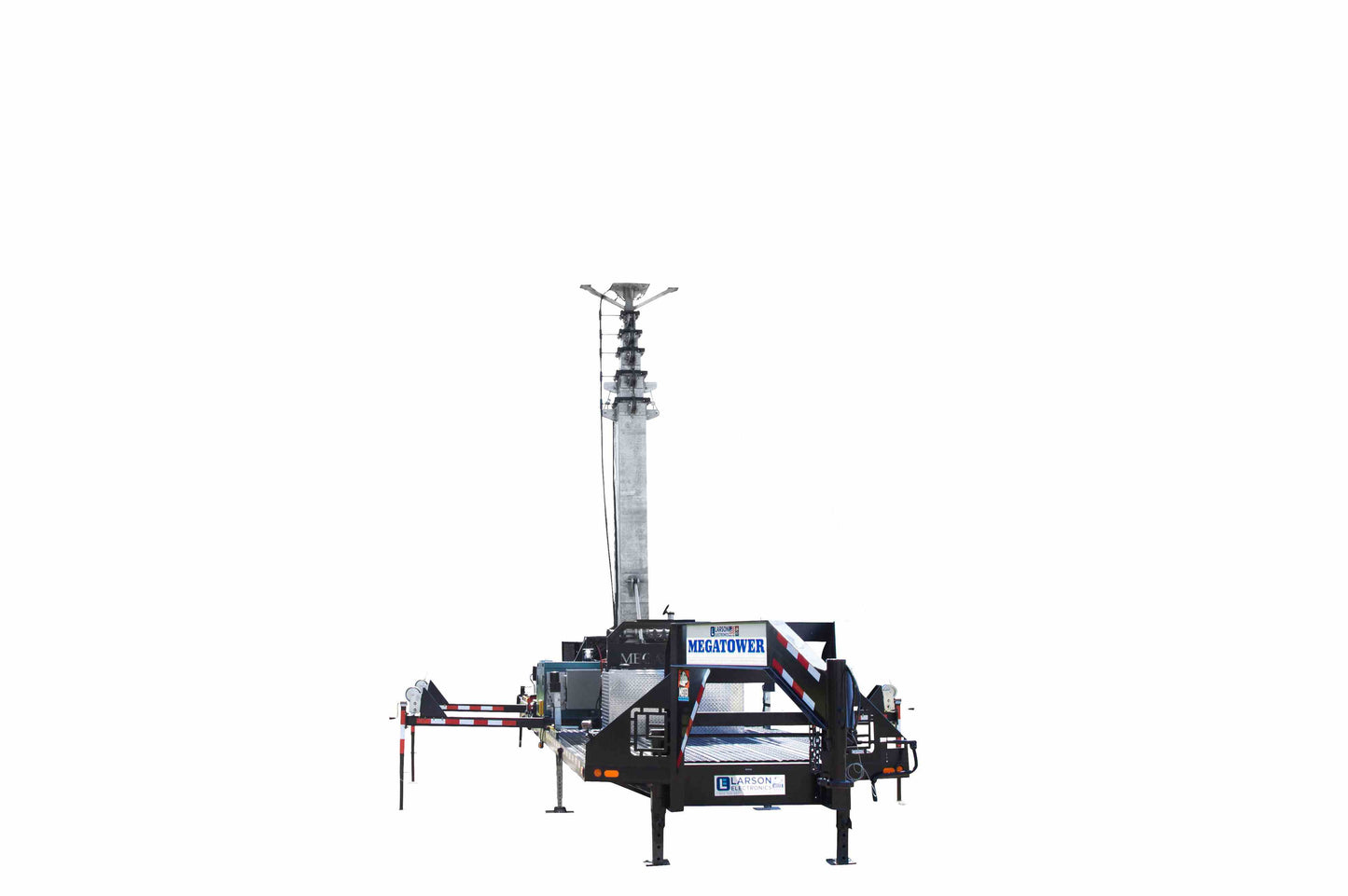

The LM-SMWB-HLM40-200LB Skid-Mounted Megatower® from Larson Electronics is a powerful, self-contained hydraulic mast system designed for large-scale lighting, camera deployment, and remote equipment needs. This seven-stage mast can elevate up to 200 pounds of equipment to heights of 40 feet, offering versatile elevation for construction sites, events, mining, and industrial applications. Constructed from heat-treated 6063B/T5 aluminum, the hydraulic mast retracts to a compact 12 feet when not in use.

The unit is equipped with an automatic retraction feature that engages in wind speeds above 35 mph, ensuring safe operation in adverse conditions. The skid mount features multiple anchor points, making it easy to secure to a concrete pad for added stability.

The LM-SMWB-HLM40-200LB is designed with a comprehensive cold weather package, including de-icing and insulation, ensuring reliable operation in extreme temperatures as low as -65°C. The hydraulic controls are fully enclosed within a weather-tight job box, and the mast is equipped with cold-weather-rated SOOW wiring for enhanced durability and flexibility in subzero climates.

Key Features

• Hydraulic Operation: Smooth, push-button control for mast deployment and retraction.
• High-Strength Mast Construction: Galvanized finish provides corrosion resistance and durability.
• Auto-Retract Wind Monitoring: Protects mast from wind damage by automatically retracting at wind speeds of 35+ mph.
• Cold Weather Package: Includes de-icing system, heated battery blanket, and insulated hydraulic controls for subzero conditions.
• Easy Transportation: Skid-mounted with crane pickeyes for air or crane transport, and equipped with outriggers for stability.

 Detailed Specifications

Suggested Applications:

• Construction and Industrial Lighting
• Mining and Remote Operations
• Large Event Lighting
• Job Site Illumination and Camera Deployment

Package Includes:

• LM-SMWB-HLM40-200LB Hydraulic Mast
• NEMA 3R Control Box
• De-icing System with Cold Weather Protection

Important Notes:

Images are for illustrative purposes. Please review specifications carefully before ordering.

Available Documentation:

CAD Files, Dimensional Drawings, Wiring Diagrams.
