Product Description

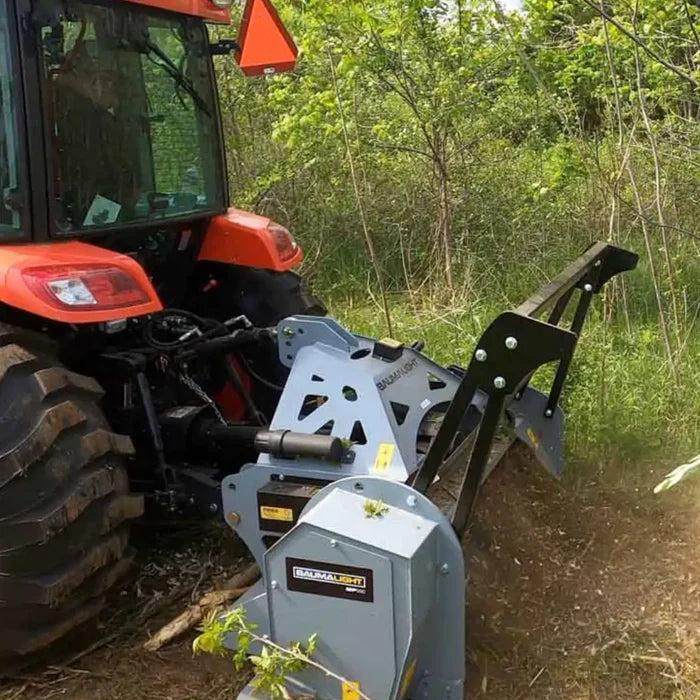

Baumalight MP560 Brush Mulcher | Cutting Width 60" | Up to 75 HP | For PTO On Tractors
DESCRIPTION

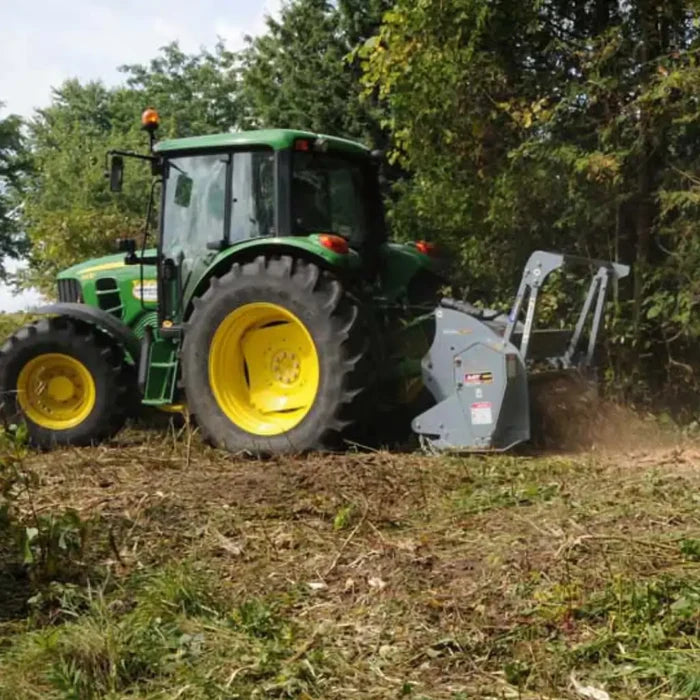

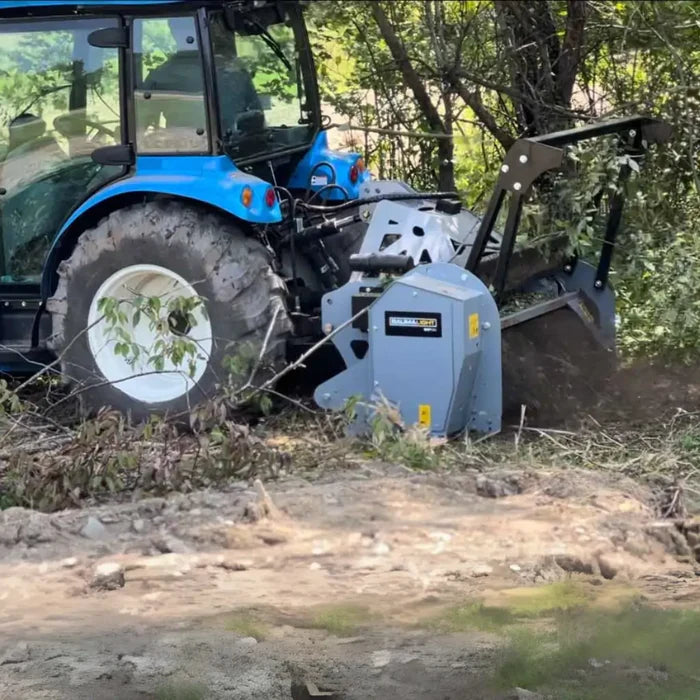

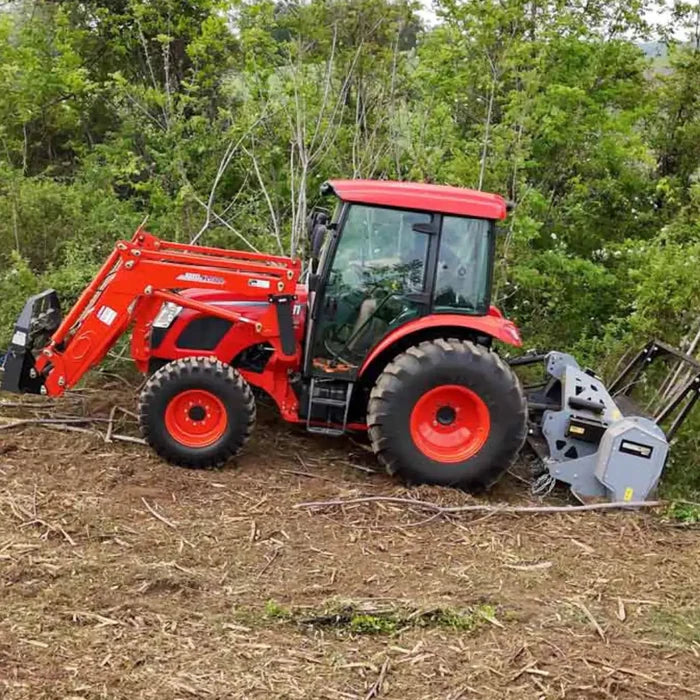

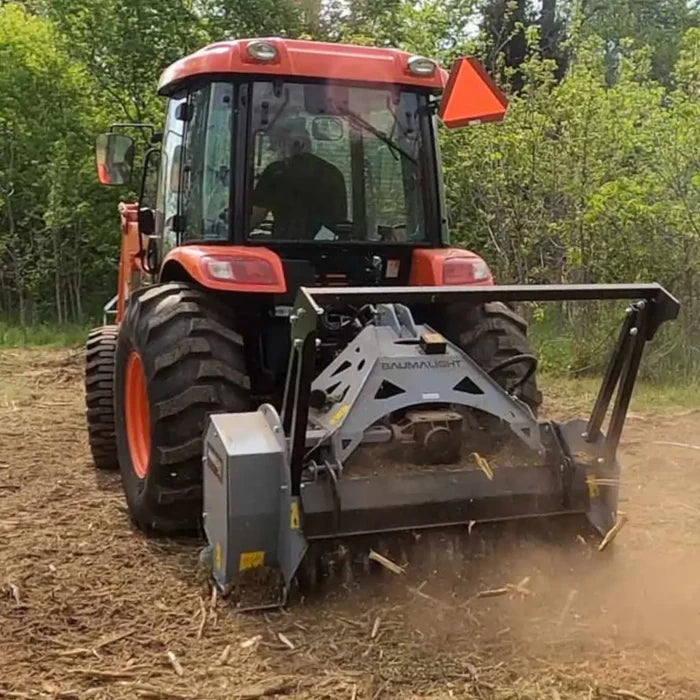

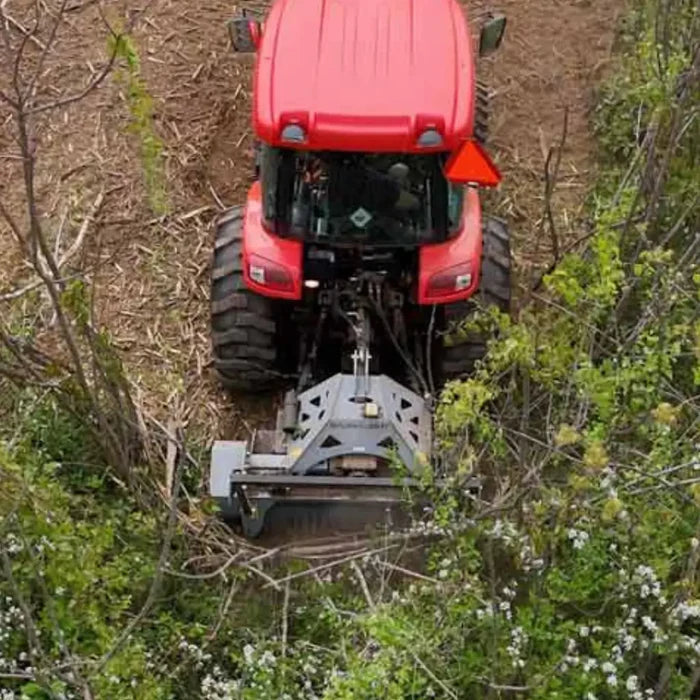

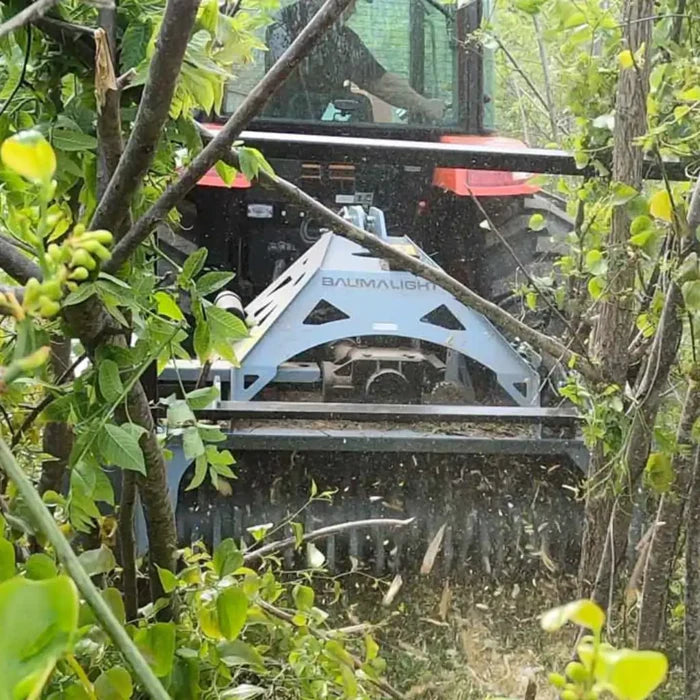

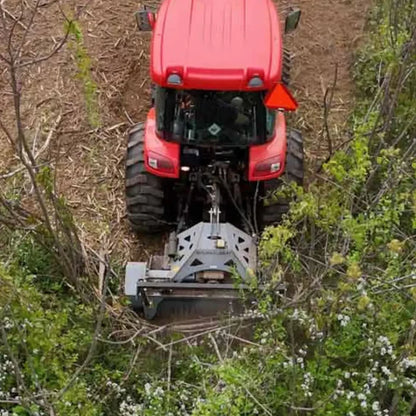

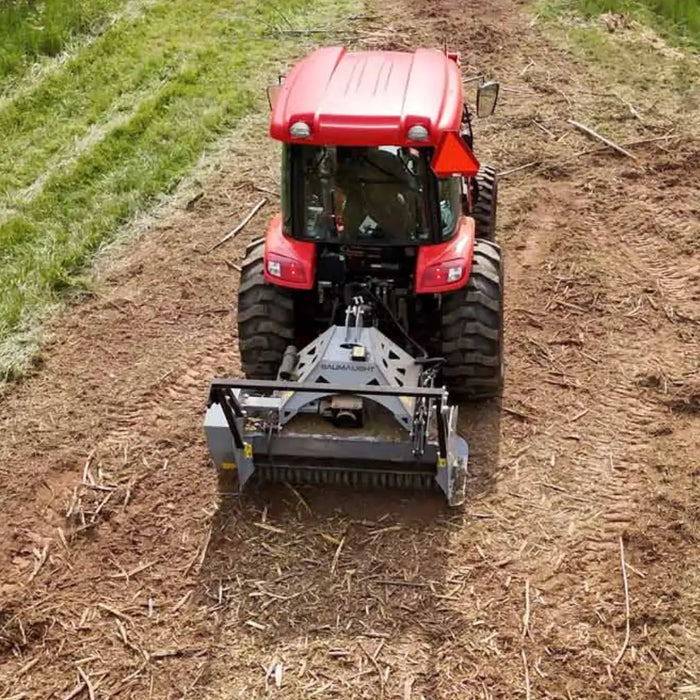

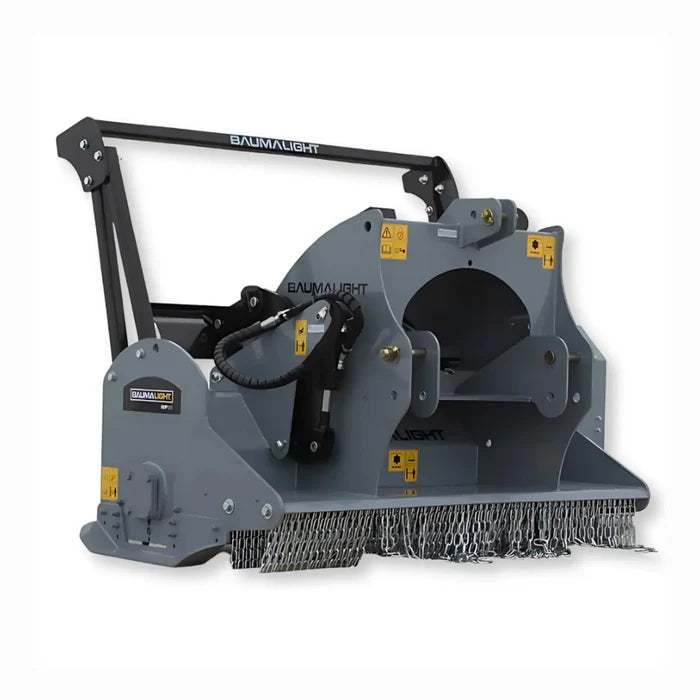

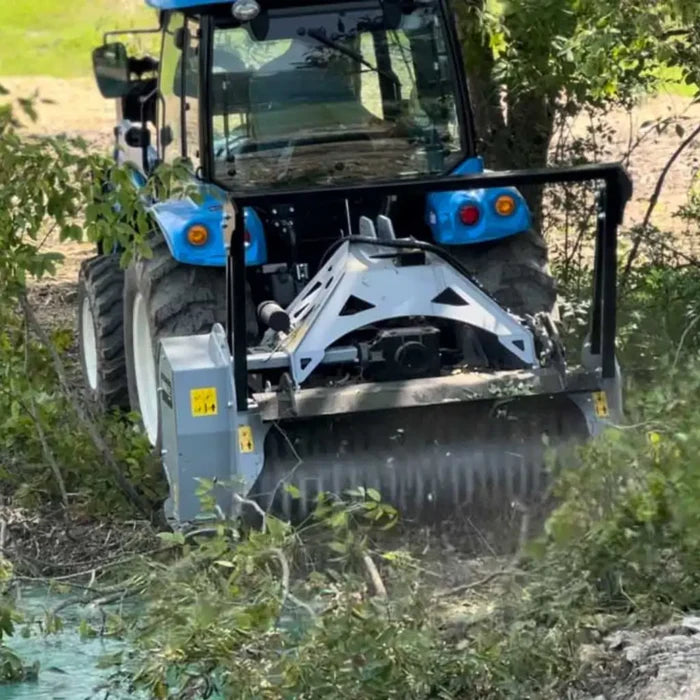

Experience the efficiency of Baumalight's MP560 Fixed Tooth Brush Mulcher to transform your land management tasks. Designed for PTO-driven tractors, this mulcher excels in maintaining fence lines and tackling entry-level contracting work. It features two robust tooth designs: Planer for precise, efficient cuts and Ripper for durable, impact-resistant shredding. Its unique cutting shield adjusts to optimize mulching angles, enhancing efficiency and output.
 |
 |
 |
 |
|---|---|---|---|
Heavy Duty Frame |
Hydraulic Doors |
Optional Ripper Teeth |
Integrated Push Bar |

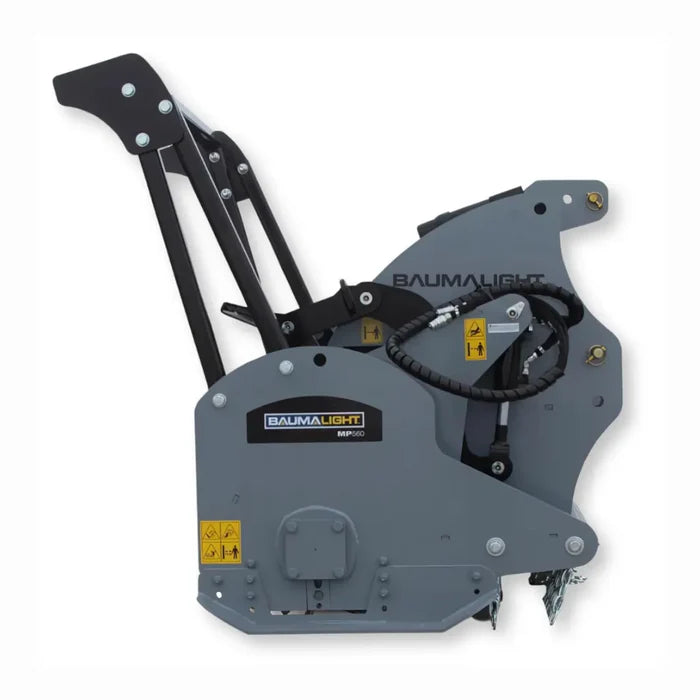

Heavy duty frame with T1 alloy tool steel sheet metal for all the main areas
|
The single debris door is controlled hydraulically from the cab
|
The ripper tooth's v-shaped design makes them less susceptible to impacts with stones
|

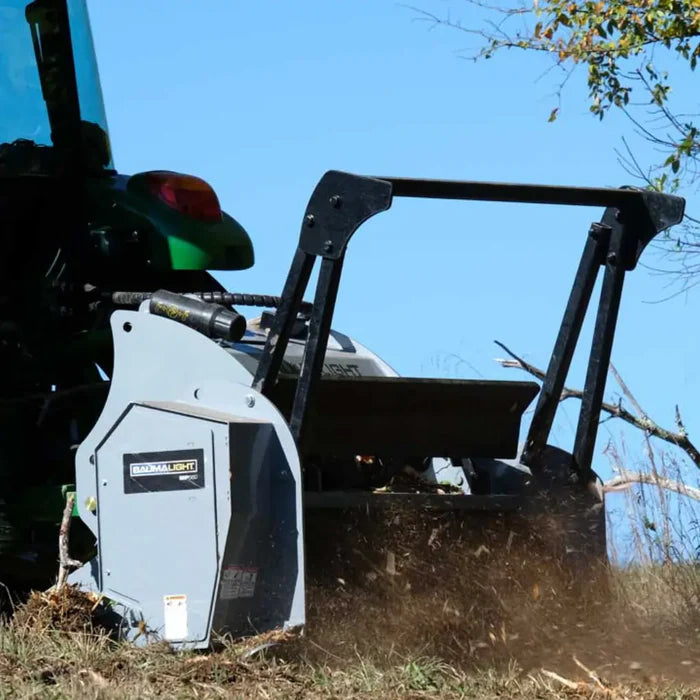

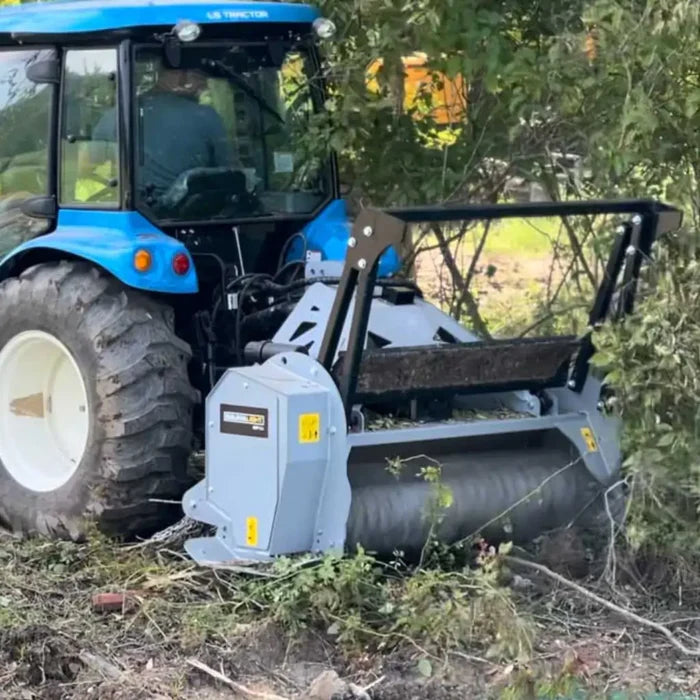

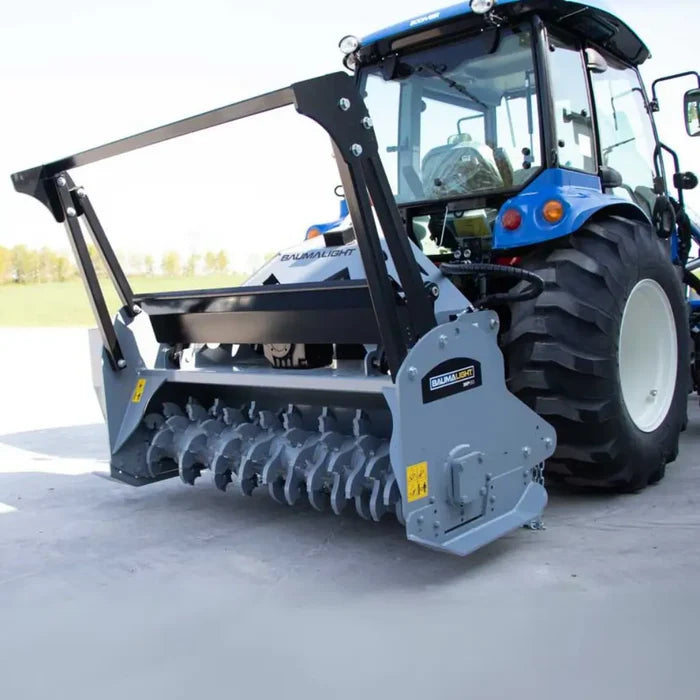

The integrated brush bar helps bend taller brush for easier mulching.
|
Key Features
- Brush Cutting Capacity: Handles brush up to 6–7" diameter (larger than MP360)
- Tractor Compatibility: Designed for tractors up to 75 HP (engine horsepower)
- Hitch Size: Fits Category 2 three-point hitch setups
- Cutting Style: Equipped with carbide-tipped bolt-in teeth for durability and heavy-duty mulching
- Tooth Part Number: Uses P5000 teeth
- Number of Cutters: 92 cutters for aggressive brush clearing
-
Rotor Specs:
- Rotor Width: 60"
- Rotor Diameter (tool tips): 15"
- Rotor Shaft Size: 2"
- Rotor Weight (with tools): 575 lbs
- Cutting Depth: Adjustable from 1.5" above grade to 1" below grade for versatile clearing
- System Protection: Integrated slip clutch to safeguard gearbox and PTO drive system
- Drive Speed: Operates at 540 RPM PTO speed
- Gearbox Spline Size: 1-3/8" standard tractor spline
- Unit Weight: Approx. 2,145 lbs for stability and robust performance
- Hydraulic Requirements: Requires 1 hydraulic remote for operation
- Durability Enhancements: Heavy-duty gearbox and reinforced design for long lifespan under tough conditions
MAXIMUM BRUSH CUTTING SIZES
(Brush Diameter in Inches)
500 Series
Model |
Tractor Speed |
RPM |
45 HP |
50 HP |
60 HP |
65 HP |
68 HP |
75 HP |
100 HP |
125 HP |
|---|---|---|---|---|---|---|---|---|---|---|
| MP560 | Low Gear / Creeper / Hydrostatic | 1800 | 1" 2" 3" |
1.5" 2.5" 4" |
2" 3" 5" |
-- | 2.5" 4" 6" |
-- | -- | -- |
| MP572 | Low Gear / Creeper / Hydrostatic | 1800 | -- | -- | -- | 2.5" 4" 6" |
-- | 3" 5" 8" |
3.5" 6" 10" |
4" 7" 12" |
Detailed Specifications
Comparison Chart |
|||||||
|---|---|---|---|---|---|---|---|
Feature |
MP330 |
MP348 |
MP360 |
MP560 |
MP572 |
MP972 |
Large Shaft |
| Path Width | 41.75" | 60" | 72" | 75" | 87" | 84" | D002134 |
| Rotor Width | 30" | 48" | 60" | 60" | 72" | 72" | — |
| Maximum Engine HP | 40 | 50 | 55 | 75 | 125 | 135 | 90 - 155 PTO HP |
| Maximum PTO HP | 35 | 40 | 45 | 65 | 115 | 125 | Do not exceed 165 Engine HP |
| Minimum Engine HP | 15 | 25 | 30 | 45 | 50 | 90 | — |
| Cutting Depth | Level | Level | Level | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | Level to 2" Below Grade | — |
| Cutting Style | High Speed Teeth | High Speed Teeth | High Speed Teeth | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Double Tipped | — |
| Tooth Part Number | H3000 | H3000 | H3000 | P5000 | P5000 | R9000 | — |
| Number of Cutters | 36 | 60 | 74 | 92 | 112 | 43 | — |
| Rotor Shaft Size | 2" | 2" | 2" | 2" | 2" | 2" | — |
| Rotor Diameter (tool tips) | 15" | 15" | 15" | 15" | 15" | 18.5" | — |
| Rotor Weight (with tools) | 188 lbs | 230 lbs | 315 lbs | 575 lbs | 700 lbs | 1,105 lbs | — |
| Hitch Size | CAT 1 | CAT 1 | CAT 1 | CAT 2 | CAT 2 | CAT 2 or 3 | — |
| Quick Hitch Compatibility | Yes | Yes | Yes | No | No | No | No |
| Drive Speed | 540 | 540 | 540 | 540 | 1,000 | 1,000 | — |
| Drive Speed Options | — | — | — | 540 (Max Engine HP 110) | 540 (Max Engine HP 110) | — | — |
| Gearbox Spline Size | 1-3/8" | 1-3/8" | 1-3/8" | 1-3/8" | 1-3/8" | 1-3/8" | — |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

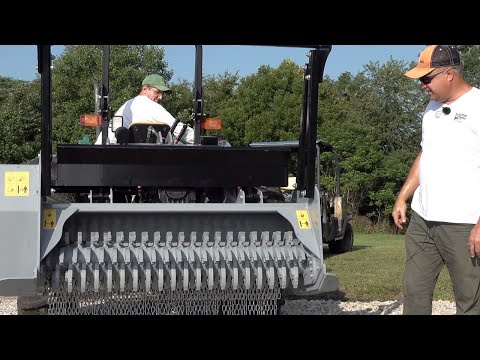

Videos
