Larson Electronics 65' Hydraulic Megatower™ on 21' Trailer - (40) 150W LED Lights - 11KW Genset w/ 110 Gallon Tank
Larson Electronics 65' Hydraulic Megatower™ on 21' Trailer - (40) 150W LED Lights - 11KW Genset w/ 110 Gallon Tank
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Larson Electronics 65' Hydraulic Megatower™ on 21' Trailer - (40) 150W LED Lights - 11KW Genset w/ 110 Gallon Tank
Description

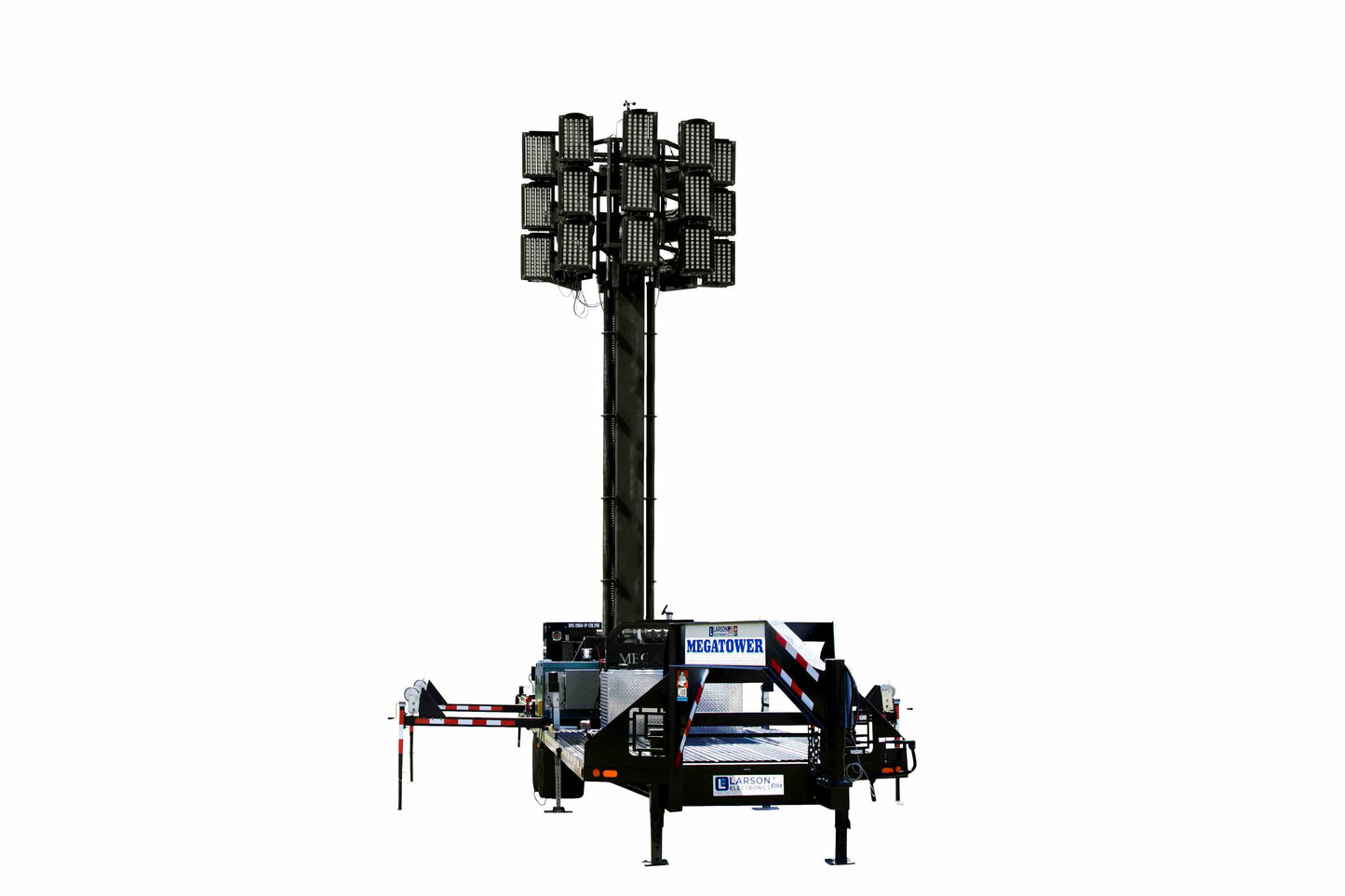

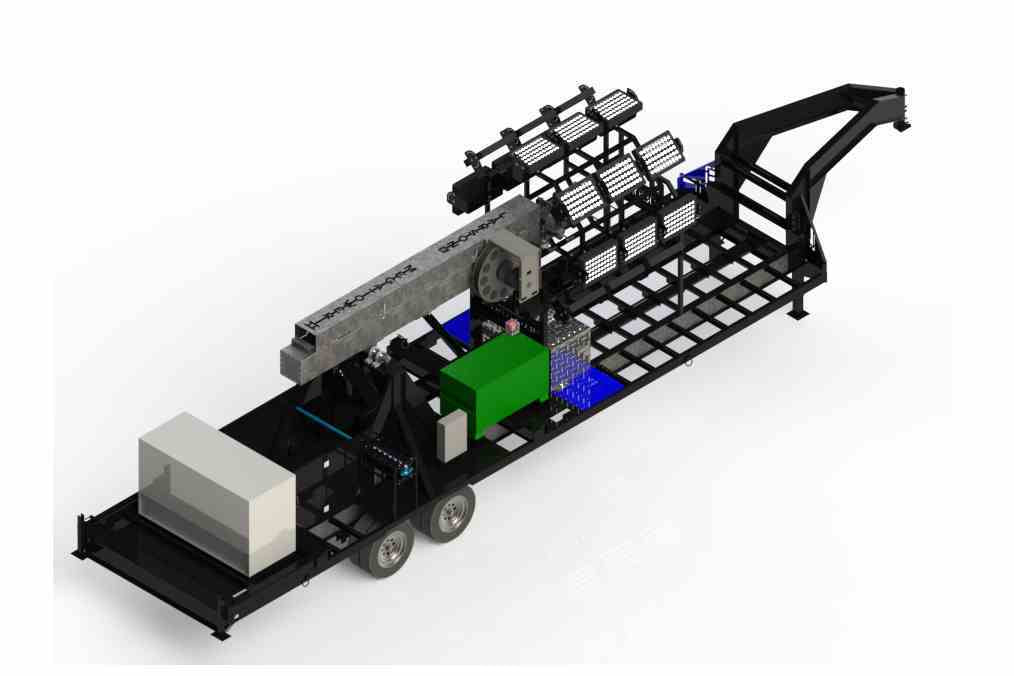

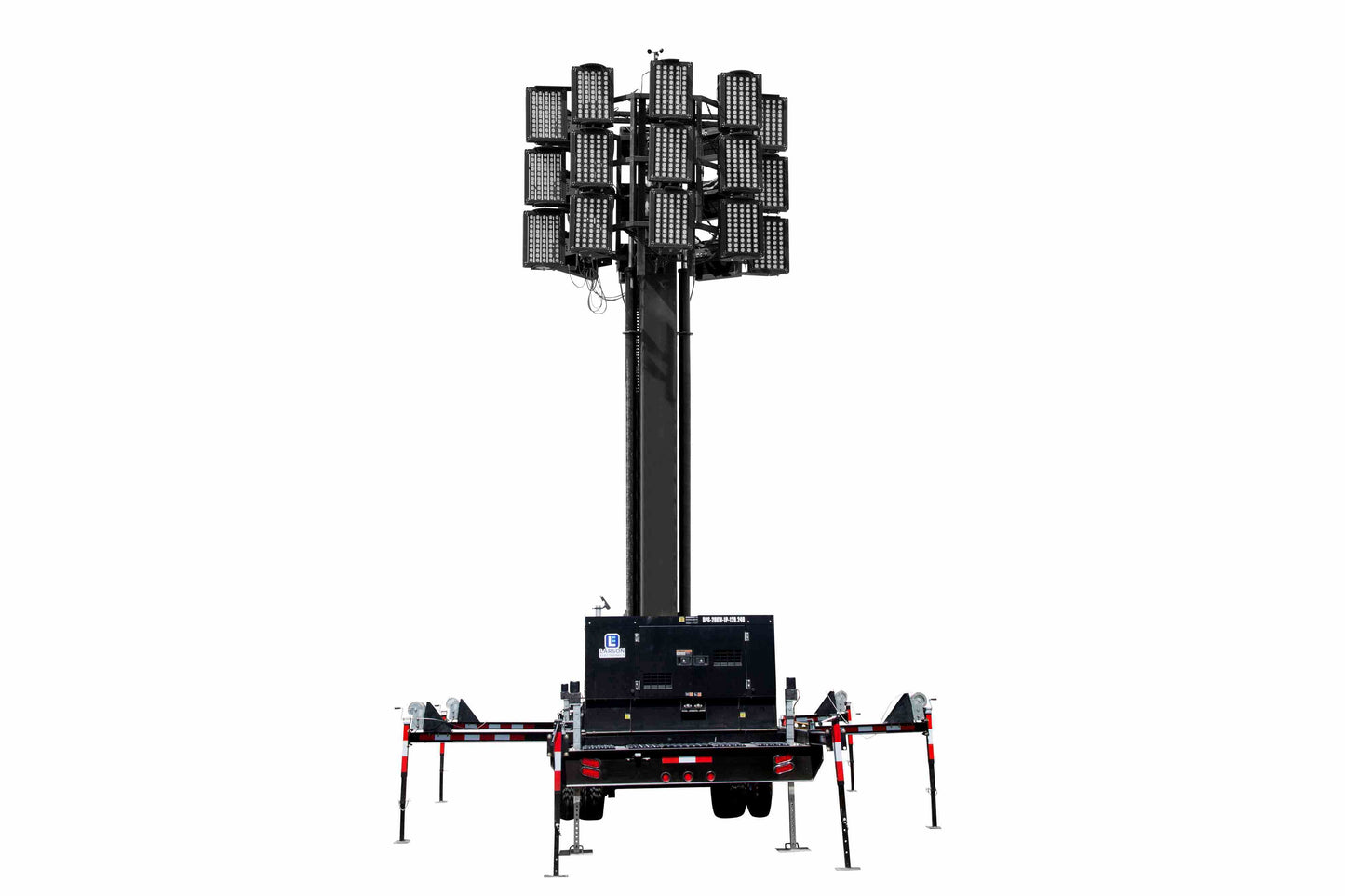

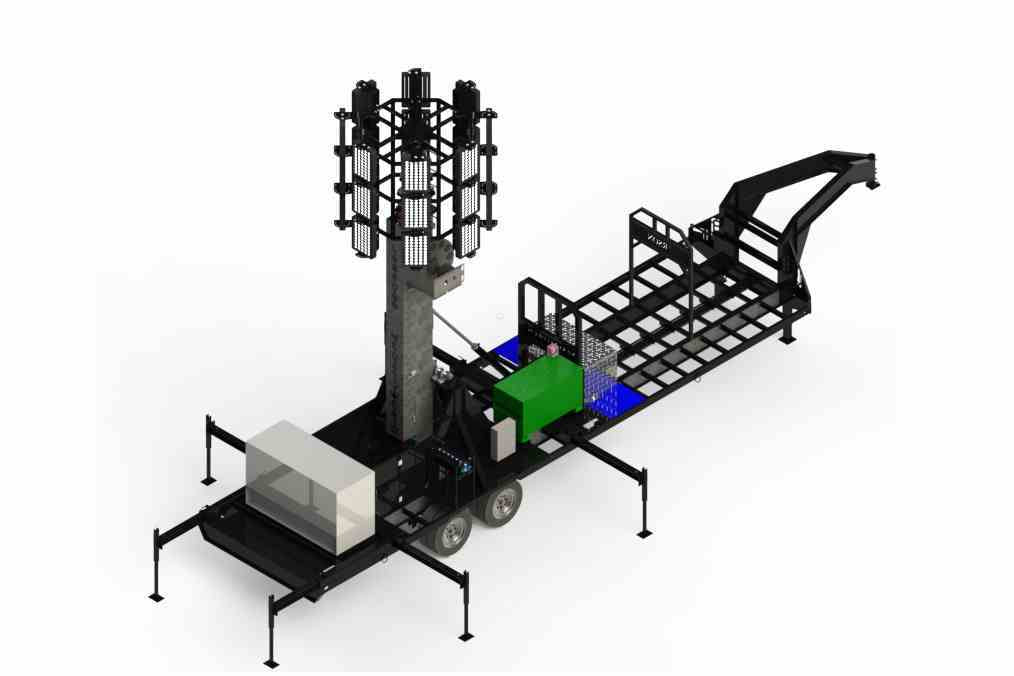

The WCDE-11-HLM65-40XORS-LED LED Light Plant by Larson Electronics is a towable, high-powered light tower designed to deliver exceptional illumination for large-scale applications. The light plant features forty 150-watt LED lights, each producing 16,000 lumens, for a total output of 640,000 lumens. Ideal for events, construction sites, mining, and industrial applications, this unit is capable of running for up to 43 hours continuously without refueling, supported by an 11KW Kubota diesel generator and a 110-gallon fuel cell.

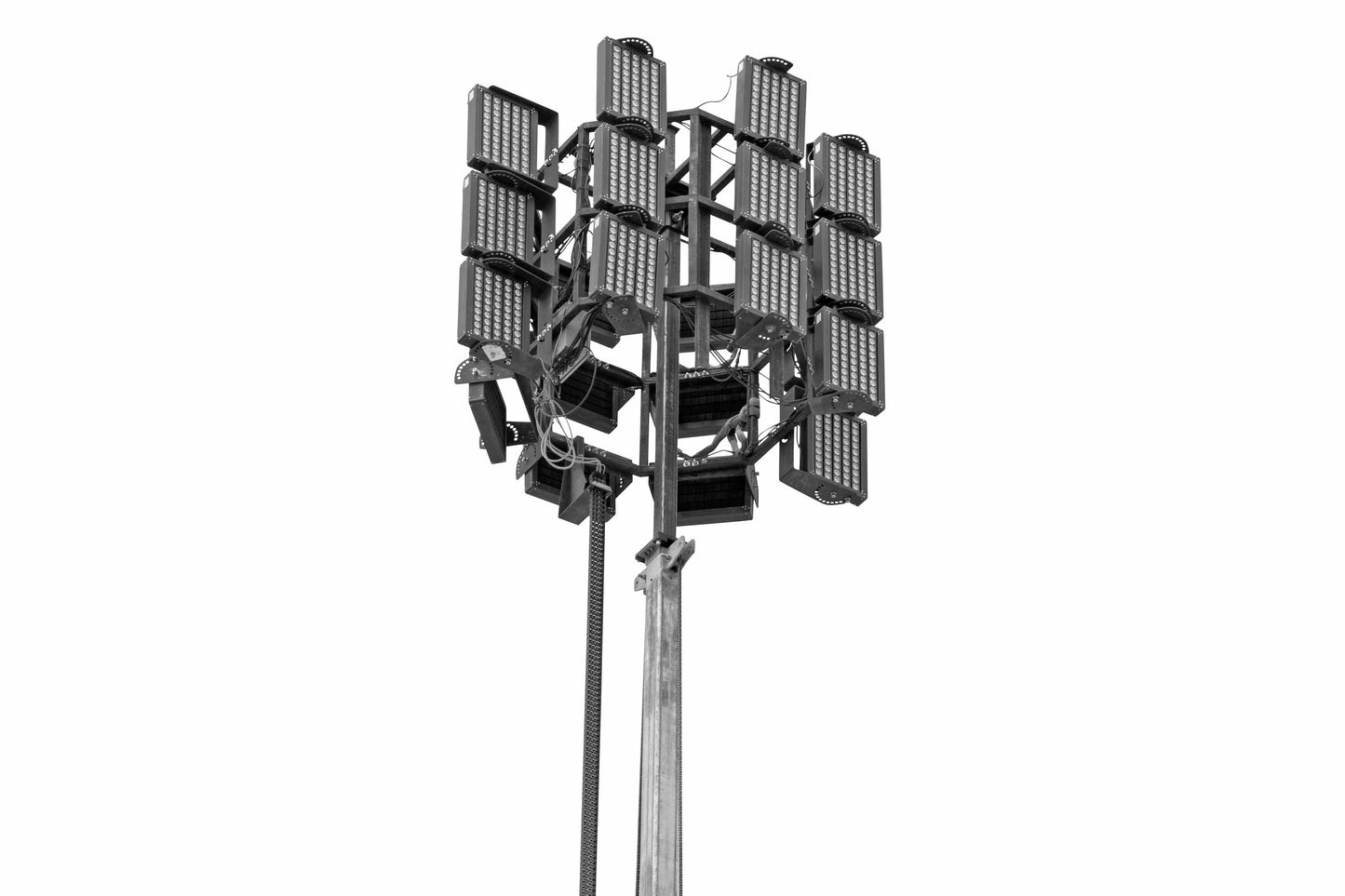

The seven-stage hydraulic mast can be adjusted from 22 to 65 feet, with a maximum height of 74 feet when fully extended with the light head assembly. Built from heat-treated aluminum, the mast is designed to withstand harsh conditions, while the LED modules deliver efficient, cool lighting that is safer and more environmentally friendly than traditional lighting options.

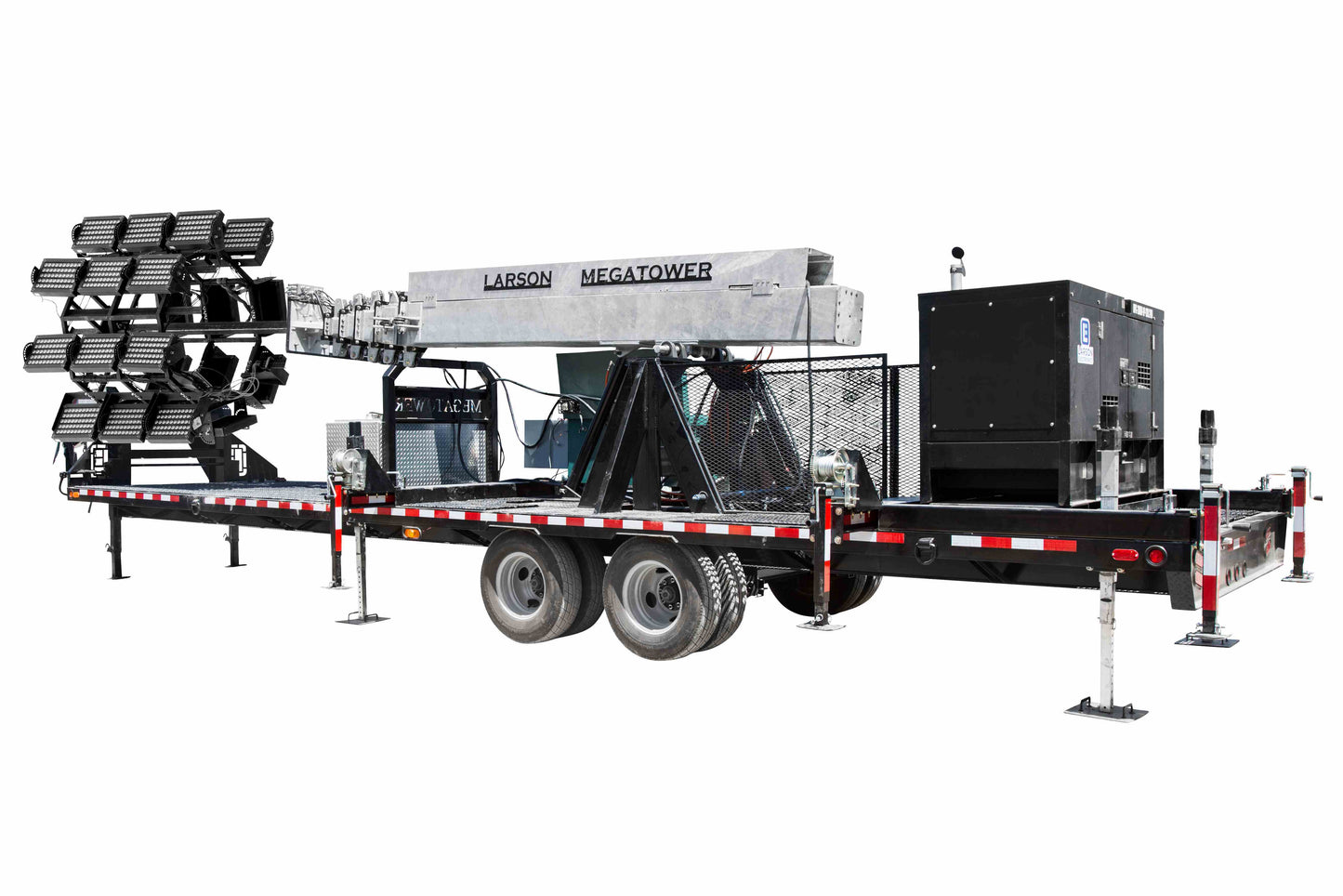

Fitted with a cold weather package, the WCDE-11-HLM65-40XORS-LED is engineered to perform in extreme climates. The hydraulic system includes de-icing fluid, heated components, and is housed in insulated enclosures. The durable 8" box steel trailer is equipped with torsion axles, electric brakes, and hand crank jacks for stability on uneven ground, making it both powerful and reliable in challenging work environments.
Key Features
- Extended Runtime: Up to 43 hours of continuous operation on a full tank, with options for refueling to extend runtime.
- LED Efficiency and Safety: IP67 waterproof-rated LEDs operate at cooler temperatures and are 100% recyclable.
- Enhanced Stability: Six-point outrigger system provides stability, with wind resistance up to 95 mph when lowered.
- Cold Weather Package: Equipped with de-icing, heated hydraulic components, and protected cabling for extreme climates.
- Hydraulic Control: Easy deployment and adjustment via push-button hydraulic system.
Detailed Specifications
Genset Specifications
| Specification | Details |
|---|---|
| Generator | 11KW Kubota GL11000TM |
| Engine | Kubota D722, 16.3 HP |
| Fuel Tank Capacity | 110 Gallons |
| Sound Level | 68 dB at 23 feet |
| Cold Weather Package | Factory installed |
Light Mast Specifications
| Specification | Details |
|---|---|
| Mast Height (Collapsed/Extended) | 22’ to 65’ |
| Lamp Type | Cree XHP35® LED, 150W per lamp |
| Total Lumens | 640,000 (16,000 per lamp) |
| Voltage | 120/240V Single Phase |
| Operation | Hydraulic |
Trailer Specifications
| Specification | Details |
|---|---|
| Dimensions | 21’ L x 8’ W |
| Axles | Dual 7,000-lb torsion with electric brakes |
| Leveling Jacks | Six 10,000-lb manual crank jacks |
| Outriggers | Extendable 6’ for added stability |
| Finish | Industrial-grade Dupont™ paint |
Applications:
- Large Event Lighting
- Construction and Mining Sites
- Industrial and Outdoor Illumination
- Extreme Weather Locations and Cold Environments
In Package
- (1) WCDE-11-HLM65-40XORS-LED Megatower LED Light Plant
- Cold Weather Package: Includes de-icing system, heated hydraulic lines, and battery warmer.
Important Notes:
This configuration may vary from display images. Contact for custom builds or additional options.
