Larson Electronics 65' Self-contained Megatower™ on Skid Mount - (20) 500W LEDs - 20KW Genset, 110G Tank - Auto Retract

Larson Electronics 65' Self-contained Megatower™ on Skid Mount - (20) 500W LEDs - 20KW Genset, 110G Tank - Auto Retract

Regular price $297,162.75
Regular price Sale price $297,162.75
Sale Sold out
Customizable
Fast
24/7 Support
  • Powerful LED Illumination: Twenty 500W LEDs delivering 1,350,000 lumens for extensive lighting coverage.
  • Extended Runtime: Operates up to 110 hours continuously on a 110-gallon fuel tank, with a 1-gallon-per-hour consumption rate.
  • Cold Weather Package: Includes de-icing, a heated battery blanket, and cold-rated hydraulic lines for reliable cold-climate performance.
  • Auto-Retract Safety System: Automatically lowers the mast in high winds to ensure safe operation.
  • Versatile Height: Hydraulic mast extends from 22’ to 65’, reaching 74’ with the light assembly for optimal elevation.
View full details

Product Description

Larson Electronics 65' Self-contained Megatower™ on Skid Mount - (20) 500W LEDs - 20KW Genset, 110G Tank - Auto Retract

 Description

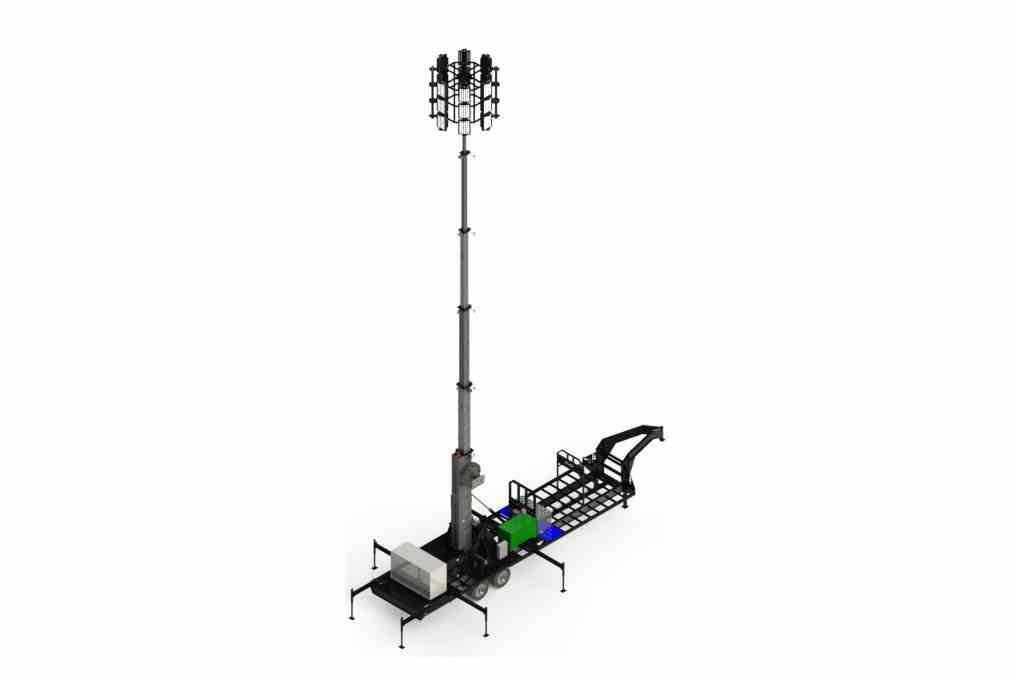

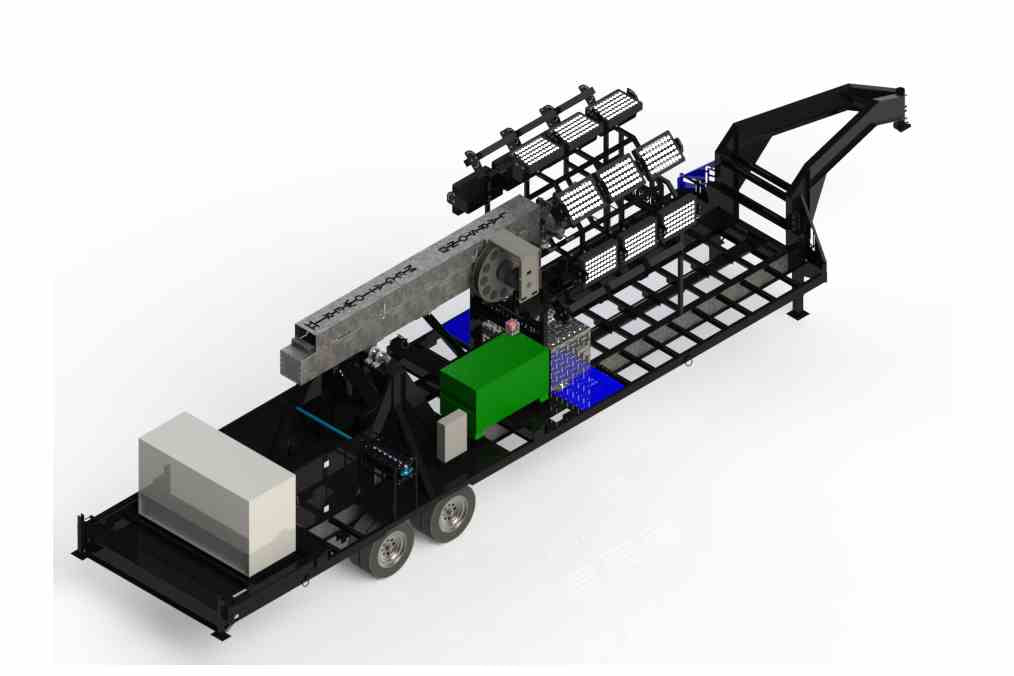

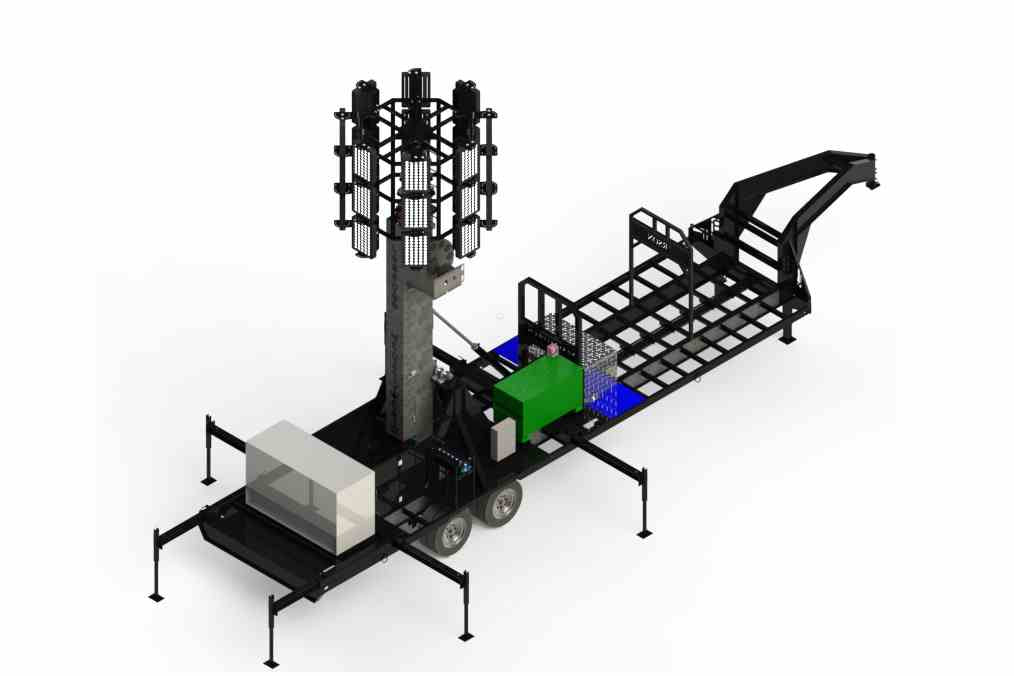

The SMDE-11-HLM65-16X500LTL-LED from Larson Electronics is a robust, skid-mounted LED light plant, purpose-built for large-scale illumination in challenging environments, such as mining, construction, and industrial operations. This mobile light tower operates with a 20KW Perkins generator and offers a runtime of up to 110 hours on a single fuel tank. With a seven-stage hydraulic mast that reaches 65 feet (or 74 feet with the light head assembly), this light plant is optimized for extreme coverage and safety. The auto-retract feature responds to winds above 35 mph, ensuring stability in unpredictable conditions.

Outfitted with twenty 500-watt LED light heads, this unit produces a staggering 1,350,000 lumens. The lights are IP67-rated and designed for optimal heat management, enhancing their durability in harsh environments. The system operates at a rate of 1 gallon of fuel per hour with LEDs on, allowing for prolonged operation without frequent refueling, making it ideal for continuous site lighting.

The unit includes a factory-installed cold weather package, which features de-icing components, cold-rated hydraulic fluid, and heated battery protection, ensuring reliable performance in sub-zero conditions. Its skid-mount design provides excellent stability, and with the 4-point outrigger system, the SMDE-11-HLM65-16X500LTL-LED is built to handle rugged terrains.

Key Features

  • High Output Lighting: Delivers an impressive 1,350,000 lumens, covering large work areas effectively.
  • Wind Safety Auto-Retract: Automatically retracts when wind speeds exceed 35 mph, re-deployable to any preferred height.
  • Industrial-Grade Build: Heat-treated aluminum mast with galvanized finish and industrial-grade skid mount.
  • Cold-Ready: Operates in extreme cold, equipped with low-temp rated components and battery heating systems.
  • Energy Efficient: LED technology runs cooler and more efficiently than traditional lighting, reducing environmental impact.

Detailed Specifications

Genset Specifications

Specification Details
Engine Perkins 28.9 HP, liquid-cooled, 4-cycle
Generator Output 20KW Stamford Brushless
Voltage 120/240V Single Phase
Fuel Cell Capacity 110 Gallons
Runtime 110 Hours at 1 Gal/Hour
Sound Level 68 dB at Full Load (23 ft away)

Light Mast Specifications

Specification Details
Height (Collapsed) 22 feet
Height (Extended) 65 feet (74 feet with light assembly)
Material Heat Treated Aluminum
Operation Hydraulic with Auto-Retract

LED Light Specifications

Specification Details
Lamp Quantity 20 LED Modules
Total Wattage 10,000W (500W per lamp)
Total Lumens 1,350,000 Lumens
IP Rating IP67 Waterproof
Color Temperature 5000K

Applications:

  • Industrial Operations and Mining
  • Outdoor Event Lighting
  • Construction Sites
  • Emergency and Disaster Response Sites
  • Remote Job Site Illumination

In Package

  • (1) SMDE-11-HLM65-16X500LTL-LED Skid-Mounted LED Light Plant
  • (20) 500W LED Light Fixtures
  • Cold Weather Package: De-icing, heated battery, cold-rated components

Important Notes:

Images shown may vary from the exact configuration. Customization options available upon request.
